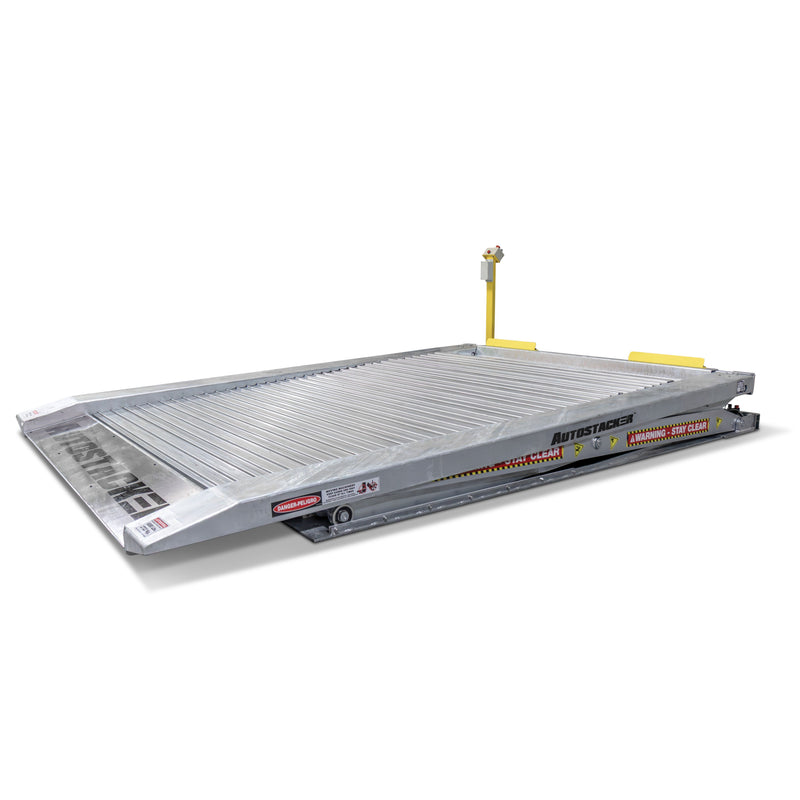

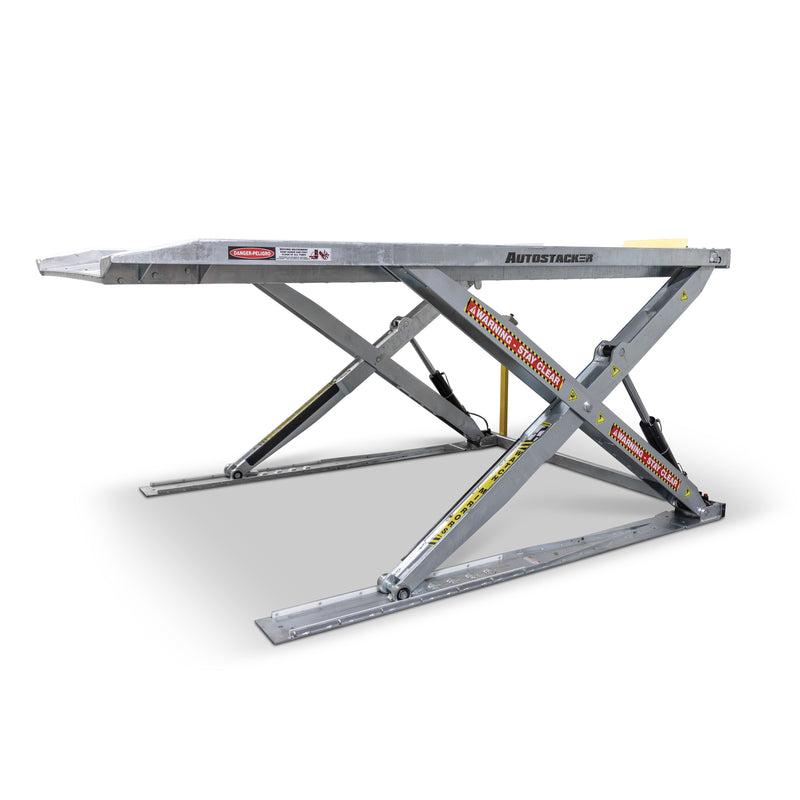

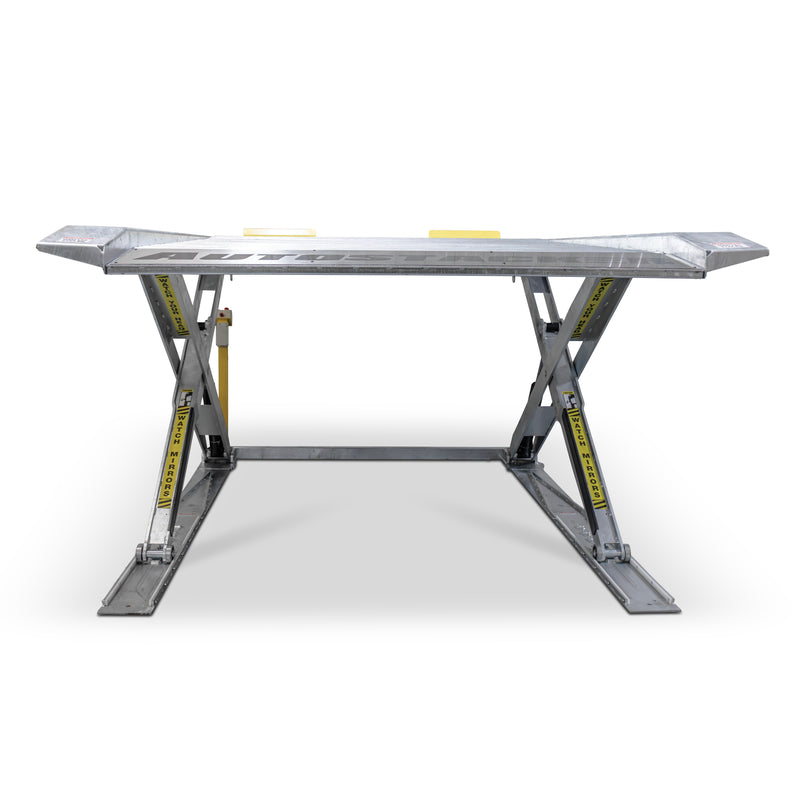

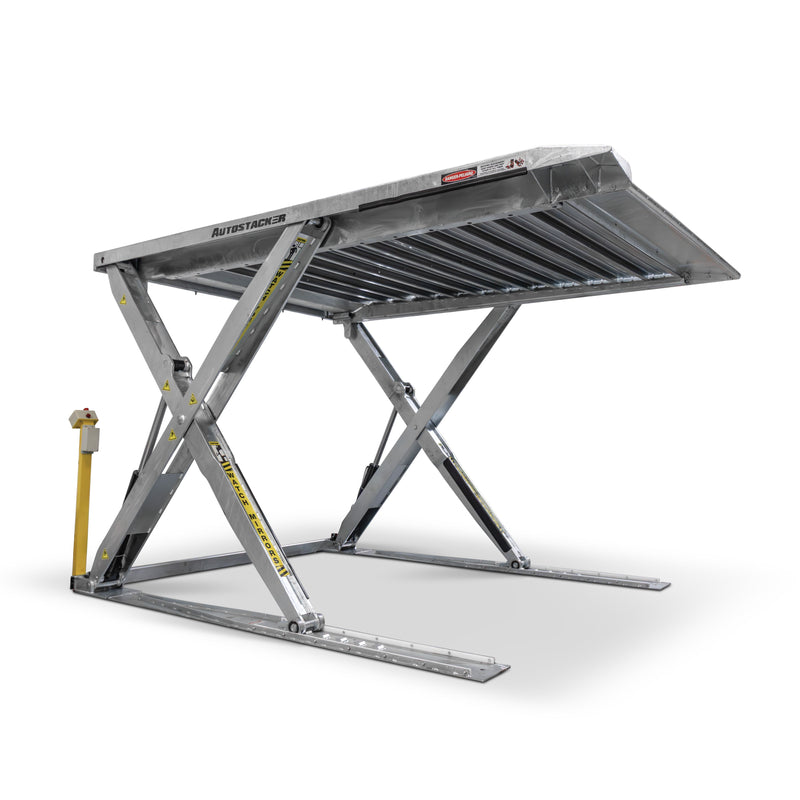

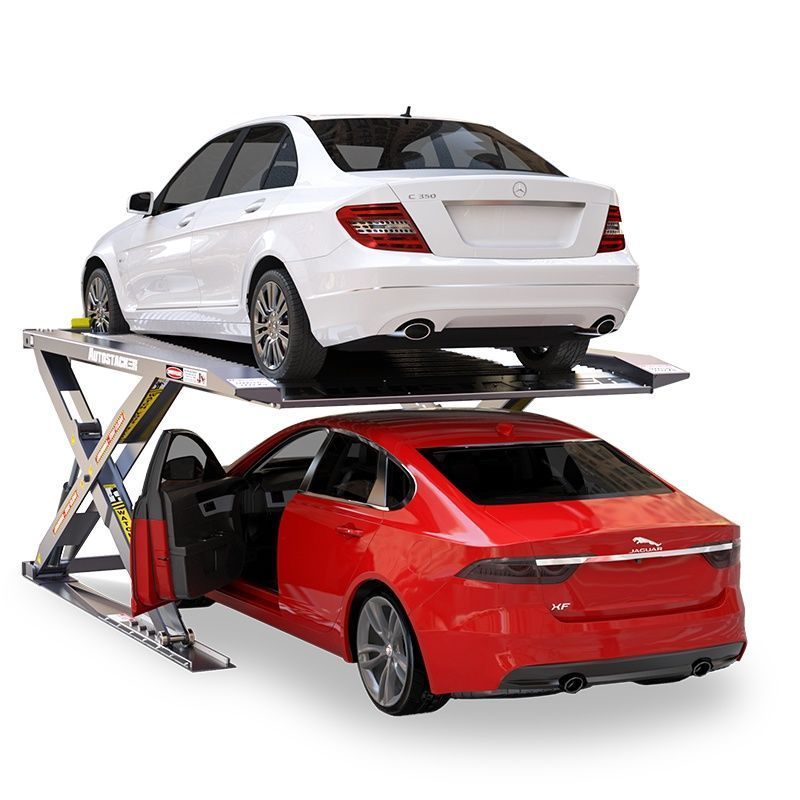

BendPak A6S - 6,000-lb. Capacity / Platform Parking Lift / Car Stacker (Autostacker)

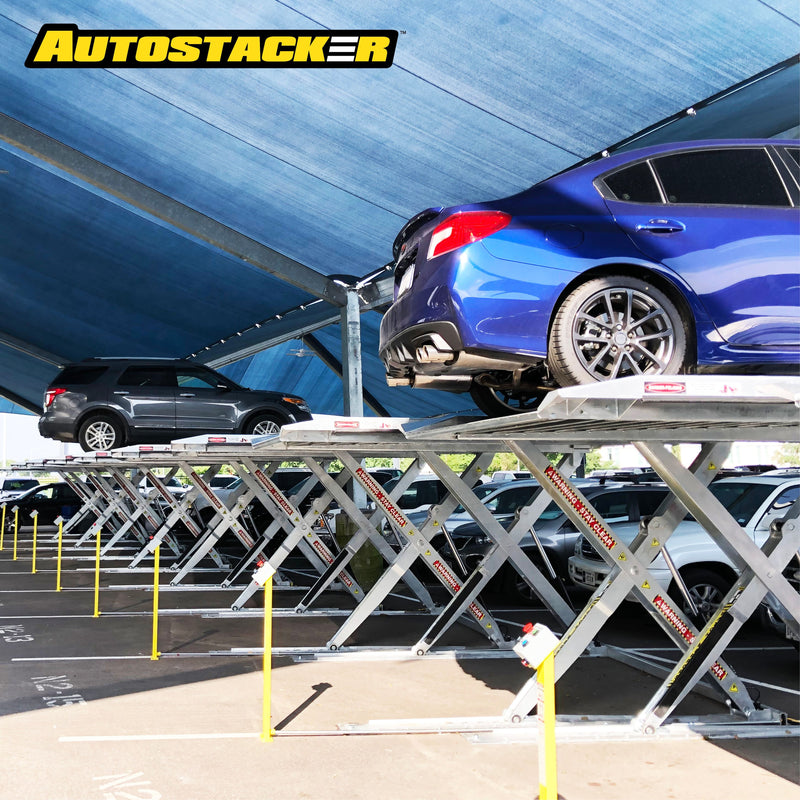

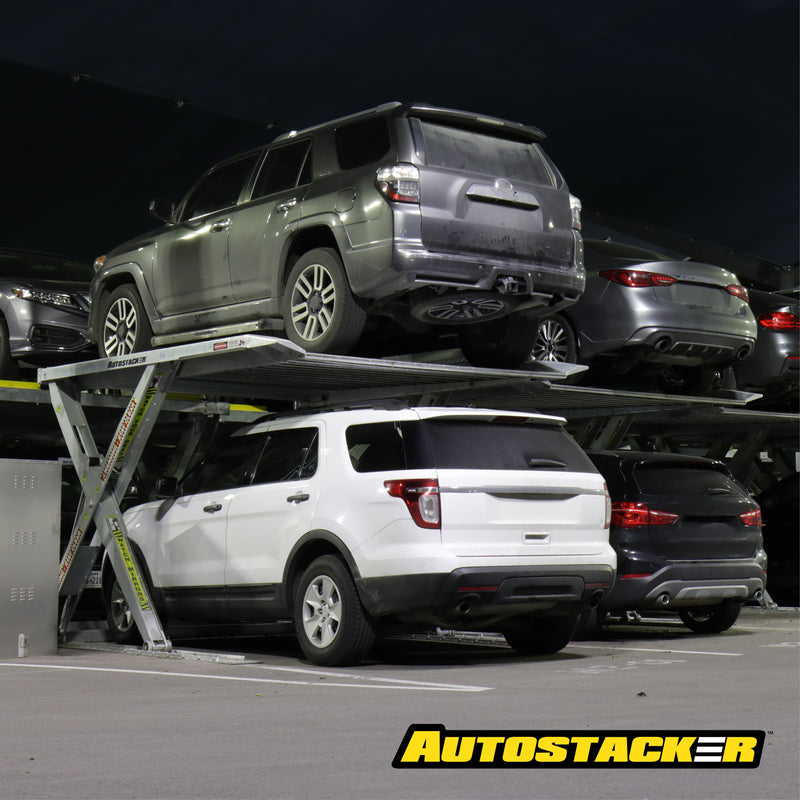

For so many reasons, this is the ultimate parking lift for homeowners. It's the safe, discreet and ultimately ideal tool for stacking your most-valued machines. Its slim nature also makes it perfect for commercial parking lots, indoors or outdoors, because more parking units are able fit in less space. This provides a welcome way to increase profits without having to excavate or purchase pricey real estate.

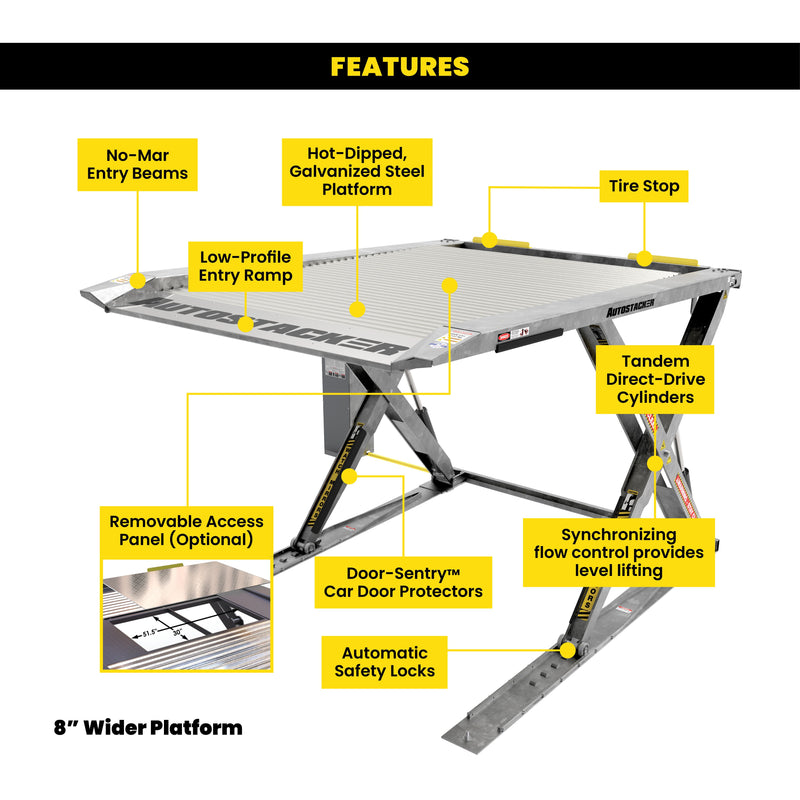

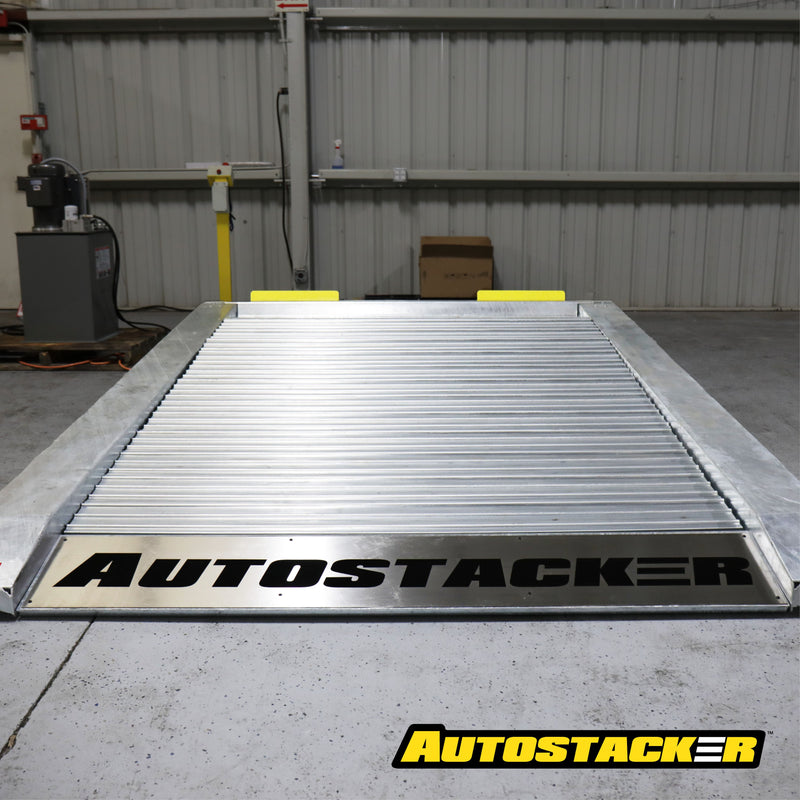

The best thing about Autostacker is that it doesn't sacrifice ruggedness and capability in exchange for its slimmed-down design. Everything about this lift is industrial-grade. The 6,000-lb. capacity wide-platform galvanized deck offers 80 incredible inches of overhead clearance when the platform is raised to the max lock level, which creates more than enough room for most high-clearance trucks and SUVs. Even low-ceiling garages are able to comfortably accommodate two low-profile vehicles, and spaces with more overhead clearance can accommodate almost anything in the lower level.

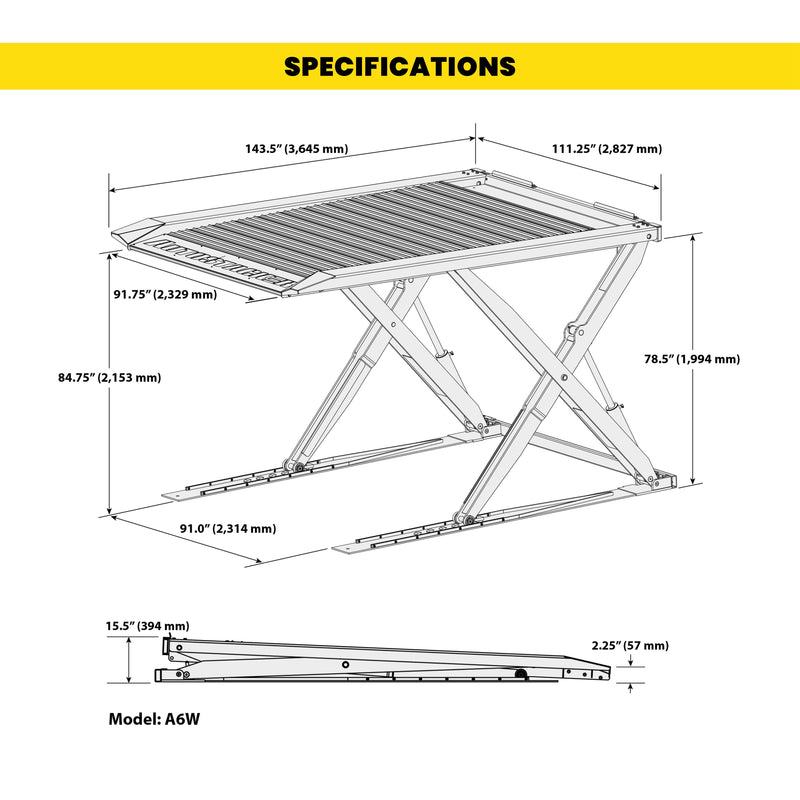

| Style | Multi-Platform Parking Lift |
|---|---|
| Lifting Capacity | 6,000 lbs. (2,722 kg) |
| Overall width | 103” (2,620 mm) |
| Overall length | 144” (3,652 mm) |
| Platform length | 124” (3,150 mm) |
| Platform width | 83.75” (2,128 mm) |
| Platform height (forward) | 13” (330 mm) |

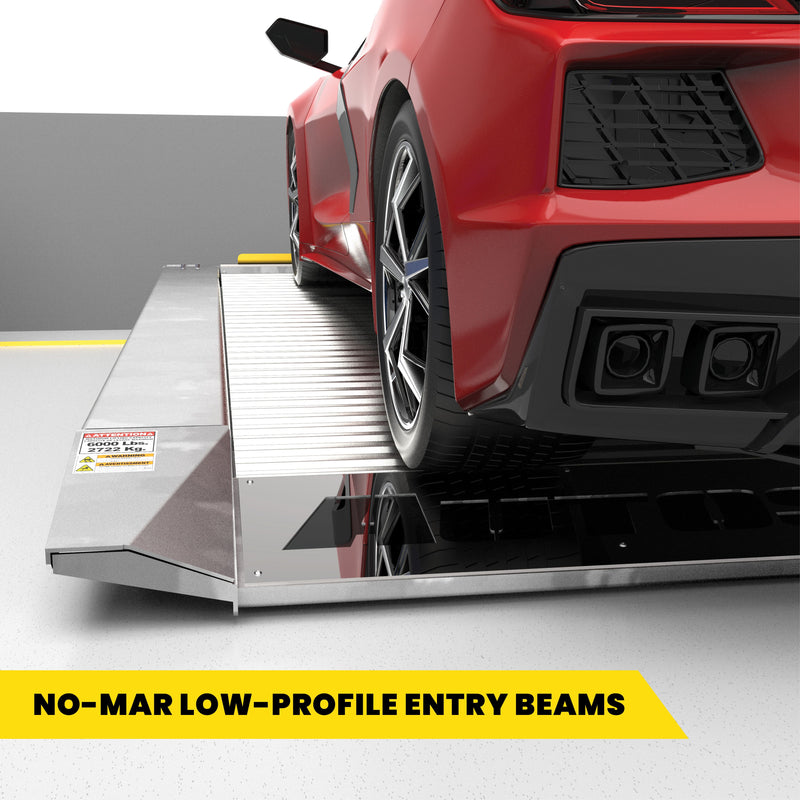

| Ramp height (entry) | 2” (51 mm) |
| Maximum under clearance | 80” (2,032 mm) |

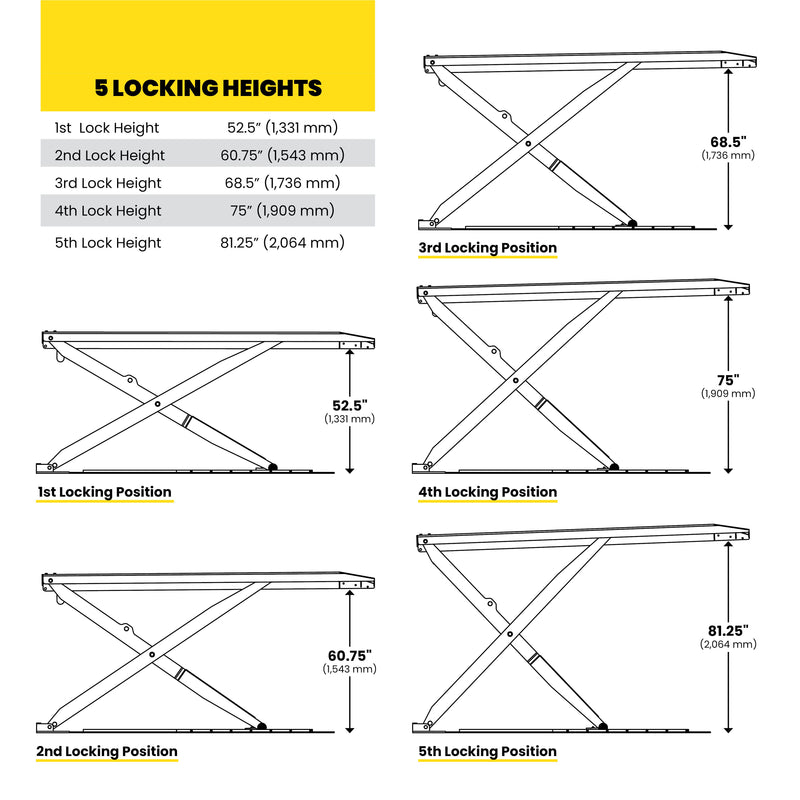

| Under clearance on 1st lock (lowest) | 52.5" (1,331 mm) |
| Under clearance on 2nd lock | 60.75" (1,543 mm) |
| Under clearance on 3rd lock | 68.5" (1,736 mm) |
| Under clearance on 4th lock | 75" (1,909 mm) |
| Under clearance on 5th lock (highest) | 81.25" (2,064 mm) |
| Motor | 208-240V, 50/60 Hz / 1 Ph |
| Noise | 52 dB |
| Shipping Weight | 2,558 lbs. (1,160 kg) |
| Shipping Dimensions | 143'' x 28'' x 22'' (3632 mm x 711 mm x 558.8 mm) |
