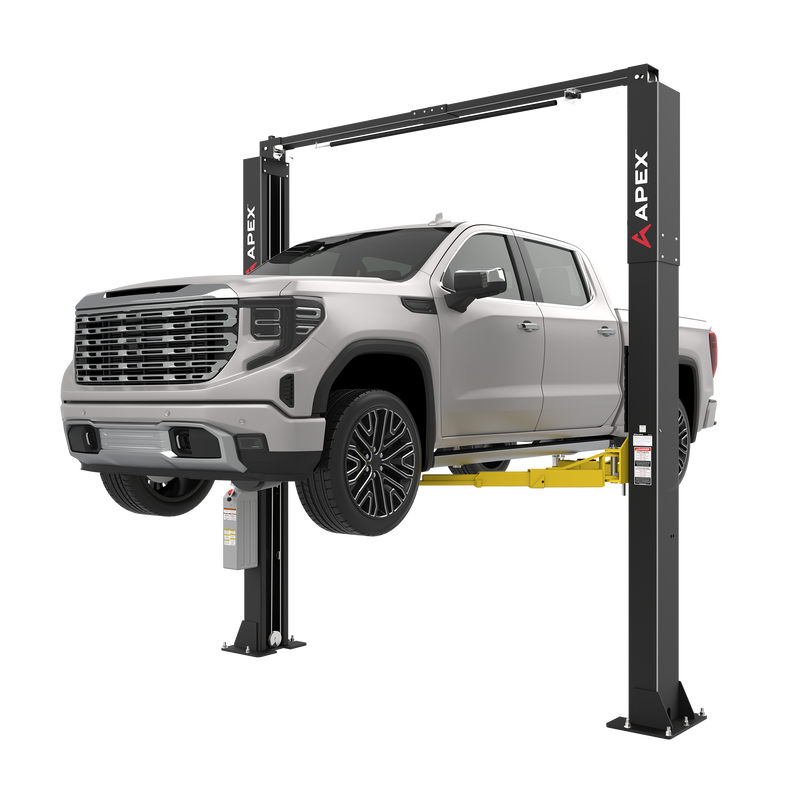

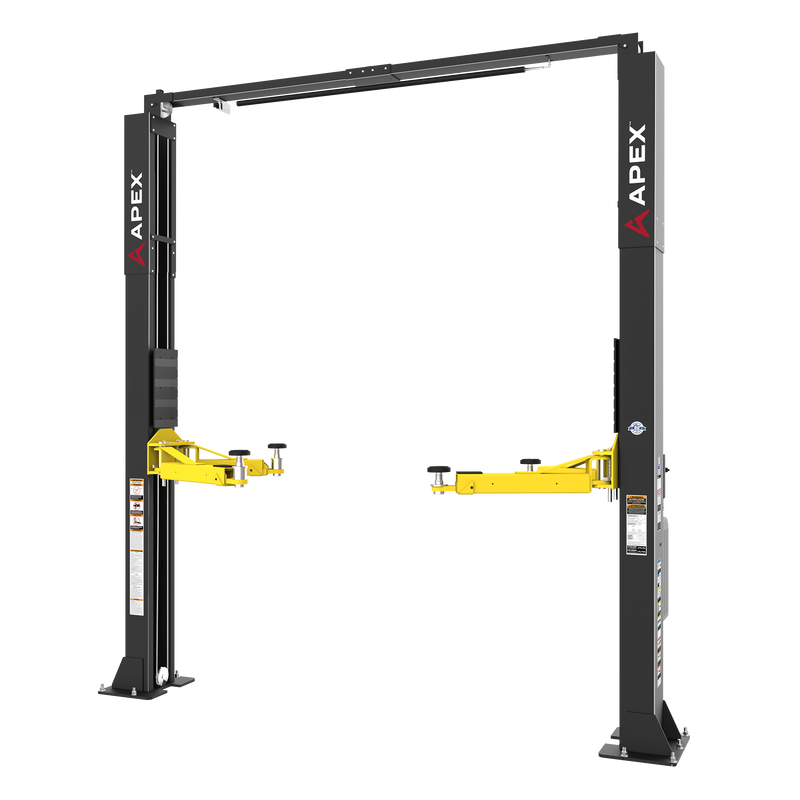

APEX AL10C Two Post Car Lift - 10,000-Lb Capacity
Clearfloor Design for Maximum Shop Efficiency

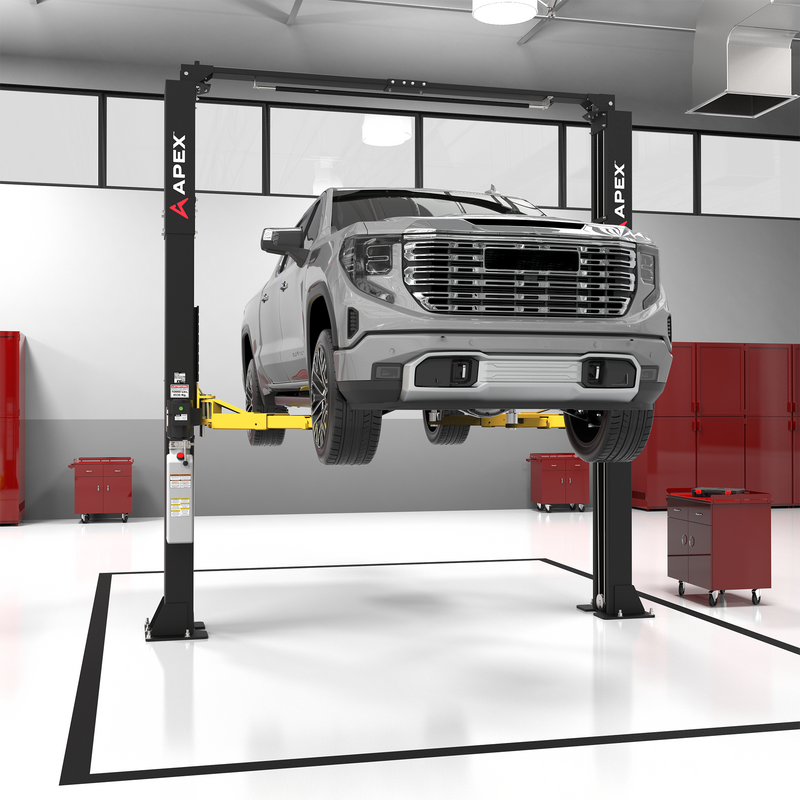

The APEX AL10C is designed for professional shops and serious garages that want complete freedom of movement beneath the vehicle. Its clearfloor design eliminates the floor beam found on traditional two-post lifts, allowing transmission jacks, oil drains, tool carts, and other shop equipment to move freely without obstruction.
With a 10,000-lb lifting capacity, the AL10C delivers the strength needed for modern vehicles while maintaining excellent access and workflow.
Direct-Drive Hydraulic Lifting System
The AL10C features a direct-drive design with dual full-stroke hydraulic cylinders, significantly reducing the number of moving parts, minimizing wear while delivering smooth, consistent lifting performance.
Built for Safety and Structural Stability

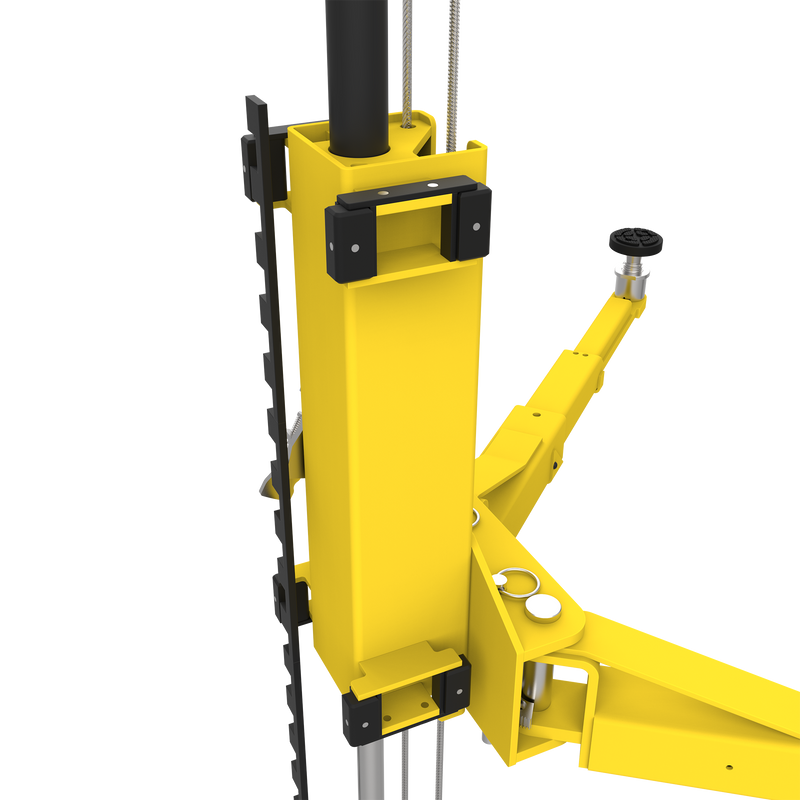

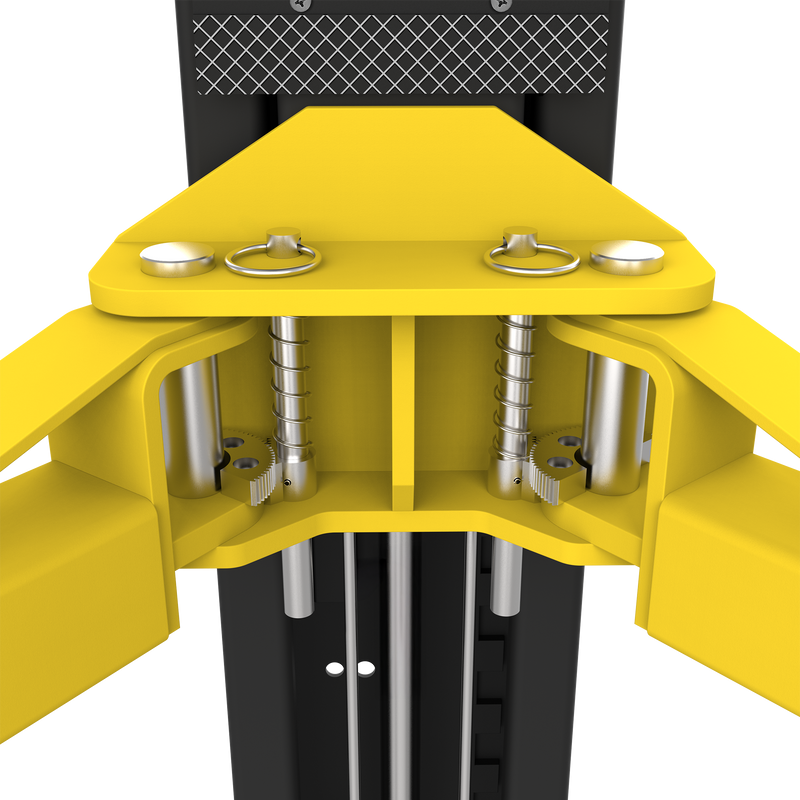

Automatic safety locks engage every three inches throughout the lift range. A rugged overhead box-beam structure reinforces the lifting frame, and automatic arm restraints secure the arms when the lift is elevated.
Built as a Long-Term Investment
Backed by BendPak's industry-leading 36-month warranty and a nationwide support network, the APEX AL10C is designed to be a dependable, long-term investment in shop efficiency, safety, and productivity.
Specifications
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max. Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max. Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
| A - Height Overall | 148" (3,759 mm) |
| B - Width Overall (at Baseplate) | 137.5" (3,492 mm) |
| C - Width Outside of Columns | 128.5" (3,264 mm) |
| D - Floor to Overhead Switch Bar | 142.5" (3,619 mm) |
| E - Width Inside Columns | 114.5" (2,908 mm) |

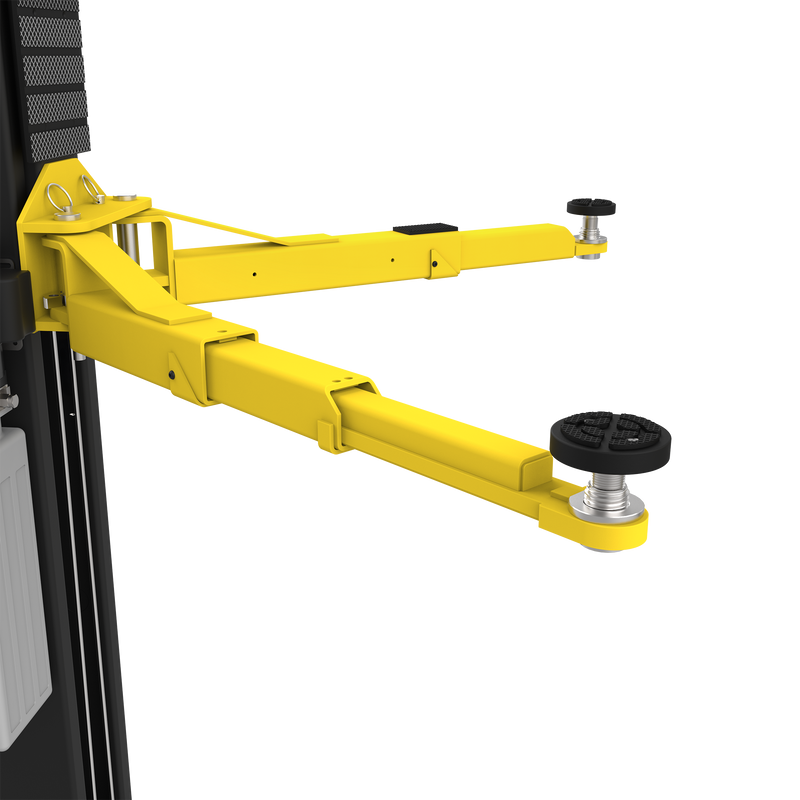

| F - Front Arm Reach (Min.) | 22.5" (571 mm) |
| F - Front Arm Reach (Max.) | 43.25" (1,099 mm) |
| G - Rear Arm Reach (Min.) | 33.5" (845 mm) |
| G - Rear Arm Reach (Max.) | 53.25" (1,353 mm) |
| H - Min. Pad Height | 3.9" (100 mm) |
| I - Rise | 70" (1,778 mm) |

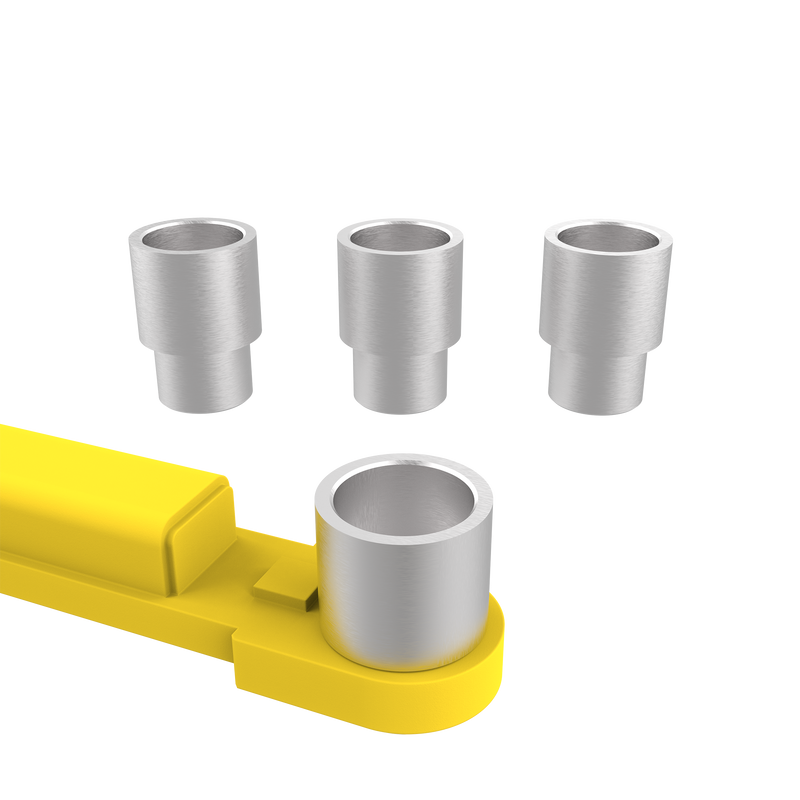

| J - Max. Lift Height (Pad + 63mm Adapt.) | 76.5" - 78.5" (1,943 - 1,994 mm) |
| K - Drive-Thru Clearance | 103" (2,618 mm) |

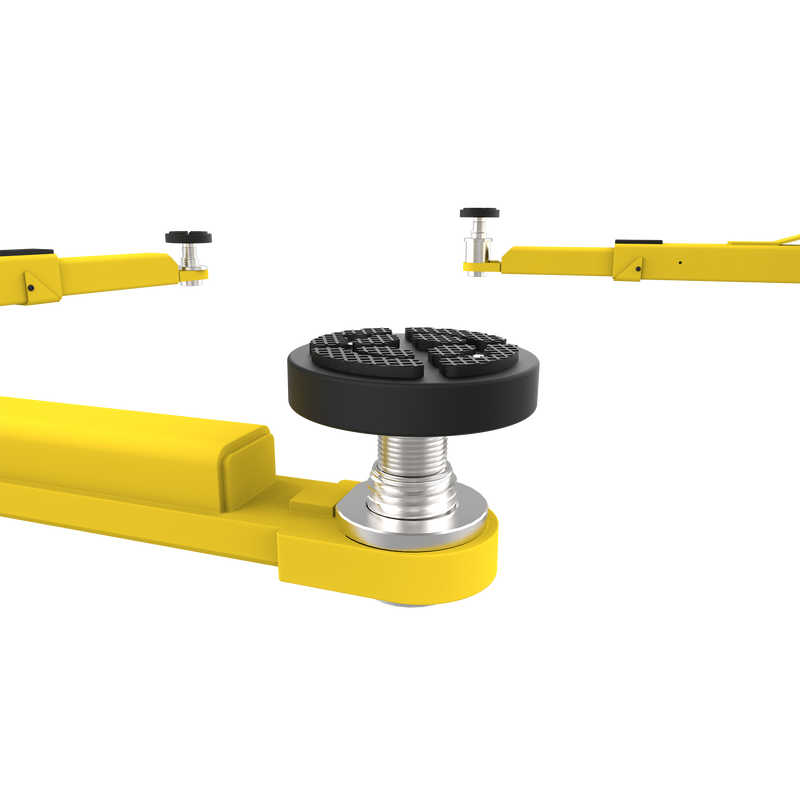

| Screw Pad Adjustment | 2" (51 mm) |
| Motor | 220 VAC / 60Hz / 1 Ph |
| Time of Full Rise | 65 seconds |
| Max. Load Per Arm | 2,500 lbs. (1,134 kg) |
