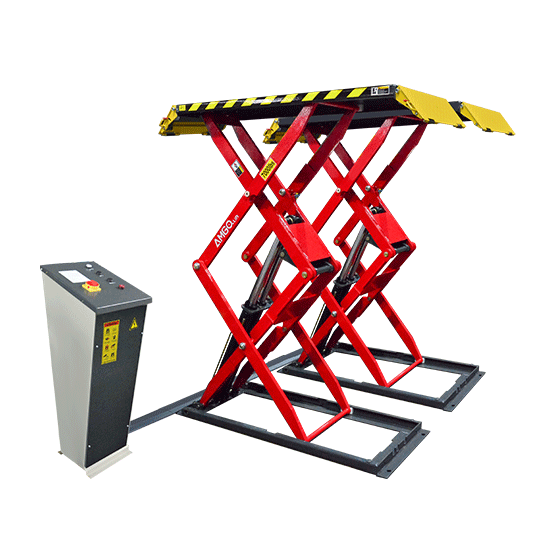

AMGO XL-7 features integrated hydraulic and mechanical locks, making it the most secure lift in its class. This full rise lift provides maximum under-vehicle clearance, and boasts a low profile design of only 4 5/8”, while being able to lift 7,000lbs. With a simple, straightforward installation, and a no-service-required build, this is the professional choice for high-volume shops.

Features

● Lifting capacity: 7,000lbs;
● Low-profile surface design that allows easy access for low-clearance vehicles;
● Full rise to 78 3/4″ allows you to comfortably work under your vehicle;
● Two dual synchronus cylinders ensure perfectly level lifting across both platforms;
● The dual safety system features an automatic mechanical and hydraulic lock;
● No extra air source required;
● Non-slip platforms come with foldable drive-in ramps;
● Automatic safety device stops 11 13/16″ off the ground;
● Electronic control system with a control cabinet for increased safety.

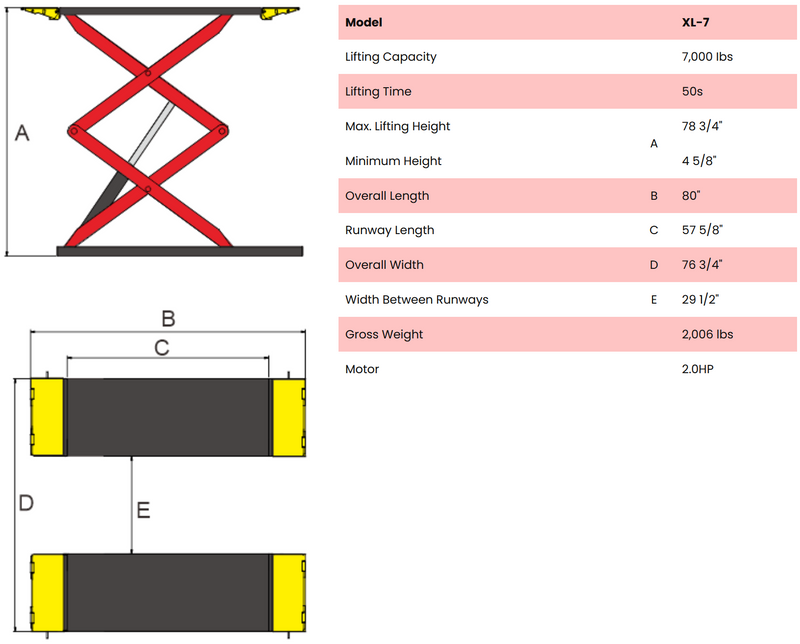

Specifications

Model		XL-7
Lifting Capacity		7,000 Ibs
Lifting Time		50s
Max. Lifting Height	A	78 3/4"
Minimum Height	4 5/8"
Overall Length	B	80"
Runway Length	C	57 5/8"
Overall Width	D	76 3/4"
Width Between Runways	E	29 1/2"
Gross Weight		2,006 lbs
Motor		2.0HP

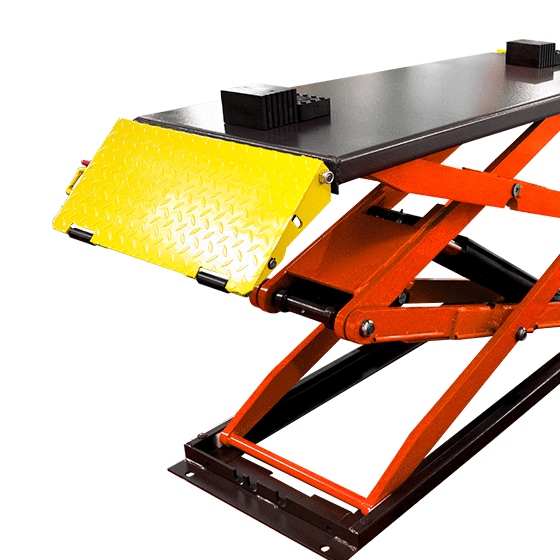

Easy flip-lock ramps, can be used as extension platform.

ETL certified AMGO power unit.

Two dual synchronous cylinders ensure perfectly level lifting across both platforms.

Feature an automatic mechanical lock and a hydraulic lock.

Low profile on surface design, allows easy access for low-clearance vehicles.

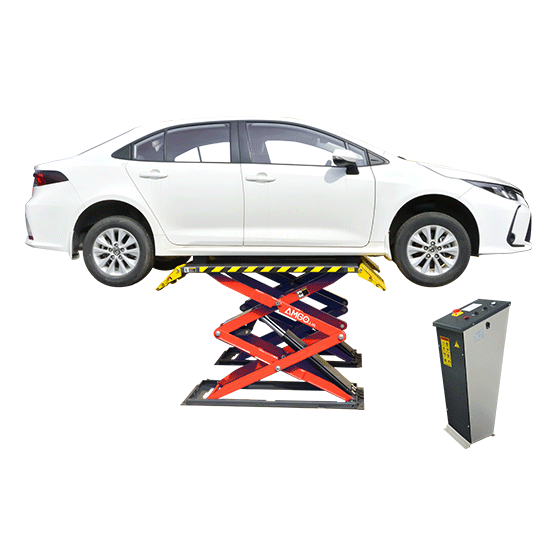

Full rise design allows comfortable work underneath the vehicle.

Extendable platforms accommodate various wheel base vehicles.

Both 1 1/2" and 3" rubber pads come standard.

Optional: Leveling bar. Kits No.: SX003

Shipping Information

4 units/package, packing measurement (LxWxH) : 66 15/16" x 27 9/16" x 77 3/16"

Attention to forklift loading and unloading

1 units/package, packing measurement (LxWxH) : 16 7/8”x 18 13/16"x 48 5/8"
