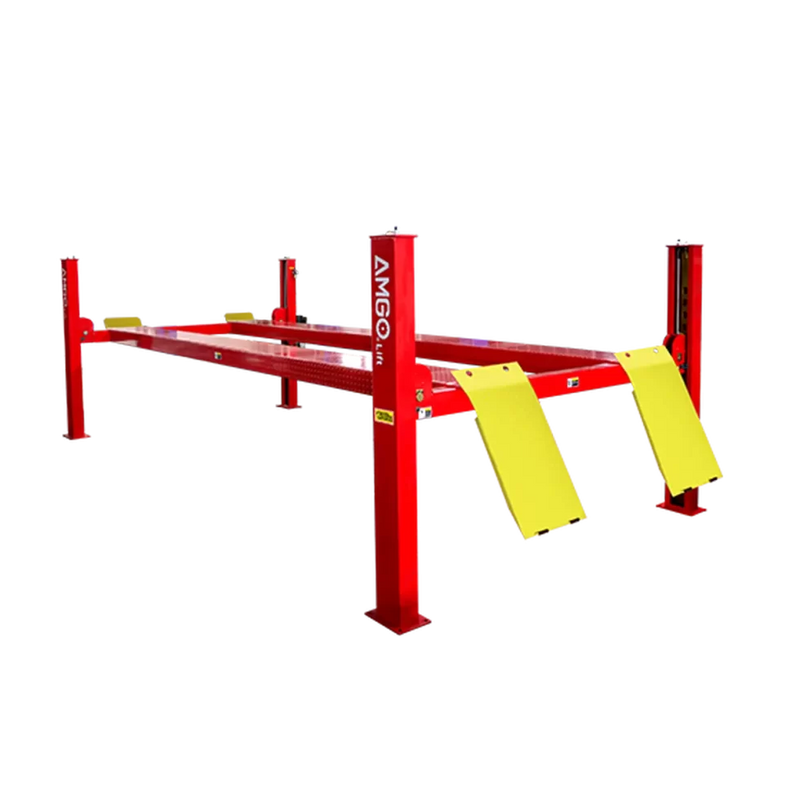

AMGO PRO-12 12,000 lb 4-Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
12,000-lb. Capacity/ General Service Model
The commercial-grade Pro-12 is the flawless choice for your daily servicing of cars, SUVs, pickups and Vans up to 12,000lbs. It features the stepless width adjustment technology to fit various wheel tracks, and its heavy-duty build offers rugged durability and ensures maximum safety. It’s your ideal service tool for both garages and service shops.
Features
• 12,000 lbs capacity;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms.

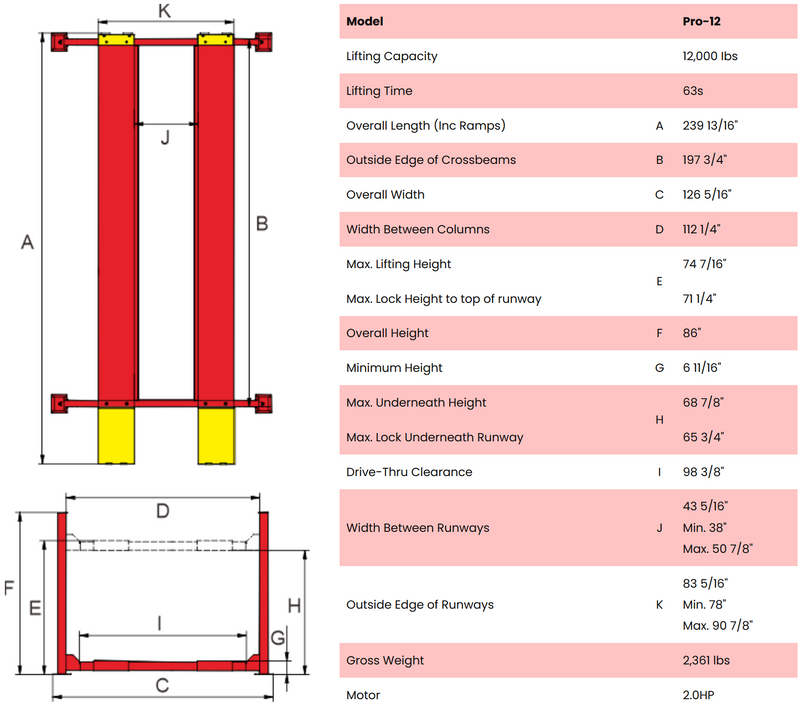

Specifications
| Model | Pro-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 239 13/16" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 126 5/16" |
| Width Between Columns | D | 112 1/4" |
| Max. Lifting Height | E | 74 7/16" |
| Max. Lock Height to top of runway | 71 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 98 3/8" |
| Width Between Runways | J | 43 5/16" Min. 38" Max. 50 7/8" |
| Outside Edge of Runways | K | 83 5/16" Min. 78" Max. 90 7/8" |
| Gross Weight | 2,361 lbs | |
| Motor | 2.0HP |
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Stepless adjustable width between platforms.
Non-slip diamond platforms come as standard.
Optional extension platform adds 26" in lenght to the platform. Kits No.:41203
Optional air line kits - All AMGO 4 post lifts are designed to use the air lines for the rolling jack. Part no: 40102A
Optional rolling jacks with 6,000lbs capacity: RJ-6A - pneumatic or RJ-6H: manual
Shipping Information
1 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x28 1/2". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x 84 1/16""
Attention to forklift loading and unloading.
