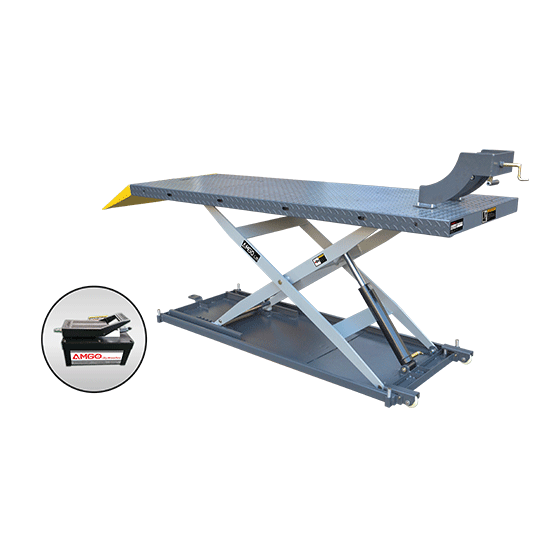

The MC-1200P has the same steel construction as the MC-1200 model, but uses a pneumatic hydraulic pump as its power source instead of electrical power. This design improves mobility which allows the unit to be wheeled conveniently to any job site for rapid servicing.

• Powered by AMGO pneumatic pump;
• AMGO’s patented design safety device has an automatic activation lock with manual release;
• Non-skid diamond platform enhances the stability;
• Professional grade hydraulic cylinders use premium oil seals;
• Removable rear tire cover plate and tool tray come standard;
• Optional tie kits, lifting jack, and length/width extension kits are available.

View Manual View Brochure

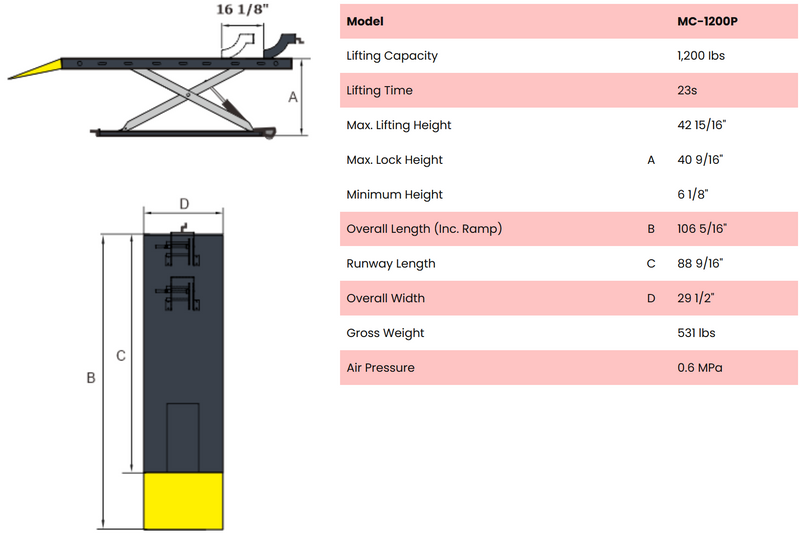

Model		MC-1200P
Lifting Capacity		1,200 Ibs
Lifting Time		23s
Max. Lifting Height	A	42 15/16"
Max. Lock Height		40 9/16"
Minimum Height		6 1/8"
Overall Length (Inc. Ramp)	B	106 5/16"
Runway Length	C	88 9/16"
Overall Width	D	29 1/2"
Gross Weight		531 lbs
Air Pressure		0.6 MPa

Adjustable wheel vise to accommodate various wheels. Two installation positions to fit for different wheelbases.

Powered by AMGO pneumatic pump;.

Removable rear cover plate for easy wheel replacement.

AMGO's patented design safety device: automatic activation lock with manual release.

Portable design can easily roll into any service bay.

Optional width extension kit . Adds 23 5/8" in width on platform for three or four-wheel motorcycle. Kits No.: MC001

Optional length extension kits no.MC002, adds 15 3/4” in length that suitable for long wheelbases.

Optional sliding jack MC005, lifting capacity: 500lbs.

Optional tie kits no.MC006.

Shipping Information

8 units/package, packing measurement (LxWxH) : 89 3/4"x29 7/8"x80 1/8"

1 units/package, packing measurement (LxWxH) : 89 3/4”x29 7/8"x12 5/8""

Attention to forklift loading and unloading

Every AMGO Car lift is Guaranteed

Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.

AMGO 5-3-2 Warranty: Industry-leading Service

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
