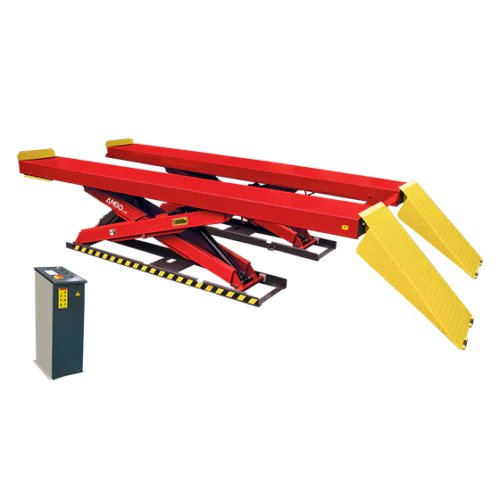

AMGO AX-12 12,000 lb Large Scissor Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
AMGO’s AX-12 features a heavy-duty structure with robust X scissors, offering superior performance to lift up to 12000lbs. It includes both hydraulic and mechanical locks, making AX-12 the safest lift in its category. Strong and versatile, AX-12 features non-skid platforms and a convenient pull-out tray.
Features
- 12,000lbs capacity;
- Robot X scissors heavy-duty structure provides superior performance and durability ;
- The full-rise design offers ample workspace underneath;
- Two groups of dual hydraulic cylinders are integrated to ensure the equalization and safety of both platforms;
- The dual safety system features hydraulic synchronization and automatic mechanical locks with an air release.;
- Electric-hydraulic power system with a control power unit;
- Non-slip extended platforms accommodate various vehicles;
- Automatic safety stop device comes standard;
Specifications
| Model | AX-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 75s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12" | |
| Runway Length | B | 197 9/16" |
| Overall Width | C | 90 3/16" |
| Width Between Runways | D | 40 15/16" |
| Overall Length (Inc. Ramps) | E | 267 1/16" |
| Gross Weight | 4,872 lbs | |
| Motor | 2.0HP |
Electro-air control system with mechanical safety locks.
ETL certified AMGO power unit.
Nicely designed pull-out tray comes standard.
Two groups of dual hydraulic cylinders are integrated to ensure the equalization and safety of both platforms.
Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
Non-slip extended platforms accommodate various vehicles. Drive-in ramp assembly P/N: 11530617.
Optional: extension platform,P/N: PX001.
Optional air line kits (kits no.: PX004A).
Optional RJ-6A sliding jack with pneumatic hydraulic, 2.5" extension adapters included. Capacity 6,000lbs.
Shipping Information
2 units/package, packing measurement (LxWxH) : 203 9/16" x 29 15/16" x 80".
Attention to forklift loading and unloading.
1 unit/ctn, control cabinet packing measurement (LxWxH): 16 7/8”x 18 13/16"x 48 5/8"
