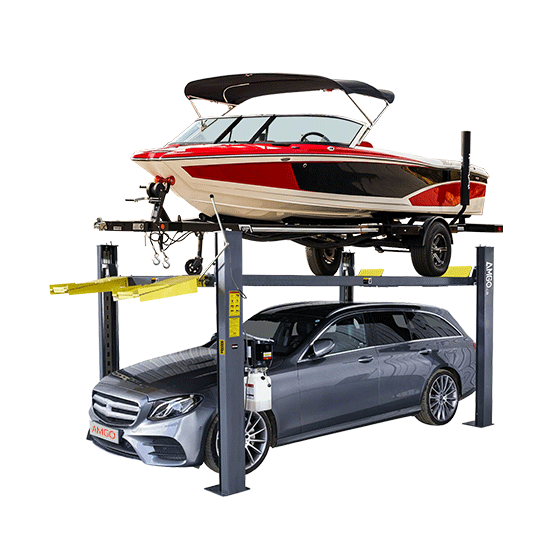

AMGO 409-HPX 9,000 lb Capacity/Extended Height & Capacity 4-Post
by AMGO
SKU 409-HPX
Save $220.00
Original price
$5,200.00
Original price
$5,200.00
-
Original price
$5,200.00
Original price
$5,200.00
Current price
$4,980.00
$4,980.00
-
$4,980.00
Current price
$4,980.00
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
Features

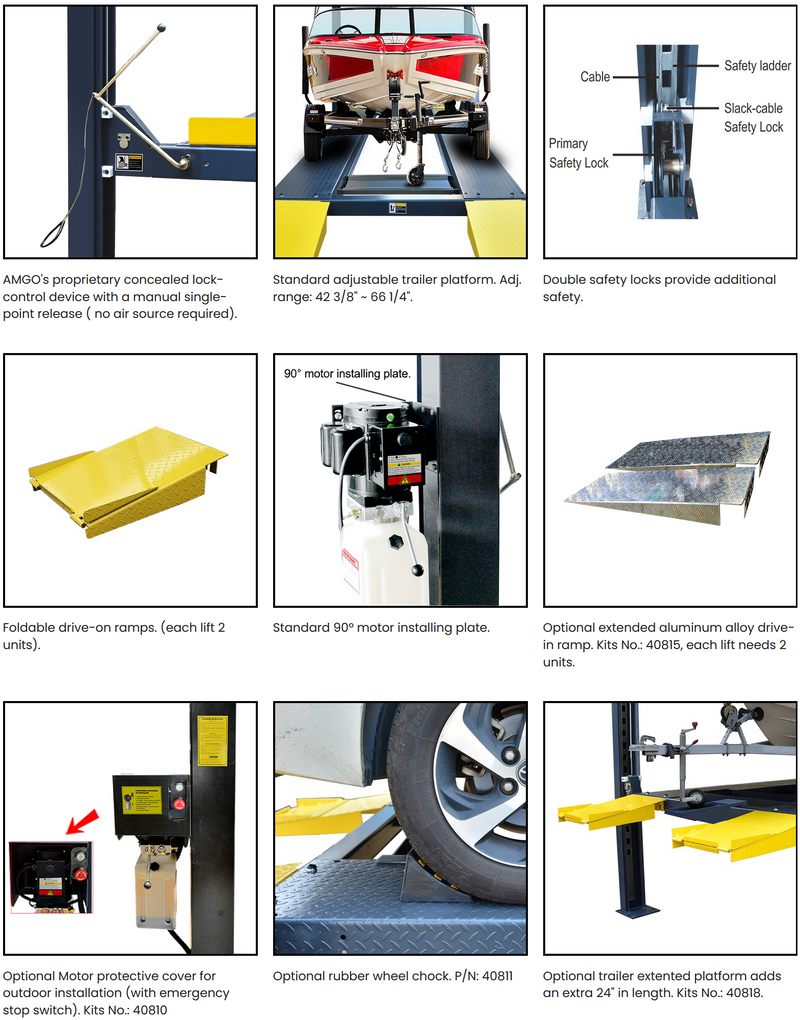

- Lifting capacity: 9,000lbs;
- AMGO’s proprietary concealed lock-control device with a manual single-point release ( no air source required);
- Dual safety mechanisms with primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Flexible installation with the power unit mountable at any corner;
- Two-widths setting platforms accommodates various trailers;
- Standard foldable drive-in ramps;
- ETL certified Power unit;
- 16″ more in length than 408-HPX, is ideal for longer boats.
Specs
| Model 409-HPX | Boat storage lift | |
|---|---|---|
| Lifting Capacity | 9,000 lbs | |
| Lifting Time | 57s | |
| Overall Length (Inc Ramps) | A | 238 1/8″ |
| Overall Length (Without Ramps) | B | 204 11/16″ |
| Overall Width | C | 131 7/8″ |
| Width Between Posts | D | 122″ 3/16” |
| Max. Lifting Height | E | 88 1/16″ |
| Max. Locking Height | 85 5/16″ | |
| Overall Height | F | 96 5/8″ |
| Minimum Height | G | 6 1/8″ |
| Max. Underneath Height | H | 82 9/16″ |
| Max. Lock Underneath Runway | 79 13/16″ | |
| Drive-Thru Clearance | I | 111″ |
| Width Between Runways | J | 46 1/2″ – 64 15/16″ |
| Outside Edge of Runways | K | 86 1/2″ – 104 15/16″ |
| Gross Weight | 2,061 lbs | |
| Motor | 2.0HP,220V/60Hz | |
| QTY of Container | 12 Units/20’GP |
