AMGO 409-DPX 9,000 lb 4-Post Double Parking Lift Longer & Taller
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description

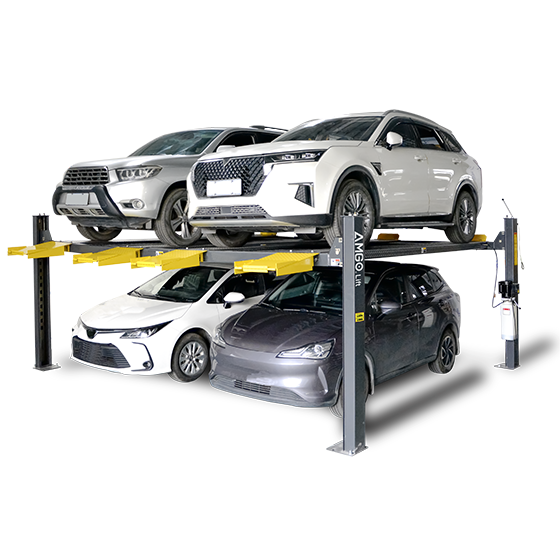

As the longer and higher version of the 409-DP, this model creates the critical clearance needed to park SUVs, light trucks, and other elevated vehicles underneath, unlocking greater versatility for your space.
Features
• Lifting capacity: 9,000lbs, max. car weight: 6,000lbs;
• Low profile design ensures easy loading for low-clearance vehicle;
• Dual safety locks and a cable-slack protection system come standard;
• AMGO patented design: concealed safety lock control device with manual single-point lock release;
• Foldable drive-on ramps come standard;
• Exclusive: Double-
Shaped columns for increased strength
• Non-slip diamond platforms;
• Multiple lock points secure the vehicles during lifting and storage;
• Pull rope comes standard;
Specifications
| Model | 409-DPX | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 120s | |
| Overall Length (Inc Ramps) | A | 238 5/8" |
| Outside Edge of Crossbeams | B | 198 1/8" |
| Overall Width | C | 190 9/16" |
| Width Between Columns | D | 181" |
| Drive Through Width | E | 169 13/16" |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 5 15/16" |
| Max. Lifting Height | H | 87 7/8" |
| Max. Lock Height to Top of Runway | 85 1/8" | |
| Max. Height Underneath Runway | I | 83 1/8" |
| Max. Lock Height Underneath Runway | 80 3/8" | |
| Width Between Runways | J | 37" |
| Overall Width of Single Parking Unit | K | 74 7/16" |
| Width Between Two Parking Units | L | 13 3/4" |
| Gross Weight | 3,018 lbs | |
| Motor | 110V/60HZ 1.0HP |
AMGO’ patented design: concealed safety lock control device with manual single-point lock release.
Foldable drive-on ramps. (each lift 2 units). P/N:104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802

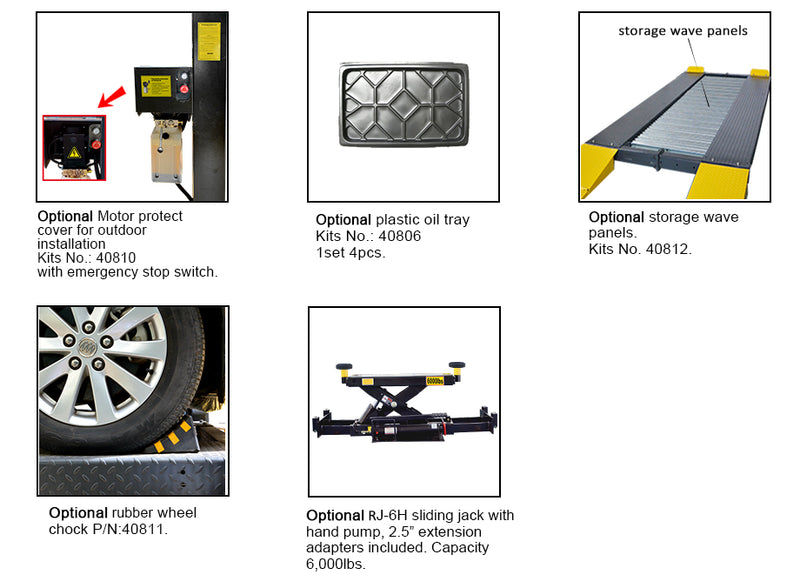

Optional caster kits help easily move the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.
Optional Adj. Jack Tra,P/N:40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Shipping Information
Single unit packing dimensions: 203" x 21 5/8"x 32". Packed with Power Unit.
Packaging dimensions (3 units) (LxWxH) : 203" x 21 5/8"x 64 3/16"
Attention to forklift loading and unloading.
