8000TLX Portable Truck Lift Bundle
by BendPak
SKU
Original price
$2,375.00
-
Original price
$2,400.00
Original price
$2,375.00
$2,375.00
-
$2,400.00
Current price
$2,375.00

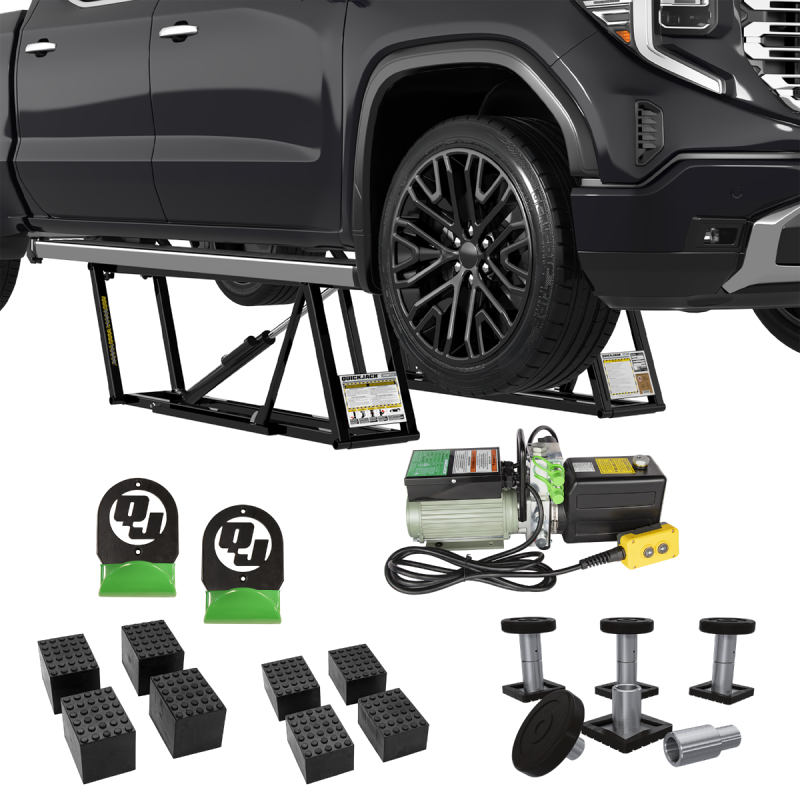

Bundle Includes: 8000TLX, Wall Hangers, and Truck Adapter Set

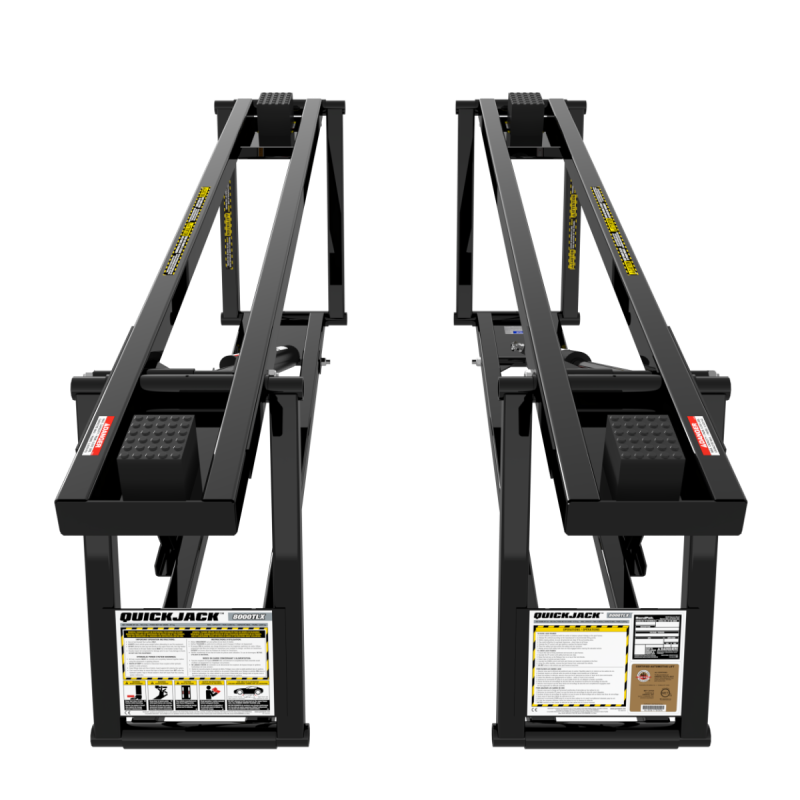

The QuickJack 8000TLX Bundle is built for big vehicles and even bigger versatility. This all-in-one package includes the 8000TLX Portable Lift (8,000-lb. capacity, 24.5" lift height, 76" frame length), a Wall Hanger Set to mount both frames vertically and keep your floor clear, and an SUV & Truck Adapter Kit that adds extra height for high-clearance vehicles.
| 8000TLX Portable Truck Lift | |
|---|---|

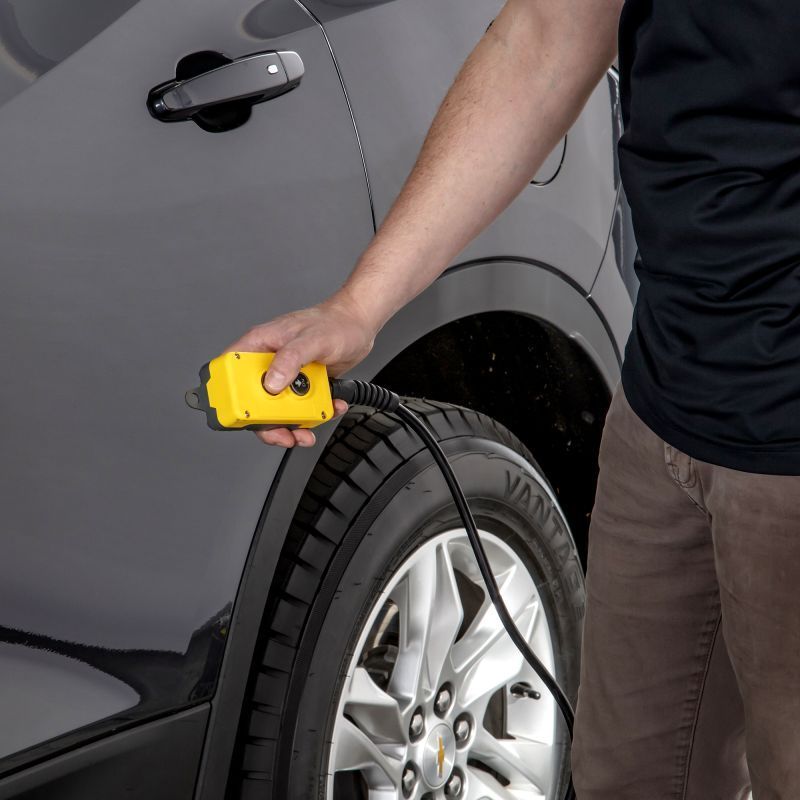

| 8,000-lb. lifting capacity with 24.5" maximum lift height; extended 76" frame length for long-wheelbase vehicles; automatic safety locks engage at mid-rise and full-rise positions; upgraded hydraulic system ensures synchronized lifting and lowering; one-handed pendant control; 3.5" lowered height for low-profile storage and undercar access; structural reinforcements for greater stability under heavy loads; compatible with QuickJack's full range of accessories. | |
| Wall Hangers | |
| Sold in sets of two; powder-coated black finish; universal fit for all QuickJack models; rated 150% above maximum load for extra safety margin; solid-steel construction with laser-cut QuickJack branding; mounts directly into wall studs for secure vertical storage. | |
| SUV & Truck Adapter Kit | |
| Increases lift point height for high-clearance vehicles; durable steel base with stackable polyurethane blocks; boosts lift height to approximately 27 inches; essential for SUVs, trucks, and lifted vehicles; easy installation onto QuickJack lift trays. |
| 8000TLX Portable Truck Lift Bundle | |
|---|---|
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| A - Lowered Height (with 2" block) | 4" (102 mm) |
| B - Lifting Height (with 2" block) | 21.5" (546 mm) |
| C - Lifting Height (with 3" block) | 22.5" (572 mm) |
| D - Max. Lift Height | 24.5" (622 mm) |
| E - Lift Height (with adapters) | 24.25" (610 mm) |
| F - Lift Height (with adapters + pin) | 27" (686 mm) |
| G - Max. Lift Point Spread | 66" (1,676 mm) |
| H - Min. Lift Point Spread | 43" (1,092 mm) |
| I - Frame Width (each) | 12.5" (318 mm) |
| J - Frame Length (each) | 76" (1,930 mm) |
| Frame Weight (each) | 98 lbs. (45 kg) |
| Time to Full Rise | 30 seconds |
| Power Unit Weight | 15 lbs. (7 kg) |
| Shipping Dimensions (each frame) | 73.75" (L) x 16.75" (W) x 6.25" (H) (1,872 mm x 425 mm x 155 mm) |
| Shipping Weight | 304 lbs. (138 kg) |
| Truck Adapter Set | |
| A - Overall Height | 7.2" (183 mm) |
| B - Pad Height | 1" (25 mm) |
| C - Pin Height | 2.8" (71 mm) |
| D - Base Height | 3.4" (86 mm) |
| Shipping Dimensions | 10" x 10" x 6" (254 x 254 x 152 mm) |
| Shipping Weight | 32 lbs. (15 kg) |
| Wall Hangers | |
| A - Width | 4.75" (121 mm) |
| B - Height | 6.75" (172 mm) |
| C - Depth | 2.25" (57 mm) |
| Weight (ea.) | 1 lbs. (0.5 kg) |
| Shipping weight | 3 lbs. (1.4 kg) |
