Description

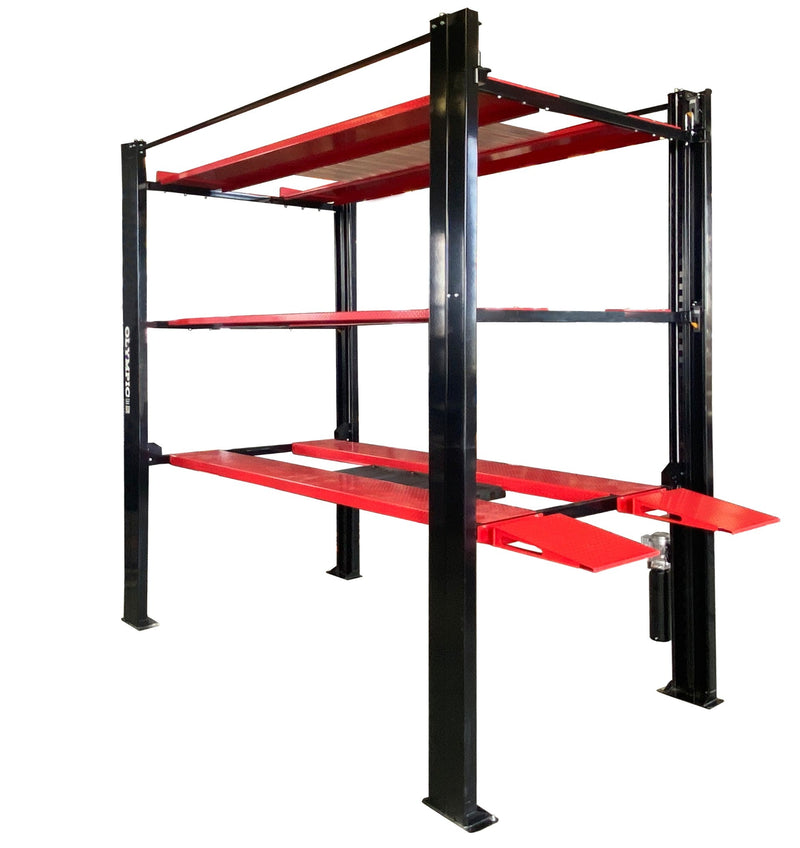

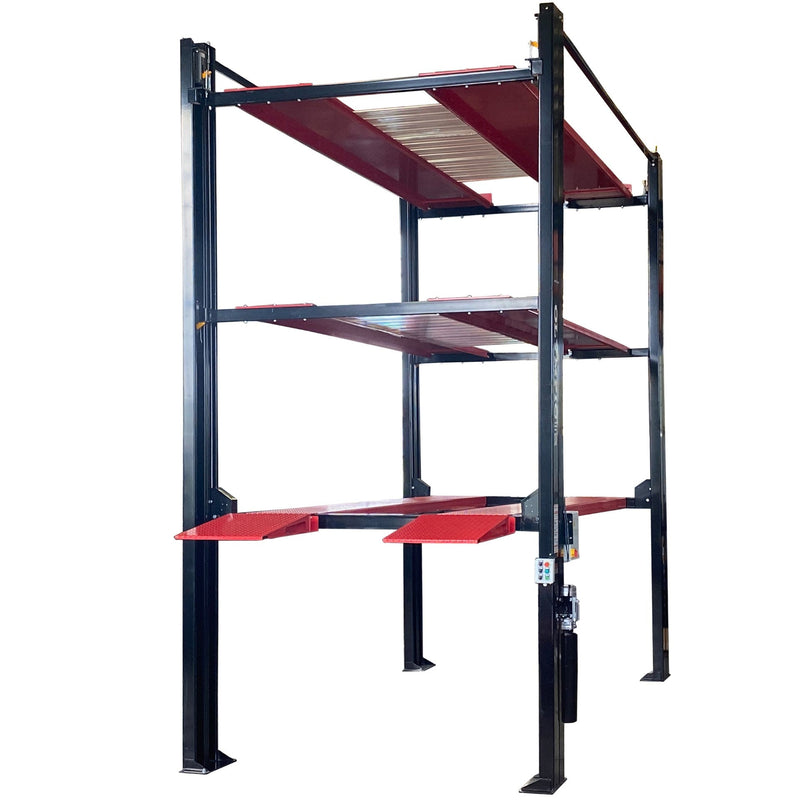

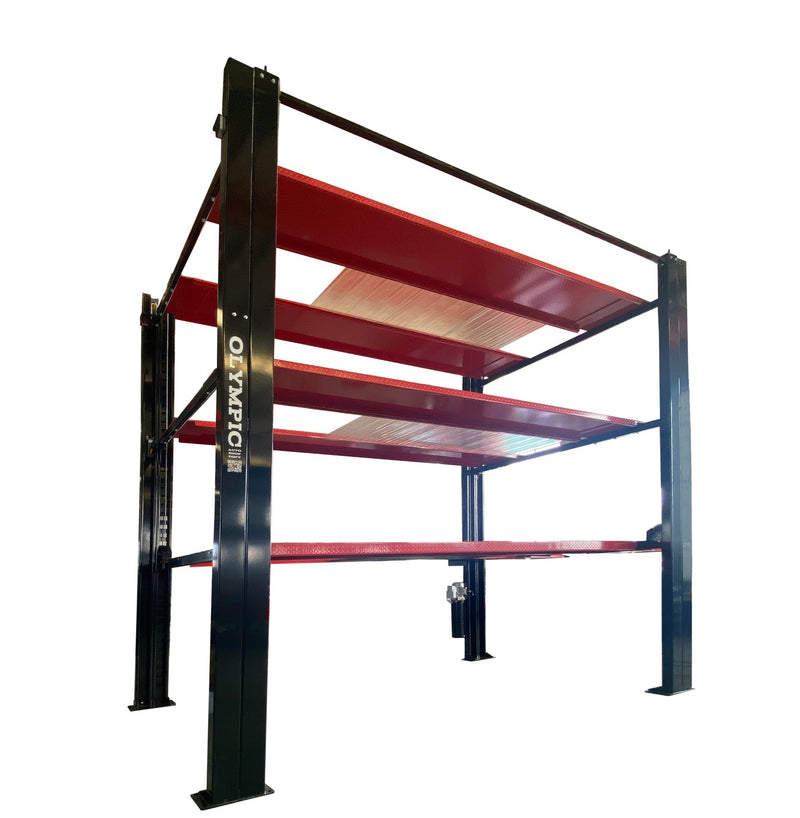

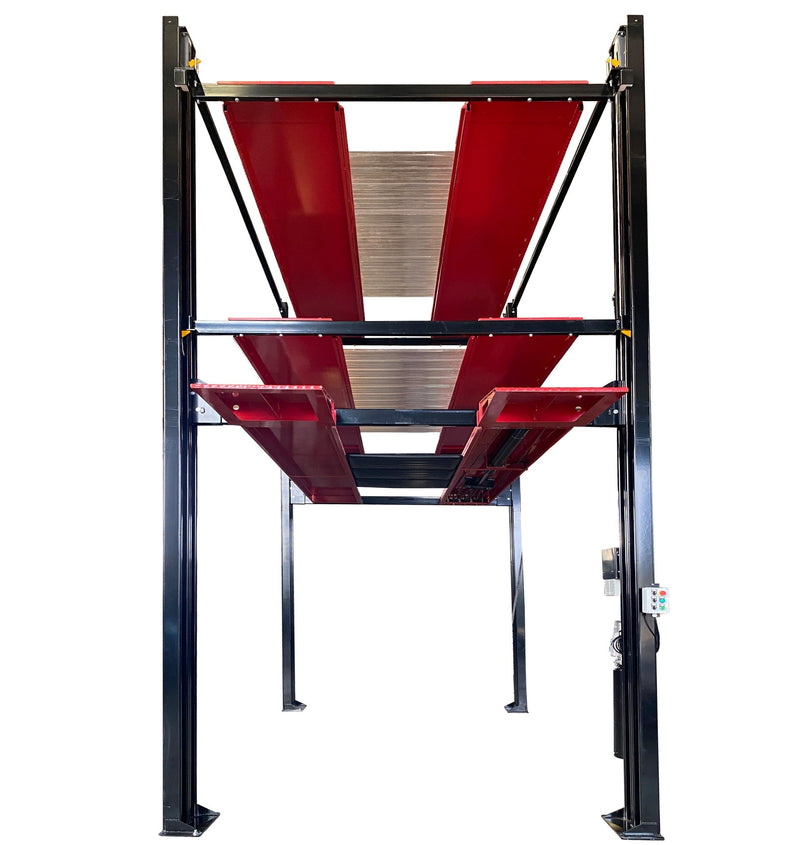

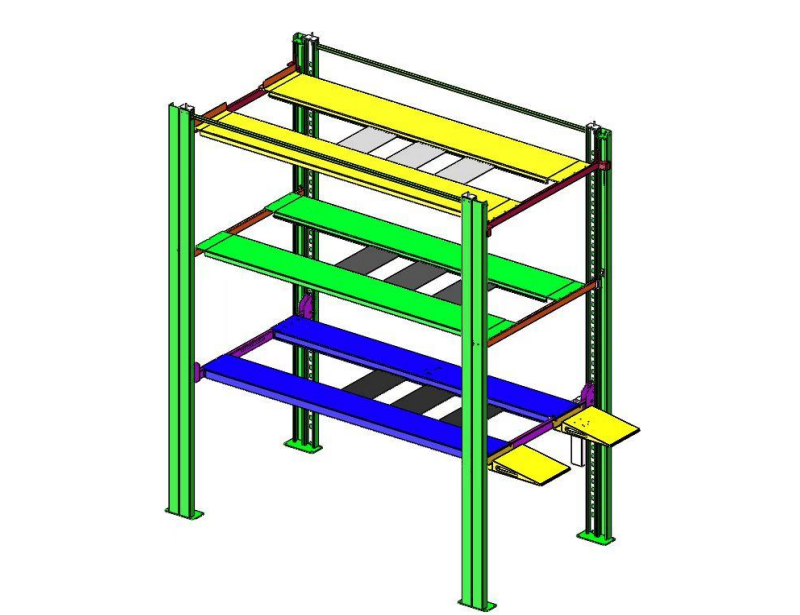

Maximize available parking space with the 4032-4 “The Four Stacker” 4-Level Car Storage Lift, a high-density vehicle storage solution designed to stack and store up to four vehicles within a single parking footprint.
This multi-level parking lift features one ground-level parking space and three elevated platforms, helping residential properties, commercial facilities, dealerships, and fleet operations make better use of vertical space. With a combined platform capacity of 14,300 lbs, the system is designed for sedans and many SUVs within the specified capacity limits and platform clearances.

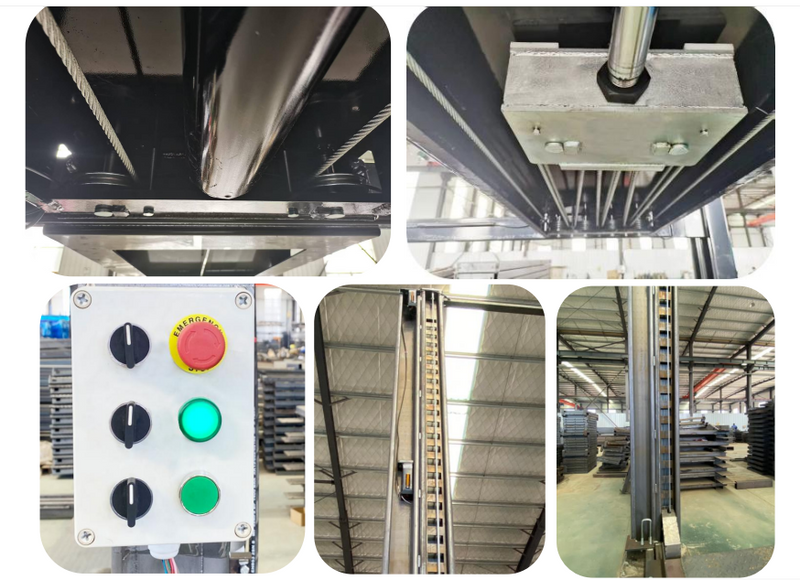

The Four Stacker combines mechanical platform lifting, automatic locking at every level, anti-fall safety rods, and convenient electric controls to provide an organized and efficient solution for long-term vehicle storage
Special Order Only.
KEY FEATURES
- Four vehicle parking levels

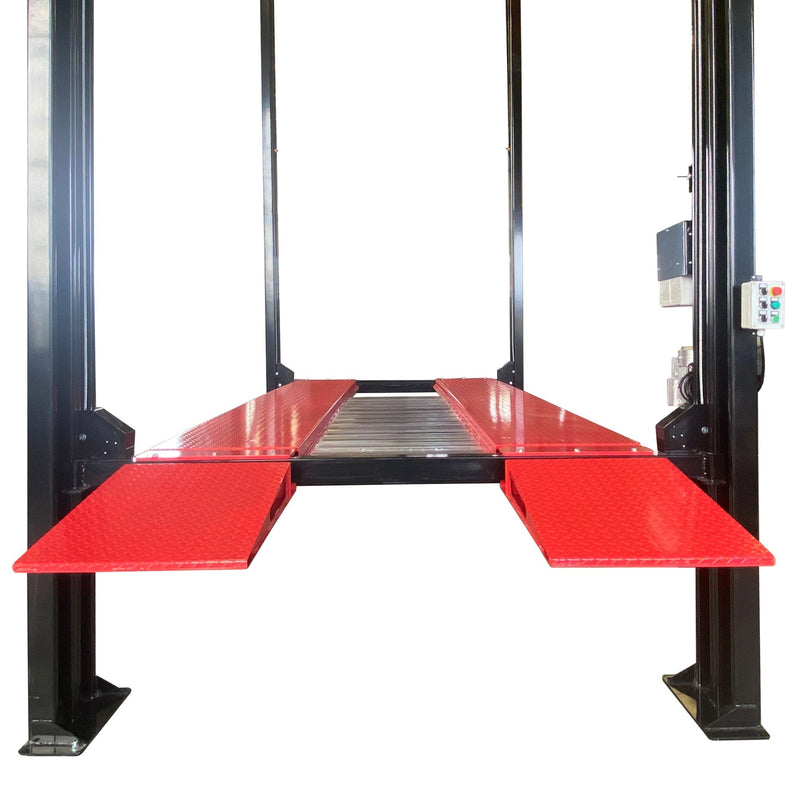

- One ground-level parking position
- Three elevated vehicle storage platforms
- 5,500 lb second-level platform capacity
- 4,400 lb third-level platform capacity
- 4,400 lb fourth-level platform capacity
- 14,300 lb combined platform capacity
- Designed for sedans and many SUVs
- High-density vertical vehicle storage design
- Mechanical platform lifting system
- Automatic mechanical locks at every level

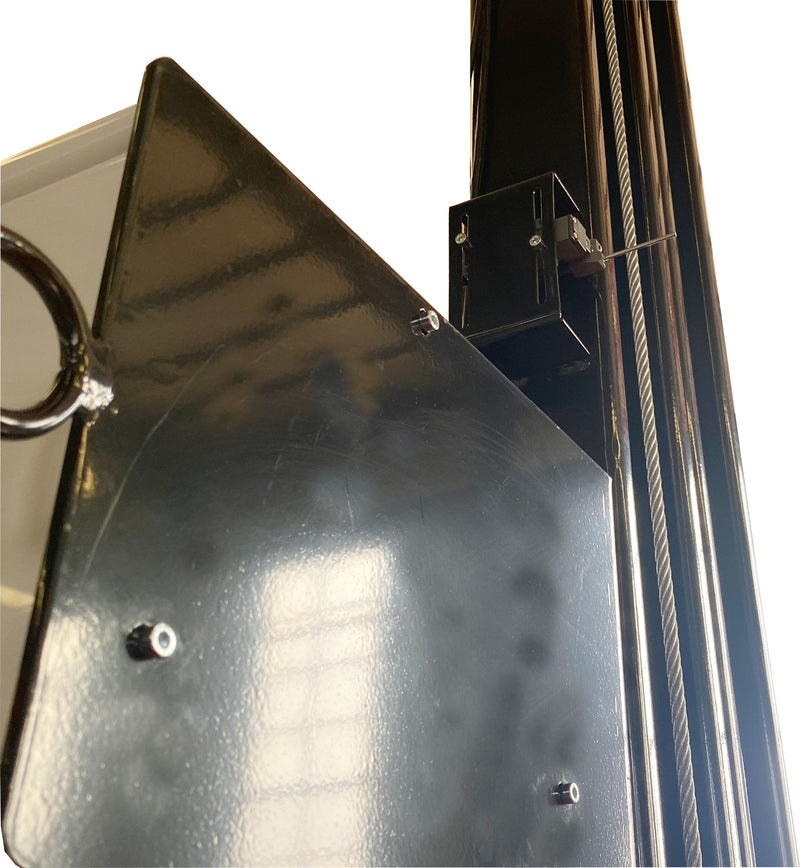

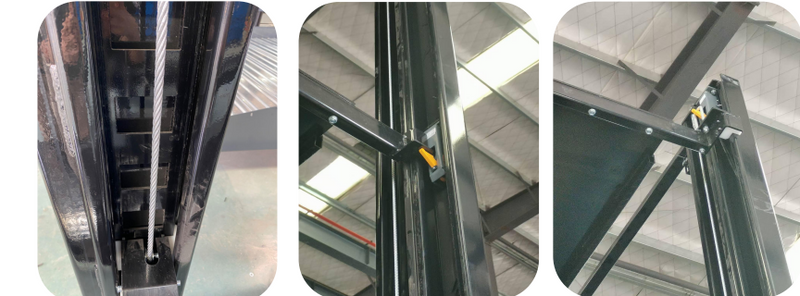

- Heavy-duty single-channel ladder locking system
- Anti-fall safety rod system
- Automatic stop limiting switch
- Emergency stop function
- Electric push-button controls
- Key-switch operation
- Nine included drip trays
- Q235 structural steel construction

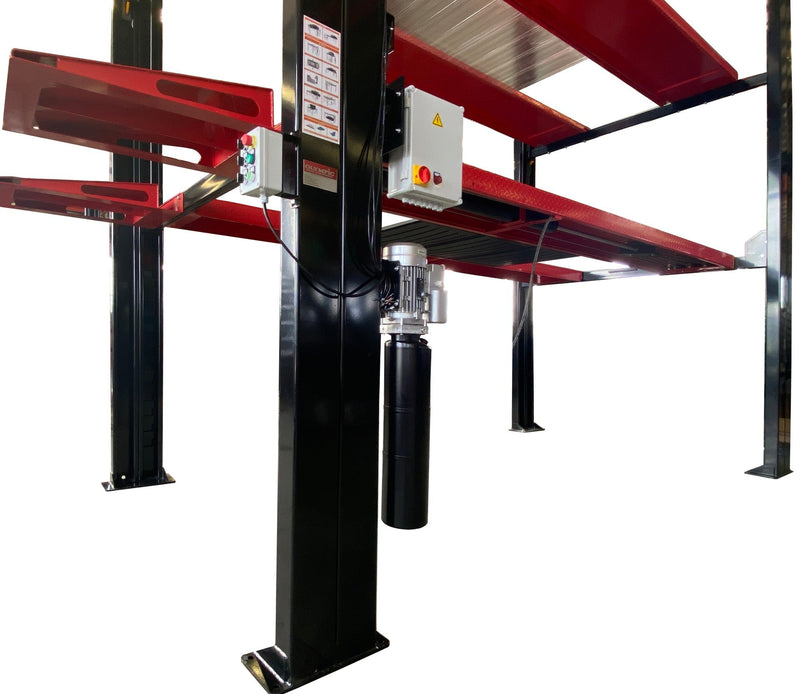

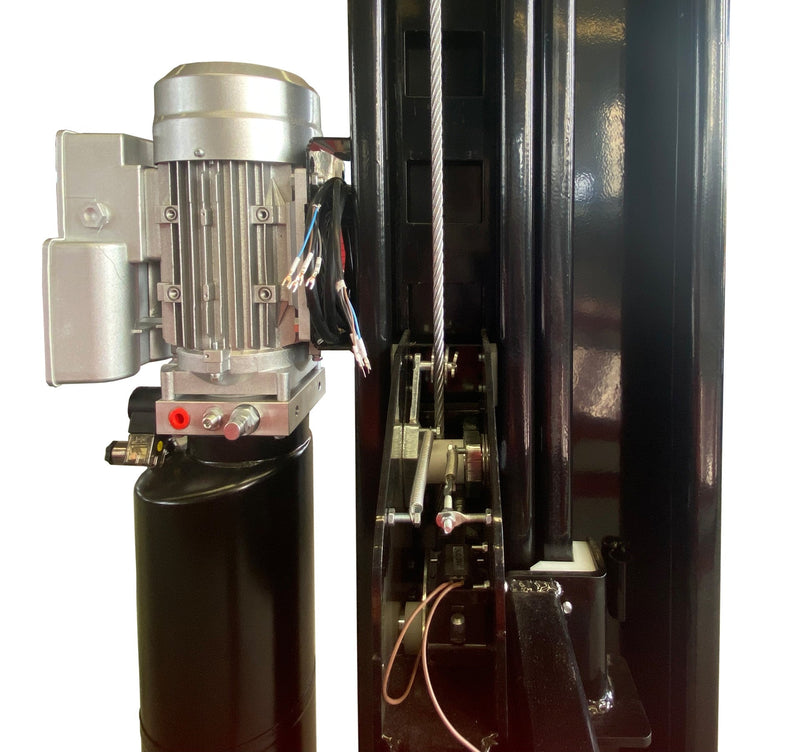

- 220V, 3KW, 4-horsepower, 60Hz power unit
- 10-year warranty
SPECIFICATIONS
| Model | 4032-4 “The Four Stacker” |
|---|---|
| Product Type | 4-Level Mechanical Parking Lift |
| Total Parking Levels | 4 |
| Configuration | 1 Ground Level + 3 Elevated Platforms |
| Second-Level Capacity | 5,500 lbs |
| Third-Level Capacity | 4,400 lbs |
| Fourth-Level Capacity | 4,400 lbs |
| Combined Platform Capacity | 14,300 lbs |
| Vehicle Compatibility | Sedans and many SUVs |

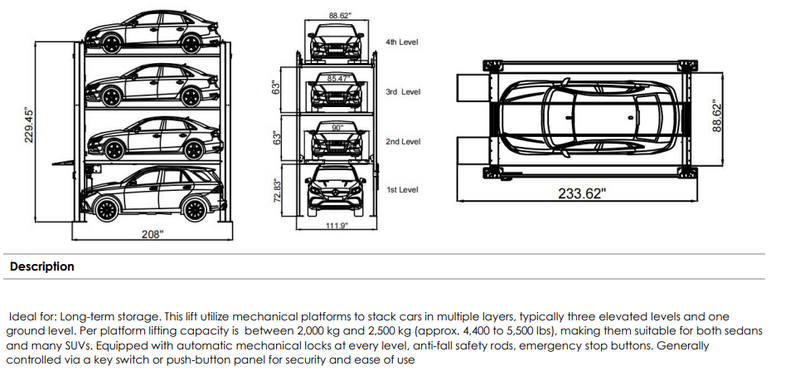

| Overall Height | 229.45 inches |
| Overall Width | 111.9 inches |
| Overall Length | 208 inches |
| Platform Width | 88.62 inches |
| Platform Length | 196.85 inches |
| First-Level Drive-Through Width | 111.9 inches |
| Second-Level Drive-Through Width | 90 inches |
| Third-Level Drive-Through Width | 85.47 inches |
| Fourth-Level Drive-Through Width | 88.62 inches |
| First-Level Vehicle Clearance | 72.83 inches |
| Second-Level Vehicle Clearance | 63 inches |
| Third-Level Vehicle Clearance | 63 inches |
| Fourth-Level Vehicle Clearance | Top level with no overhead obstruction |
| Construction | Q235 Structural Steel |
| Lift System | Mechanical Platform Lifting System |
| Locking System | Automatic Mechanical Locks at Every Level |
| Safety Features | Anti-Fall Safety Rods and Emergency Stop System |
| Controls | Electric Push-Button and Key-Switch Operation |
| Power Unit | 220V, 3KW, 4HP, 60Hz |
| Included | Nine Drip Trays |
| Warranty | 10 Years |
BENEFITS
The 4032-4 Four-Level Parking Lift helps property owners and businesses increase vehicle storage capacity without requiring additional ground-level parking space.
By stacking vehicles vertically, this car storage system can help dealerships organize inventory, fleet facilities improve parking efficiency, and vehicle collectors maximize garage space. The four-level configuration provides an effective solution where horizontal space is limited but vertical clearance is available.
Automatic mechanical locking at every level and integrated safety features provide additional support for long-term vehicle storage operations.
IDEAL FOR
- Vehicle collectors
- Residential garages with suitable ceiling height
- Commercial parking facilities
- Automotive dealerships
- Fleet storage facilities
- Apartment and condominium parking areas
- High-density vehicle storage facilities
- Automotive inventory storage
- Commercial property parking applications
WHY CHOOSE THIS PRODUCT
The 4032-4 “The Four Stacker” is designed for customers who need to store multiple vehicles while making the most of limited parking space. Its four-level configuration allows up to four vehicles to occupy the footprint of a single parking position.
With individual platform capacities designed for different storage levels, mechanical lifting, automatic locking, electric controls, and integrated safety features, this multi-vehicle storage lift provides an organized solution for long-term residential and commercial vehicle storage.
Increase your available vehicle storage capacity with the 4032-4 “The Four Stacker” 4-Level Car Storage Lift. Create a high-density parking solution for up to four vehicles while maximizing valuable vertical space.
