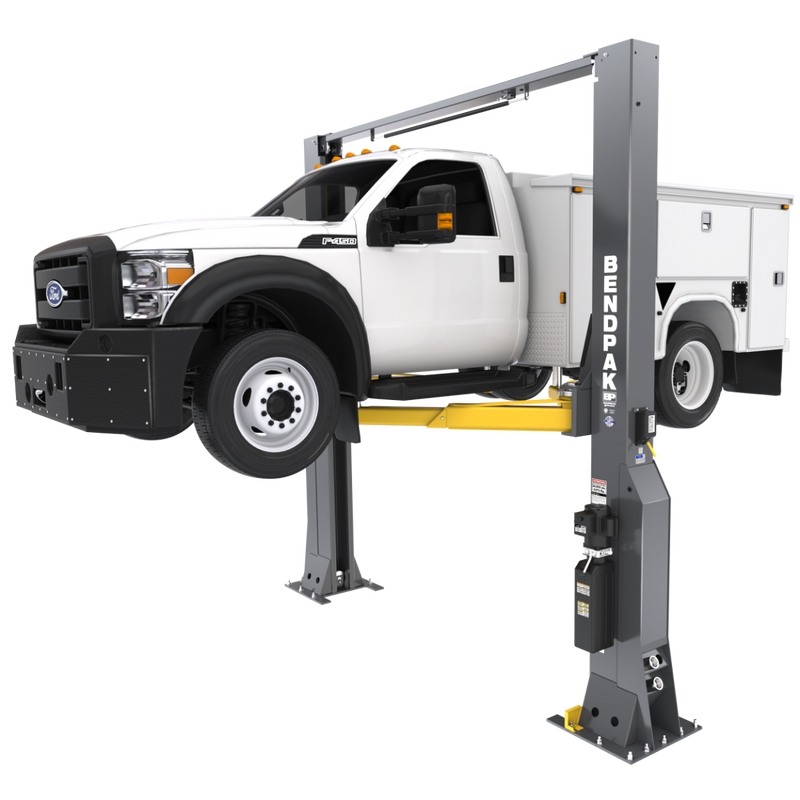

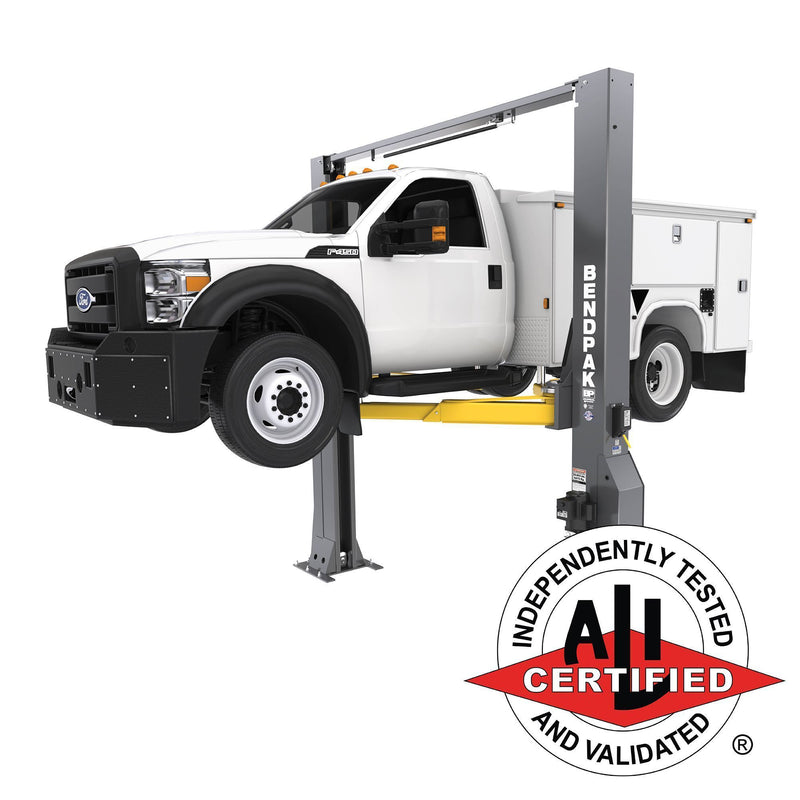

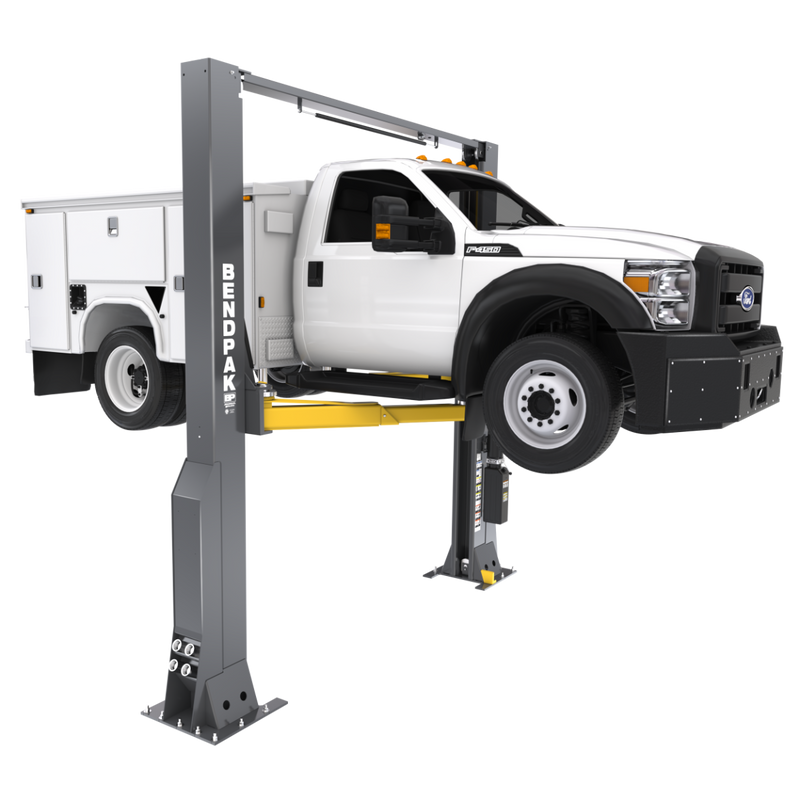

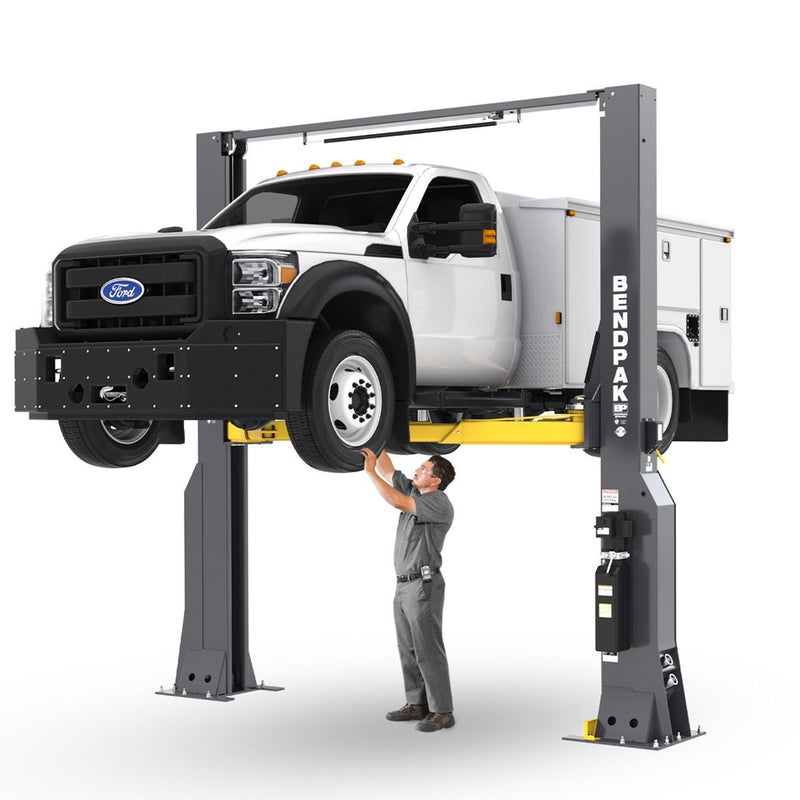

BendPak 20AP Super-Duty Two Post Car Lift - 20,000-Lb Capacity
In the dynamic world of automotive repair, staying equipped with the latest tools is crucial for keeping pace with evolving technology. BendPak's AP Series of two-post lifts represents a significant leap forward in car lift engineering. Built to withstand heavy-duty usage, handle high loads, and prioritize both operator safety and efficiency, the 20AP is truly a standout solution.

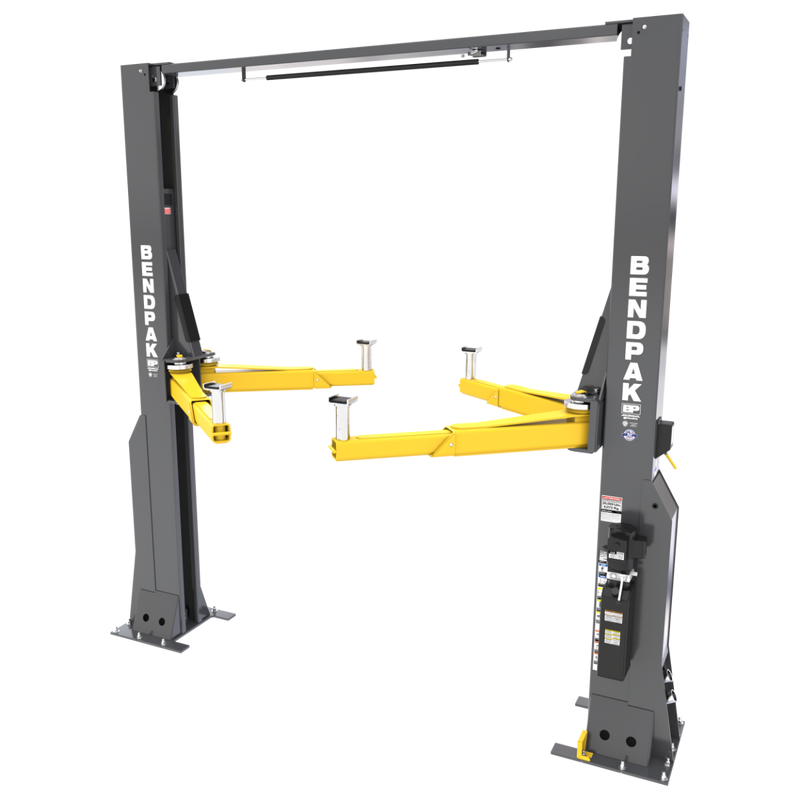

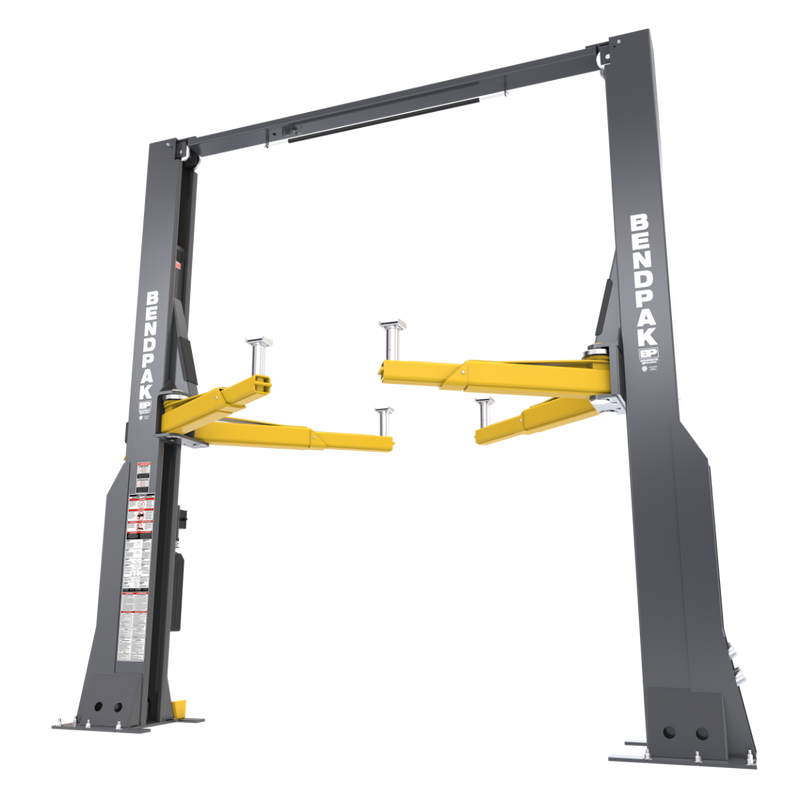

The 20AP offers unmatched versatility with the convenience of wide or narrow installation options, all packaged into one compact package. This dependable car lift features an expandable top beam and Bi-Metric™ swing arms to accommodate a wide variety of vehicle lifting requirements, whether you need to lift symmetrically or asymmetrically.
Automatic Arm Restraint System Prevents Unplanned Movement
BendPak's AP Series introduces a groundbreaking solution: the Automatic Swing Arm Restraint System (ASARS), fortified to withstand the elevated pushing and pulling forces encountered during vehicle service. The patented system offers a remarkable 360-degree load-holding grip, crafted from heavily forged steel, securing lift arms with over 2000 pounds of force.

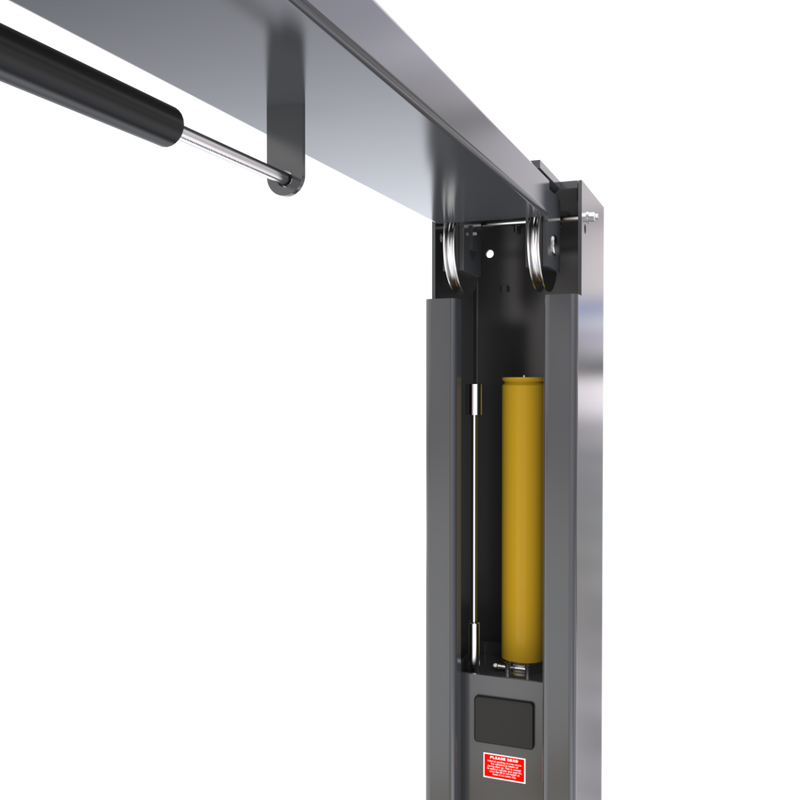

High-Strength Multi-Face Columns
Our revolutionary multi-face metal columns redefine strength and durability, especially under biaxial loading conditions, providing unparalleled stability and resilience even in the most demanding environments.
Specifications
| Lifting Capacity | 20,000 lbs. / 9,072 kg |
| A - Max. Rise (No Safety Lock Engaged) | 76.5 in. (1,943 mm) |
| B1 - Max. Lifting Height w/ Pad (Top Lock) | 82.75 in. (2,103 mm) |
| B2 - Max. Lifting Height w/ Pad (No Lock) | 83.25 in. (2,114 mm) |
| C - Max. Lifting Height w/ Adapters (Top Lock) | 90.25 in. (2,292 mm) |
| D - Min. Height w/ Pad | 8 in. (206 mm) |
| E - Overall Height | 169 in. (4,294 mm) |
| F - Width Overall | 168 in. (4,267 mm) |
| G - Outside Posts | 149 in. (3,785 mm) |
| H - Inside Posts | 126 in. (3,199 mm) |
| I - Drive-Thru Width | 107.75 in. (2,742 mm) |
| J - Floor to Top Switch | 162.5 in. (4,128 mm) |
| K - Lift Arm Reach (Min–Max) | 35 in. to 62 in. (893 mm to 1,678 mm) |
| L - Base Plate Width | 28 in. (710 mm) |
| M - Post to Base Plate | 9.5 in. (241 mm) |
| Time to Full Rise | ≈79 seconds |
| Operating Pressure at Maximum Load | 2,647 psi |
