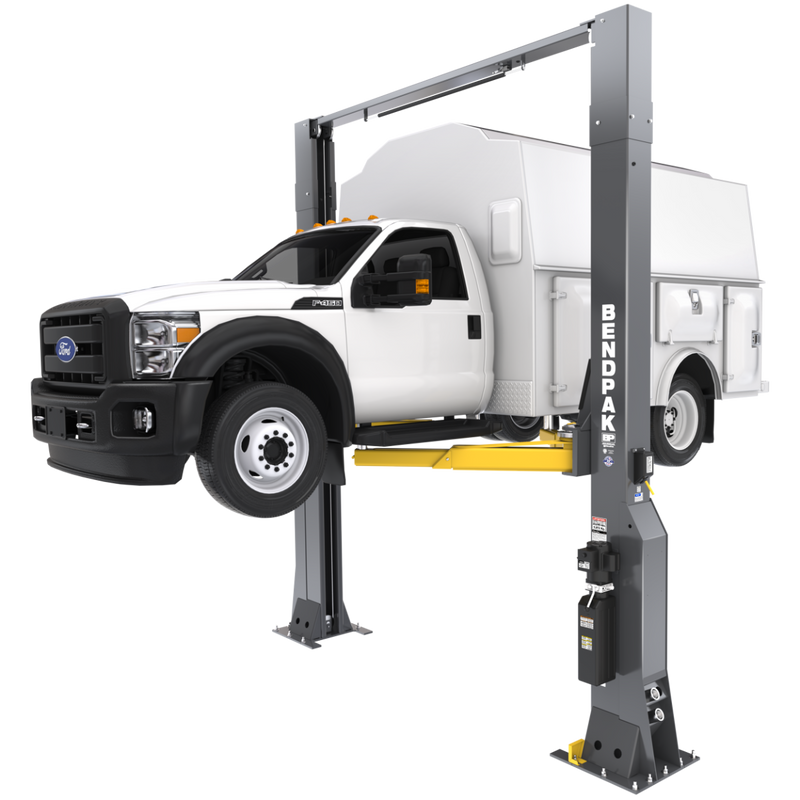

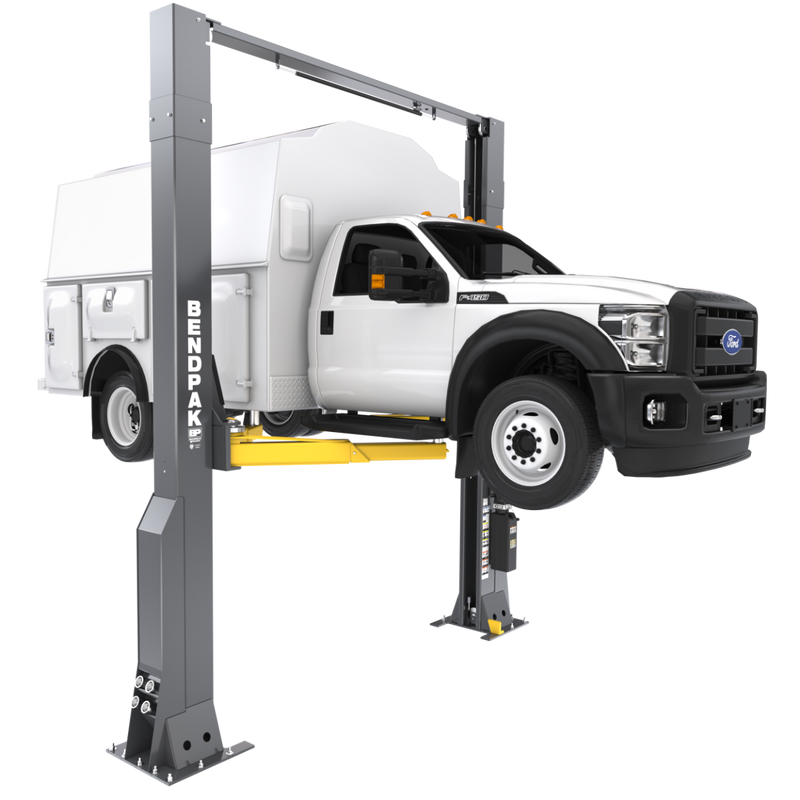

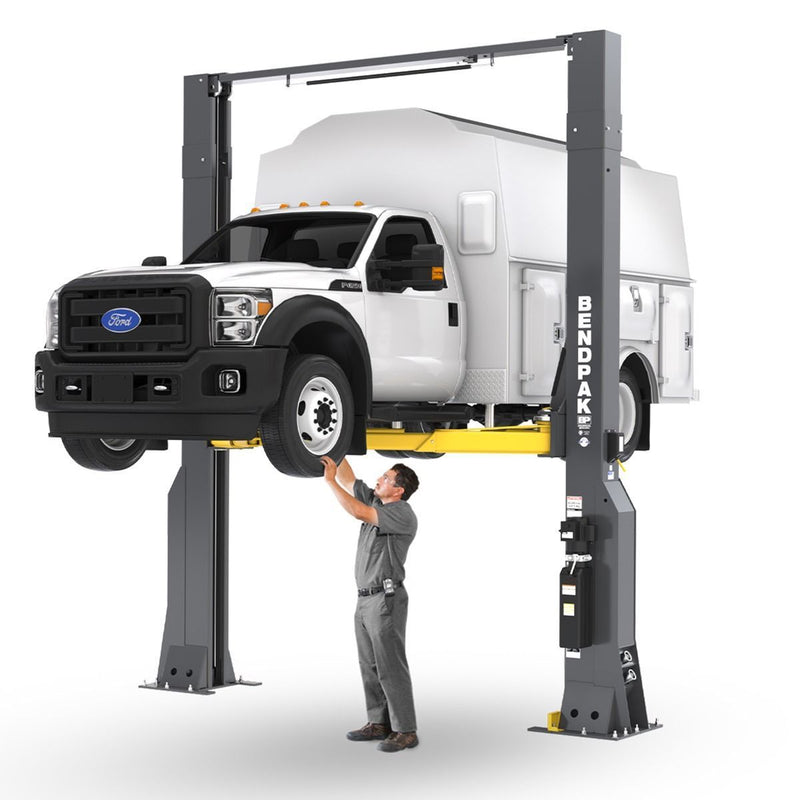

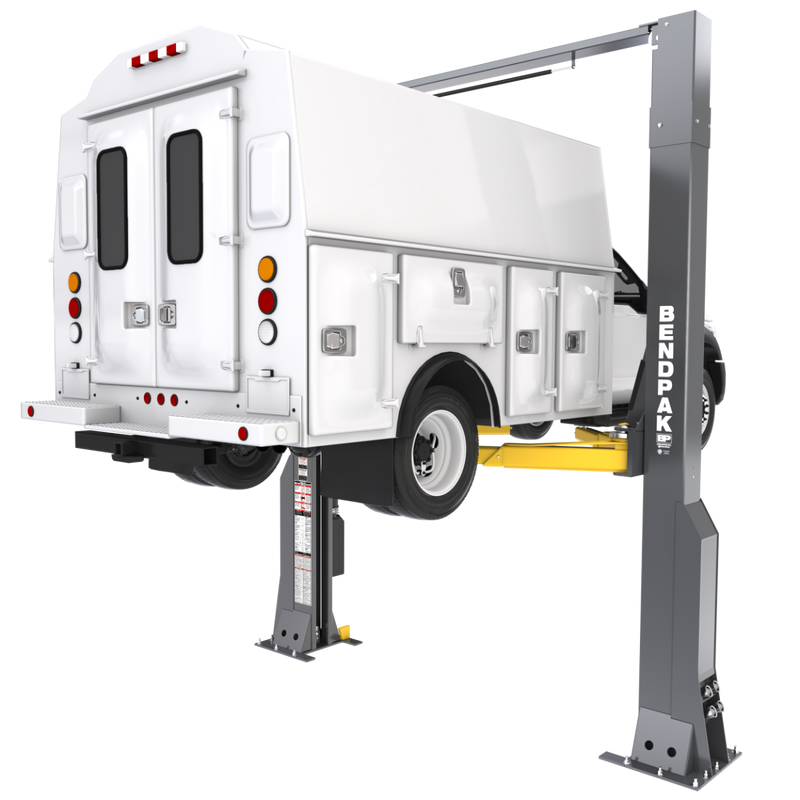

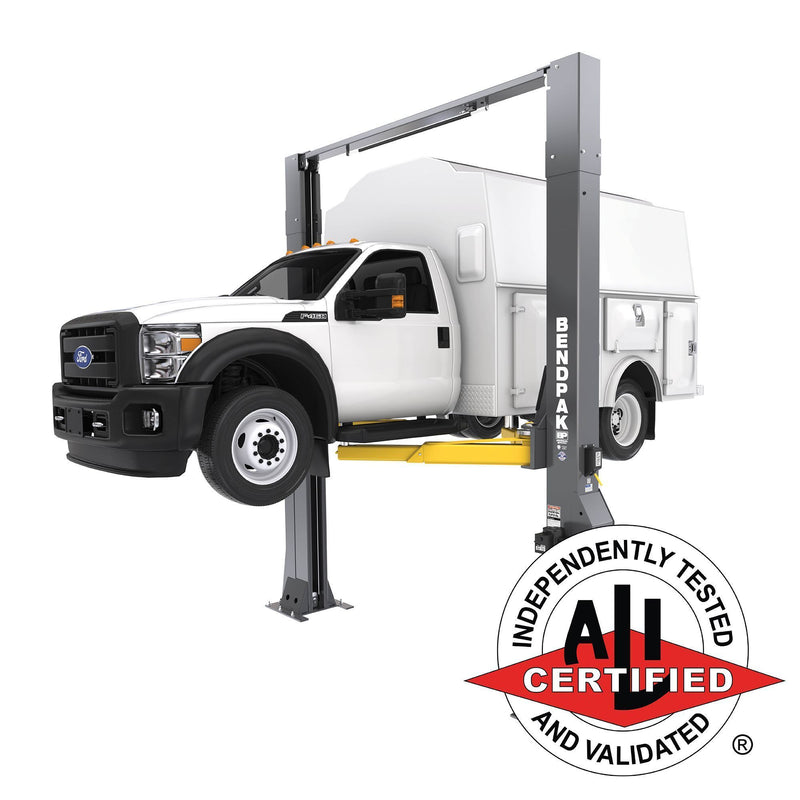

BendPak 20AP-192 Super-Duty Two Post Car Lift - 20,000-Lb Capacity - 192" Extended Height

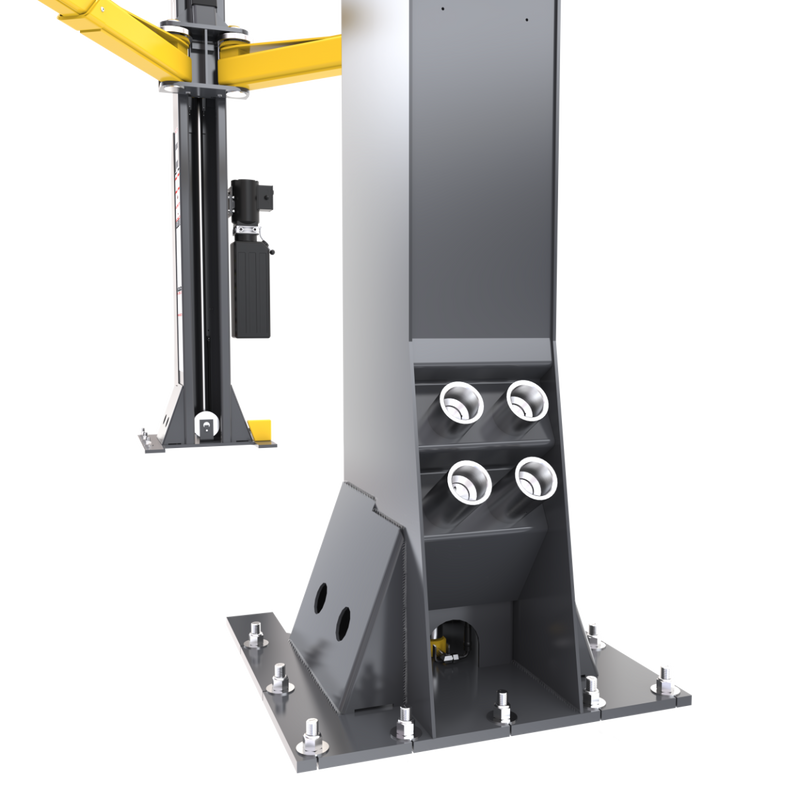

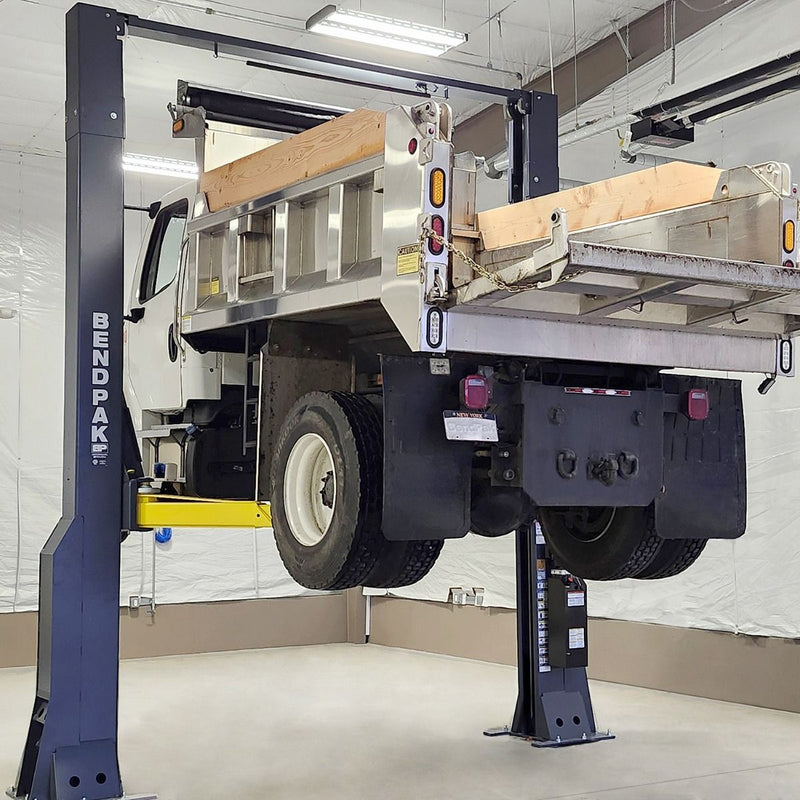

From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak's 20AP Series tackles them all. With an astounding 20,000-pound lifting capacity combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations. Over 50 years of lift-building heritage perfectly delivered.

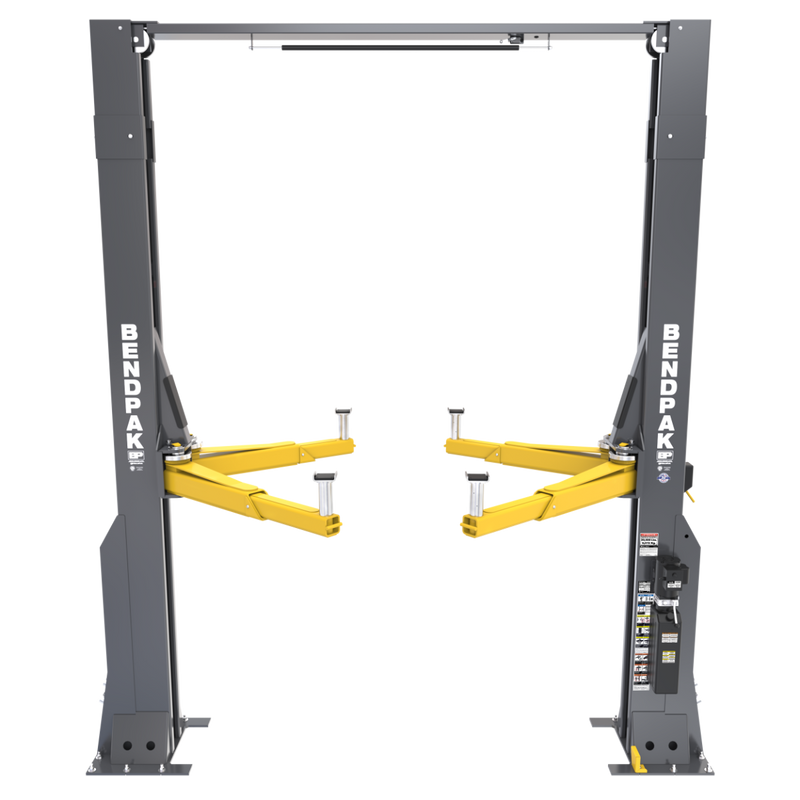

With oversize dimensions and capabilities that go well beyond those typically found on traditional two-post lifts, they lift more, lift higher, reach farther, and realize more vehicle-supporting stability than ever before. Graciously spaced columns make for easier entry and exit and ruggedly built far reaching arms increase lifting point coverage delivering greater stability.

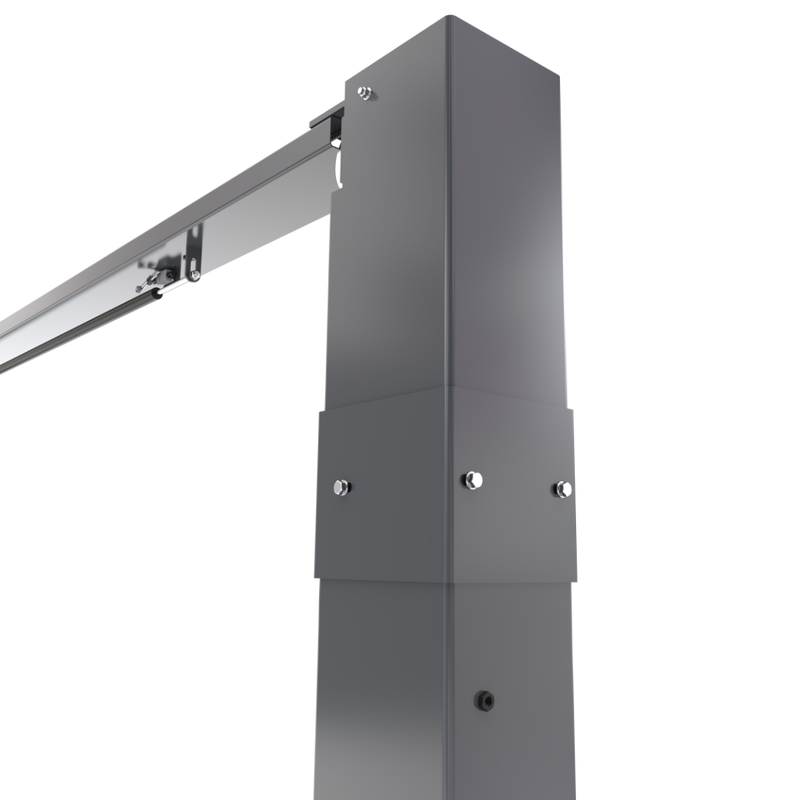

The 20AP-192 delivers everything professionals love about the AP Series in a taller package. With an increased 193” overall height, techs will have more room to work comfortably.

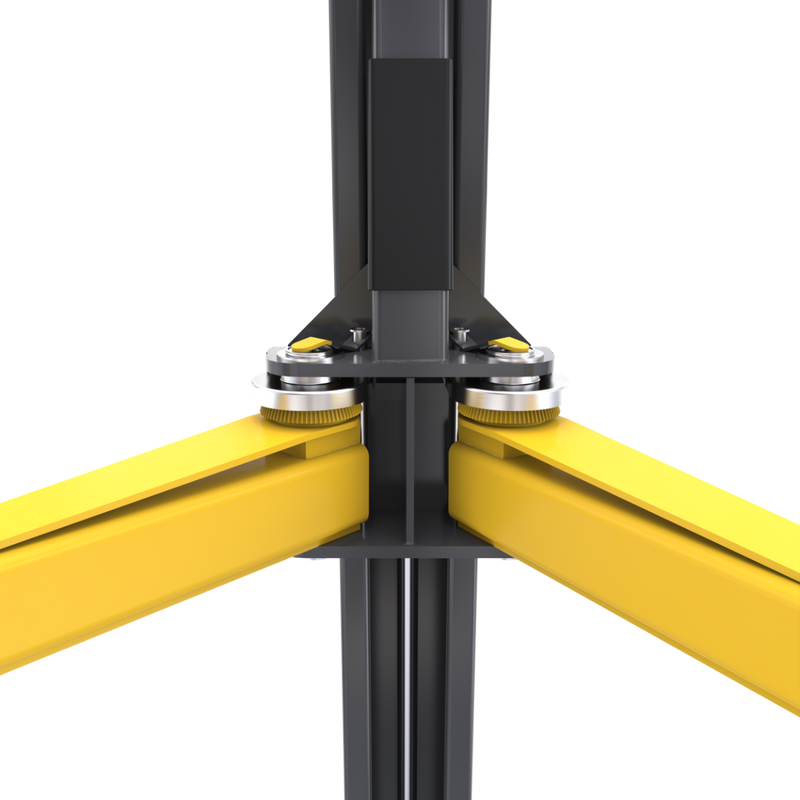

Experience unparalleled stability and safety with BendPak's revolutionary Automatic Swing Arm Restraint System (ASARS). Crafted with a patented and exclusive heavily forged-steel design, this system boasts a full 360-degrees of load holding grip, ensuring the lift arms remain securely in place with over 2000-pounds of load-holding force.
Specifications
| Lifting Capacity | 20,000 lbs. / 9,072 kg |
| Max. Capacity — Front Axle | 10,000 lbs. / 4,536 kg |
| Max. Capacity — Rear Axle | 10,000 lbs. / 4,536 kg |
| A - Max. Rise | 76.25 in. / 1,934 mm |
| B - Lifting Height w/ Pad | 83 in. / 2,111 mm |
| C - Max. Lifting Height | 91.5 in. / 2,327 mm |
| D - Min. Height w/ Pad | 8 in. / 206 mm |
| E - Height Overall | 193 in. / 4,904 mm |
| F - Width Overall | 168 in. / 4,267 mm |
| G - Outside Posts | 149 in. / 3,785 mm |
| H - Inside Posts | 126 in. / 3,199 mm |
| I - Drive-Thru Width | 107.75 in. / 2,739 mm |
| J - Floor to Top Switch | 186.5 in. / 4,738 mm |
| K - Front Arm Reach | 35 in. to 62 in. (893 mm to 1,678 mm) |
| K - Rear Arm Reach | 35 in. to 62 in. (893 mm to 1,678 mm) |
| L - Base Plate Width | 28 in. / 710 mm |
| M - Post to Base Plate | 9.5 in. / 241 mm |
| Max. Load per Lift Arm | 5,000 lbs. / 2,268 kg |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Sound | <70 dB |
