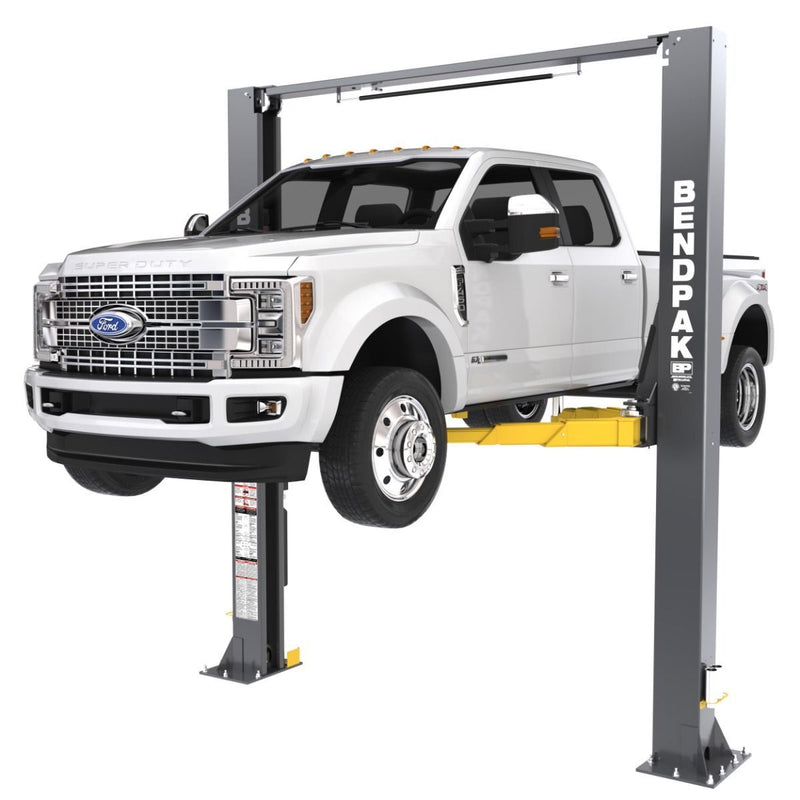

BendPak 12APX Two Post Car Lift - 12,000-Lb Capacity - High Rise

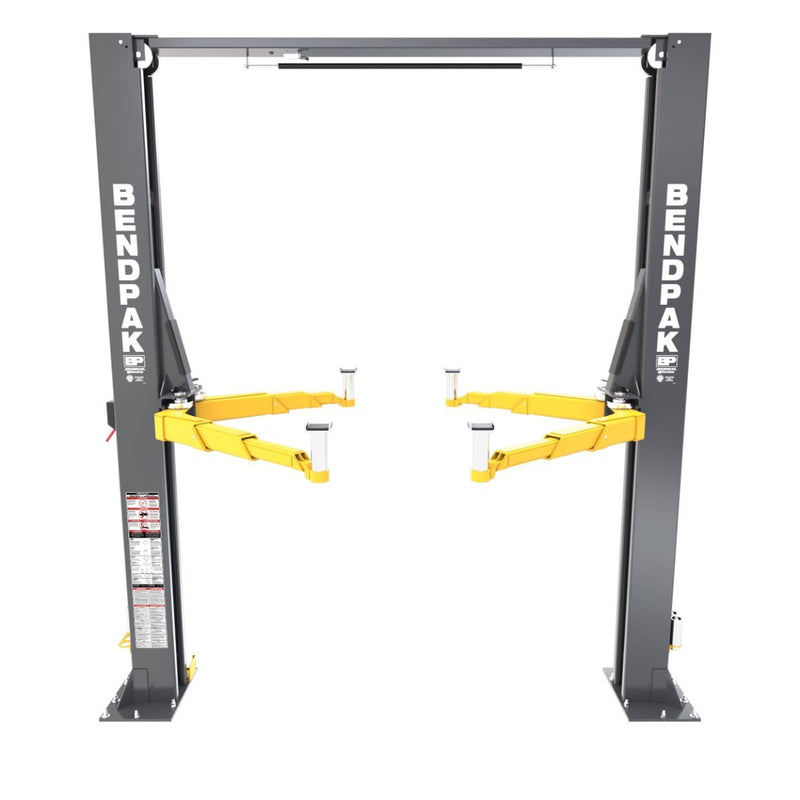

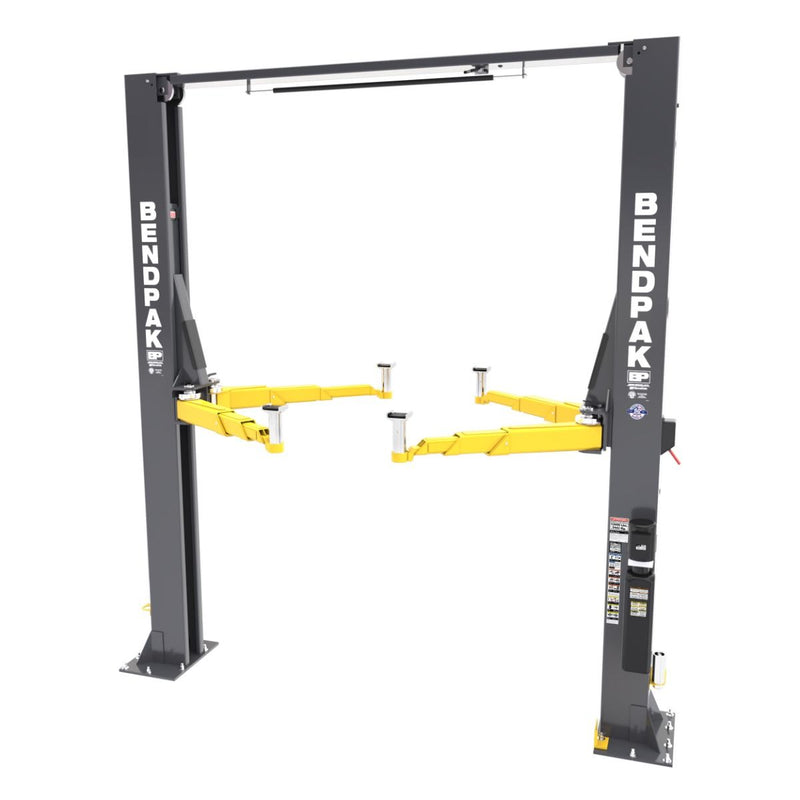

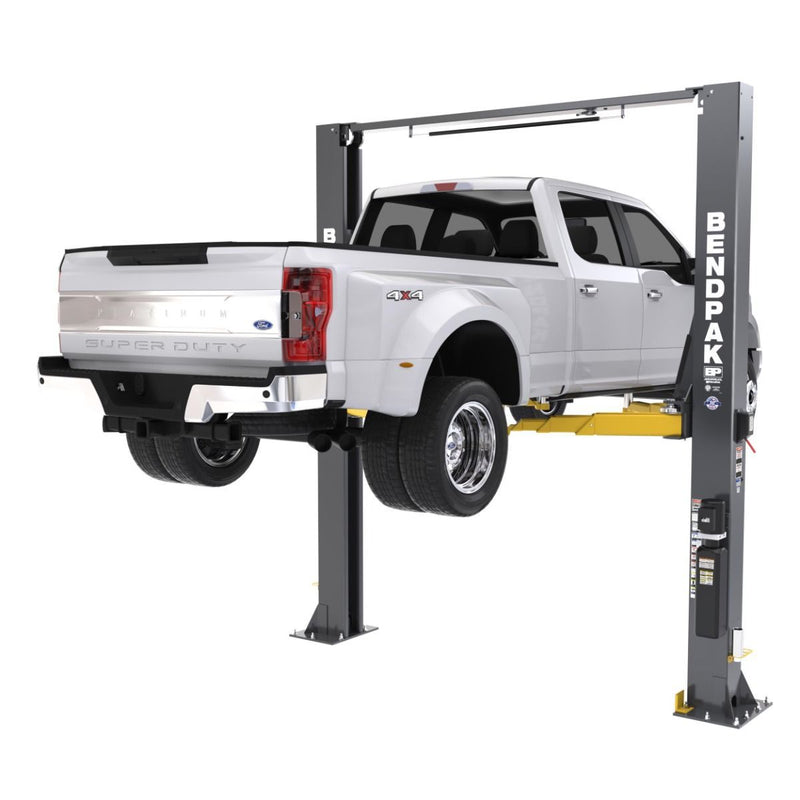

The BendPak 12APX
The BendPak 12APX has been designed to accommodate mechanics who are constantly in uncomfortable positions on the job, offering an overall height of 169” for plenty of room to work comfortably. Like the rest of the AP Series, this lift retains a 12,000-lb. lifting capacity, Low-Pro arms, Bi-Metric™ arms, and much more.
A New Paradigm in Lifting
BendPak's all-new AP series of two-post lifts sport a revolutionary design purposefully designed for extreme use, high loads, and operator safety and efficiency, offering wide or narrow installation wrapped up into one configurable package.

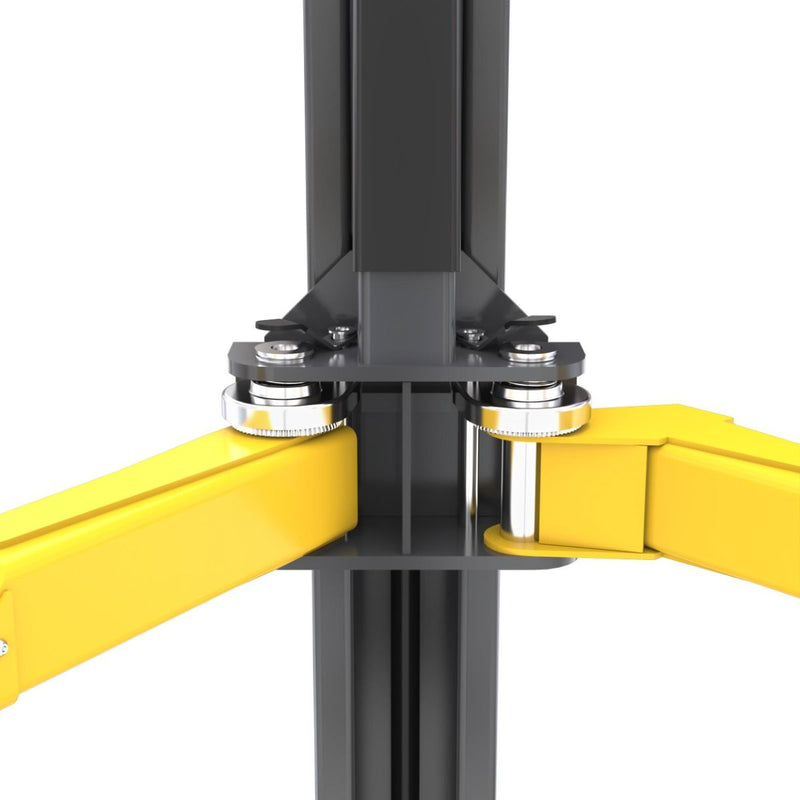

Automatic Arm Restraint System Prevents Unplanned Movement
The revolutionary Automatic Swing Arm Restraint System (ASARS) provides a full 360-degrees of load-holding grip, with a heavily forged-steel design securing lift arms firmly in place with over 2000-pounds of load-holding force.

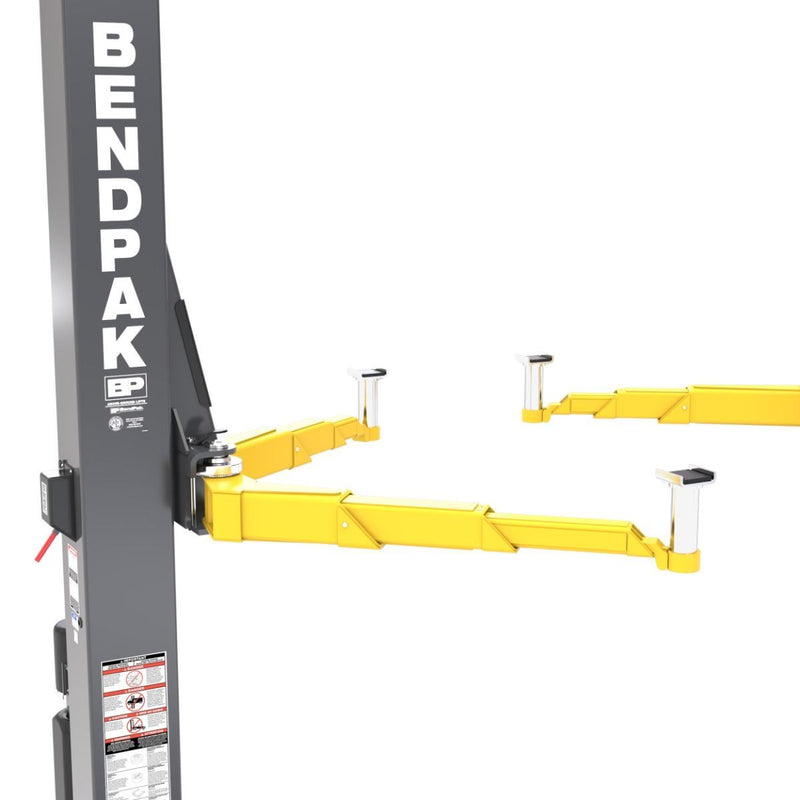

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms retract shorter and extend farther than traditional two-post lift arms, offering lift operators a myriad of lift arm positioning options.
Bi-Metric™ Swing-Arms
Exclusive Bi-Metric™ adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations without switching out arms.
Specifications
| Lifting Capacity | 12,000 lbs. / 5,443 kg |
| Max. Capacity — Front Axle | 6,000 lbs. / 2,722 kg |
| Max. Capacity — Rear Axle | 6,000 lbs. / 2,722 kg |
| Max. Load per Lift Arm | 3,000 lbs. / 2,268 kg |
| A – Max. Lifting Height w/ Pad (Top Lock) | 79.25 in. / 2,015 mm |
| B – Max. Lifting Height w/ Adapters | 87.75 in. / 2,229 mm |
| C – Max. Rise (No Lock Engaged) | 76 in. / 1,932 mm |
| D – Min. Height w/ Pad | 4.25 in. / 108 mm |
| E – Overall Height | 169 in. / 4,294 mm |
| F – Width Overall | 156 in. / 3,959 mm |
| G – Outside Posts | 143 in. / 3,633 mm |
| H – Inside Posts | 120 in. / 3,047 mm |
| I – Drive-Thru Width | 103 in. / 2,619 mm |
| J – Floor to Top Switch | 163.5 in. / 4,154 mm |
| K – Rear Arm Reach (Min–Max) | 29.25 in. – 60 in. / 745 mm – 1,524 mm |
| L – Front Arm Reach (Min–Max) | 26 in. – 55.25 in. / 660 mm – 1,404 mm |
| M – Base Plate Width | 25 in. / 634 mm |
| Operating Pressure at Maximum Load | 2,220 psi |
| Time to Full Rise | ≈68 seconds |
| Motor | 230 VAC, 50/60 Hz, 1 Ph, 5 HP, approx. 19.5 Amps |
| Hydraulic Fluid Required | 3.6 gallons / 13.6 Liters |
| Operating Temperature | 41° to 104° F / 5° to 40°C |
| Sound Pressure | 81 dB peak level |
