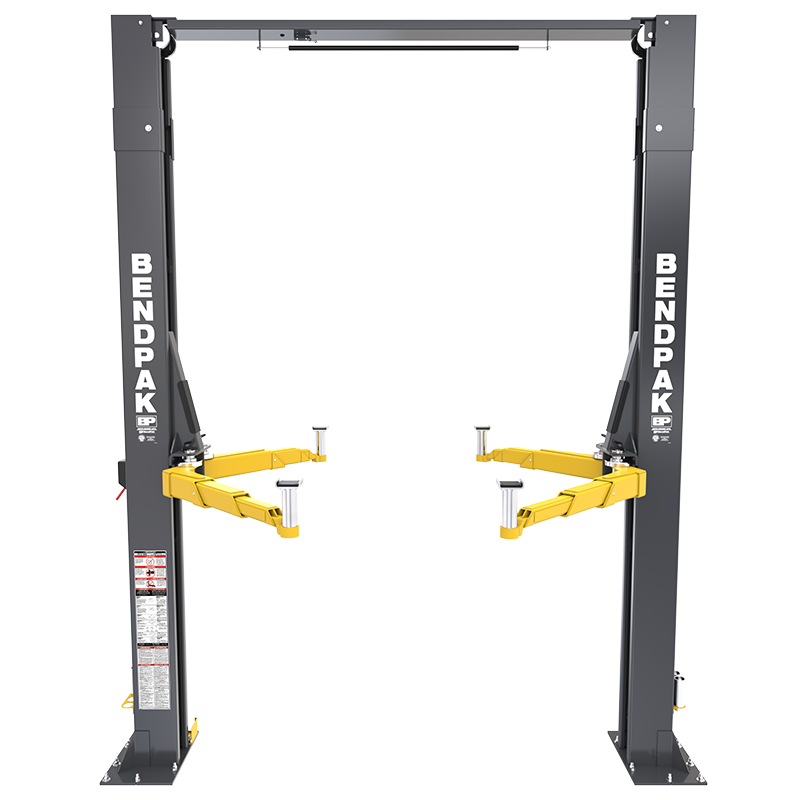

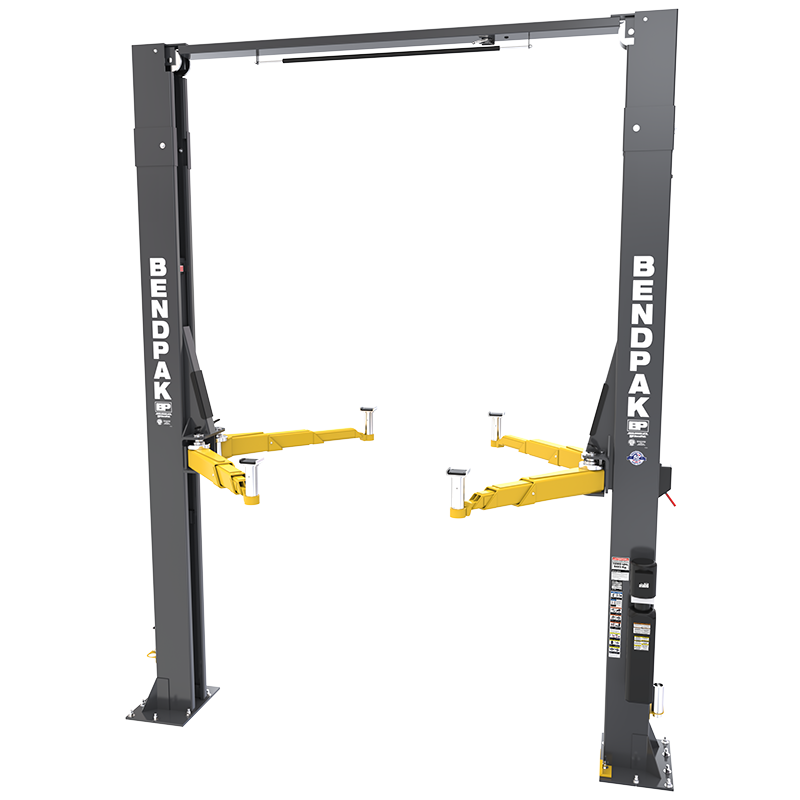

BendPak 12APX-192 Two Post Car Lift - 12,000-Lb Capacity - High Rise, 192" Extended Height
The BendPak 12APX-192 has been designed to accommodate mechanics who often find themselves in uncomfortable positions while on the job. With an impressive overall height of 193 inches, this lift provides plenty of room to work comfortably. Like the rest of the AP Series, this lift retains all your favorite features, including a 12,000-lb. lifting capacity, Low-Pro™ arms, Bi-Metric™ arms, and much more.
A New Paradigm in Lifting
BendPak's all-new AP series of two-post lifts sport a revolutionary design purposefully designed for extreme use, high loads, and operator safety and efficiency.

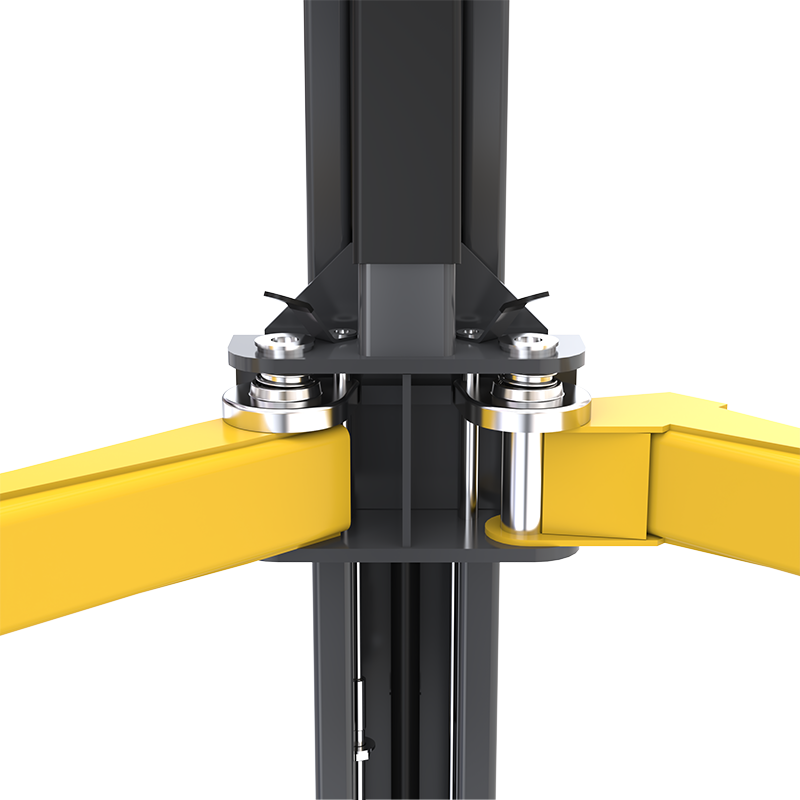

Automatic Arm Restraint System Prevents Unplanned Movement
The revolutionary Automatic Swing Arm Restraint System (ASARS) secures lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing-arm movement during lift use and vehicle service operations.

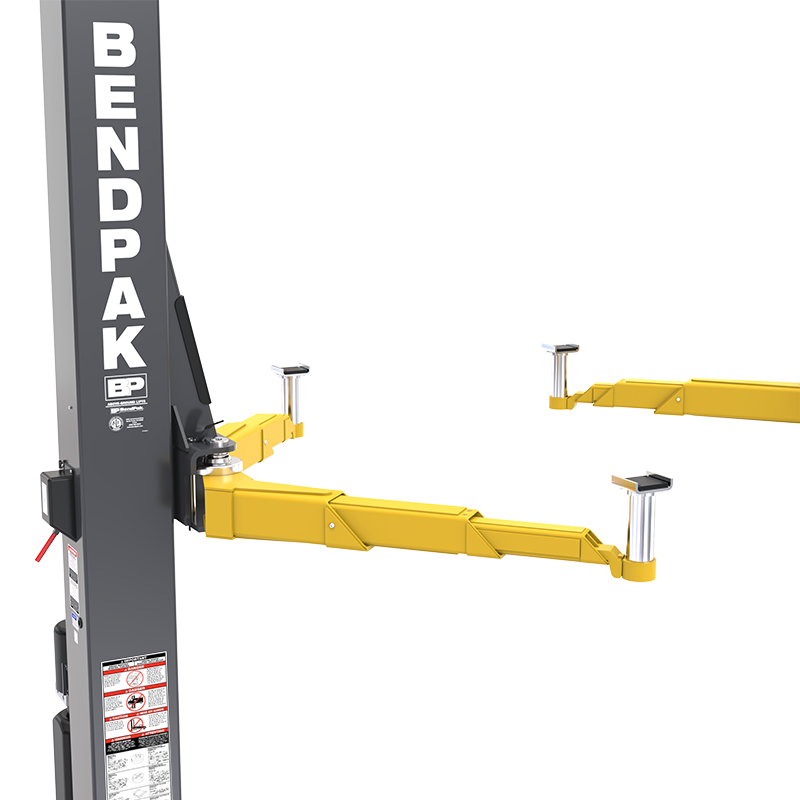

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms retract shorter and extend farther than traditional two-post lift arms, offering lift operators a myriad of lift arm positioning options.
Bi-Metric™ Swing-Arms
Exclusive Bi-Metric™ adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations without switching out arms.
Specifications
| Lifting Capacity | 12,000 lbs. / 5,443 kg |
| Max. Capacity — Front Axle | 6,000 lbs. / 2,722 kg |
| Max. Capacity — Rear Axle | 6,000 lbs. / 2,722 kg |
| Max. Load per Lift Arm | 3,000 lbs. / 2,268 kg |
| A – Max. Lifting Height w/ Pad (Top Lock) | 79.25 in. / 2,015 mm |
| B – Max. Lifting Height w/ Adapters | 87.75 in. / 2,229 mm |
| C – Max. Rise (No Lock Engaged) | 76 in. / 1,932 mm |
| D – Min. Height w/ Pad | 4.25 in. / 108 mm |
| E – Overall Height | 193 in. / 4,904 mm |
| F – Width Overall | 156 in. / 3,959 mm |
| G – Outside Posts | 143 in. / 3,633 mm |
| H – Inside Posts | 120 in. / 3,047 mm |
| I – Drive-Thru Width | 103 in. / 2,619 mm |
| J – Floor to Top Switch | 187.5 in. / 4,764 mm |
| K – Rear Arm Reach (Min–Max) | 29.25 in. – 60 in. / 745 mm – 1,524 mm |
| L – Front Arm Reach (Min–Max) | 26 in. – 55.25 in. / 660 mm – 1,404 mm |
| M – Base Plate Width | 25 in. / 634 mm |
| Operating Pressure at Maximum Load | 2,220 psi |
| Time to Full Rise | ≈68 seconds |
| Motor | 230 VAC, 50/60 Hz, 1 Ph, 5 HP, approx. 19.5 Amps |
| Hydraulic Fluid Required | 3.6 gallons / 13.6 Liters |
| Operating Temperature | 41° to 104° F / 5° to 40°C |
| Sound Pressure | 81 dB peak level |
