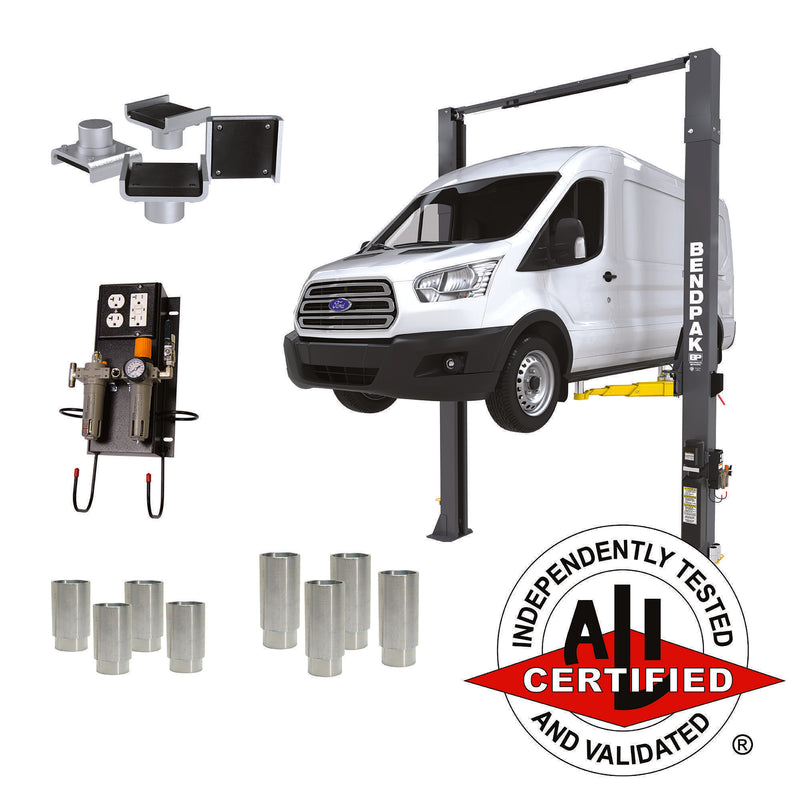

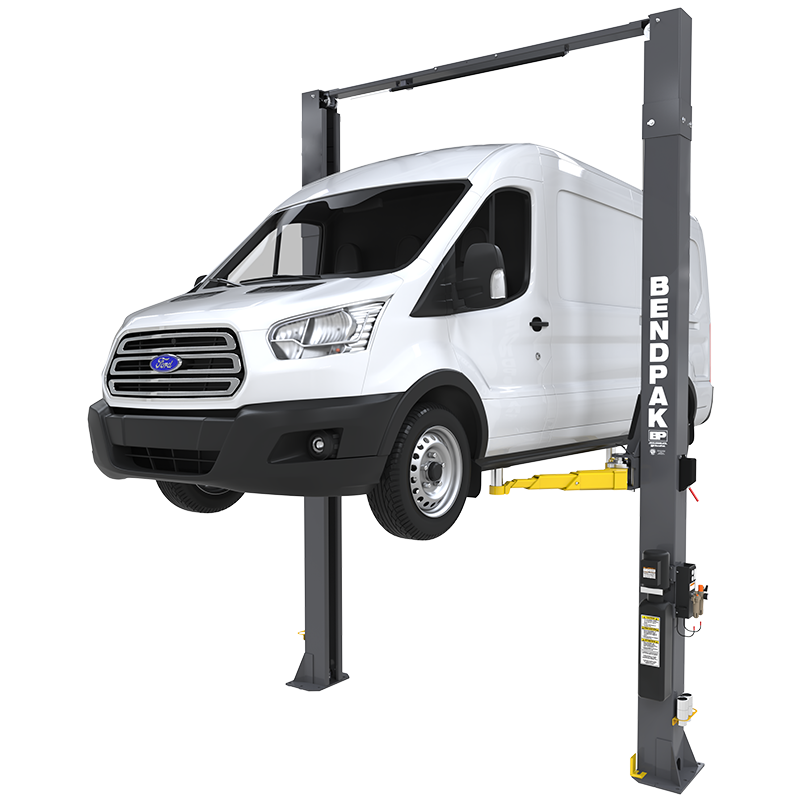

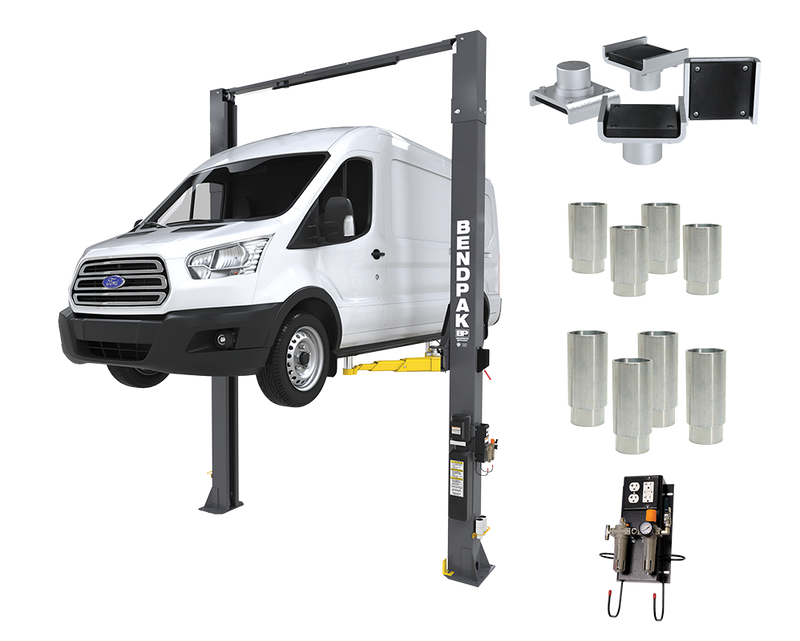

BendPak 10APX-181 Pro Series Two Post Car Lift - 10,000-Lb Capacity - 181" Extended Height
Empowering the Future of EV Service
The 10APX-181 PRO is built for tackling larger vehicles, with a towering 181” overhead beam perfect for high-roof cargo vans. Like the rest of the PRO Series, it offers a 10,000-lb. lifting capacity, Low-Pro™ arms, Bi-Metric™ arms, and a slew of top-notch features.
Reaching New Heights in Automotive Lifting
The PRO-Series offers the versatility of both wide and narrow installation options in a single, customizable package, with BendPak's Bi-Metric™ arms handling both symmetric and asymmetric lifting.
Revolutionary Automatic Swing Arm Restraint System
The patented forged-steel ASARS design delivers over 2000 pounds of holding force, keeping lift arms securely in place and preventing unplanned movement, with a quick-release operator lever for instant clamping release.
The Perfect Air Supply for Your Lift
The WSA-100 air-electric workstation comes equipped with four electrical outlets and two specialized air service outlets, giving your workspace the versatility it needs to thrive.
Specifications
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
| A - Rise | 75.5" (1,918 mm) |
| B - Rise + Pad Only | 79.5" (2,007 mm) |
| C - Rise + Pad + 63 mm Adapter | 89" (2,261 mm) |
| D - Min. Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 seconds |
| E - Height Overall | 181" (4,597 mm) |
| F - Width Overall | 135" (3,431 mm) or 145" (3,683 mm) |
| G - Outside Columns | 127.5" (3,238 mm) or 137.5" (3,492 mm) |
| H - Inside Columns | 108.5" (2,756 mm) or 118.5" (3,010 mm) |
| I - Drive-Thru Clearance | 92" (2,338 mm) or 102" (2,592 mm) |
| J - Floor To Overhead Switch | 175.75" (4,464 mm) |
| K - Front Arm Reach (Min) | 24.5" (622 mm) |
| K - Front Arm Reach (Max) | 50" (1,270 mm) |
| L - Rear Arm Reach (Min) | 32" (812 mm) |
| L - Rear Arm Reach (Max) | 59.25" (1,504 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Noise | <70 dB |
