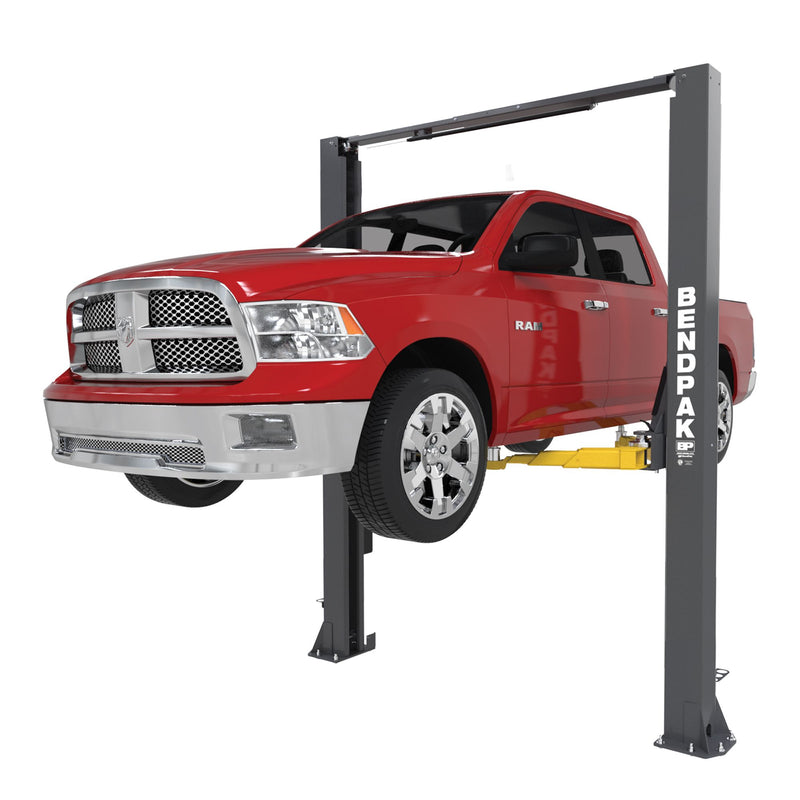

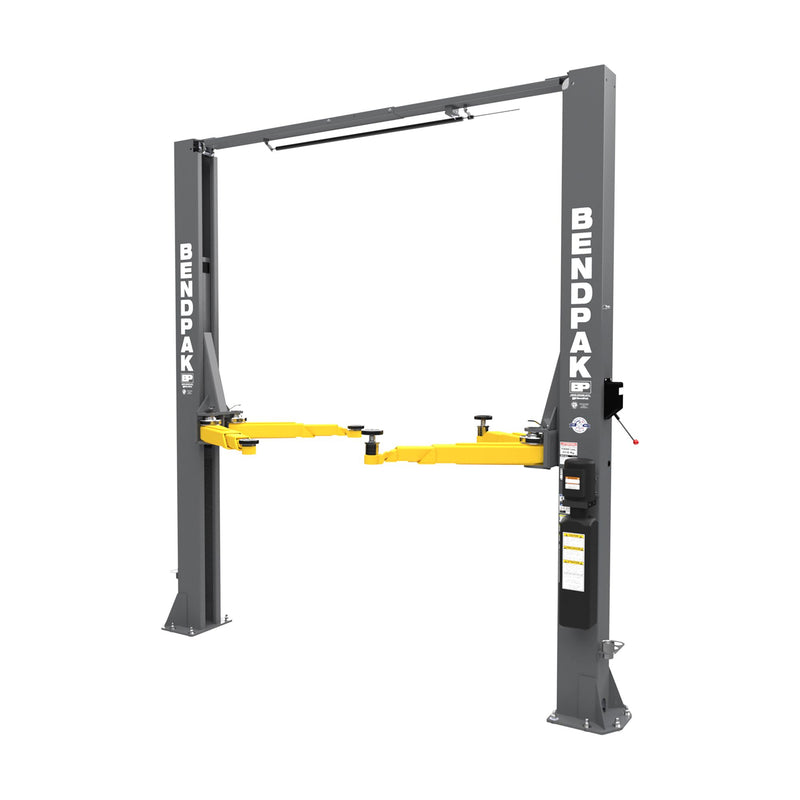

BendPak 10APX Two Post Car Lift - 10,000-Lb Capacity - High Rise
10AP Series: Tall-Rise Lifts
The 10APX has been designed to accommodate mechanics who are constantly in uncomfortable positions on the job. This lift offers a lifting height of 79.5” and an overhead beam of 157”, giving plenty of room to work comfortably. Like the rest of the 10AP Series, it features a 10,000-lb. lifting capacity, Low-Pro arms, Bi-Metric™ arms, and much more.
A New Paradigm in Lifting
BendPak's all-new AP series of two-post lifts sport a revolutionary design which factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering, purposefully designed for extreme use, high loads and operator safety and efficiency.

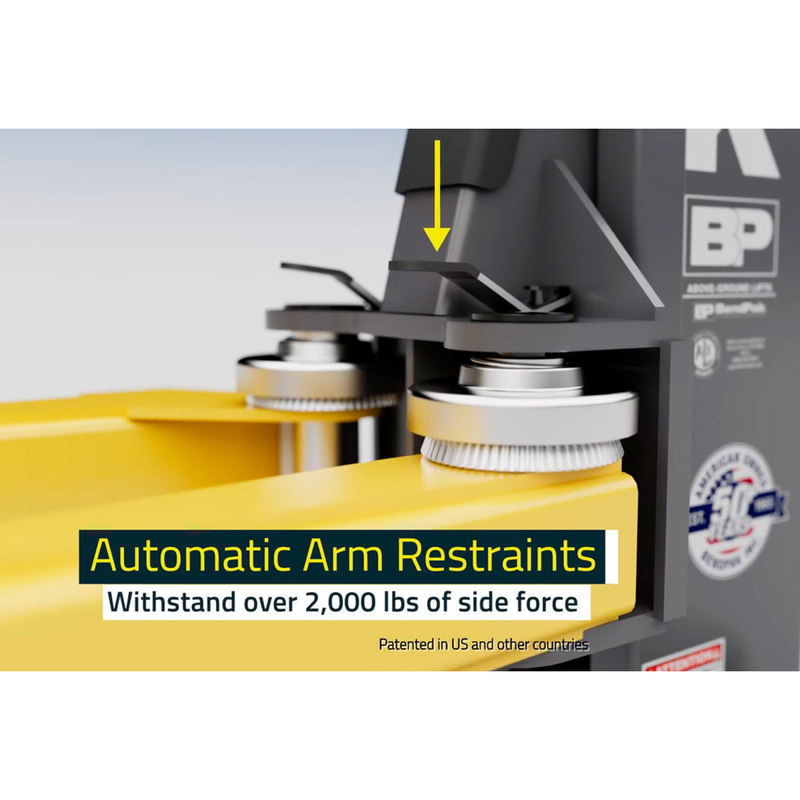

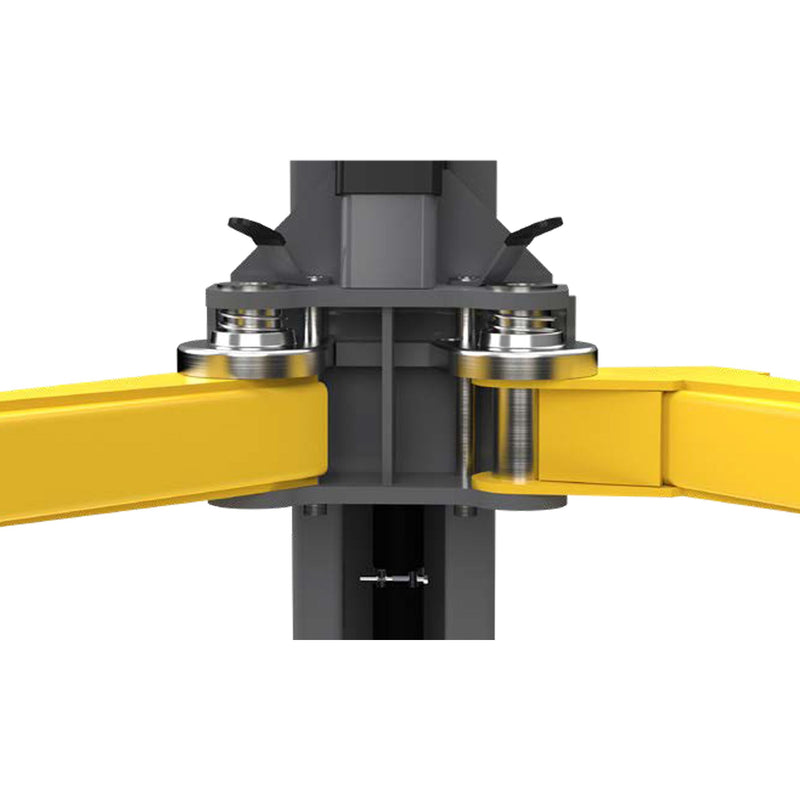

Automatic Arm Restraint System Prevents Unplanned Movement
A significant design feature which sets the 10AP Series apart is its revolutionary Automatic Swing Arm Restraint System (ASARS). With a full 360-degrees of load-holding grip, the heavily forged-steel design secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing-arm movement during lift use and vehicle service operations.

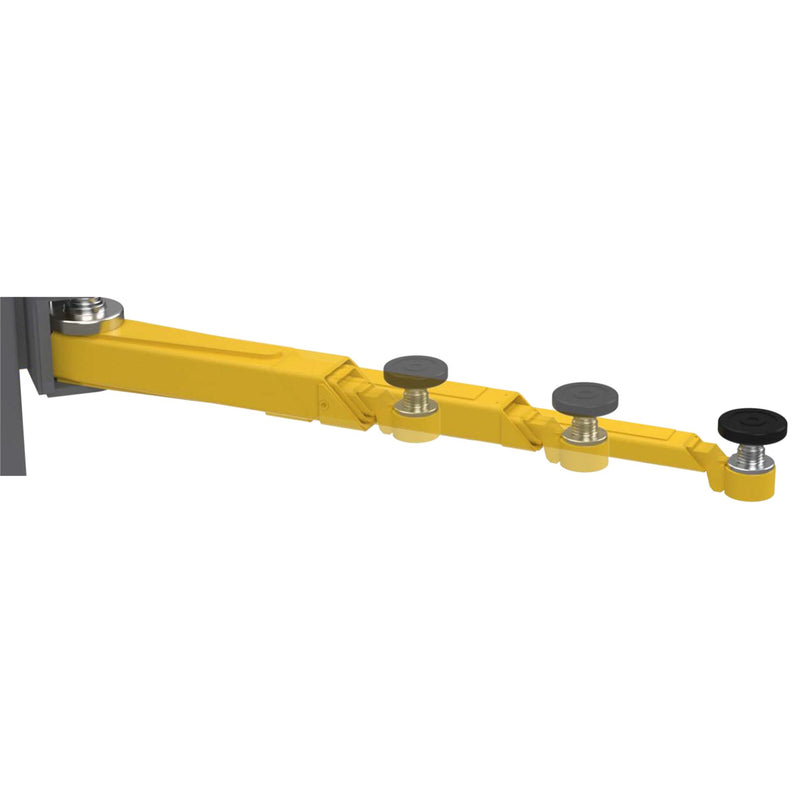

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms retract shorter and extend farther than traditional two-post lift arms, offering lift operators a myriad of lift arm positioning options.
Bi-Metric™ Swing-Arms
Exclusive Bi-Metric™ adaptable swing-arms give users the option of loading vehicles either symmetrically or asymmetrically without having to switch out arms.
Specifications
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |

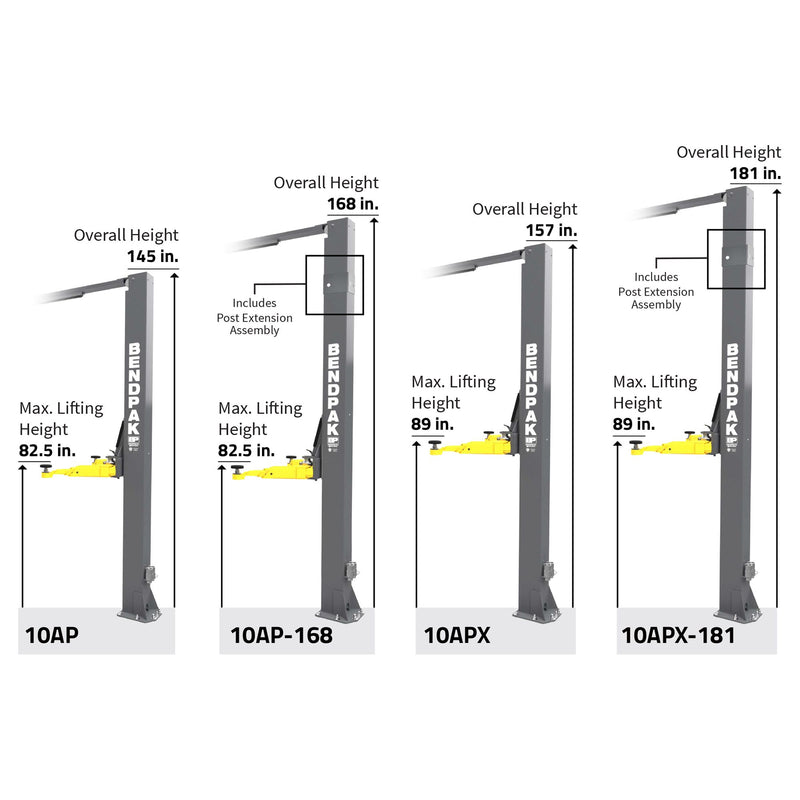

| A - Rise | 75.5" (1,918 mm) |
| B - Rise + Pad Only | 79.5" (2,007 mm) |

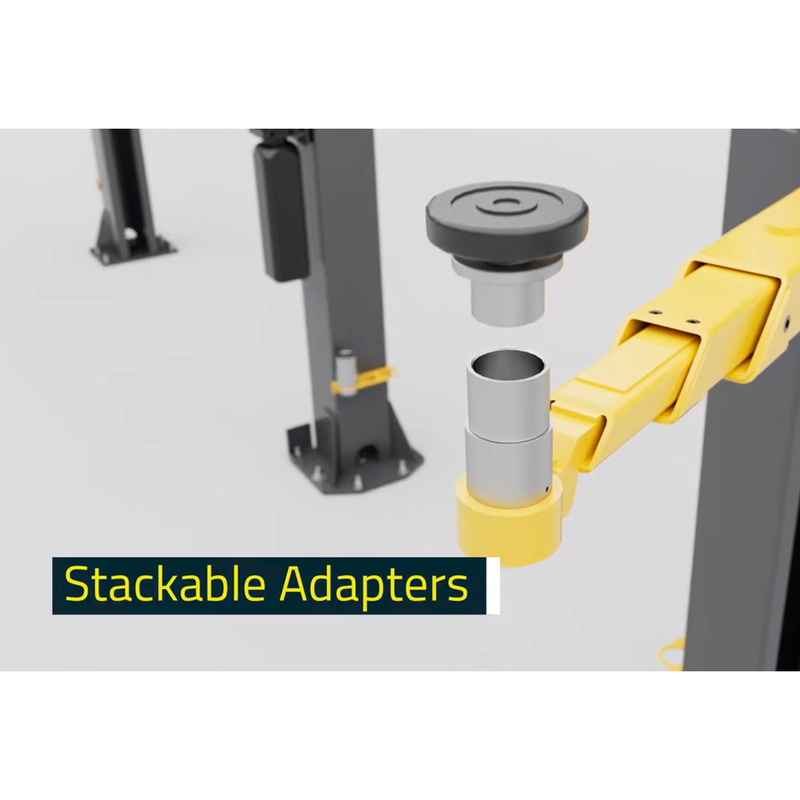

| C - Rise + Pad + 63 mm Adapter | 89" (2,261 mm) |
| D - Min. Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 seconds |
| E - Height Overall | 157" (3,988 mm) |
| F - Width Overall | 135" (3,431 mm) or 145" (3,683 mm) |
| G - Outside Columns | 127.5" (3,238 mm) or 137.5" (3,492 mm) |
| H - Inside Columns | 108.5" (2,756 mm) or 118.5" (3,010 mm) |
| I - Drive-Thru Clearance | 92" (2,338 mm) or 102" (2,592 mm) |
| J - Floor To Overhead Switch | 151.5" (3,850 mm) |
| K - Front Arm Reach (Min) | 24.5" (622 mm) |
| K - Front Arm Reach (Max) | 50" (1,270 mm) |
| L - Rear Arm Reach (Min) | 32" (812 mm) |
| L - Rear Arm Reach (Max) | 59.25" (1,504 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Noise | <70 dB |
