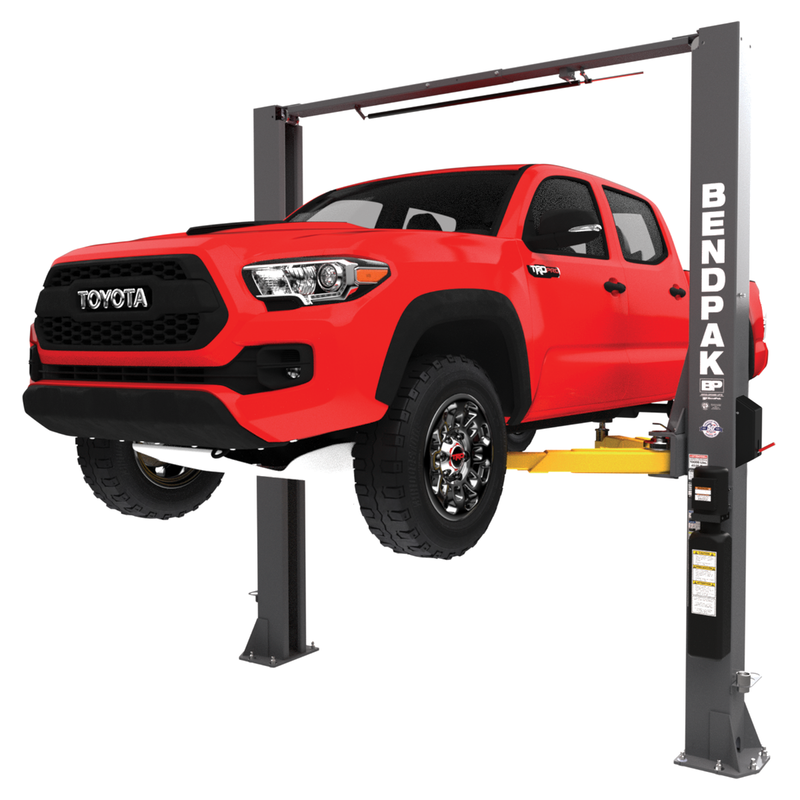

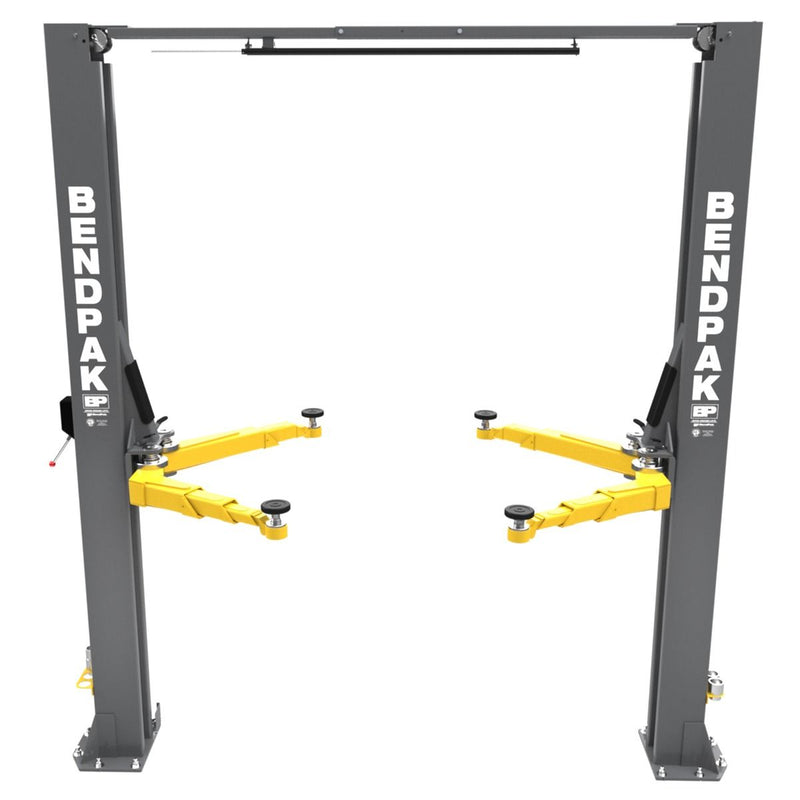

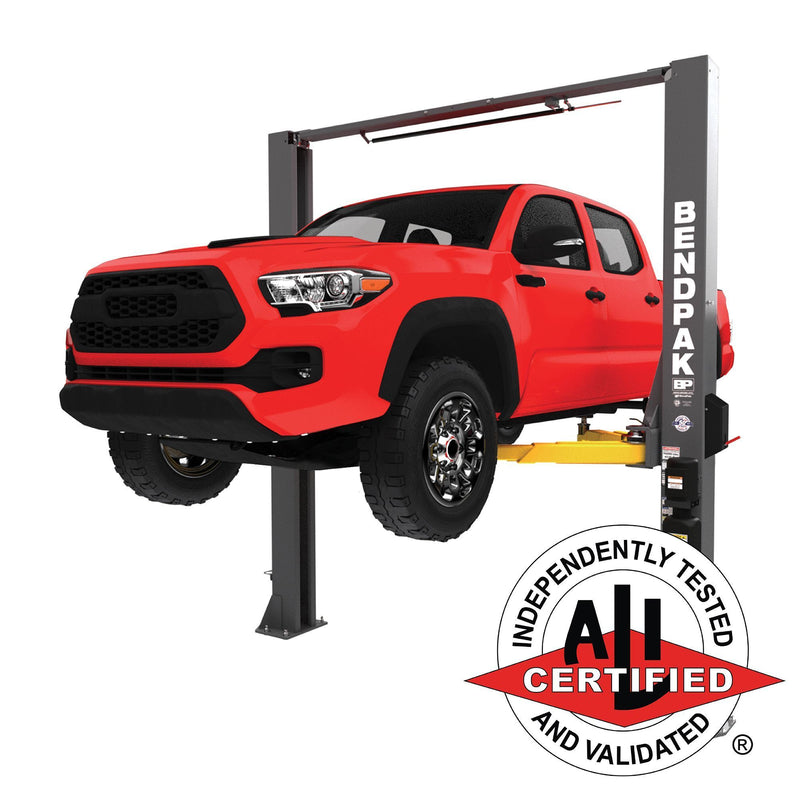

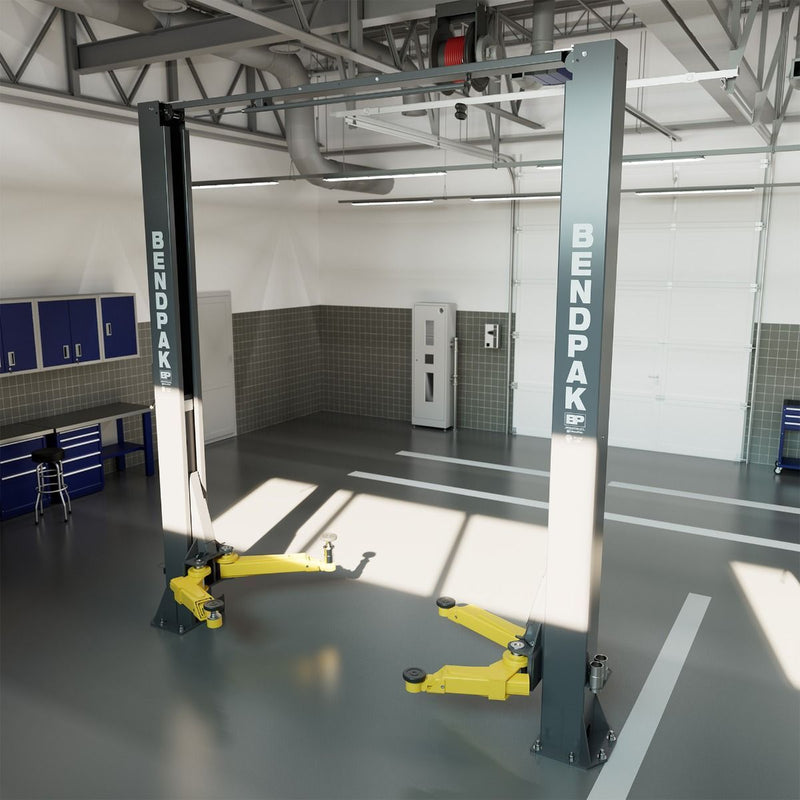

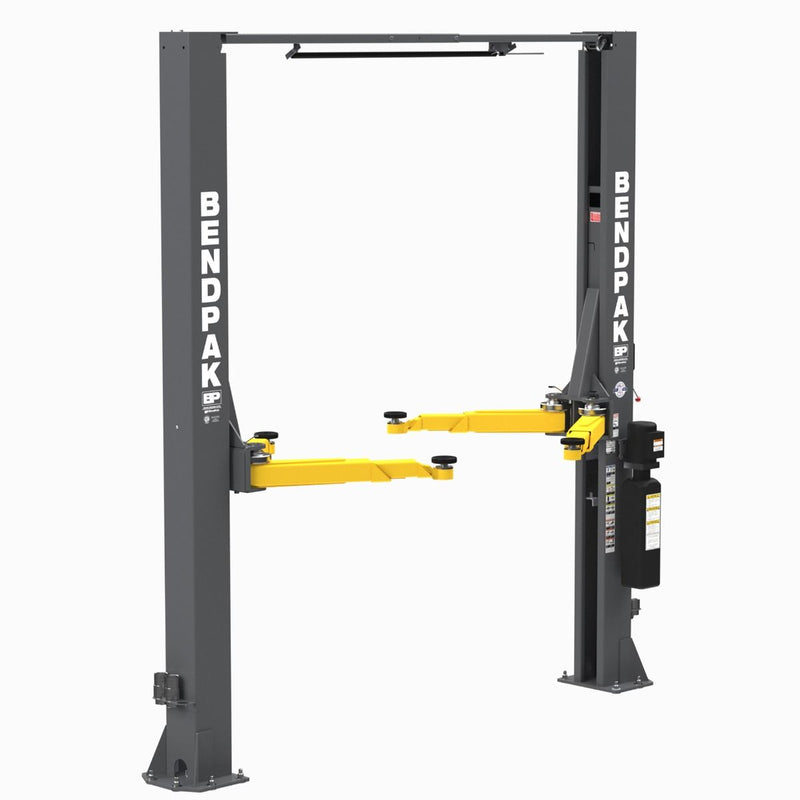

BendPak 10AP Two Post Car Lift - 10,000-Lb Capacity
A New Paradigm in Lifting
Auto repair shops working on the latest technology need to be equipped with the latest and most advanced tools to service them properly. BendPak's all-new AP series of two-post lifts feature a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering.
Our 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and Bi-Metric™ arms to suit virtually every vehicle lifting requirement – symmetric or asymmetric.

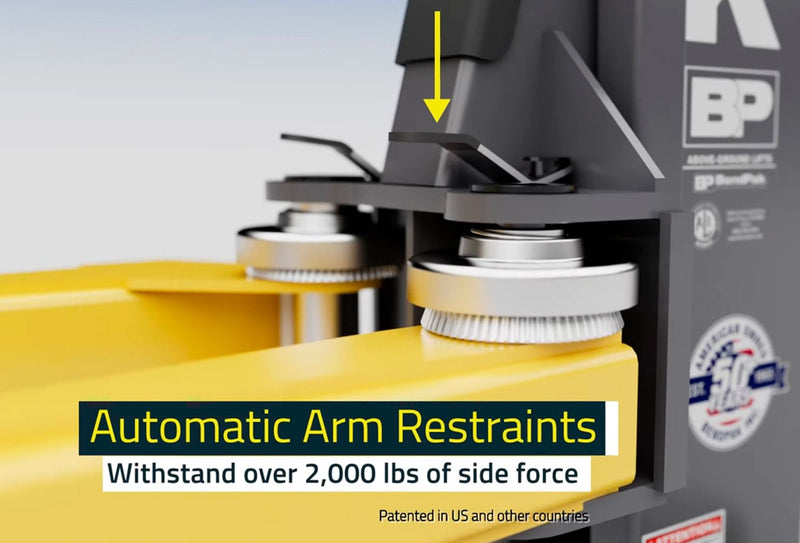

Automatic Arm Restraint System Prevents Unplanned Movement
A significant design feature that makes BendPak's AP series particularly well-suited for heavy vehicle service is the revolutionary Automatic Swing Arm Restraint System (ASARS), with a full 360-degrees of load holding grip and over 2000-pounds of load-holding force.

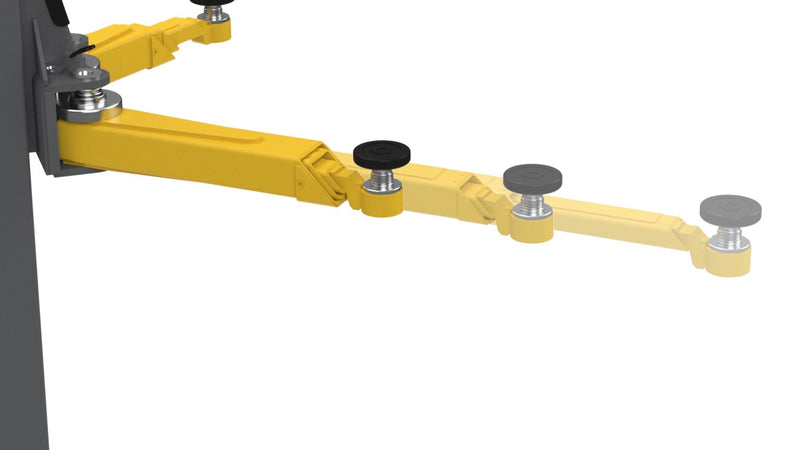

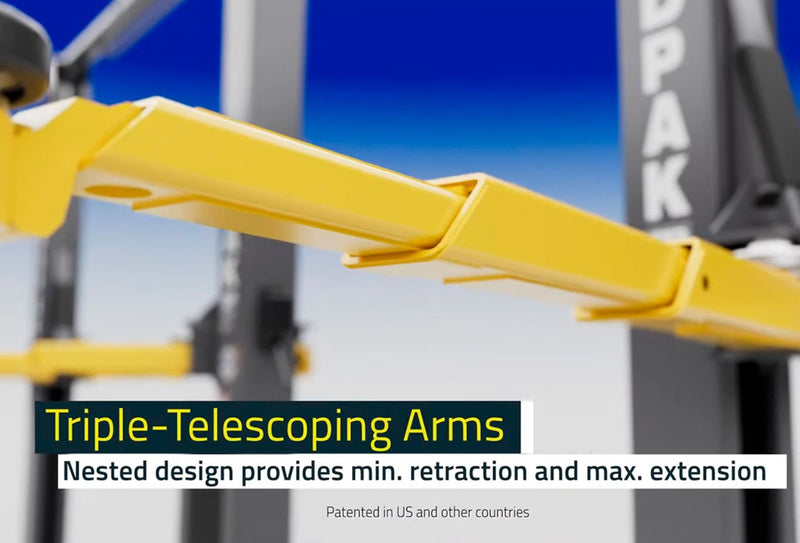

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms retract shorter and extend farther than traditional two-post lift arms, offering lift operators a myriad of lift arm positioning options.

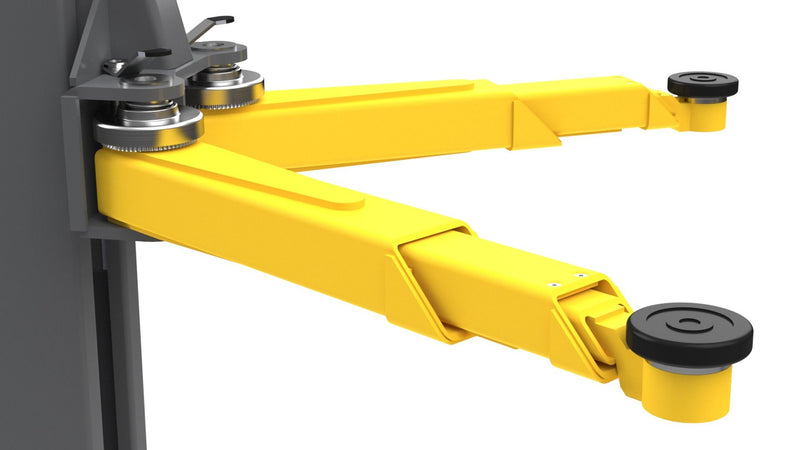

Bi-Metric™ Swing Arms
Exclusive Bi-Metric™ adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations without having to switch out arms.
Specifications
| Capacity | |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Rise | |
| A. Rise | 69" (1,753 mm) |
| B. Rise + Pad | 73" (1,854 mm) |
| D. Min Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 seconds |
| Outside Dimensions | |
| E. Height Overall | 145" (3,683 mm) |
| F. Width Overall | 135" (3,431 mm) or 145" (3,683 mm) |
| G. Outside Columns | 127.5" (3,238 mm) or 137.5" (3,492 mm) |
| Inside Dimensions | |
| H. Inside Columns | 108.5" (2,756 mm) or 118.5" (3,010 mm) |
| I. Drive-Thru Clearance | 92" (2,338 mm) or 102" (2,592 mm) |
| J. Floor to Overhead Switch | 139.5" (3,540 mm) |
| Arms & Pads | |
| K. Front Arm Reach (Min) | 24.5" (622 mm) |
| K. Front Arm Reach (Max) | 50" (1,270 mm) |
| L. Rear Arm Reach (Min) | 32" (812 mm) |
| L. Rear Arm Reach (Max) | 59.25" (1,504 mm) |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
| Noise | <70 dB |
| Shipping | |
| Shipping Dimensions | 150" x 24" x 28" (3,810 mm x 610 mm x 711 mm) |
