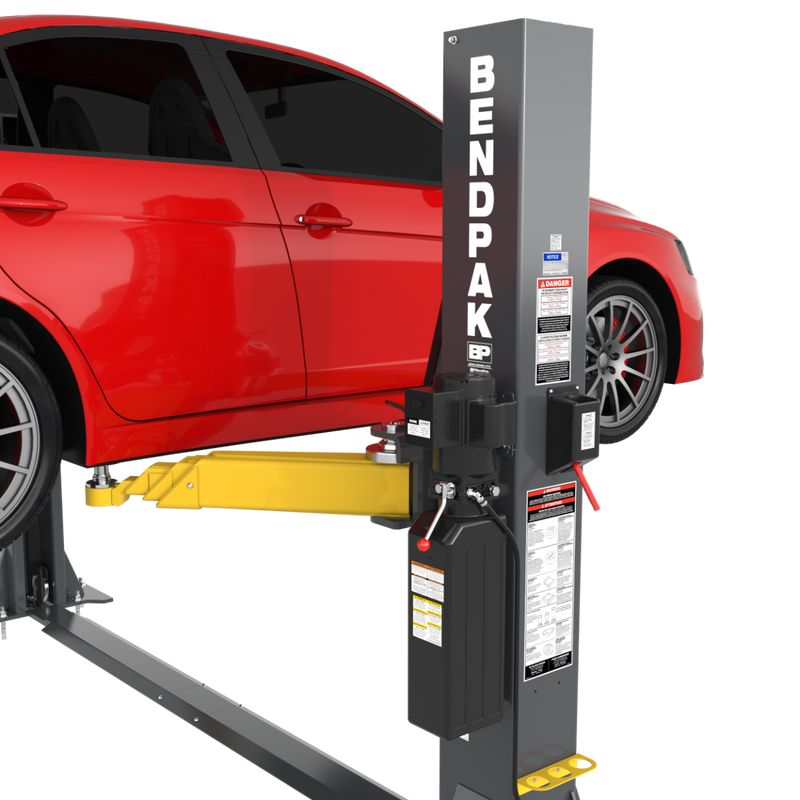

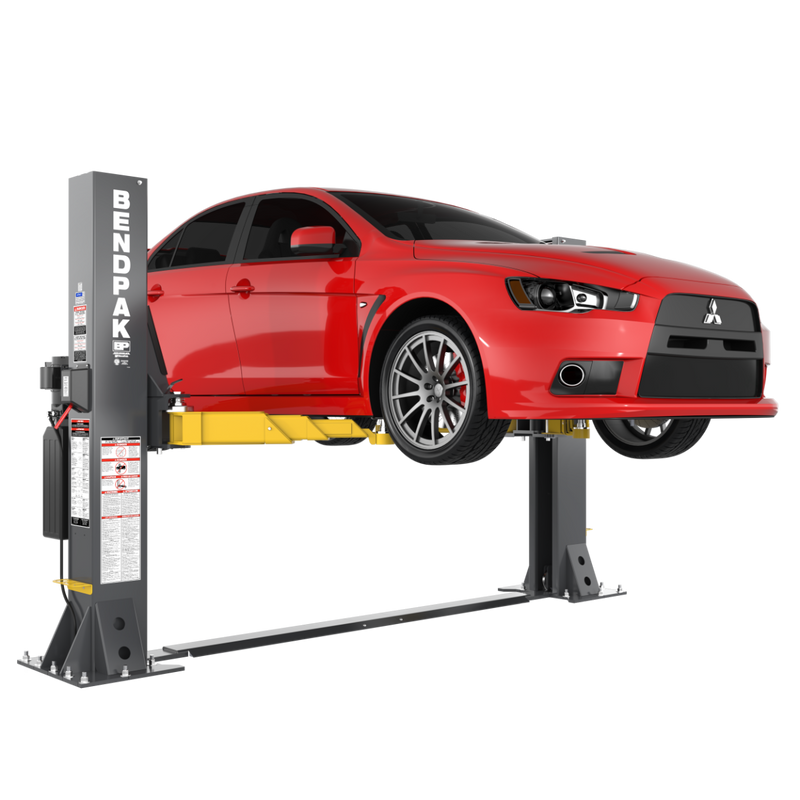

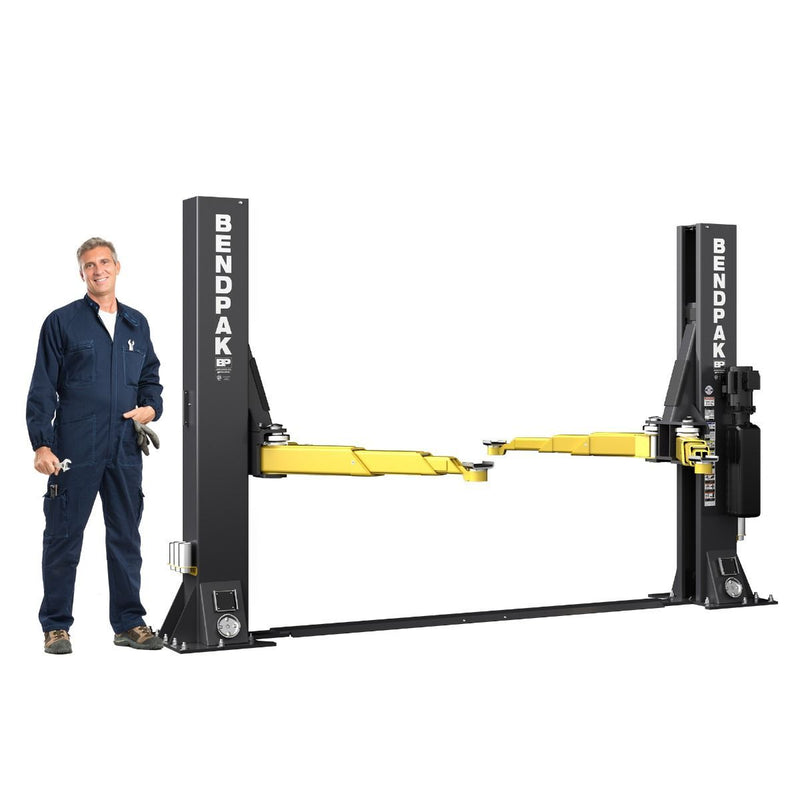

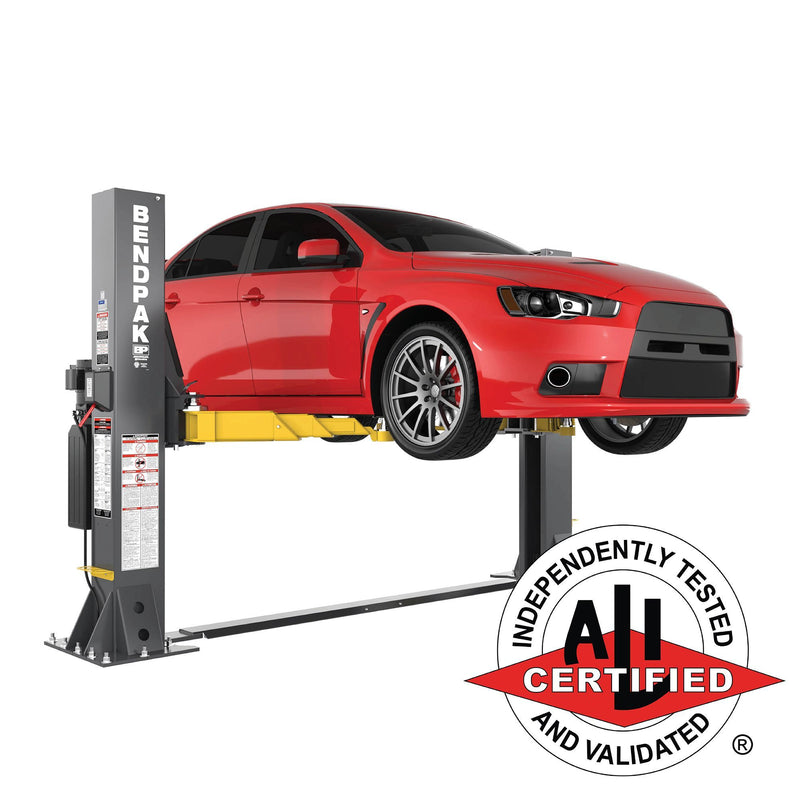

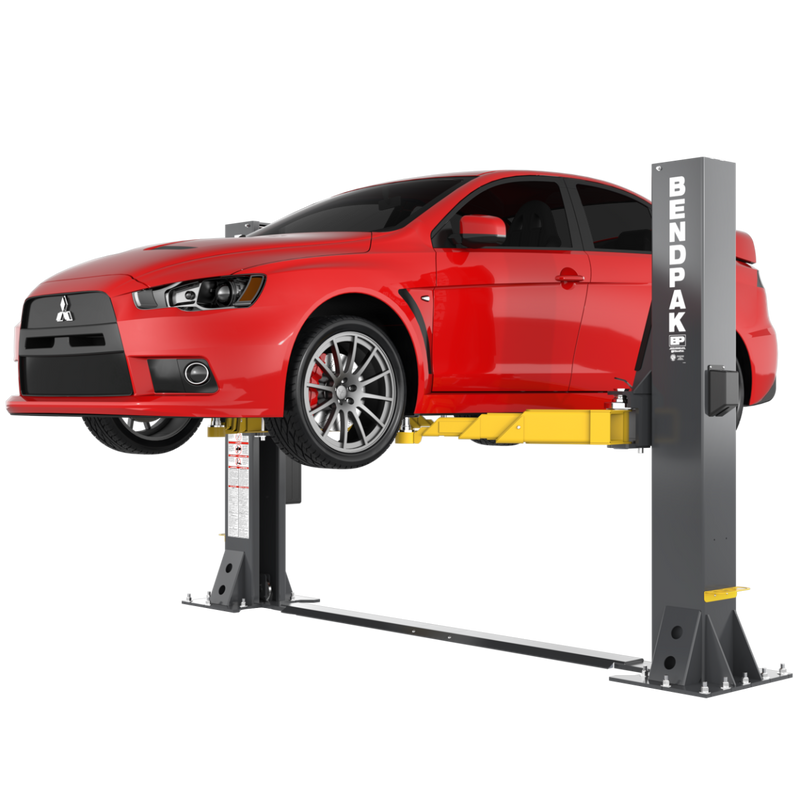

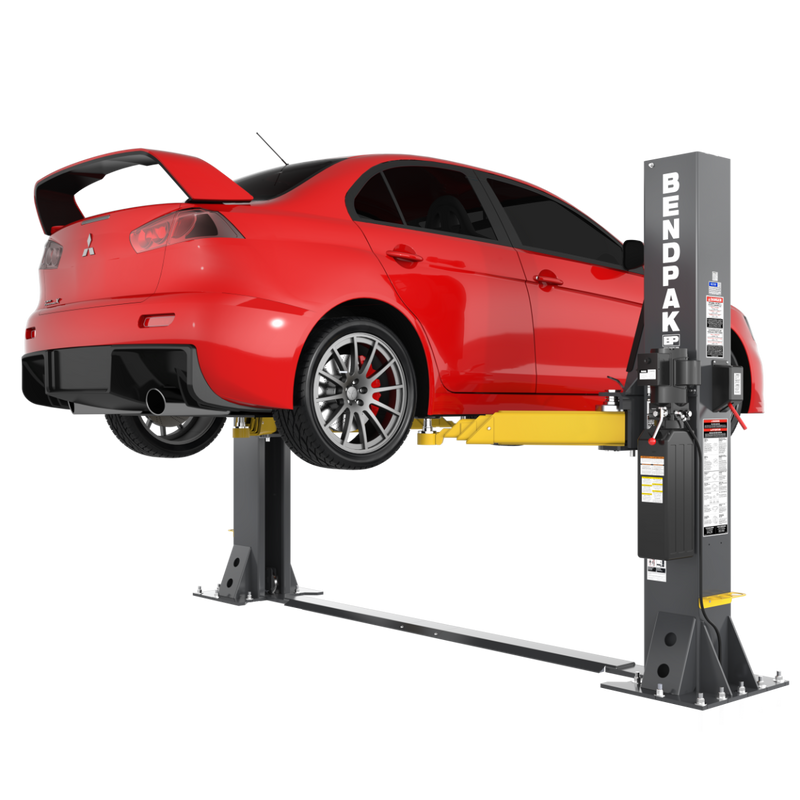

BendPak 10AP-SRT Short-Rise Two Post Car Lift - 10,000-Lb Capacity - Floorplate
The Ultimate Lift Solution for Tire Pros. This short-rise, short-column lift is capable of safely handling up to 10,000 lbs. With a max rise of roughly 46 inches, this lift is ideal for tire service as well as detailing. The 10AP-SRT features a compact design which allows it to fit conveniently in shops as well as in low-ceiling garages.
A New Paradigm in Lifting. The AP Series features a ground-breaking design which combines the best attributes of today's two-post lifts into a completely fresh approach to car lift engineering.

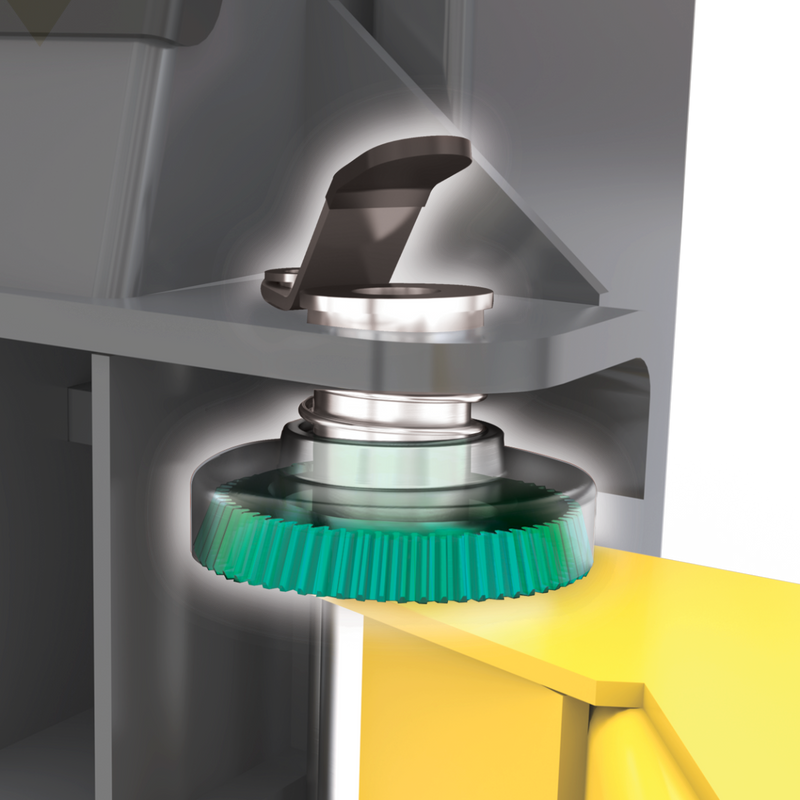

Unparalleled Safety with Automatic Arm Restraint. The revolutionary Automatic Swing Arm Restraint System (ASARS) secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations.
Triple-Telescoping Nested Swing Arm Design. Revolutionary and patented swing arms retract shorter and extend farther, offering lift operators a myriad of lift arm positioning options.
Low Profile Arms. BendPak's exclusive Low-Pro™ swing arms feature telescoping channels with a shorter profile and a dropped-end pad receiver for better serviceability on lowered chassis-height vehicles.
Specifications
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
| Max Capacity per Lift Arm | 2,500 lbs. (1,134 kg) |
| A – Width Overall | 139 in. (3,529 mm) |
| B – Base Plate Width | 25.25 in. (642 mm) |
| C – Post Height | 93.5 in. (2,377 mm) |
| D – Drive-Thru | 94 in. (2,389 mm) |
| E – Inside Posts | 111.25 in. (2,825 mm) |
| F – Outside Posts | 132.5 in. (3,365 mm) |
| G – Minimum Height w/ Pad | 4.75 in. (122 mm) |
| H – Maximum Lifting Height | 46.25 in. (1,185 mm) |
| I – Maximum Rise | 42.5 in. (1,081 mm) |
| J – Maximum Pad Adjustment | 2.25 in. (55 mm) |
| K – Floor Plate Height | 1.4 in. (36 mm) |
| L – Floor Plate Width | 9.5 in. (240 mm) |
| M – Front Arm Reach | 22.5 in. Min. – 47.5 in. Max. (562 mm Min. – 1,205 mm Max.) |
| N – Rear Arm Reach | 29.5 in. Min. – 57 in. Max. (747 mm Min. – 1,446 mm Max.) |

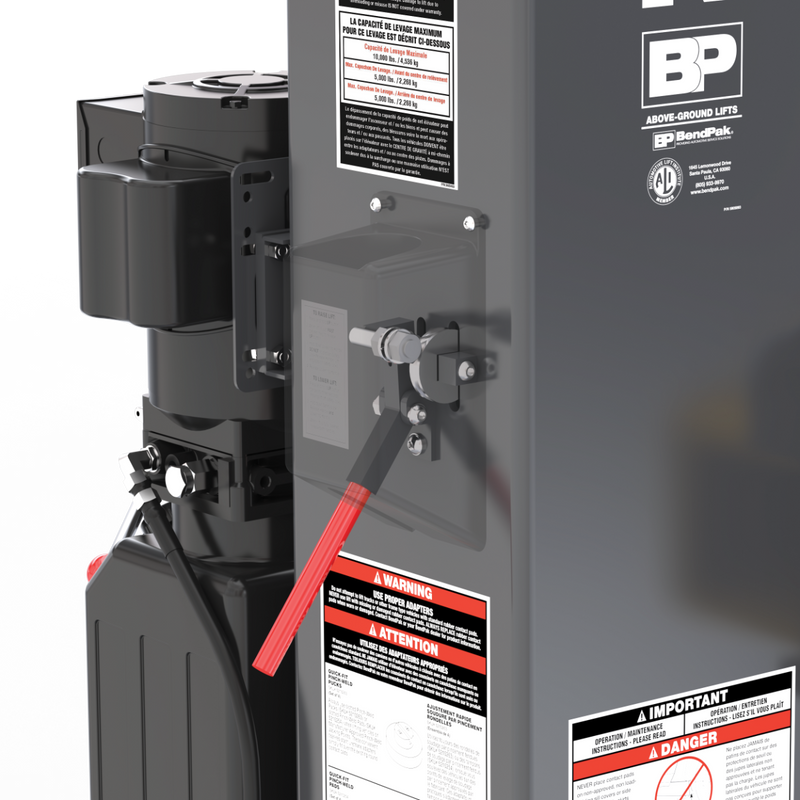

| Safety Lock Positions | 8 Positions positioned every 3.75 in. (95 mm) |
| Standard Motor | 208-240 VAC, 50/60 Hz, 1 Phase, Approx. 11 Amps |
| Hydraulic Fluid Required | 3.6 gallons (13.6 Liters) |
| Operating Hydraulic Pressure under Max. Load | 2,170 psi |
| Time to Full Rise | ≈45 seconds |
| Sound | <43dB |
