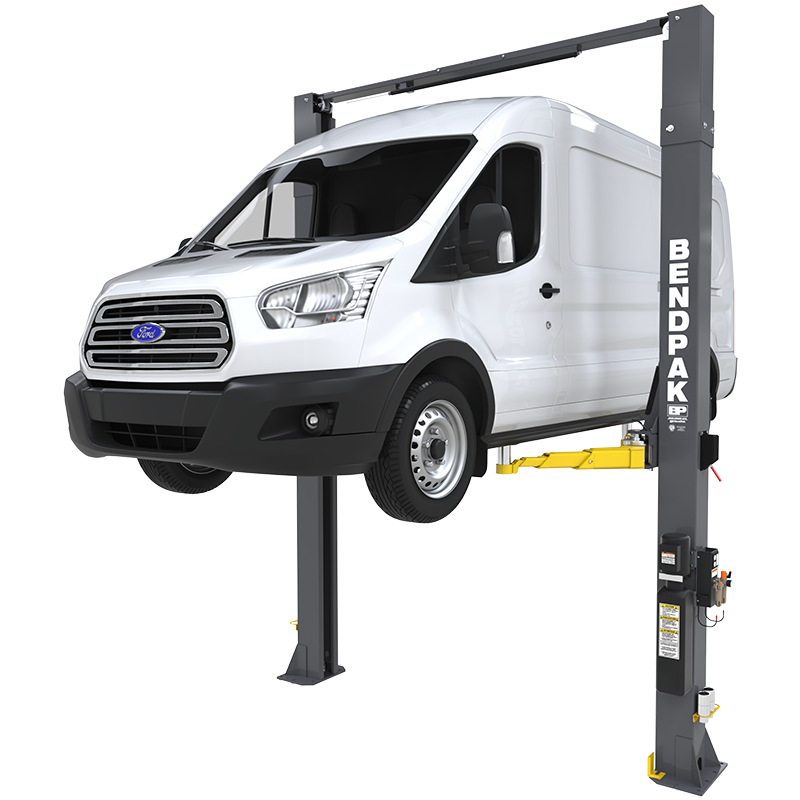

BendPak 10AP-168 Pro Series Two Post Car Lift - 10,000-Lb Capacity - 168" Extended Height
Time to go PRO
BendPak's revolutionary PRO-Series of two-post lifts integrate the best features from existing two-post lift types into an entirely novel concept, catering to extreme use, heavy loads, and operator safety. With its increased overall height of 168”, mechanics will have more room to work comfortably.
The PRO-Series seamlessly integrates wide and narrow installation options into one customizable package, with an expandable top beam and cutting-edge Bi-Metric™ arms for symmetric or asymmetric lifting.
The Future is Triple-Telescoping
Innovative and patented triple-telescoping swing arms redefine lifting precision, retracting shorter and extending farther than traditional arms for unparalleled versatility in arm positioning.
Bi-Metric™ Swing Arms
BendPak's exclusive Bi-Metric™ swing arms eliminate the hassle of arm switching, accelerating vehicle servicing.

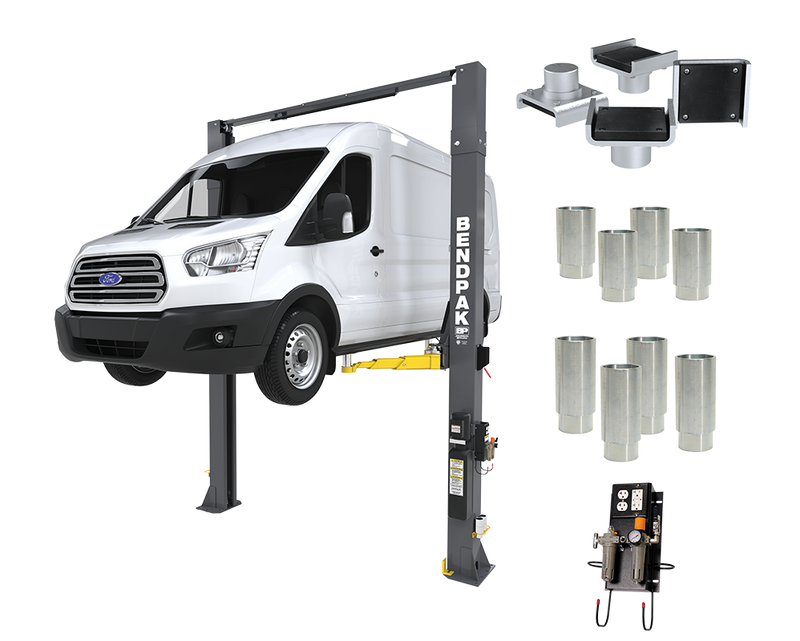

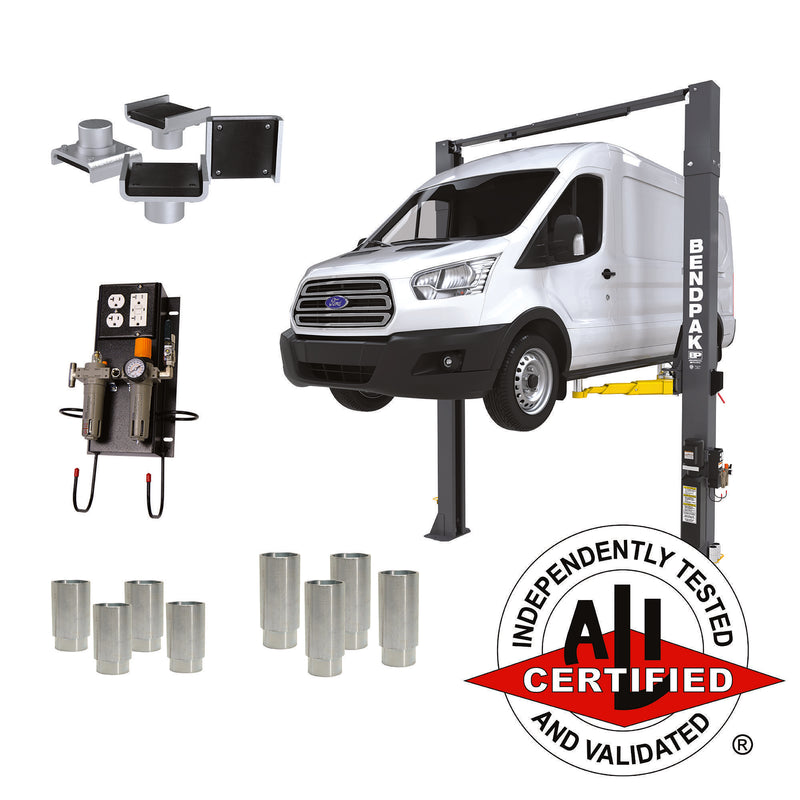

PRO-Series lifts include Frame Cradle Pads and Medium (2.5”) and Tall (5”) Adapter Pins with a 60mm diameter pin for a versatile range of heights to accommodate various vehicles.
The Perfect Air Supply for Your Lift
The industrial-grade WSA-100 utility station adds air and electric capabilities to any two-post or four-post lift, with four 110V/20-amp GFI-protected electrical outlets and two specialized air service outlets with an integrated filtration system.
Specifications
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
| A - Rise | 72.25" (1,835 mm) |
| B - Rise + Pad Only | 79.5" (2,007 mm) |
| C - Rise + Pad + 63 mm Adapter | 89" (2,261 mm) |
| D - Min. Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 seconds |
| E - Height Overall | 168" (4,267 mm) |
| F - Width Overall | 135" (3,429 mm) or 145" (3,683 mm) |
| G - Outside Columns | 127" (3,226 mm) or 137" (3,480 mm) |
| H - Inside Columns | 108.25" (2,750 mm) or 118.25" (3,004 mm) |
| I - Drive-Thru Clearance | 92" (2,337 mm) or 102" (2,591 mm) |
| J - Floor To Overhead Switch | 163.5" (4,153 mm) |
| K - Front Arm Reach (Min) | 22" (559 mm) |
| K - Front Arm Reach (Max) | 47.5" (1,207 mm) |
| L - Rear Arm Reach (Min) | 29.5" (749 mm) |
| L - Rear Arm Reach (Max) | 57" (1,448 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Noise | <70 dB |
