10,000 lb 2-Post Clear Floor Symmetric & Asymmetric Lift WL-10ASY

SKU WL-10ASY
Save $500.00 Save $500.00
Original price $3,079.00
Original price $3,079.00 - Original price $3,079.00
Original price $3,079.00
Current price $2,579.00
$2,579.00 - $2,579.00
Current price $2,579.00
$3,079.00 $2,579.00
Request a quote
Equipment Delivery Options

At Wholesale Lifts, our commitment is to provide you with the best customer service. We offer you various delivery options so that you can choose the one that best fits your needs.

I have the equipment to unload my order

Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.

What to keep in mind when choosing this option:

  • The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
  • Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
  • You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
  • Wholesale Lifts uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
  • There will be a receiver charge, which varies by carrier (typically $100+), if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.

In case you do not have the necessary equipment to unload the equipment do not worry. Wholesale Lifts offers other delivery options.


Pick up at one of our warehouses

Do you have a hitch trailer to transport your lift? If so, then this might be the best option.

What to keep in mind when choosing this option:

  • Wholesale Lifts and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
  • Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer.

Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.


Dock Hold from LTL Carrier

Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.

You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.


Ship directly to a local installer

Neither of the above delivery options suits you? Then we have the solution.

We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.

What to keep in mind when choosing this option:

  • You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
  • We will quote the installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation)

Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Wholesale Lifts, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.

Returns & Refunds

CANCELLATIONS

We incur many costs when processing and shipping orders. If the order is canceled before the item has shipped, but after payment has been processed, we will credit the customer minus a 3% merchant processing fee. This is a fee that merchant accounts charge on every transaction and is non-refundable. Customers will be charged for shipping costs for any orders that are canceled after the item has already shipped, but not yet received by the customer. They may also be responsible for a restocking fee.

RETURNS

Our limited return policy allows you to return defective or incorrectly shipped merchandise. All returned merchandise requires a prior authorization from Wholesale Lifts, LLC. Contact our customer service representatives first for shipping instructions and to obtain a return authorization number. Any unauthorized returns will be refused and will become the responsibility of the customer and credit will not be issued unless authorization to return merchandise has been received. For all merchandise returned to Wholesale Lifts, LLC for reasons other than defective or incorrectly shipped items, a 25% restocking fee and return shipping costs (transportation costs) will be deducted from the credit refund. Any and all returned items should be approved through Wholesale Lifts, LLC Customer Service. All returned items must be in their original box or crating and must include all packing material, manuals, and all accessories. All returns must have the R.G.A. number written on the outside of the carton. At our discretion, an additional restocking fee may be charged if your product is opened or is not returned in its original condition, box, or is missing packing material, manuals, or any accessories. Damaged items will be repaired at the expense of the customer.

ADDITIONAL WARRANTY INFO

For all warranty considerations, the original manufacturer will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. Hydraulic/Pneumatic cylinders may qualify for exchange under warranty if reported within the first 30 days from date of sale. After the first 30 days from date of sale, a seal kit and installation instructions will be sent for cylinder repairs. All defective parts must be returned to the original manufacturer for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Wholesale Lifts, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A WHOLESALE LIFTS, LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.

Description

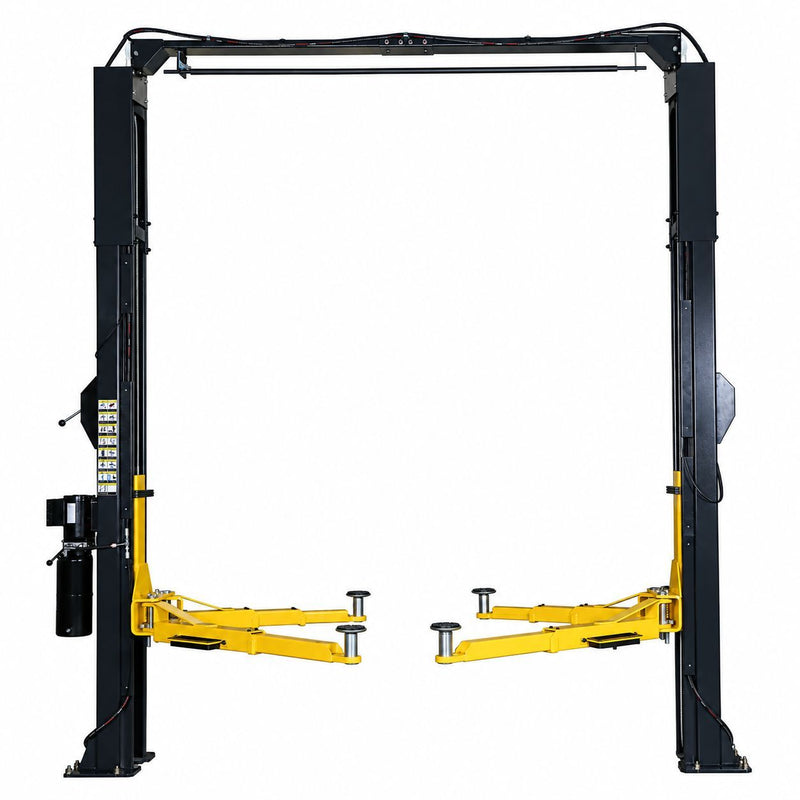

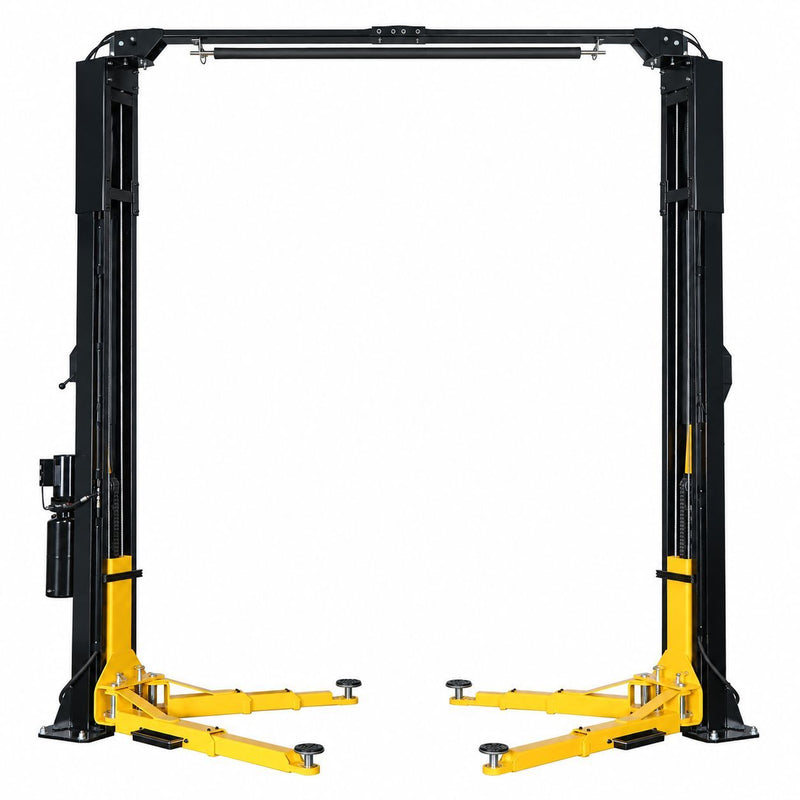

The WL-10ASY is a 10,000 lb capacity two-post clear floor (overhead) lift with a single-point safety lock release. The columns can be installed facing each other (symmetric) or rotated 30 degrees (asymmetric) to maximize door opening and vehicle access, and the strong double S column design carries the full rated capacity.

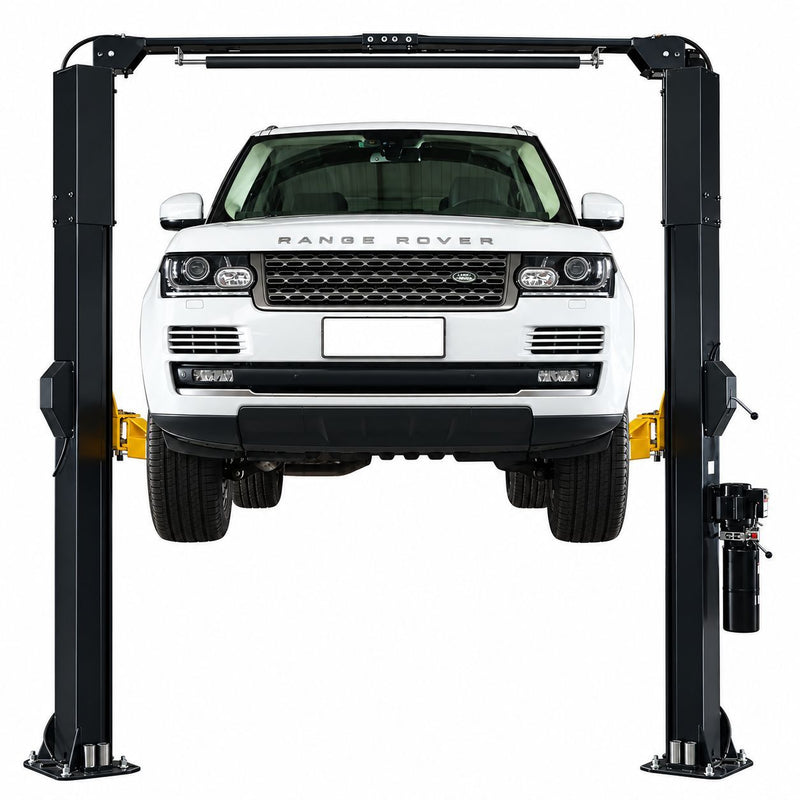

WL-10ASY two-post lift raising an SUV, front view

⚠ Safety & Installation Requirements

Install only on level, reinforced concrete at least 6" thick with a minimum strength of 3500 PSI (4" thick for vehicles 9000 lb and below). Follow the installation instructions supplied with the lift and never exceed the rated 10,000 lb capacity. Always lower the lift onto its safety locks before working underneath.

Key Features

  • Single-Point Safety Lock Release — Both carriage locks release from one handle on the power-unit column.
  • Symmetric or Asymmetric Installation — Install the columns facing each other, or rotated 30 degrees to improve door opening and vehicle access.
  • 104" / 97" Drive-Through Width — 104" drive-through width with symmetric installation and 97" with asymmetric installation.
  • Combo Arm Assembly — Combo (symmetric and asymmetric) arm assembly with adjustable screw pads.
  • Tested Structure and Hydraulics — CE-certified lift structure and hydraulic system, third-party tested for 115% dynamic load capacity and 150% static load capacity.
  • Truck Adapters Included — One set of 4" tall truck adapters is included, for a 6'9" maximum lift height with the adapters.
  • Double S Column Design — Strong double S columns support the 10,000 lb capacity; robot-welded structure with a durable powder-coated finish.
  • Heavy-Duty Carriage — Q355 (ASTM A572) carriage steel, stronger than normal Q235 steel, with double seal rings protecting the PU material.
  • Built-In Protection — Relief valve in the power pump prevents overloading, automatic arm lock restraints, and an up-limit switch protects the cylinder stroke.
  • Smooth, Durable Operation — Heavy-duty 3/8" cable and 5" pulleys reduce stress on the synchronization system, and ultra-high-molecular self-lubricating nylon sliders keep the carriage moving smoothly.

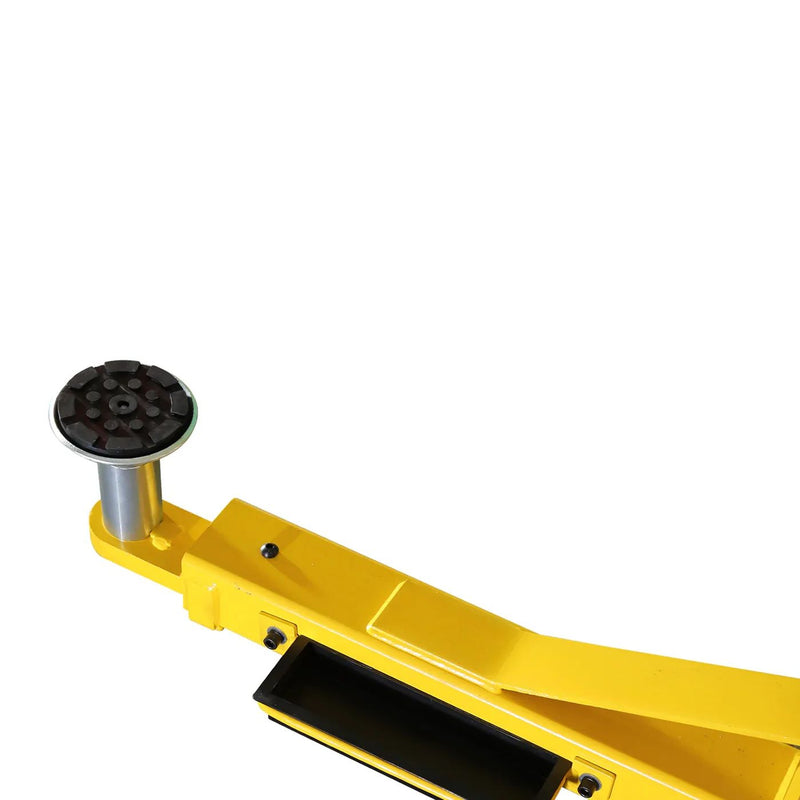

  • Simple Controls — Raise with the "UP" button on the motor; lower manually with the lever. Door guard protection rubber is included.

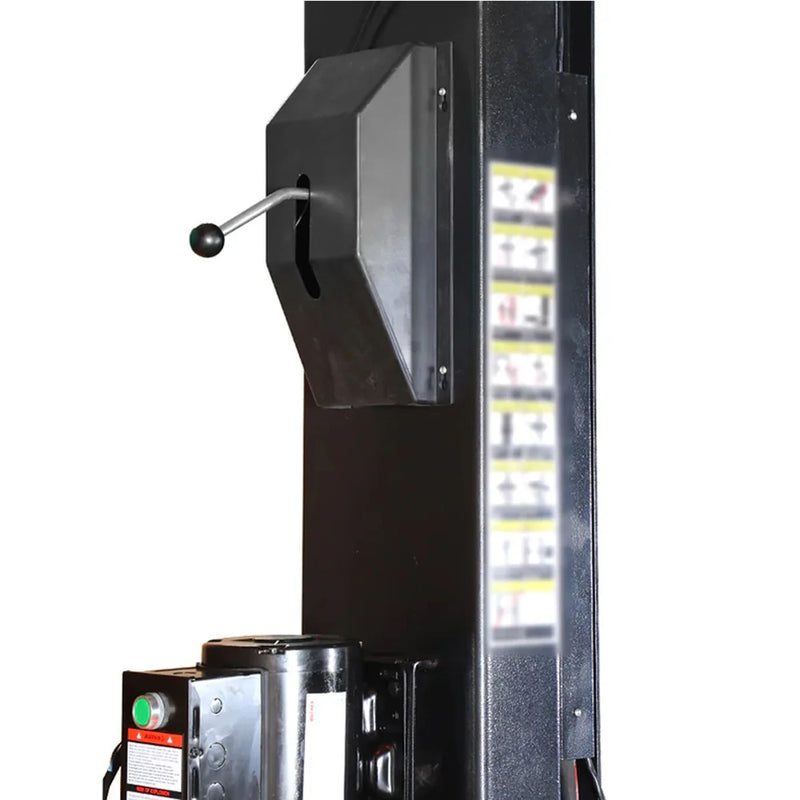

WL-10ASY column with single-point safety release handle, safety label and power unit

Single-Point Lock Release

One handle releases both safety locks.

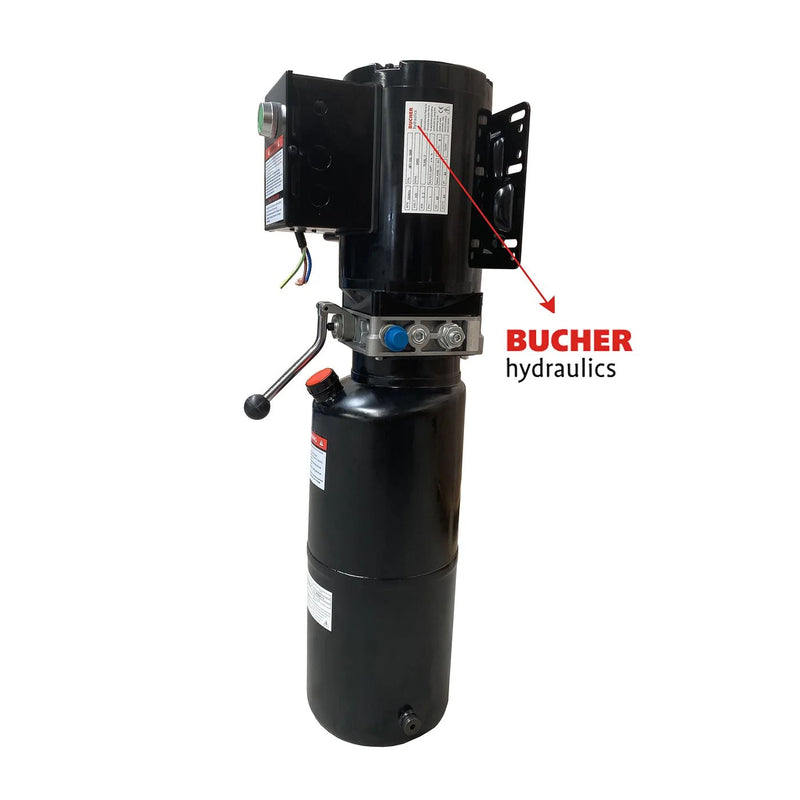

WL-10ASY hydraulic power unit with motor, reservoir and manual lowering lever

Power Unit

3HP, 220V single-phase motor with manual lowering lever.

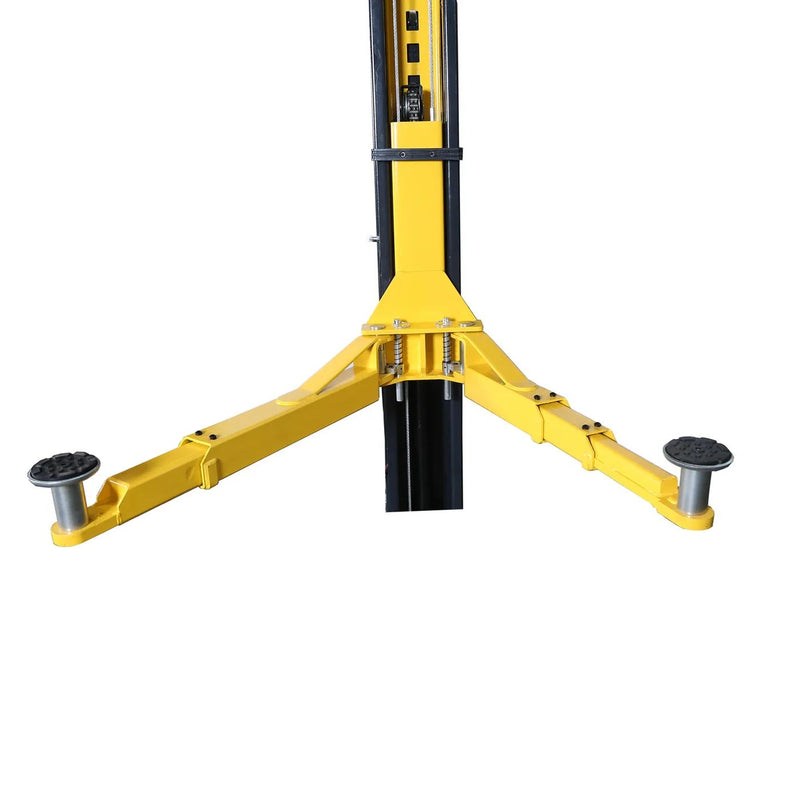

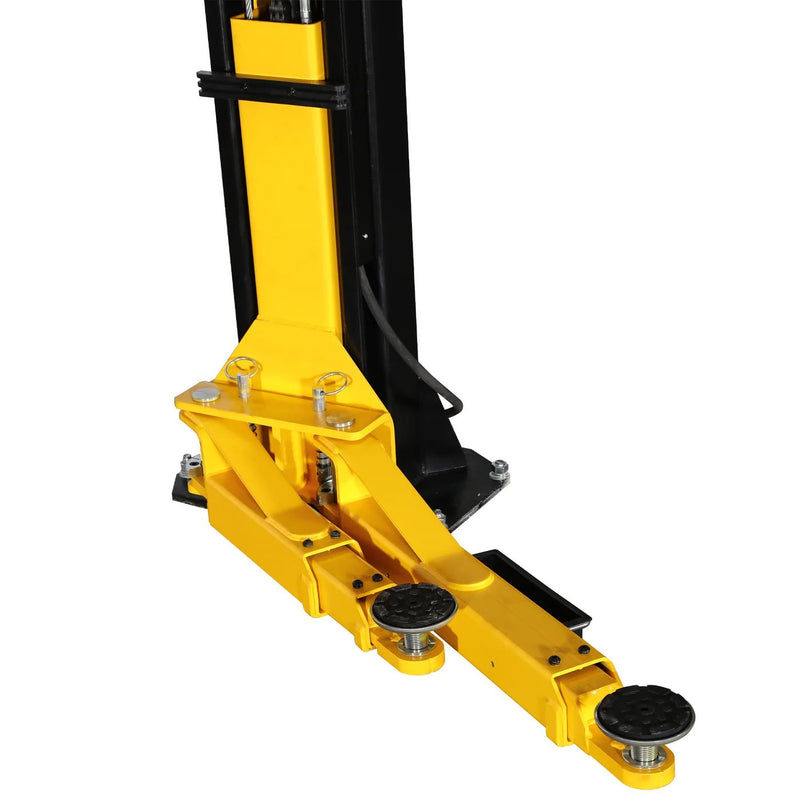

Close-up of the WL-10ASY carriage with combo arm assembly and adjustable screw pads

Combo Arm Assembly

Works for symmetric or asymmetric installation.

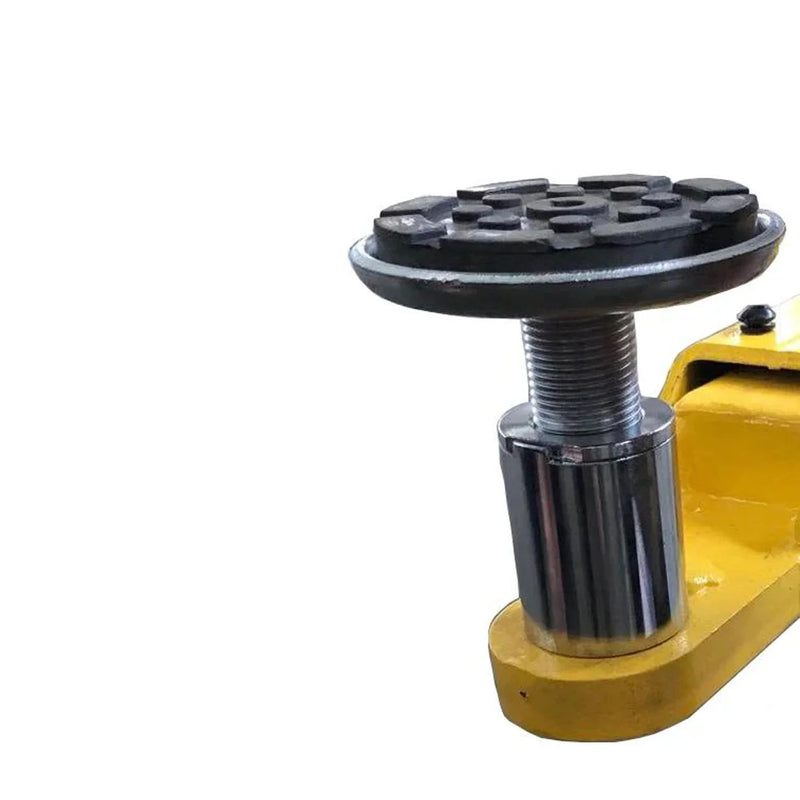

WL-10ASY adjustable screw pad with rubber contact pad on a steel extension

Adjustable Screw Pads

Rubber pads with adjustable height; 4" truck adapters included.

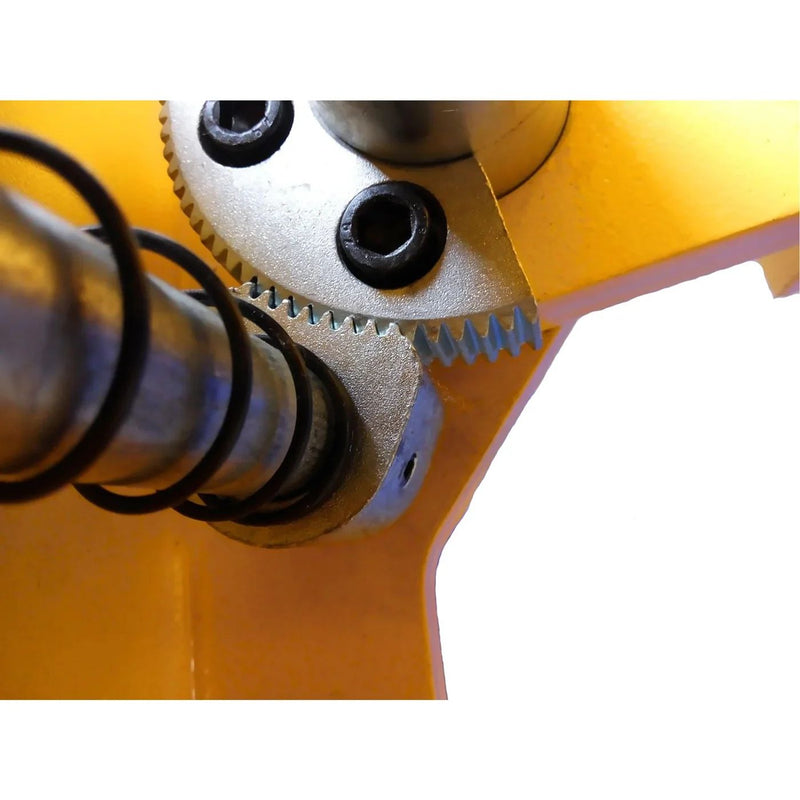

Close-up of the toothed automatic arm lock restraint on the WL-10ASY carriage

Automatic Arm Lock Restraints

Toothed restraints hold the arms in position under load.

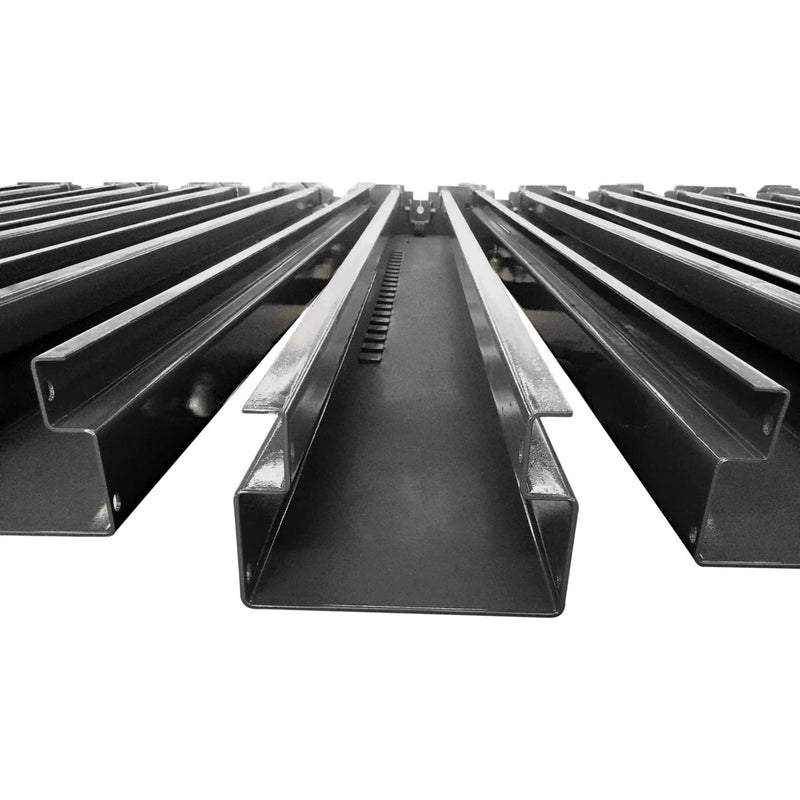

Stack of black double S-shape steel columns used on the WL-10ASY

Double S Columns

Robot-welded, powder-coated steel columns.

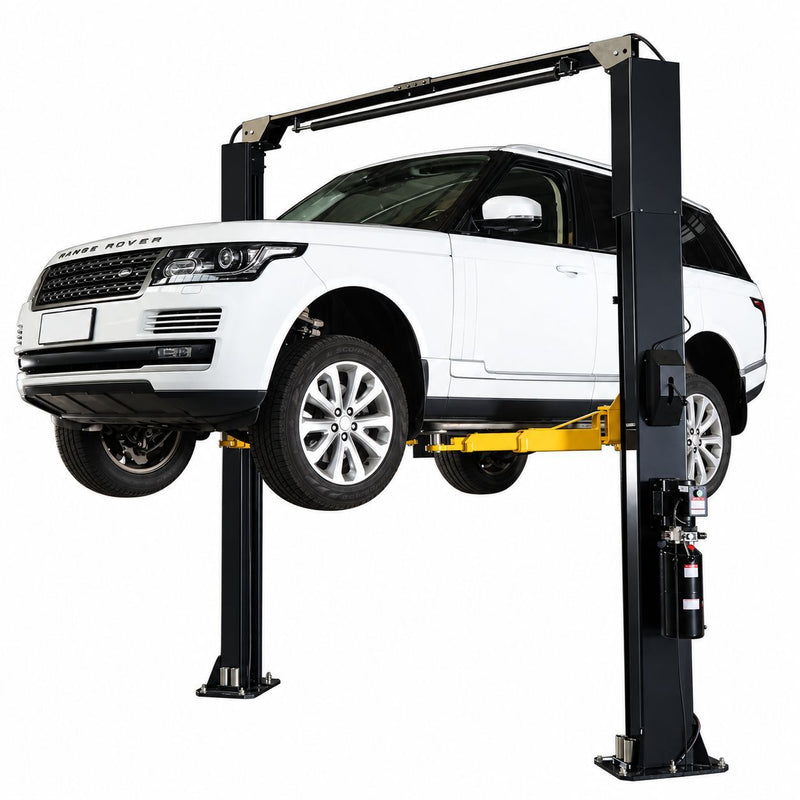

WL-10ASY two-post lift raising an SUV, angled view

Optional Parts

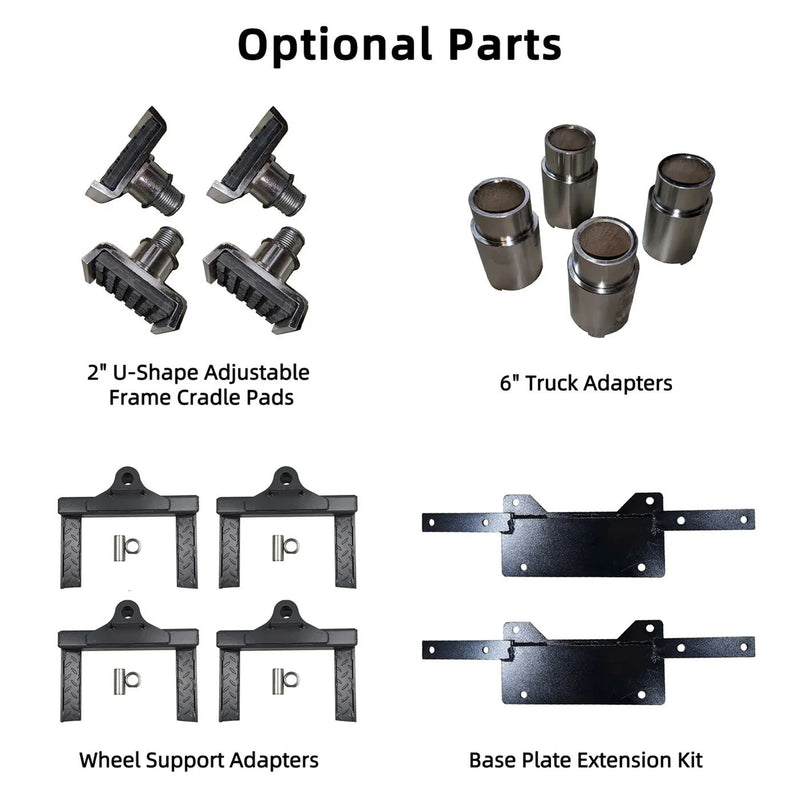

Optional parts for the WL-10ASY: 2 in U-shape adjustable frame cradle pads, 6 in truck adapters, wheel support adapters and base plate extension kit

Specifications

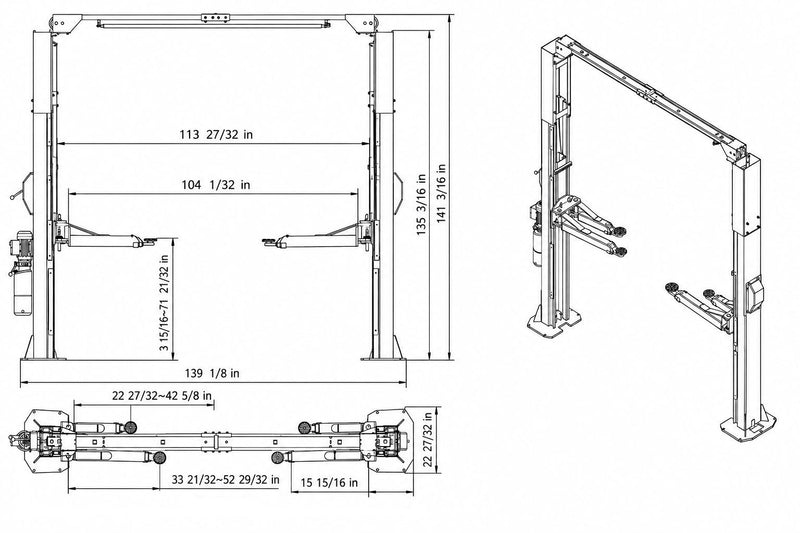

WL-10ASY dimension diagram for symmetric installation: 113 27/32 in column inside width, 104 1/32 in drive-through, 139 1/8 in overall width, 141 3/16 in overall height

Symmetric installation

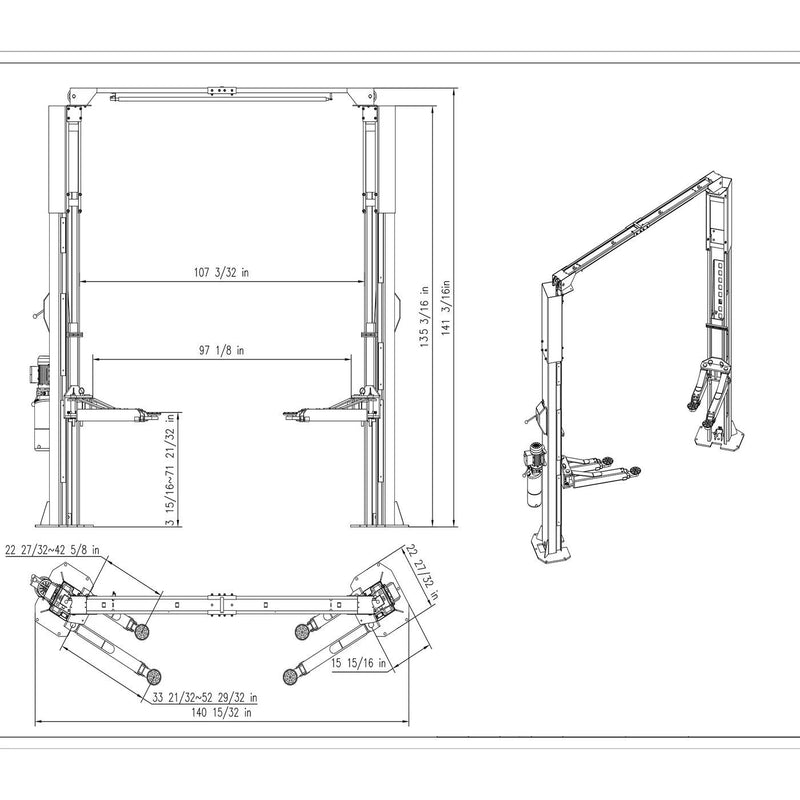

WL-10ASY dimension diagram for asymmetric installation: 107 3/32 in column inside width, 97 1/8 in drive-through, 140 15/32 in overall width, 141 3/16 in overall height

Asymmetric installation

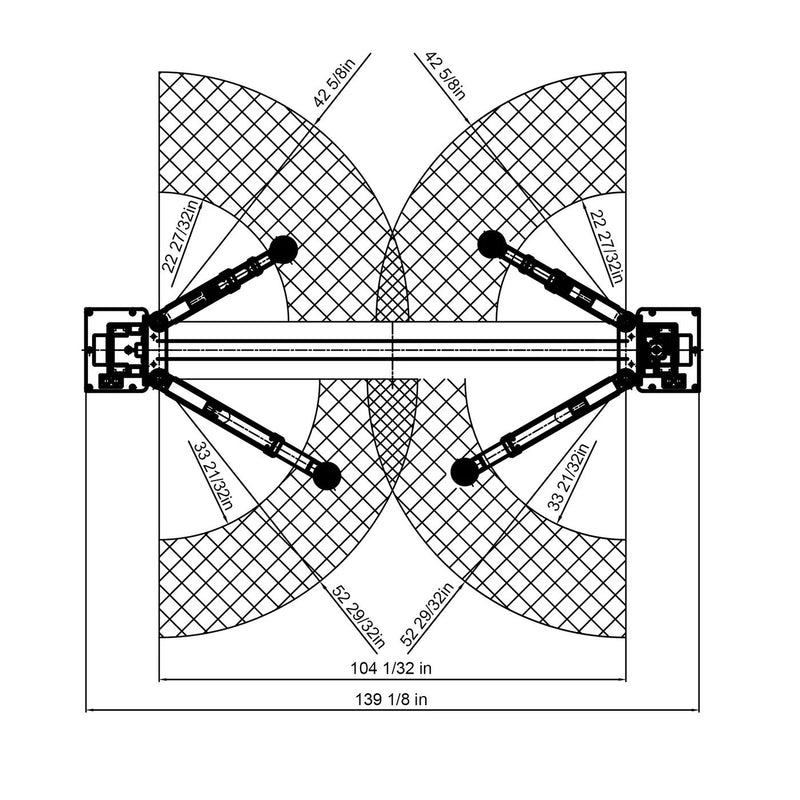

WL-10ASY top-view diagram of front and rear arm reach and swing, 104 in drive-through and 139 1/8 in overall width

Arm reach and swing (top view).

Model WL-10ASY — 10,000 lb 2-Post Overhead Lift
Style Overhead (clear floor)
Column Installation Symmetric or Asymmetric
Arm Arrangement Symmetric or Asymmetric (combo)
Lock Release Single Point Release
Lifting Capacity 10,000 lbs
Dimensions
Overall Height 141 3/16"
Overall Width 139 1/8" (standard)
140 15/32" (post rotated)
Maximum Lift Height with Truck Adapters 81"
Maximum Lift Height without Truck Adapters 75"
Maximum Lift Height from Bottom of Arm to Ground 71"
Minimum Height of Adjustable Pads from Ground 4"
Drive Through Width (Carriage to Carriage) 104" (symmetric)
97" (asymmetric)
Column Inside to Inside 113" (symmetric)
107" (asymmetric)
Column Outside to Outside 127" (symmetric)
Column Cross Section 11"L x 7"W
Front Arms Straight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back Arms Straight Rear 2 Stage reach from 33 5/8" to 52 7/8"
Power & Performance
Driving Mode Dual hydraulic cylinders, chain drive
Motor 220V Single Phase 3HP 10A (recommend a 20A breaker)
Hydraulic Oil 3-5 gallons AW32/AW46 (not included)
Time to Full Rise 50 seconds
Construction
Column Steel Thickness 13/64"
Carriage Steel Thickness 15/64"
Carriage Yoke Thickness 9/16"
Arm Steel Thickness 15/64"
Base Plate Steel Thickness 5/8"
Shipping & Installation
Shipping Weight 1470 LB and 120 LB
Shipping Package Size 113"L x 22"W x 40"H (car lift)
33"L x 17"W x 14"H (2 ft height extension crate)
Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 LB and below)
Parts Included 4 adjustable screw pads; 4 pieces of 4" tall truck adapters (height extensions); 10 anchor bolts; 10 shims; 2 tool trays; 2 toe guards
Optional Parts 2 3/4" and 6" tall truck adapters; 2" adjustable frame cradle pads; wheel support adapters; 2 ft height extension kit
