Olympic HDMBL-10
"The Skipper" Gold Series 10,000lb Boat & Trailer Storage Lift
(Free Shipping)
$7,812
$5,182
Features / Specs

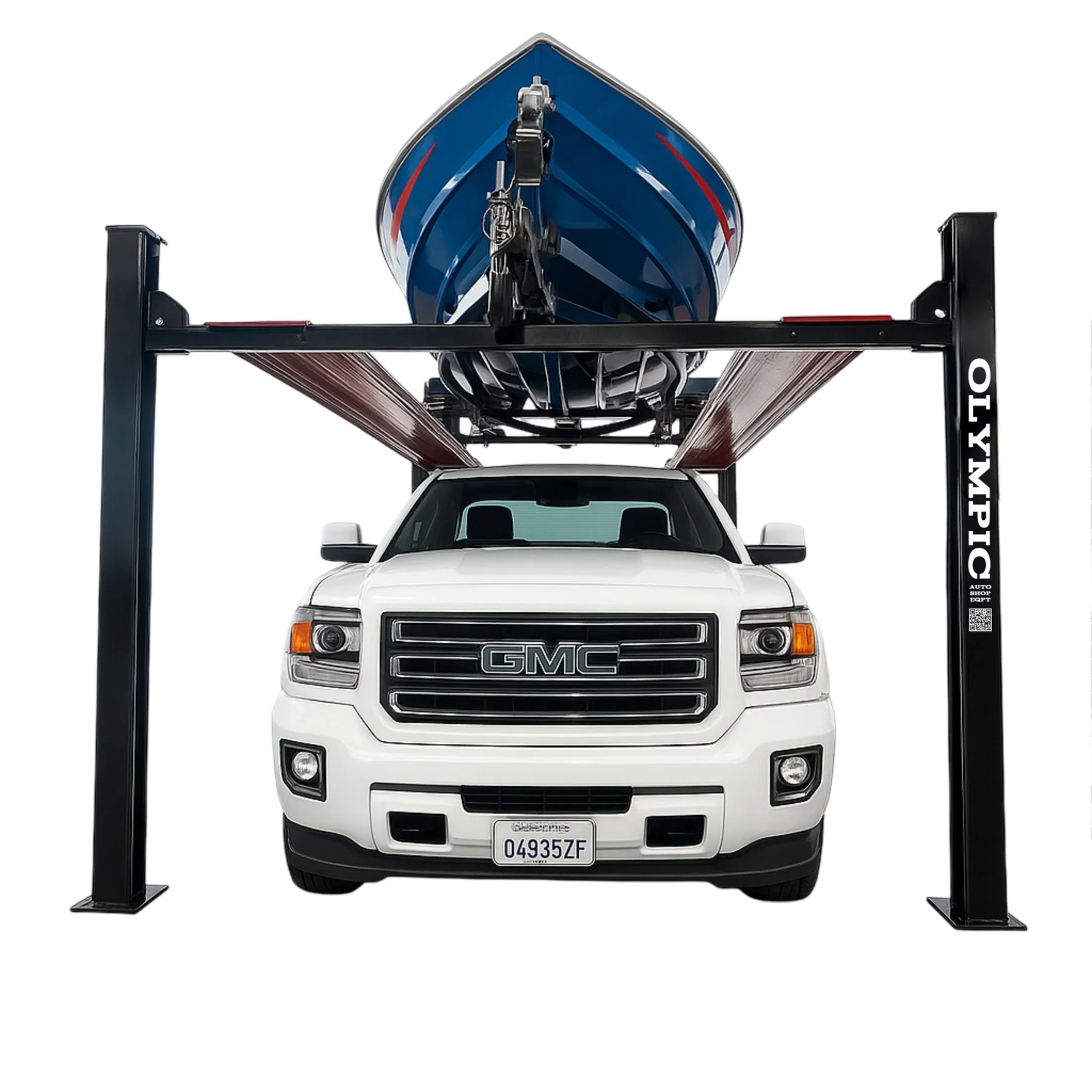

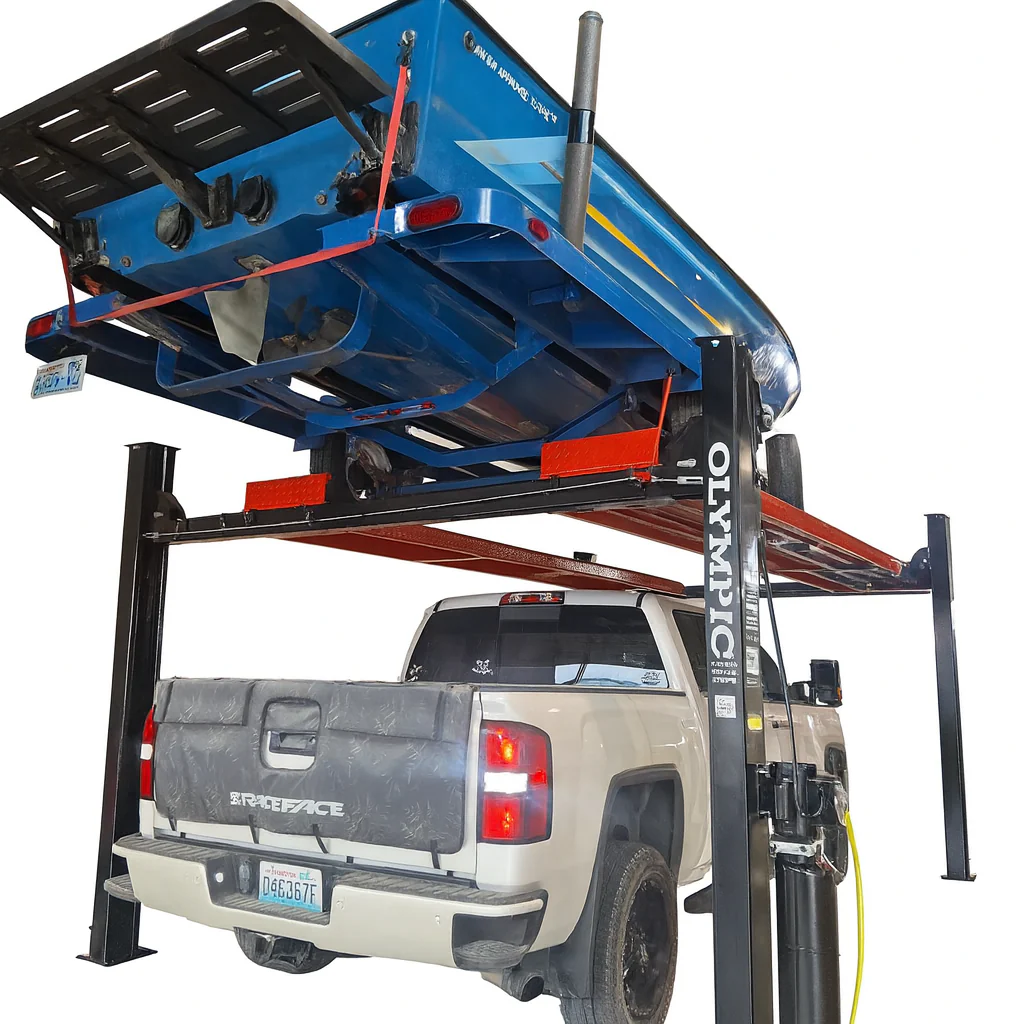

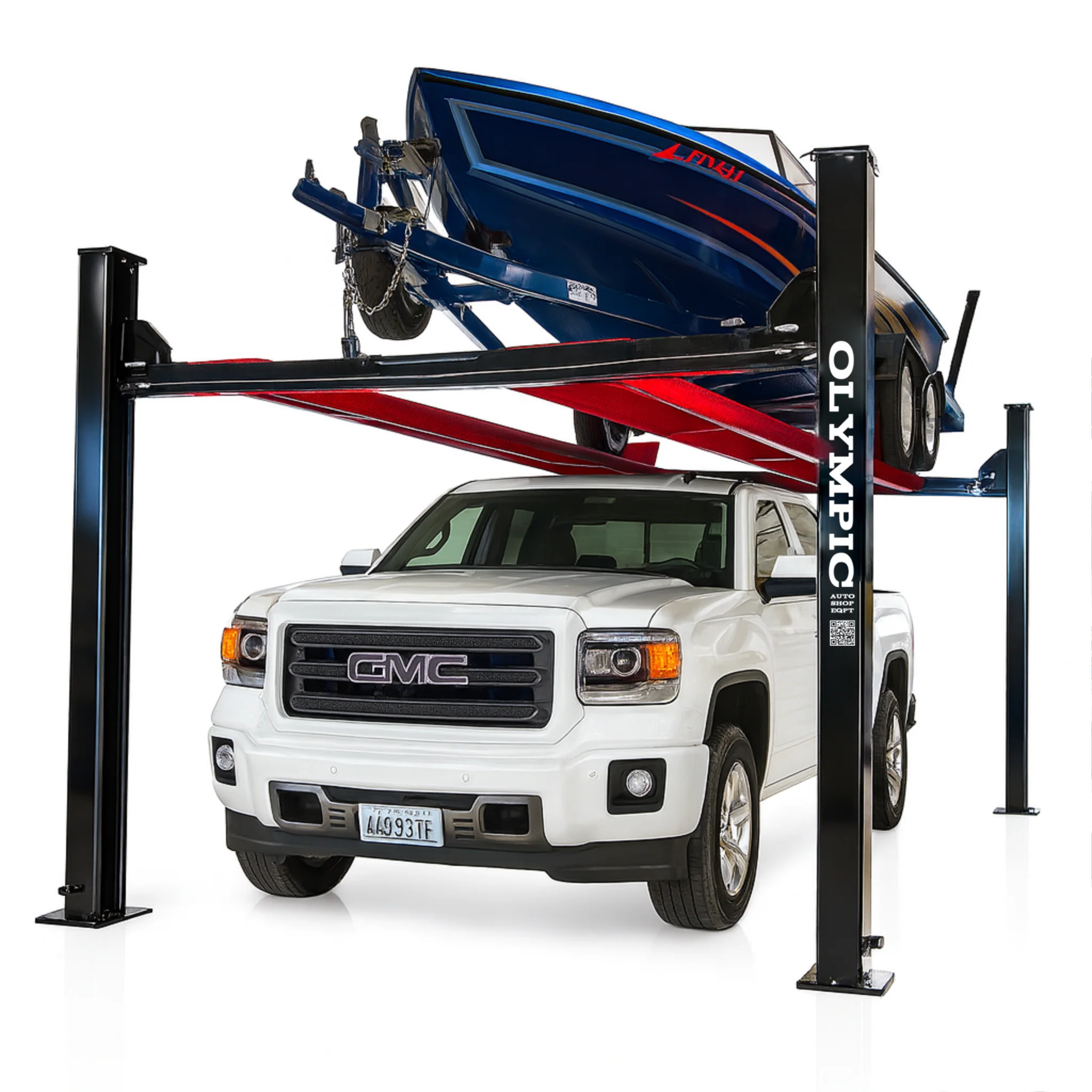

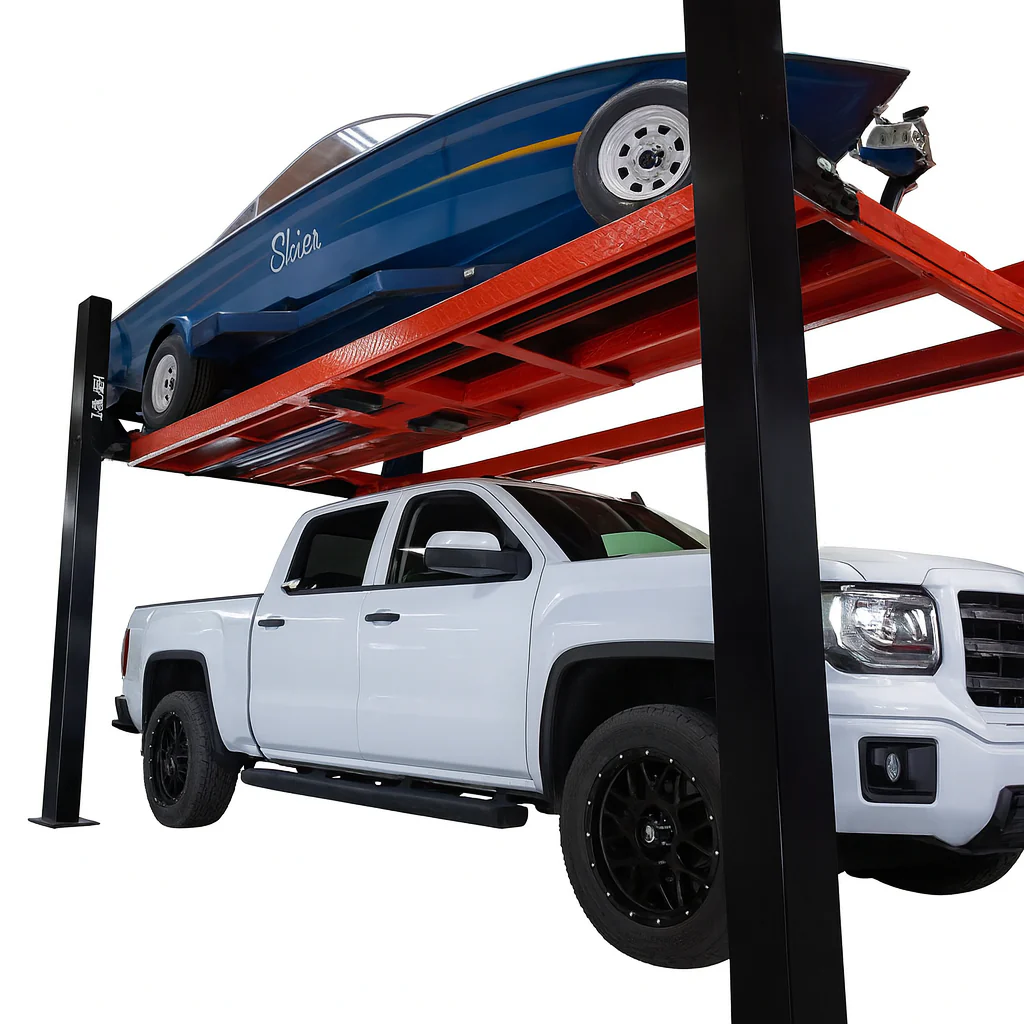

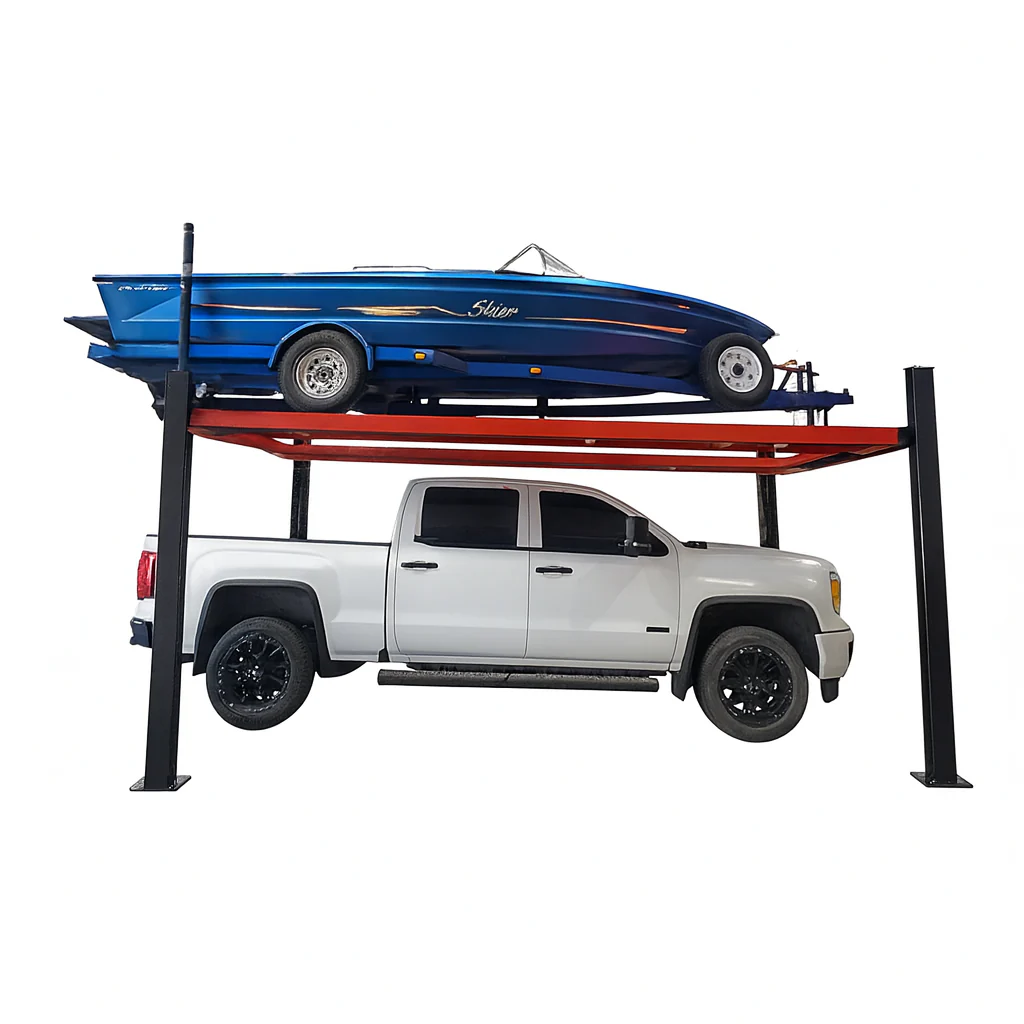

Olympic HDMBL-10 / “The Skipper” XL Portable Boat & Trailer Lift
The ultimate trailer lift — extra wide, extra-long, extra tall.
With a 10,000 lb. capacity, 112″ drive-through width, 84″ clearance underneath, 19 locking positions, and a movable runway, The Skipper handles large trailers, pickups, and trucks with ease. Designed to accommodate trailers up to 20′+ while keeping your trailer, boat and gear indoors, accessible, and secure.
Capacity: 10,000 lbs | Drive Through Width: 112″ | Max. Clearance Under Tracks: 84″
Key Features
- Industry Best 10-Year Warranty
- High-quality Q235 spec structural steel
- Portable drive-through design
- Provides 84″ of storage space
- 125″ between posts
- 112″ drive-through width
- Extra-long 195″ platforms

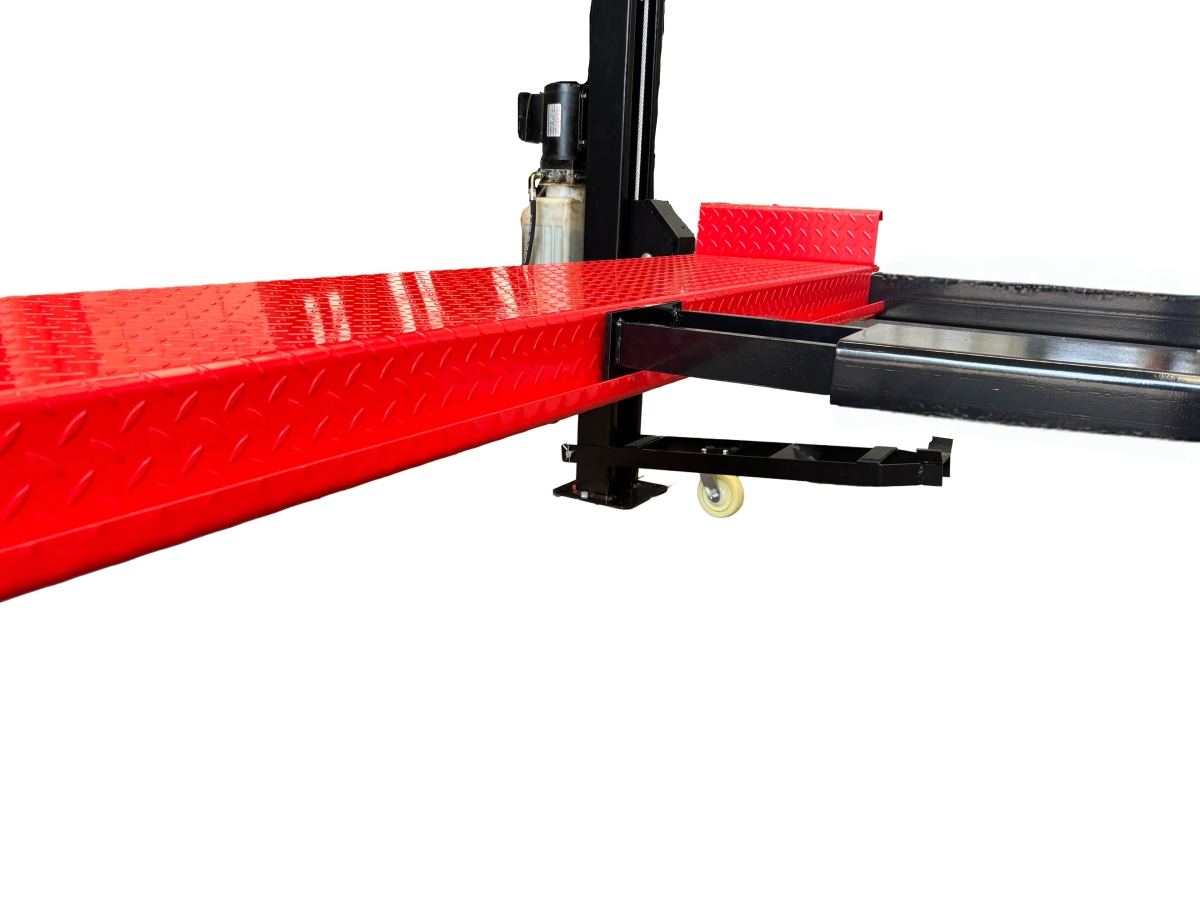

- Adjustable runway for trailer width flexibility
- 19 ladder locking positions
- Durable powder-coated finish

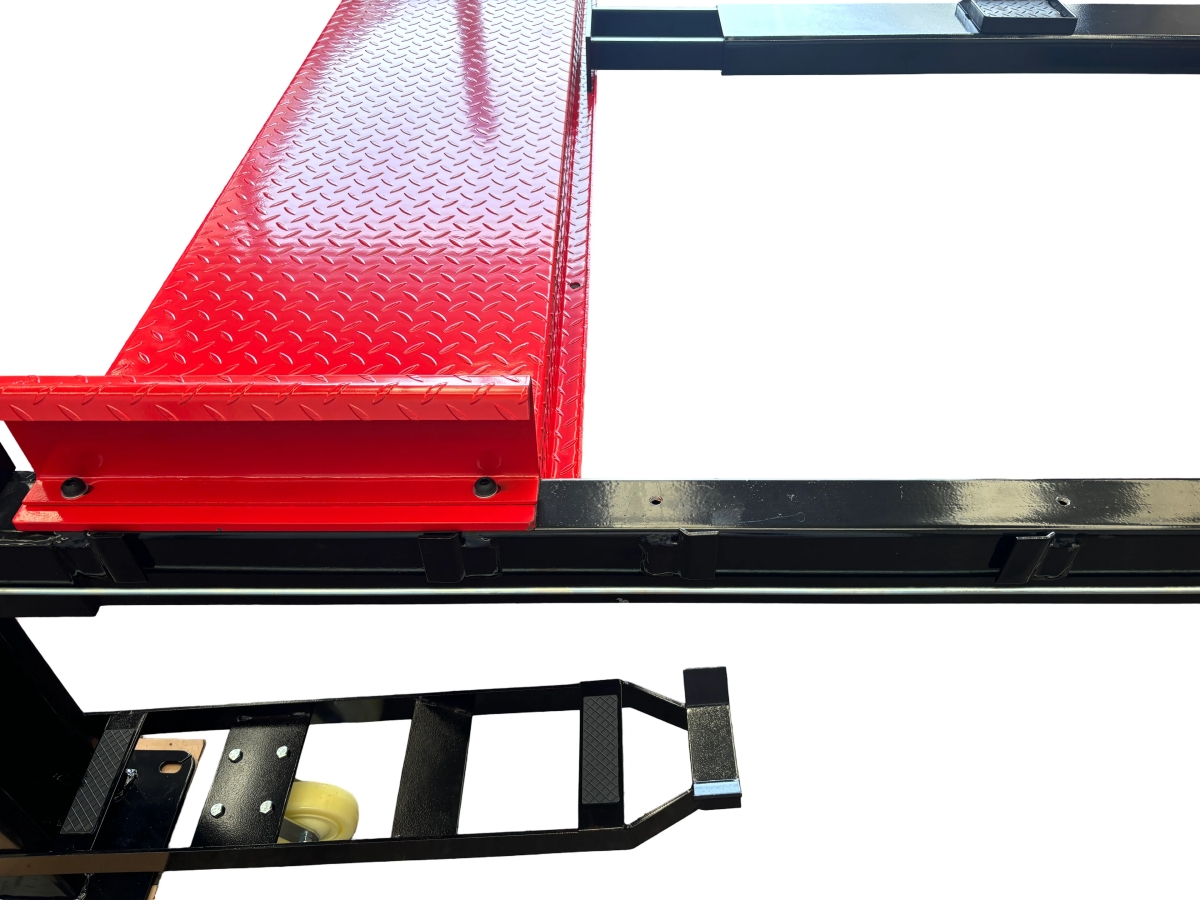

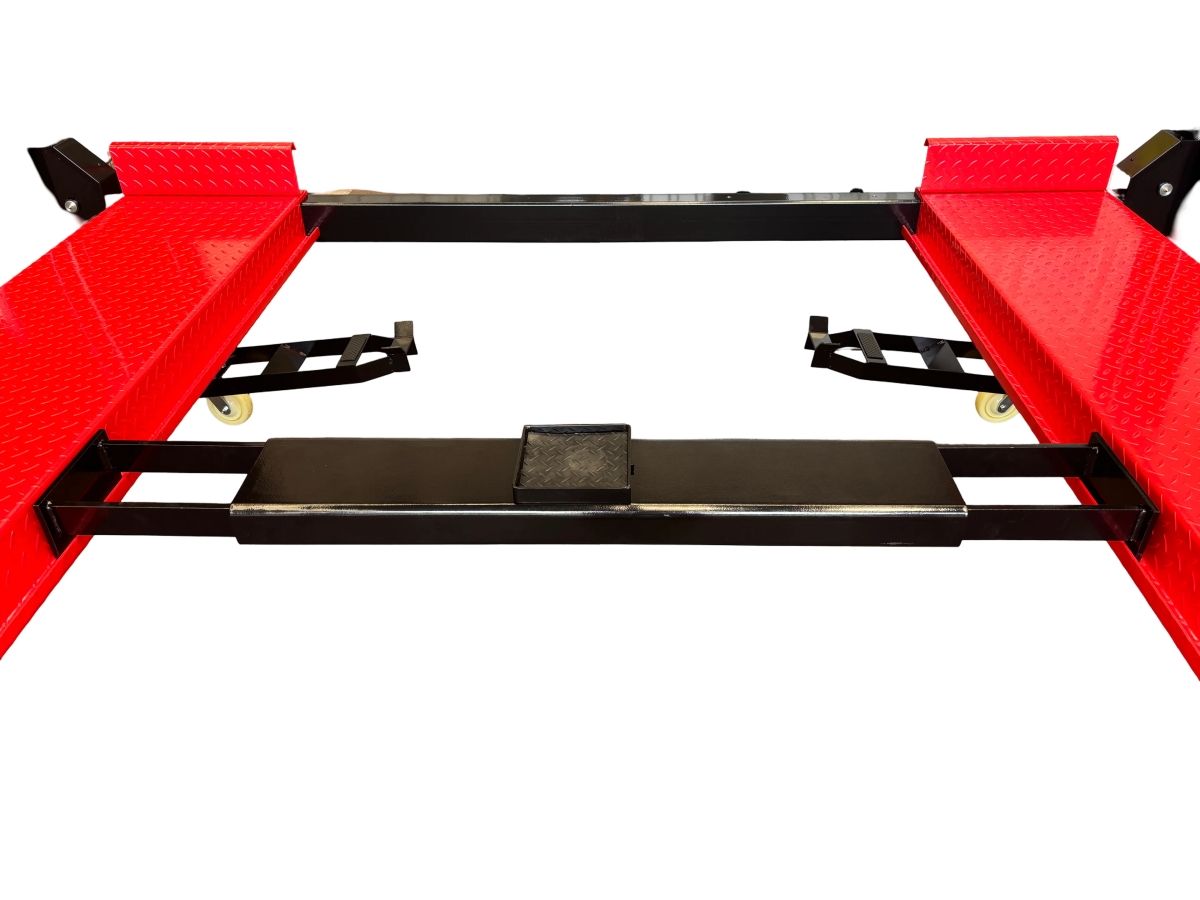

- Includes adjustable-width trailer hitch rest

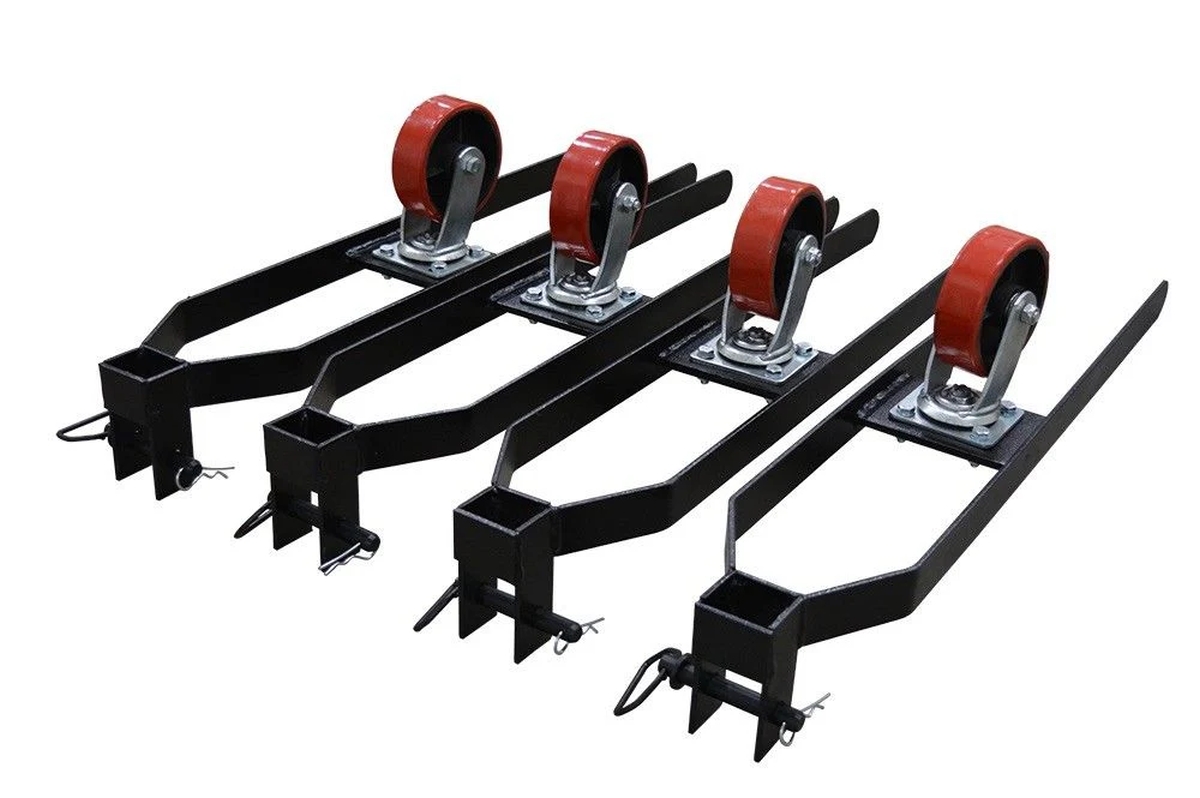

- Includes portability package
- Includes removable ramps
- Includes removable stops
- Includes drip trays
- Optional tool tray
- Optional aluminum ramps

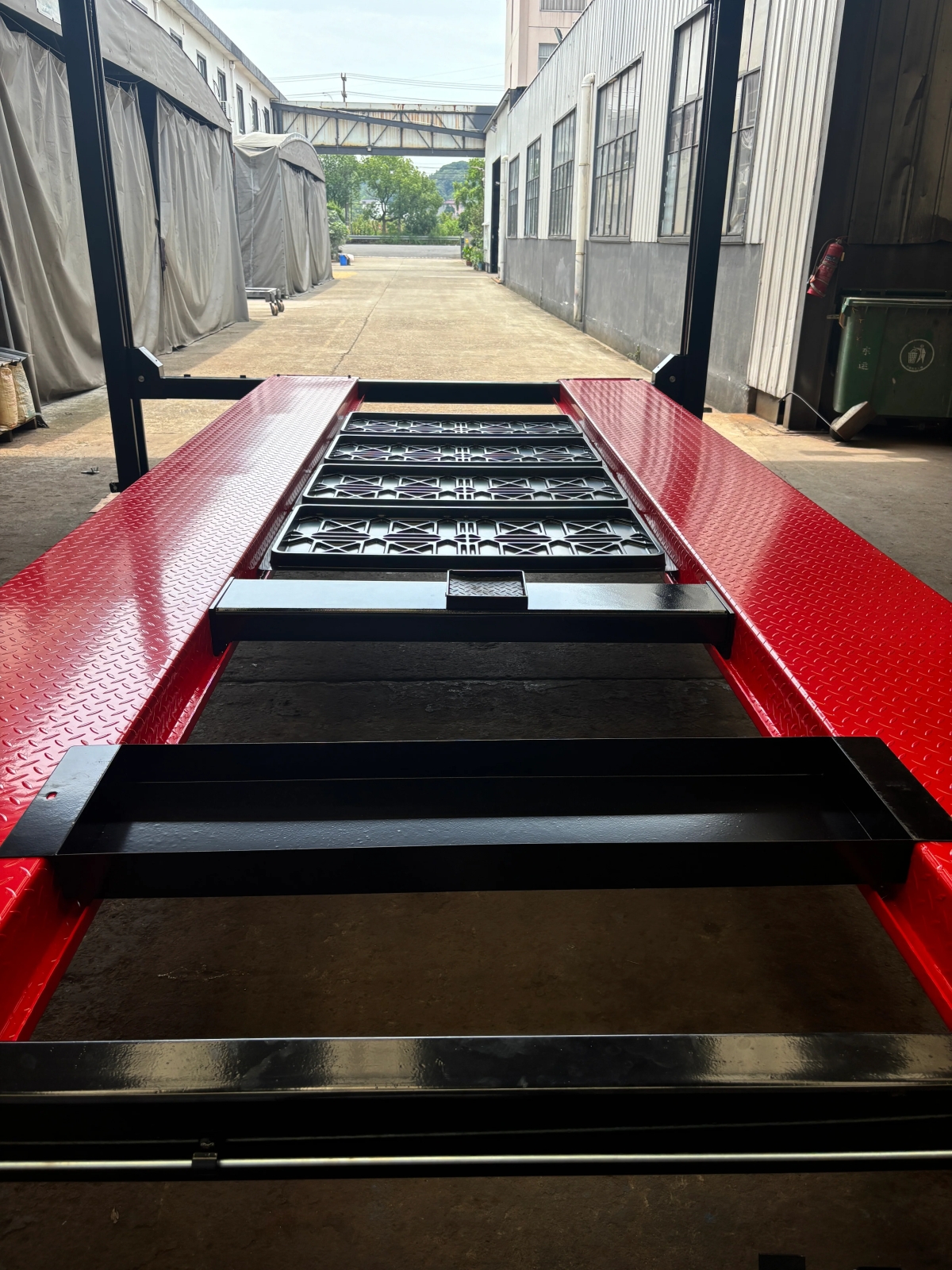

- Optional 1,000 lb. aluminum center platforms (5 inserts required)
- Optional 7,000 Lb Bridge Jack (Part No. YZRCJ-7)
- 110V 2.2KW 60Hz 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity

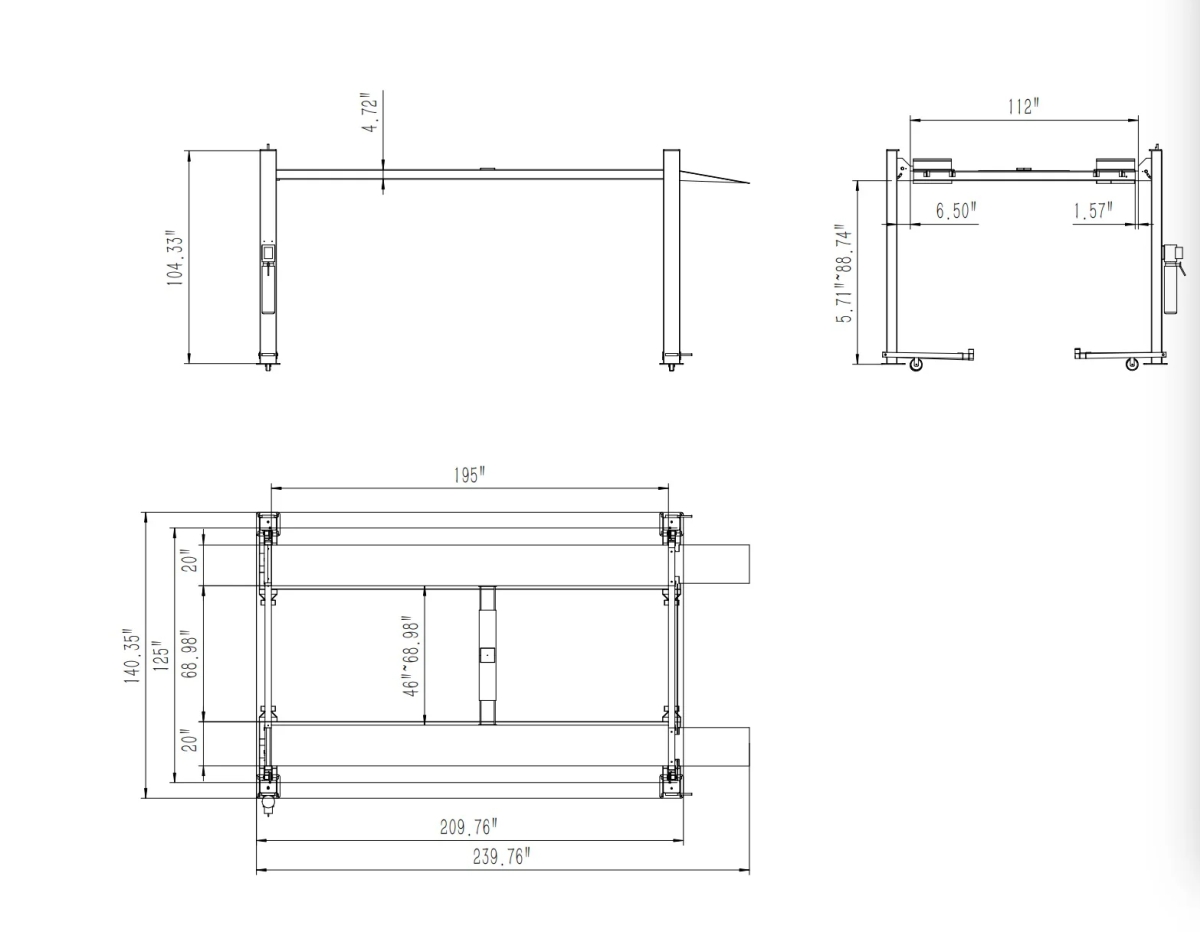

Specifications
| Style | 4-Post Boat & Trailer Lift |
|---|---|
| Capacity | 10,000 lbs |
| Overall Lift Length | 239.76″ |
| Overall Width | 140.35″ |
| Overall Height | 104.33″ |
| Drive Through Width | 112″ |
| Lifting Range | 5.71″ – 88.74″ |
| Width Between Posts | 125″ |
| Runway Width | 20″ |
| Runway Length | 195″ |
| Max. Clearance Under Tracks | 84.02″ |
| Width Between Tracks | 46″ |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Voltage | 110V included / 220V optional |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
ACCESSORIES

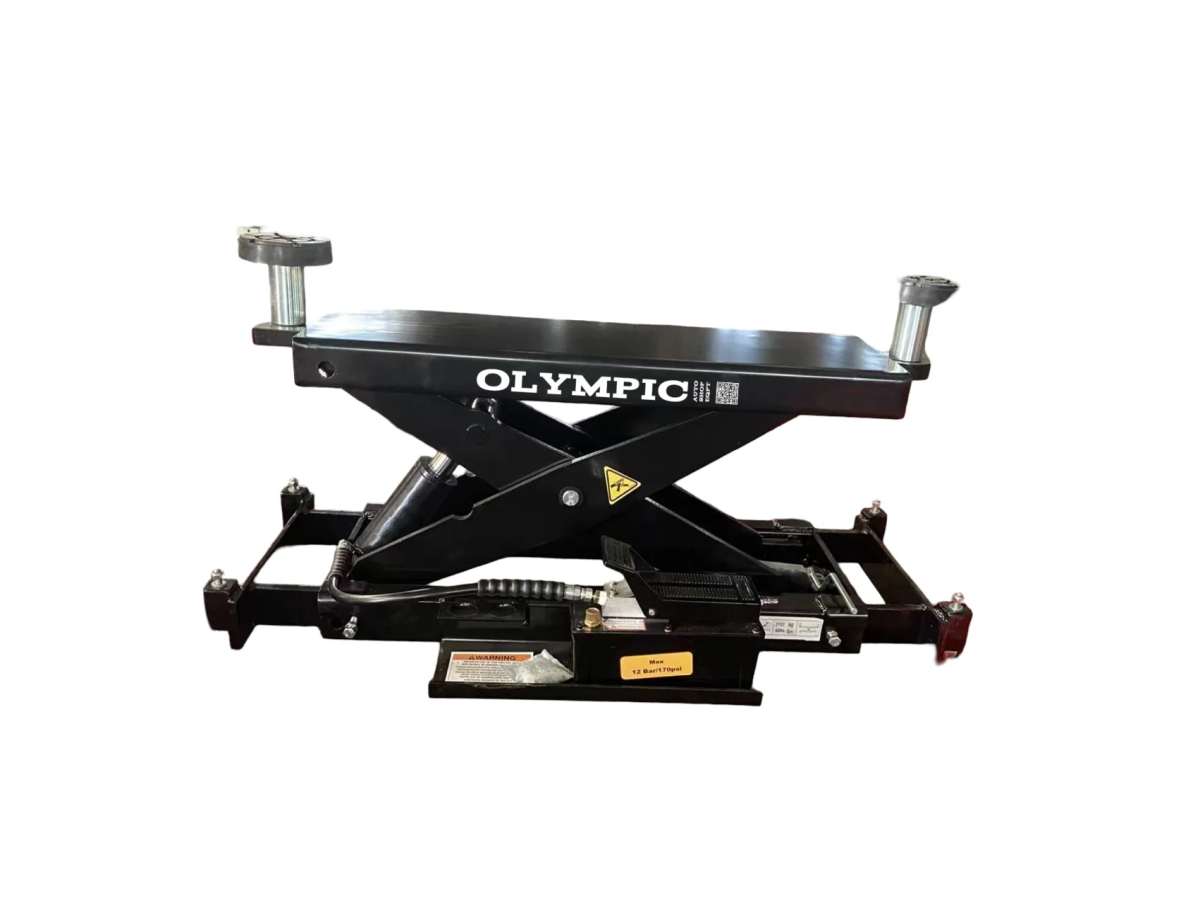

YZRCJ-7
$1,659 – Bridge Jack 7,000lb Manual Pump
4PTT

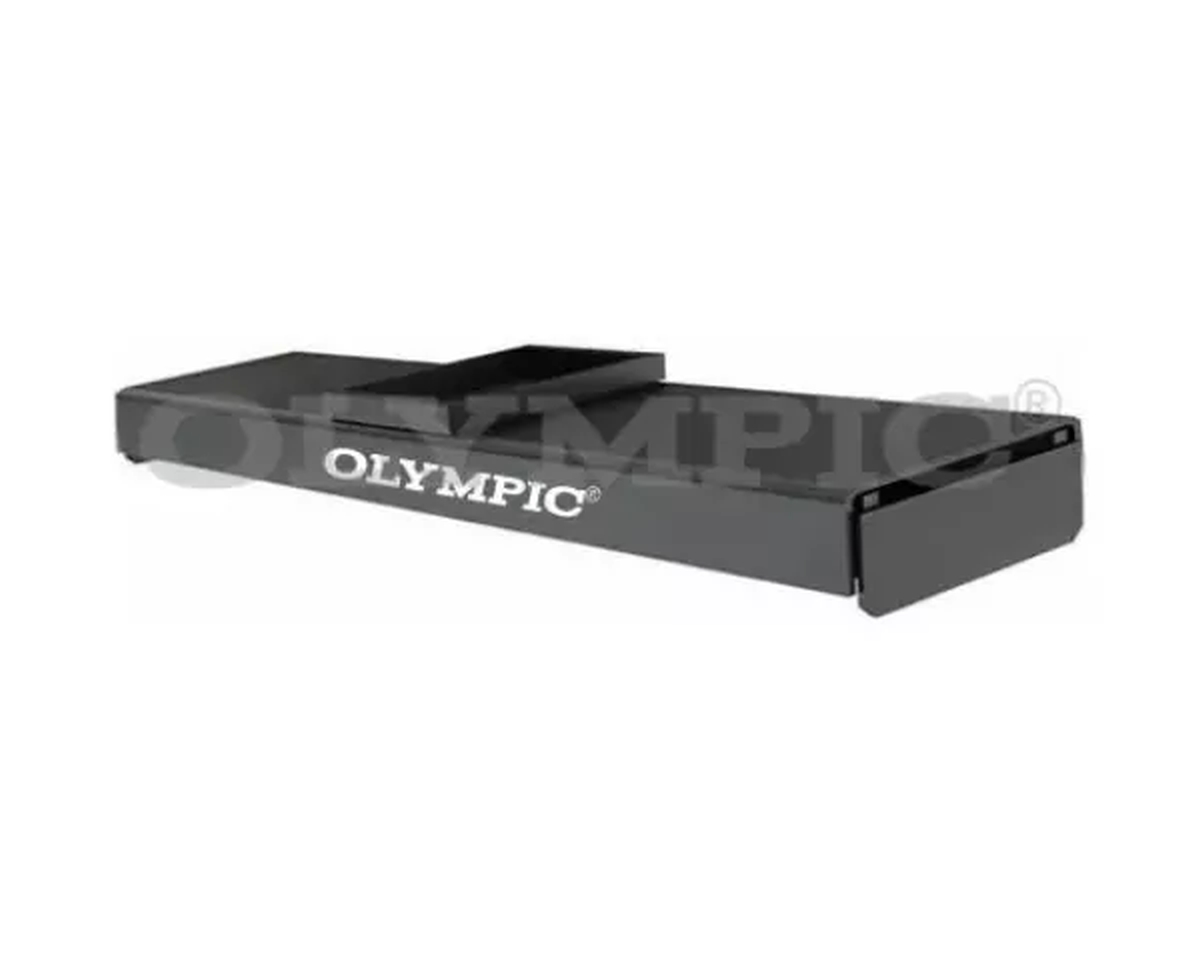

$149 – Tool Tray

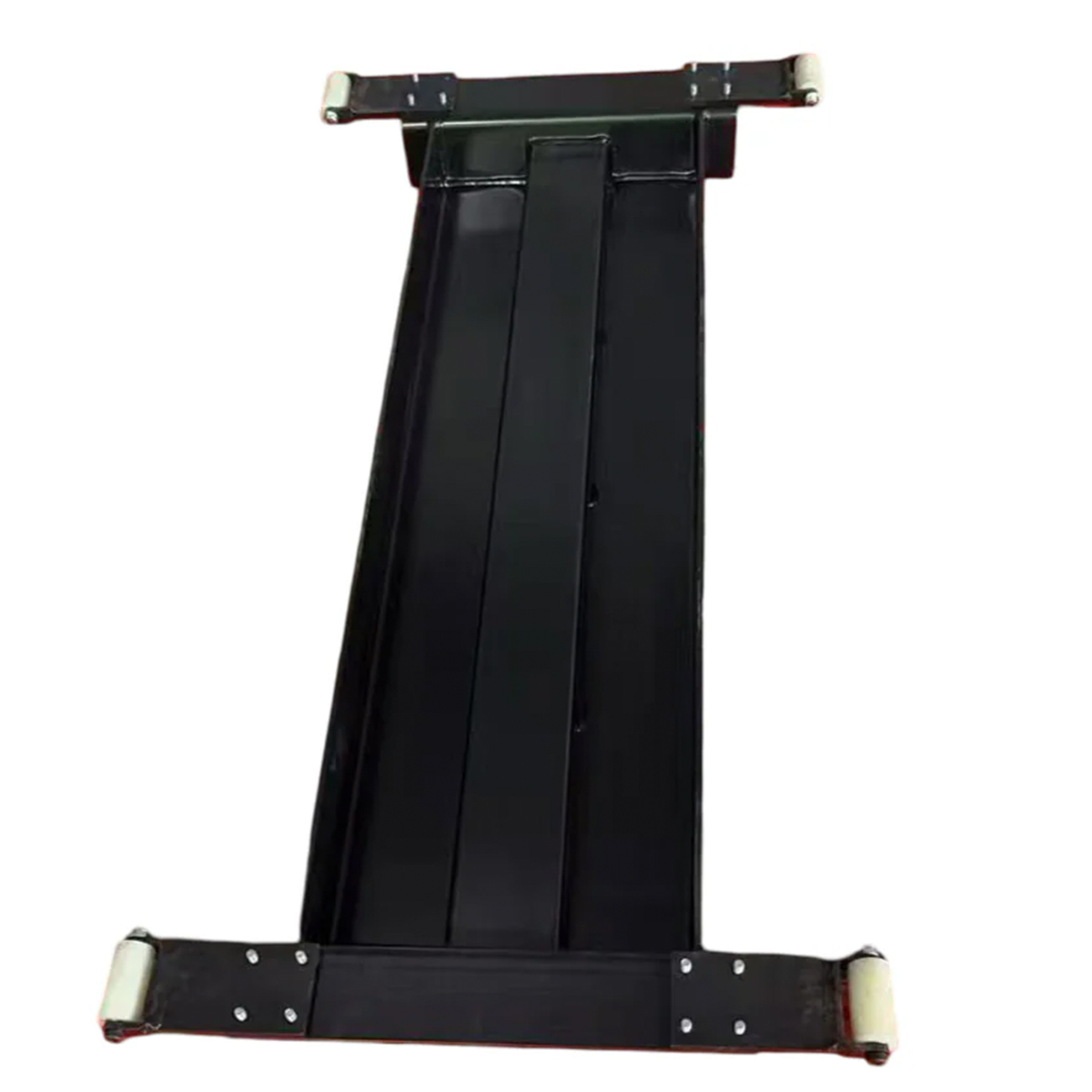

XL-10RJT
$459 – Rolling Jack Tray
FBAR
$660 – Aluminum Ramps Set
HR-10PLFM
$295/each – Aluminum Platform Panel Inserts 1000lb capacity
AB-1
$99 – High Quality Anchor Bolts (12 pack)

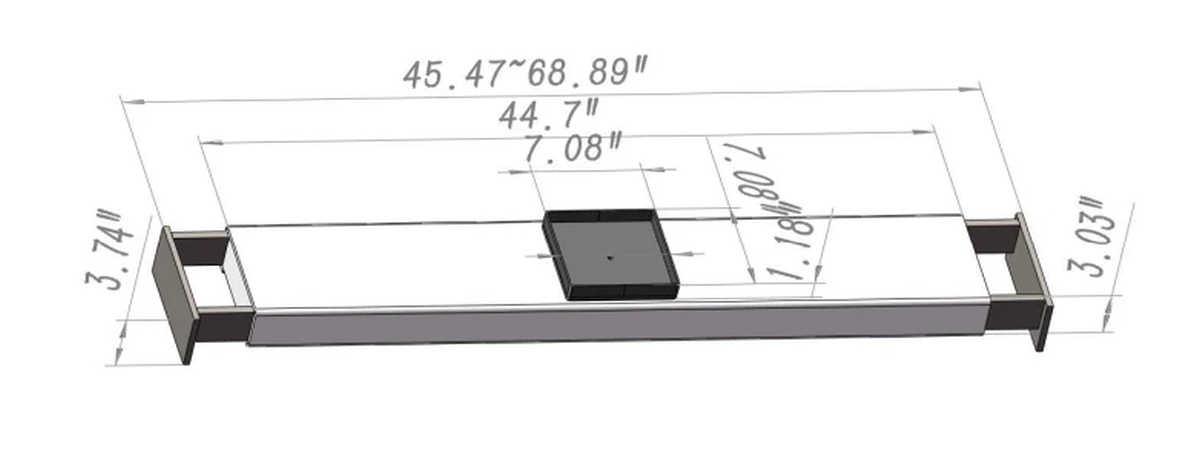

URJT-45
$279 – Universal Expandable Width Rolling Jack Tray
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
