iDeal PSB-PMR1088-3PH-230V-AK
PAINT MIXING ROOM
$9,200
$8,620
Alvarado, TX ONLY
Description

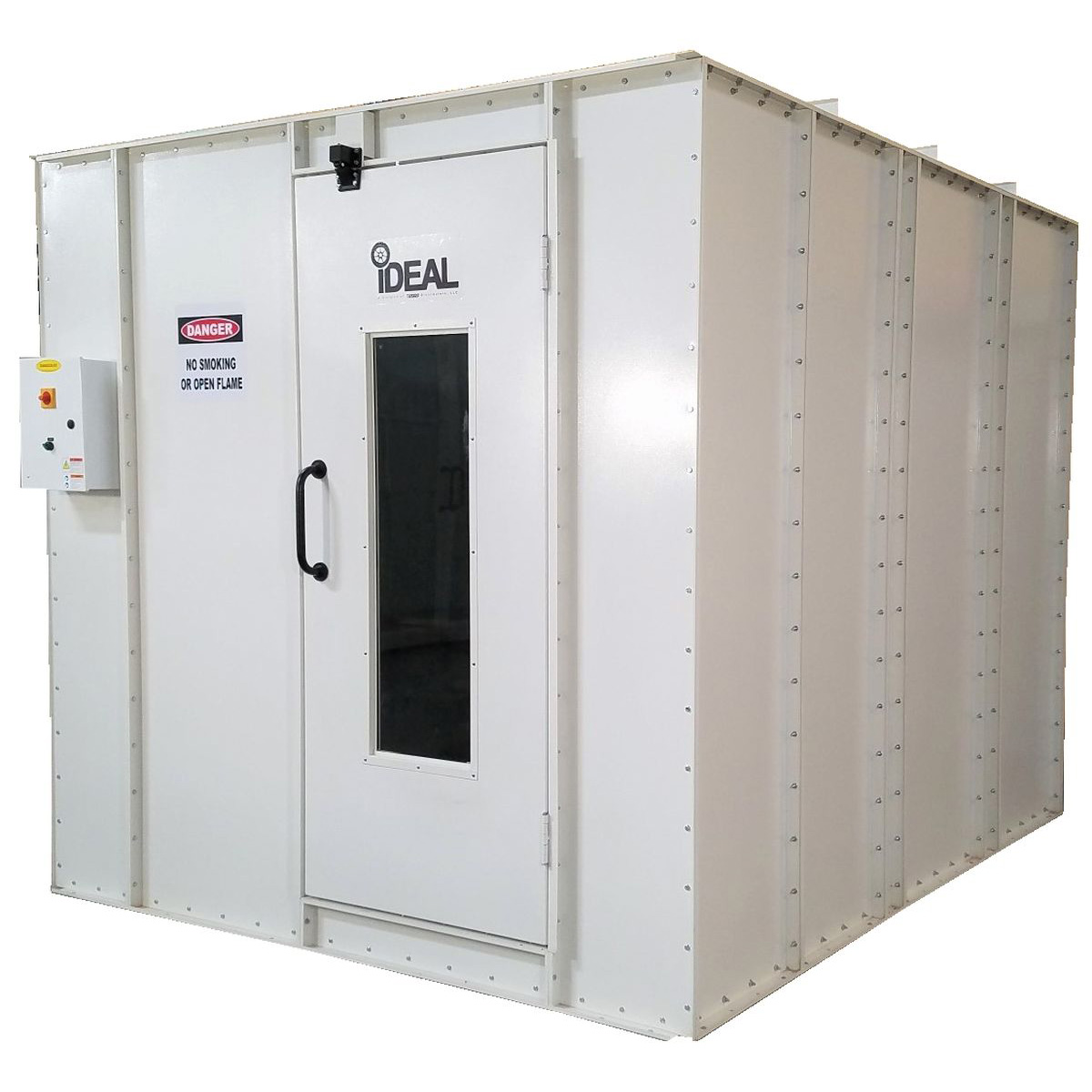

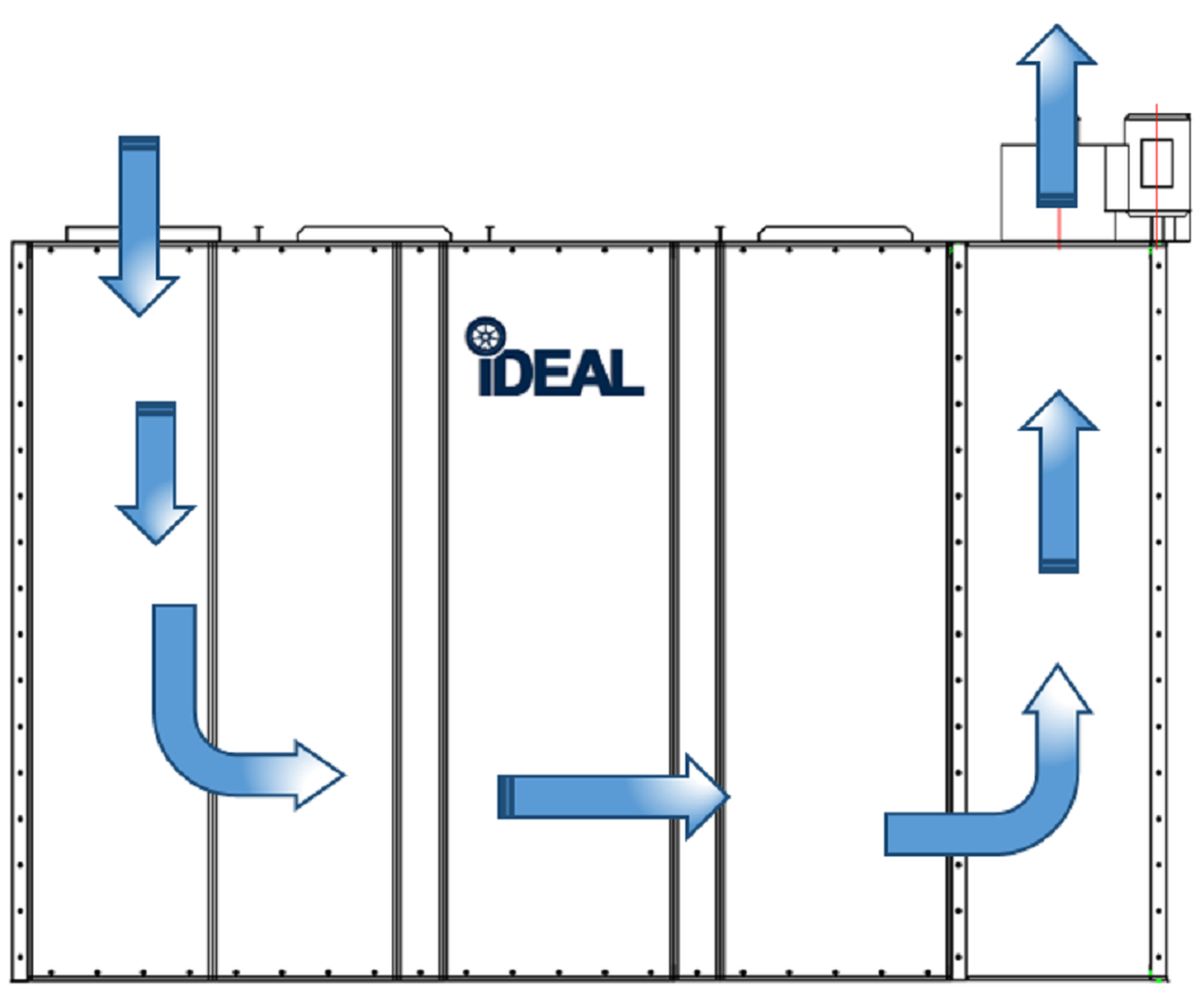

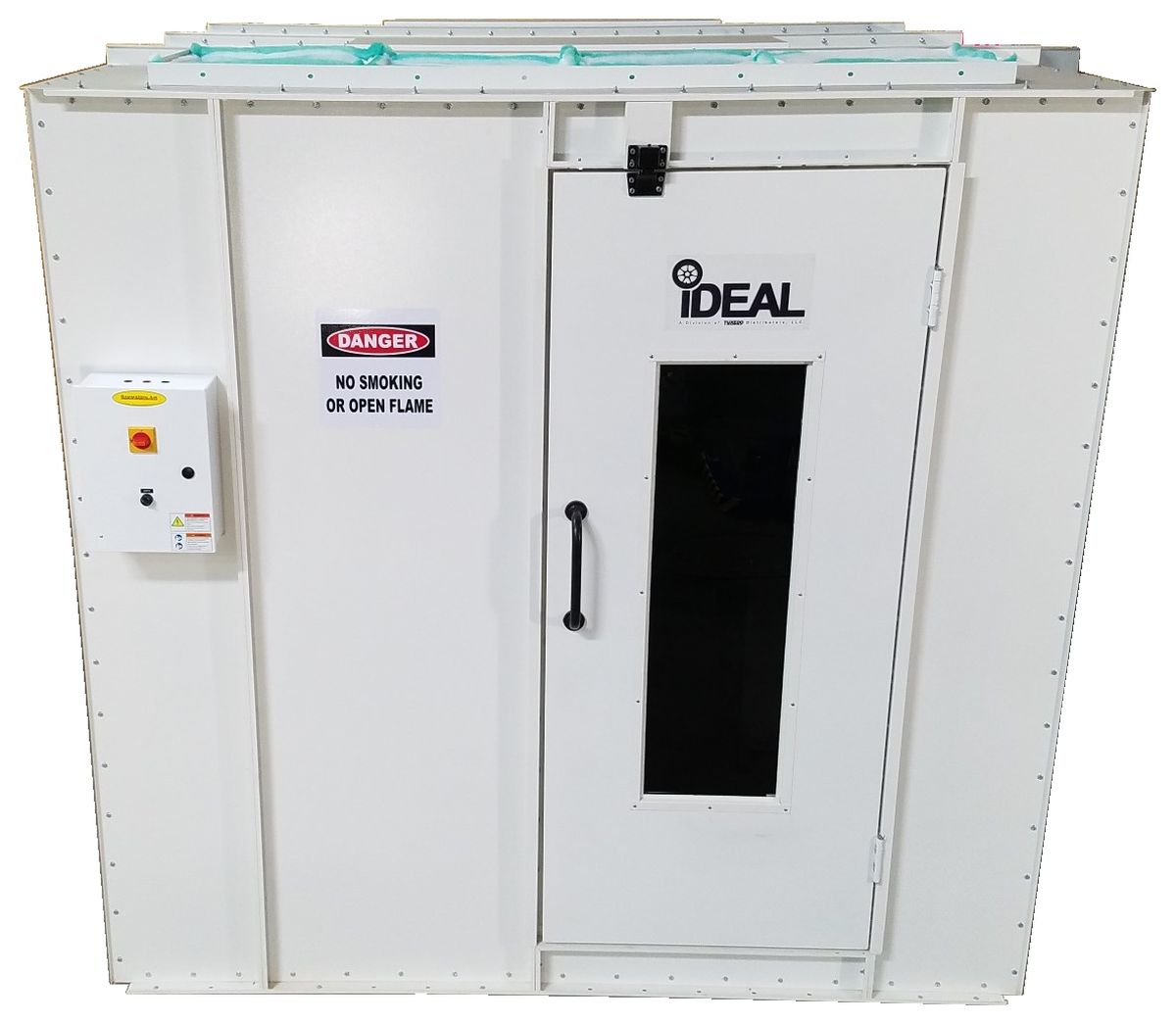

The iDEAL Paint Mixing Room is designed to provide superior lighting with a clean & controlled ventilated work area for safe paint mixing applications. Air flows through the ceiling intake filters towards one end of the room and downward into the filtered exhaust plenum and is discharged upwards through exhaust fan & ducting. This unique design allows for differ installation configurations, as the personnel door can be placed in either the front or side of the mixing room. The fan & plenum chamber are purposely located outside of mixing room to provide lower decibel levels while working inside. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Mixing Room, all at a great value!

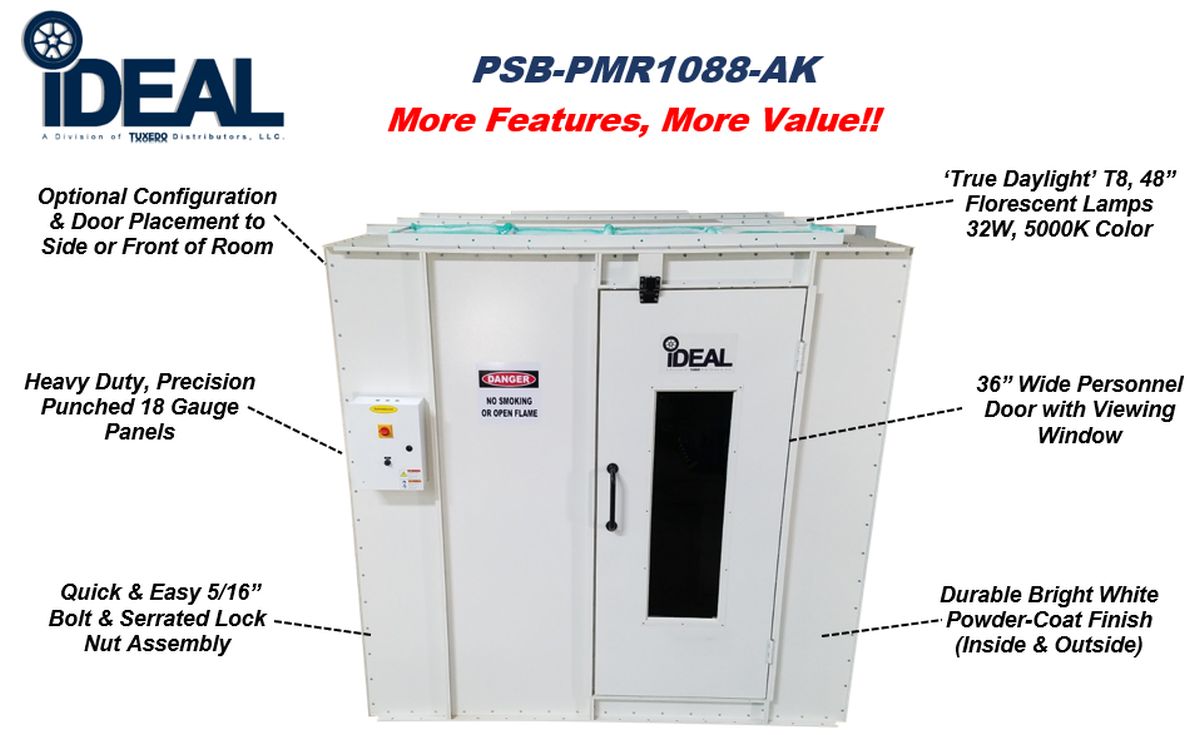

Features
- Commercial grade design for optimal air flow & lighting coverage

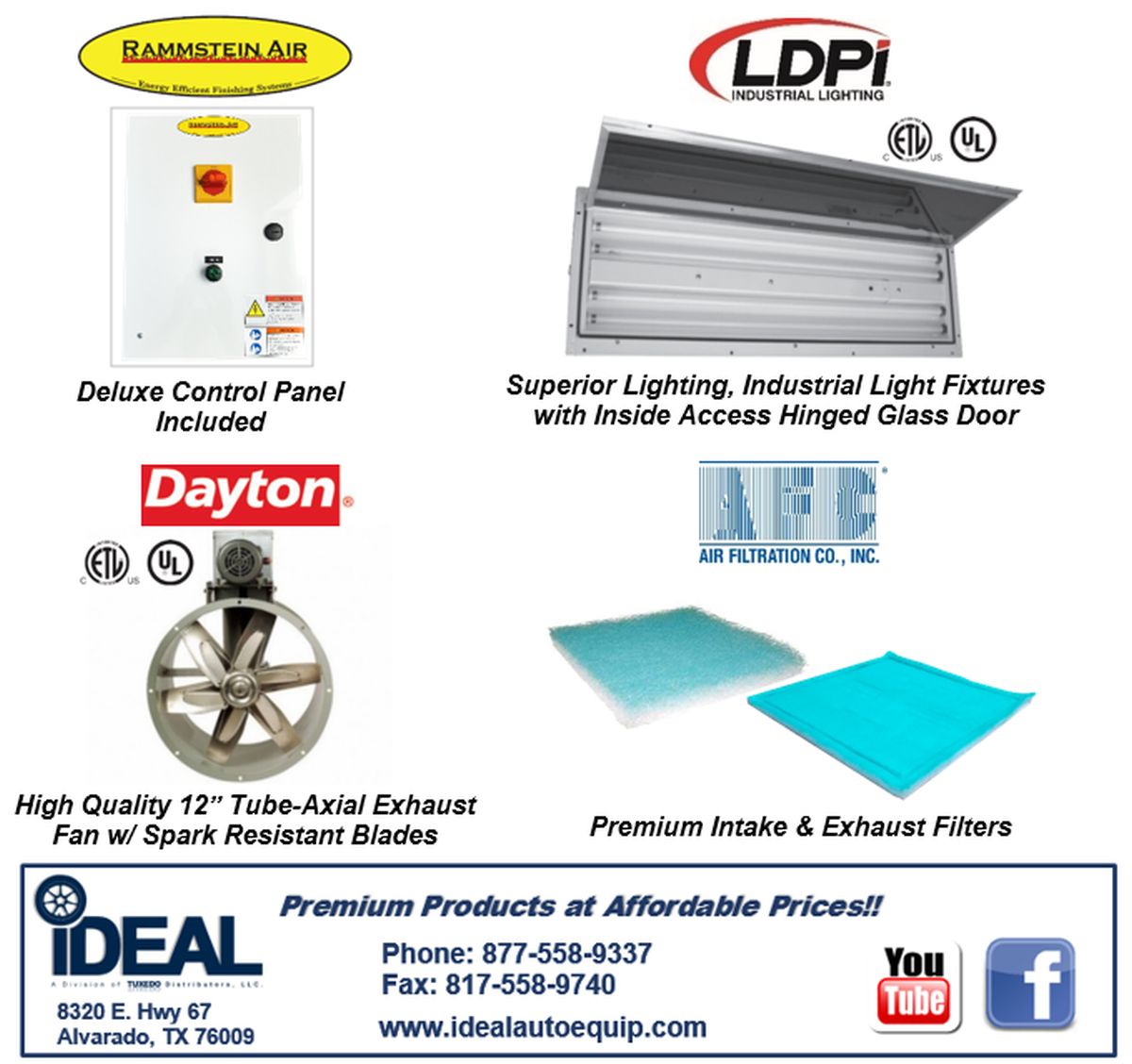

- DELUXE CONTROL PANEL included
- Bright White Powder Coat panel Finish – (inside & outside)
- Optional door placement to side or front of room
- ‘Pre-Hung’ 36”W PERSONNEL DOOR W/ VIEWING WINDOW
- Heavy duty precision punched 18 Gauge panel construction
- Convenient 5/16” bolt & serrated lock nut ASSEMBLY
- UL Listed Dayton 12” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 1/2HP-3 Phase – 230/460VAC-60Hz motor standard
- Premium AFC intake & exhaust filters
- LDPI Industrial Light Fixtures w/ Inside Access Hinged Glass Door
- (2ea) LDPI Industrial (Cls1 / Div 2) Light fixtures – UL & ETL (GROUPS A, B, C & D.)
- True ‘daylight color’ w/ GE t8 48” florescent lamps 32W – 2900 lumens, 5000K
- Optimal air flow w/ CFM 1,429 @ .5 static pressure
- Inside Dimensions: 10″ L X 8′ W X 8″ H
- All assembly HARDWARE, MANOMETER & SEALANT included
- Meets and/or exceeds all applicable OSHA & NFPA 33 regulations
- Easy to install, operate & maintain
- Optional: 1PH electrical & PSB-13DUCTKIT-8 KIT ASY
Specifications
| Paint Booth Model | PSB-PMR1088-AK |
| Inside Dimensions | 10’L X 8’W X 8’H or 8’L X 10’W X 8’H |
| Outside Dimensions | 12′-6″L X 8’-4″W X 9’-4″H or 8’-4”L X 12’-6”W X 9’-4”H |
| Fan / Motor | (1ea) – 12″ Tube Axial Fan 1/2 HP-3PH-208-230/460VAC-60HZ Non-Spark, UL Listed, NEMA Rated |
| CFM | 1,429 @ .5 Static Pressure |
| Light Fixtures | (2ea) 48” 32W, T8 / 4 Bulb Light Fixtures
UL & ETL Listed Cls1, Div2 – Groups A, B, C & D |
| Lamps | (8ea) T8 Florescent, 32W, 5000K – 48”L |
| Options | Single Phase Electrical Configuration |
| 8′ Exhaust Duct Kit (13″ Diameter) |
ACCESSORIES

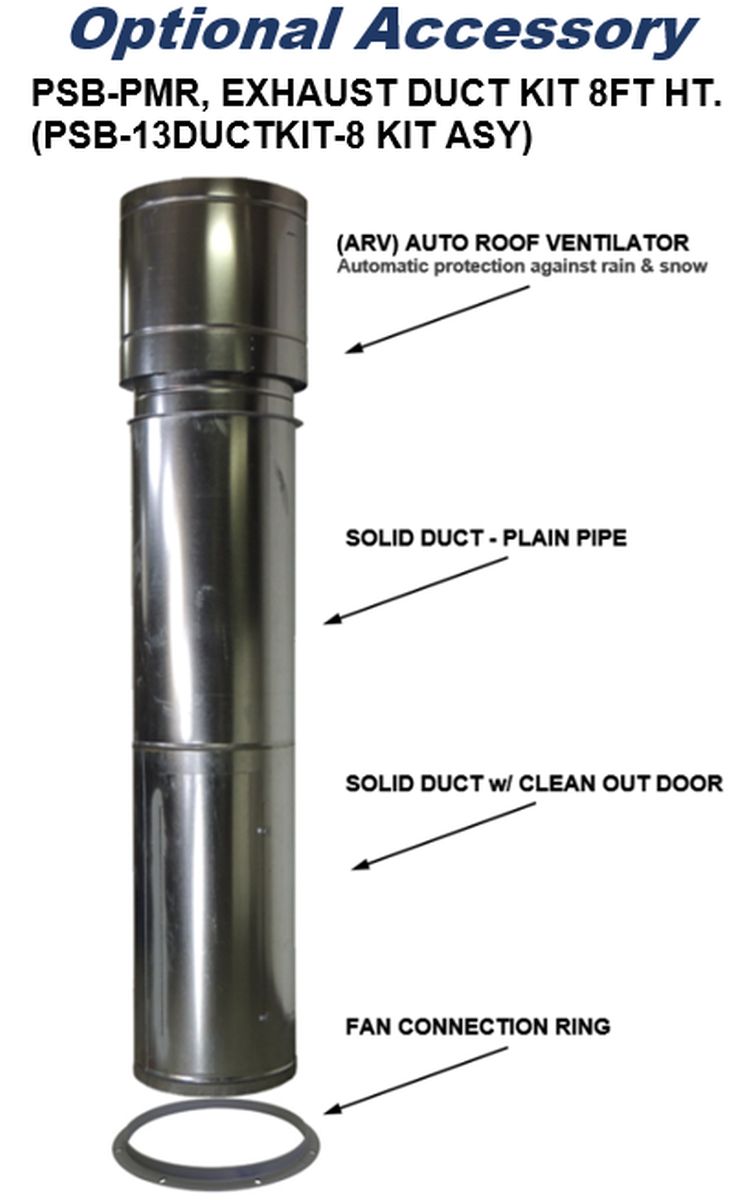

13″ Dia. 8′ Duct W/ Rain Head (PMR1088)
$839 – PSB-13DUCTKIT-8 KIT ASY
