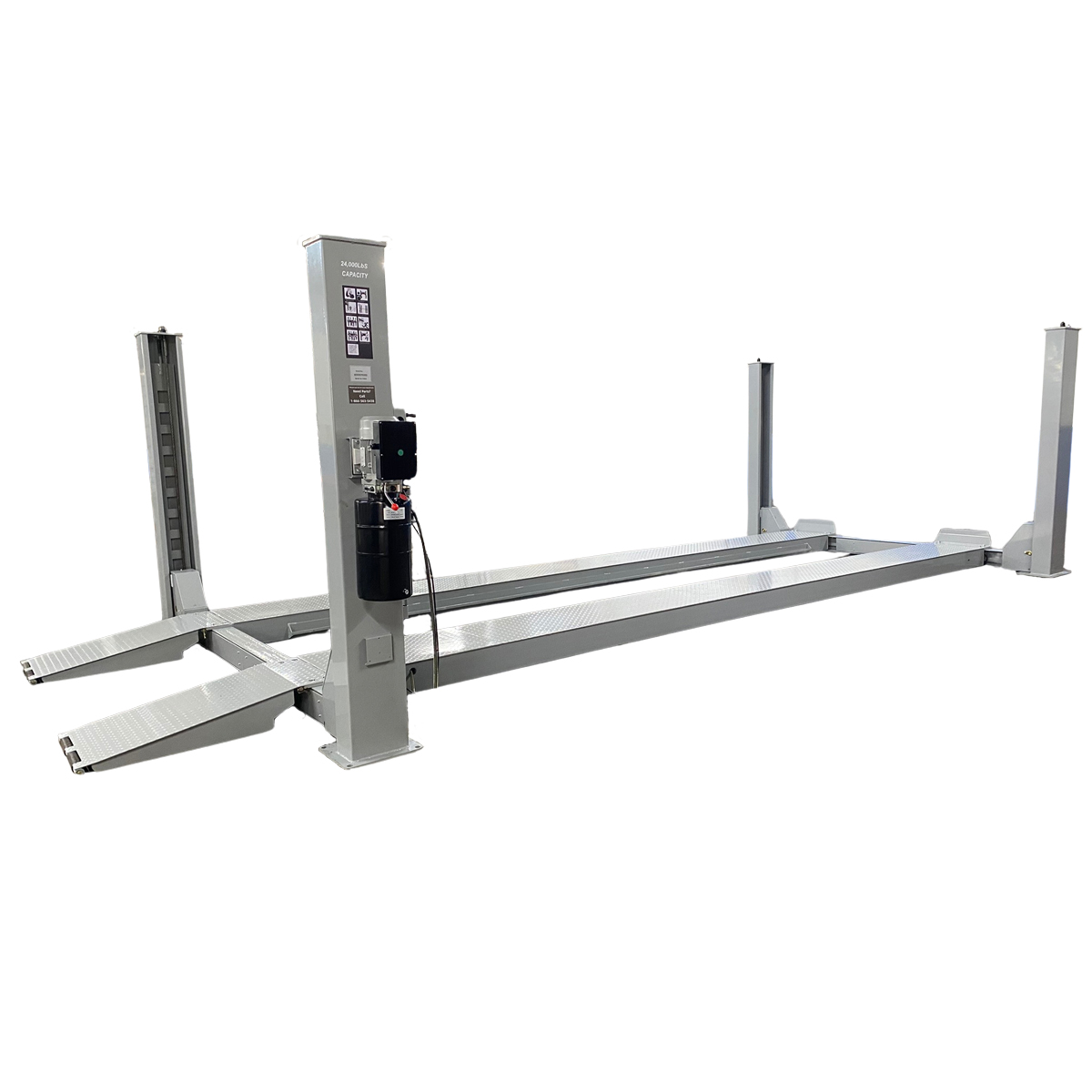

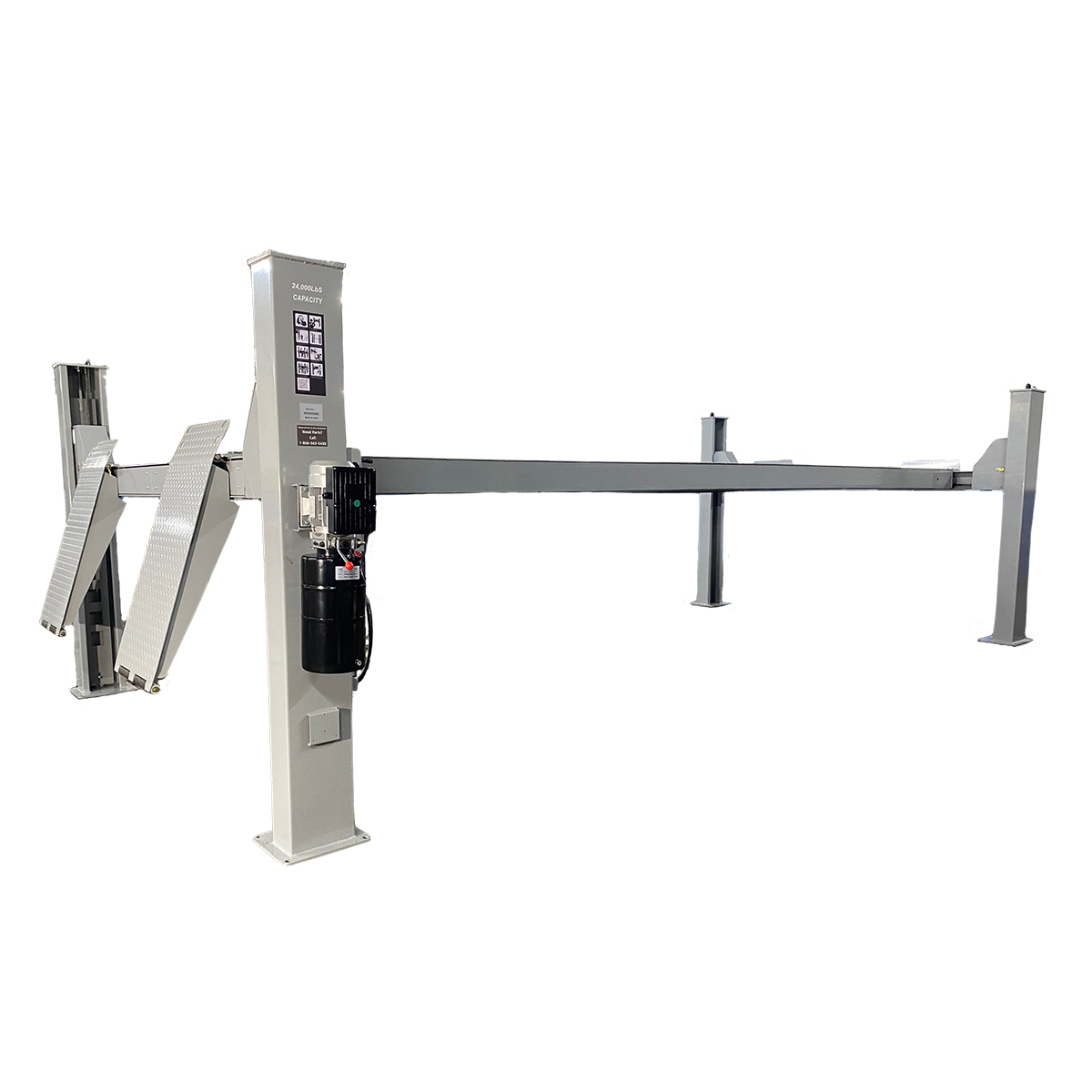

Triumph NTR-24
24,000 lb 4-Post Heavy Duty Lift
$15,600
$15,195
(PICK UP)
Features
- Pneumatic lock release with 4 pcs air cylinder and central control valve
- Machined pulleys with heat treatment , anti-slip fixed screw and internal grease lubrication
- Built-in parachute valve protection in case of hydraulic line fracture
- Built-in relief valve to prevent overloading
- Cable anti-break kit incl.
- Rolling air jack optional
Specifications
| Capacity | 24,000 lbs. |
| Overall Height | 93.1" |
| Overall Length Without approach ramps | 300" |
| Overall Length With approach ramps | 338.9" |
| Overall Width | 150.1" |
| Minimum Runway Height | 9" |
| Maximum Lifting Height | 70.8" |
| Runway Length | 289.9" |
| Runway Width | 24" |
| Between Runway | 45.3-49.2" |
| Width between columns | 131.8" |
| Number of Lock positions | 9 |
| Electrical Requirement | 220 Volt Single Phase |
| Shipping Weight | 6614 lbs |
| Shipping Dimensions | 295x30x43 inches |
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
