Olympic 4PHDXL-33
Gold Series 33,000lb 4-Post Heavy-Duty Truck & Equipment Maintenance Lift
(Free Shipping)
$41,113
$25,734
Features / Specs

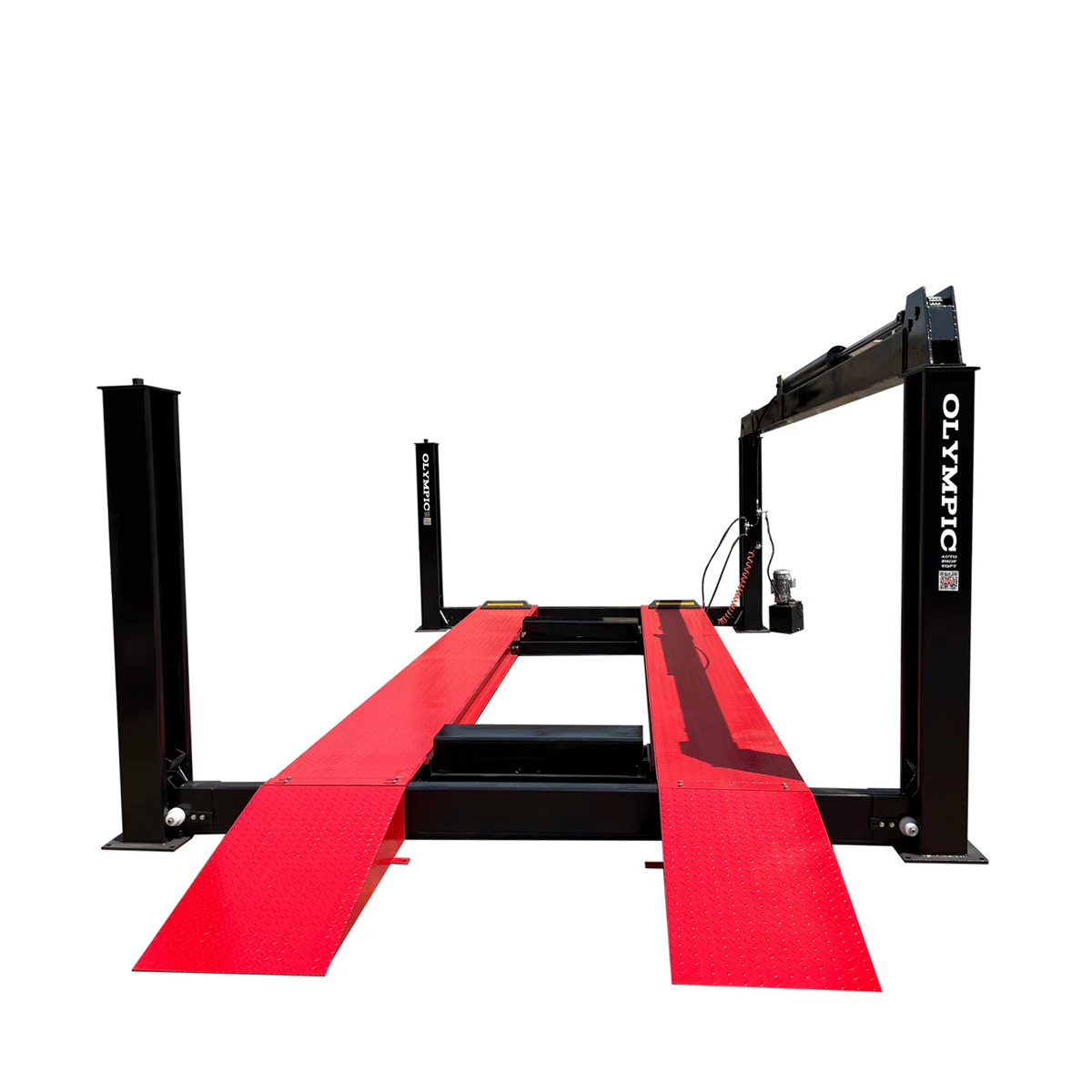

"The Big-Rig" 33,000 lb. maintenance Lift
Heavy-Duty Commercial-Grade lift for Trucks, Heavy Equipment and Cars.
"The Big-Rig" 33,000 Lbs. Capacity Maintenance Lift is designed for maximum durability, strength, and performance. Perfect for servicing large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, and maintenance — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Runway Width: 25.6″
Key Features
- Industry Best 10-Year Warranty
- 33,000 lb. heavy-duty load capacity
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for added versatility
- Extra-long slip-resistant runways (289″)
- Heavy-duty galvanized abrasion-resistant aircraft-grade cables
- Secondary locking system prevents cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precise leveling
- Built-in grease fittings for easy maintenance
- Special chain drive prevents over-extension
- Outdoor-use capable (protect power unit)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style | 4-Post Maintenance Lift |
|---|---|
| Weight Capacity | 33,000 lbs |
| Overall Lift Length | 289.3″ |
| Overall Width | 152.4″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 27.6″ |
| Runway Length | 289.4″ |
| Runway Height | 7.9″ |
| Width Between Tracks | 47.24″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V, 3KW, 60Hz, 3-phase |
| Amps | 15 / 8.8 |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
