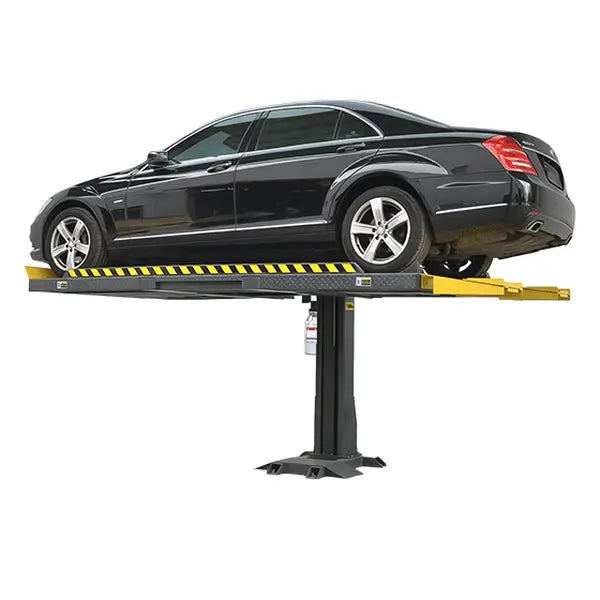

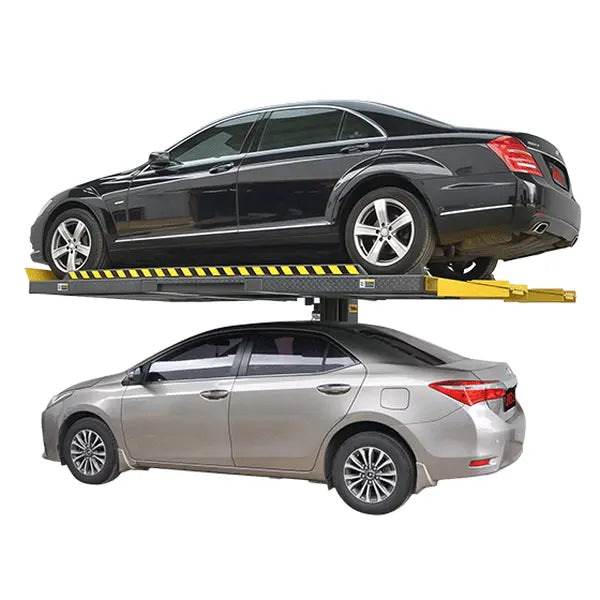

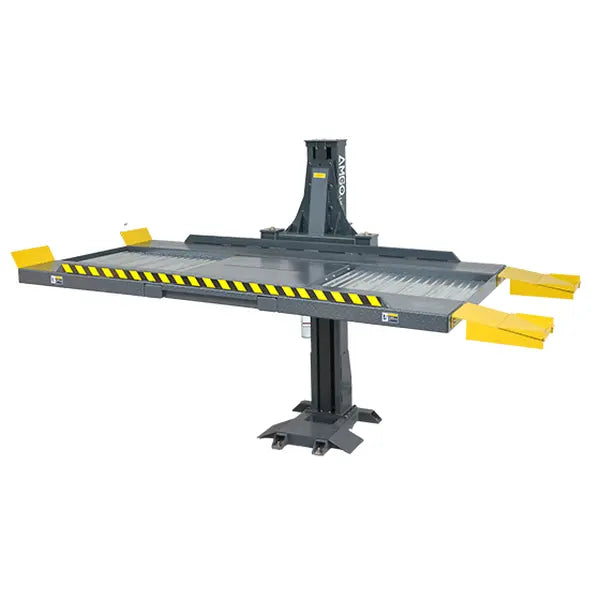

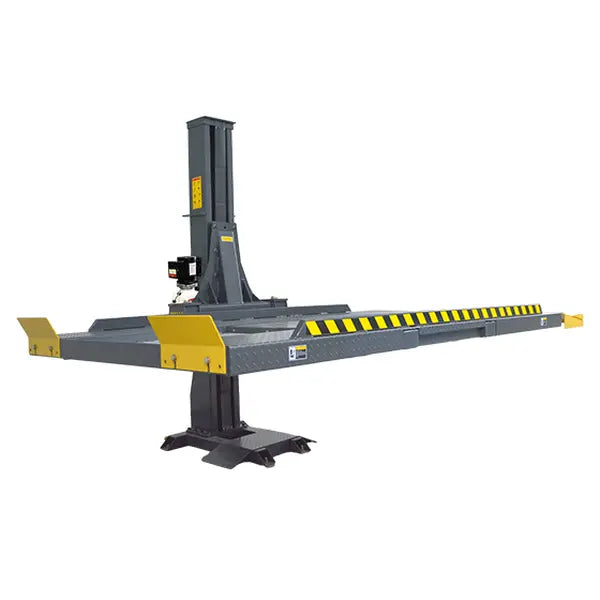

AMGO SPL-7 7,000 lb Single-post Parking Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Built for commercial-grade performance, the SPL-7 features reinforced construction and integrates AMGO’s latest space-saving technologies for effortless operation. Engineered for both home garages and professional shops, this single-post parking lift delivers the perfect blend of durability, efficiency, and ease, making it the better solution on the market.
Features
• 7,000 lbs lifting capacity;
• Commercial‑grade reinforced construction for both professional and home garage use;
• Space‑saving design fits ceilings as low as 110″;
• Dual safety devices with single‑point release lock, no air source needed;
• Interchangeable H‑shaped non‑slip platforms;
• Foldable drive‑on ramps come standard;
• Guide ramp comes standard for easy drive‑under access.
• Storage wave panels come standard;
• Wheel chocks come standard.

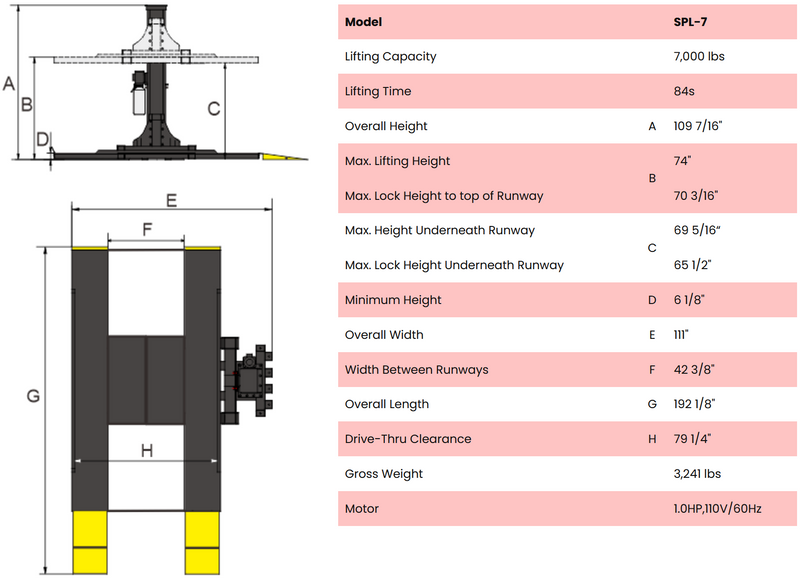

Specifications
| Model | SPL-7 | |
|---|---|---|
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 84s | |
| Overall Height | A | 109 7/16" |
| Max. Lifting Height | B | 74" |
| Max. Lock Height to top of Runway | 70 3/16" | |
| Max. Height Underneath Runway | C | 69 5/16“ |
| Max. Lock Height Underneath Runway | 65 1/2" | |
| Minimum Height | D | 6 1/8" |
| Overall Width | E | 111" |
| Width Between Runways | F | 42 3/8" |
| Overall Length | G | 192 1/8" |
| Drive-Thru Clearance | H | 79 1/4" |
| Gross Weight | 3,241 lbs | |
| Motor | 1.0HP,110V/60Hz |
