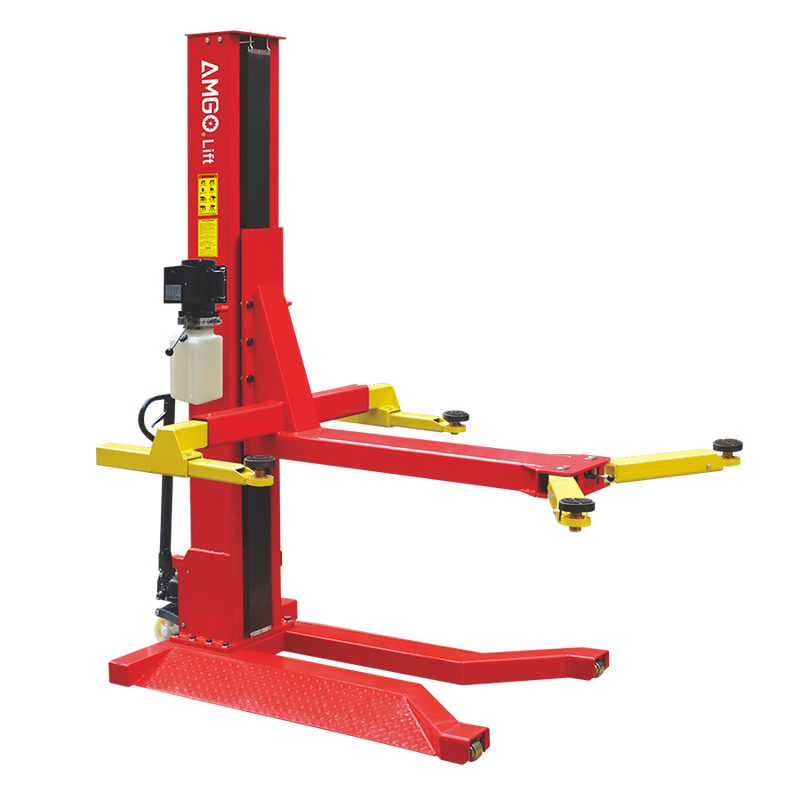

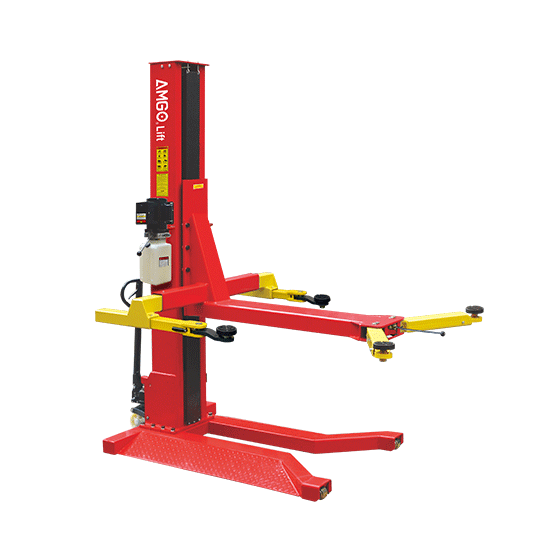

AMGO SML-7 7,000 lb Portable Single Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
Designed for commercial shops and home garages, the AMGO SML-7 delivers high-performance lifting with a 7,000 lbs capacity.Featuring our patented single-handle arm lock release, this fully mobile unit is the ultimate solution for space-saving needs.
Features
- Mobile design with a 7,000-lb. lifting capacity;
- AMGO’s patented arm-lock release system comes with a seamless, single-handed release operatio;
- Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points;
- Drop-in screw-type rubber pad with 2” pin diameter;
- Self-lubricating UHMW polyethylene sliders and bronze bushings;
- AMGO ETL certified power unit.

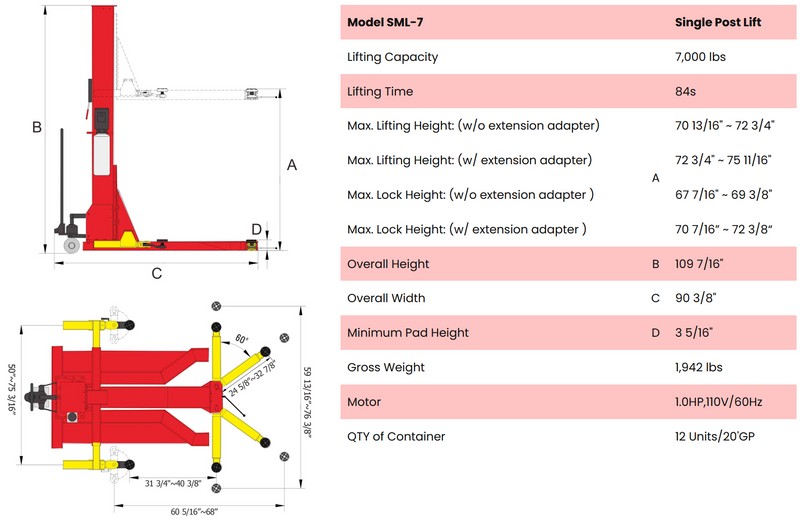

Specifications
| Model SML-7 | Single Post Lift | |
|---|---|---|
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 84s | |
| Max. Lifting Height: (w/o extension adapter) | A | 70 13/16" ~ 72 3/4" |
| Max. Lifting Height: (w/ extension adapter) | 72 3/4" ~ 75 11/16" | |
| Max. Lock Height: (w/o extension adapter ) | 67 7/16" ~ 69 3/8" | |
| Max. Lock Height: (w/ extension adapter ) | 70 7/16” ~ 72 3/8“ | |
| Overall Height | B | 109 7/16" |
| Overall Width | C | 90 3/8" |
| Minimum Pad Height | D | 3 5/16" |
| Gross Weight | 1,942 lbs | |
| Motor | 1.0HP,110V/60Hz | |
| QTY of Container | 12 Units/20'GP |

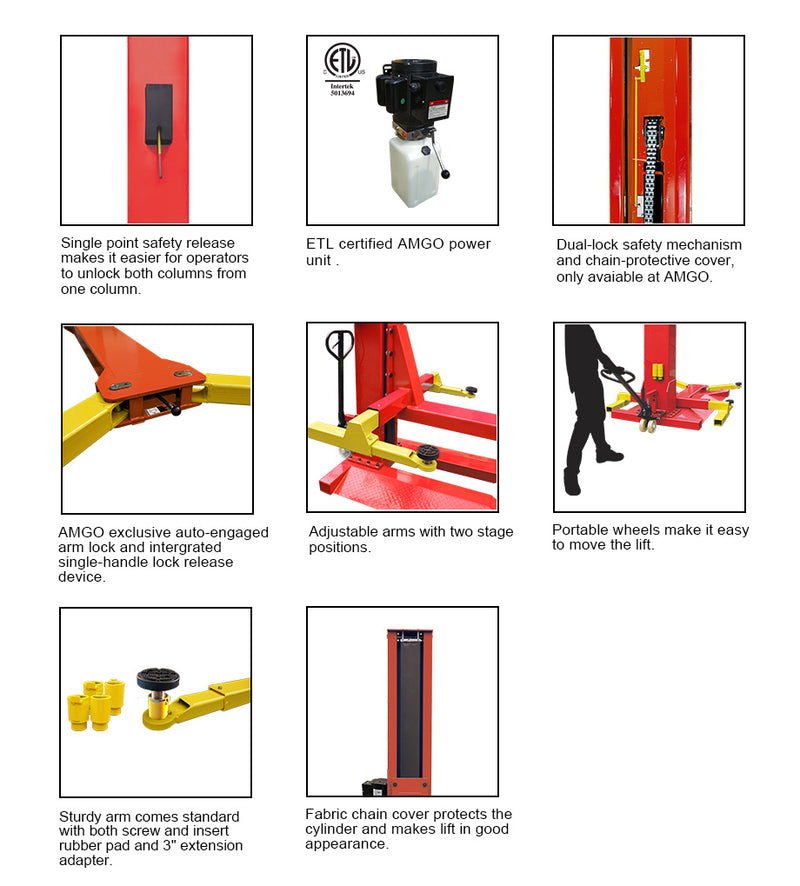

Convenient single-handed manual lock release.

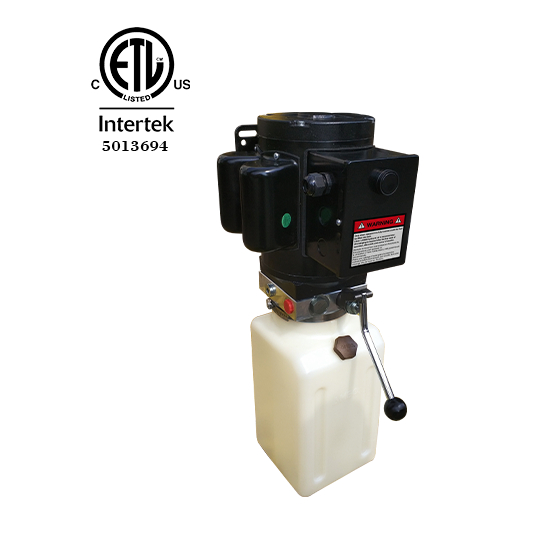

ETL certified AMGO power unit.
Dual-lock safety mechanism and chain-protective cover,only available at AMGO.
AMGO's patented arm-lock release system comes with a seamless, single-handed release operation.
Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points.
Portable wheels make it easy to move the lift.
Drop-in screw-type rubber pad with 2” pin diameter, comes with 3" extension adapter.
Fabric chain cover protects the cylinder and provides a nice, clean appearance.
Shipping Information
Single unit as a package, packing dimension of column (LxWxH): 109 1/16" x 20 1/16" x 14 3/4“
6 units as a package, packing dimension (LxWxH): 109 1/16" x 20 1/16" x 88 9/16"
Single unit as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 35 9/16"
4 units as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 87 1/2"
