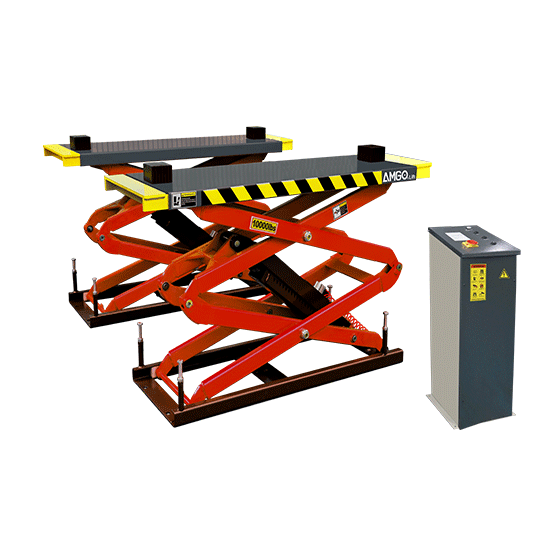

The heavy-duty XL-10F lift has a large 10,000lbs capacity with dual extendable platforms to accommodate a wide range of wheelbases, from passenger cars and pickup trucks, to light-duty commercial vehicles. Comes with a 220V control cabinet, it also feature photo-cell device and an automatic safety stop mechanism, making it the ideal solution for routine maintenance.

Features

• 10,000lbs capacity, heavy-duty design;
• The flush-mount design gives you an unobstructed shop floor;
• The full-rise design gives generous workspace beneath the vehicle;
• Dual extendable platforms accommodate various wheelbases;
• Mechanical air-release locking system;
• Electrical hydraulic power system with control cabinet;
• Photocell device ensures the absolute synchronization ;
• Automatic safety stop device comes standard;
• 3″ rubber pads come standard.

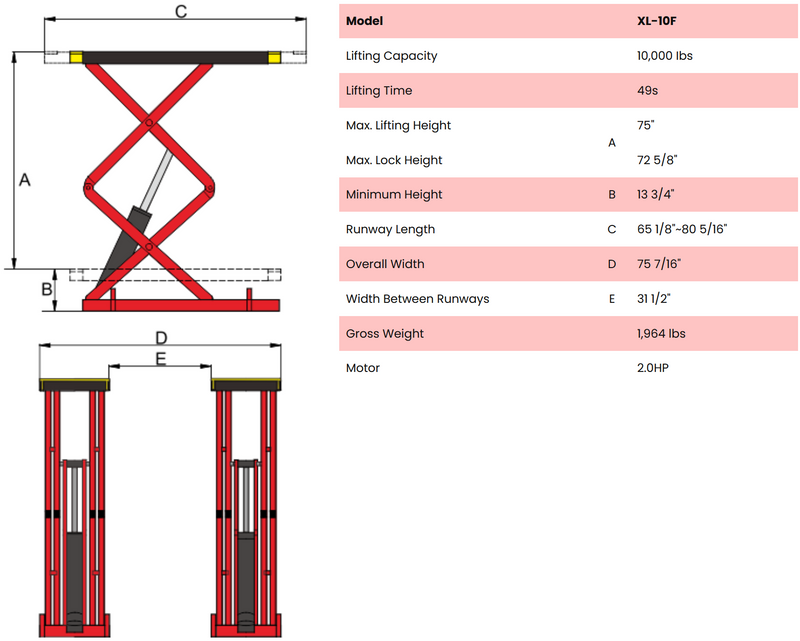

Specifications

Model		XL-10F
Lifting Capacity		10,000 Ibs
Lifting Time		49s
Max. Lifting Height	A	75"
Max. Lock Height	72 5/8"
Minimum Height	B	13 3/4"
Runway Length	C	65 1/8"~80 5/16"
Overall Width	D	75 7/16"
Width Between Runways	E	31 1/2"
Gross Weight		1,964 lbs
Motor		2.0HP

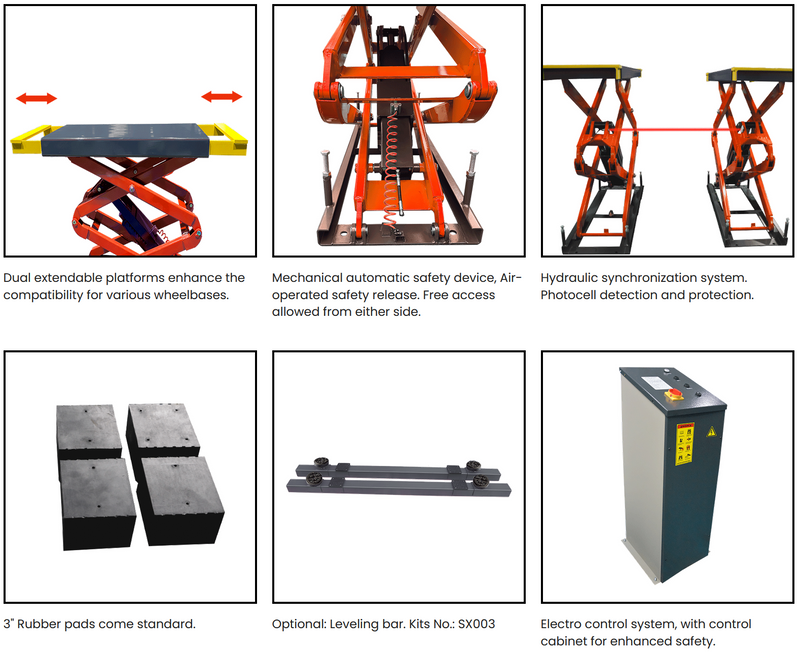

Dual extendable platforms accomodate various wheelbases.

Mechanical automatic safety locks with an air-operated release ensure secure operation.

Hydraulic synchronization system with photocell device.

3" Rubber pads come standard.

Optional: Leveling bar. Kits No.: SX003

Electronic control system with control cabinet for more safety.

Shipping Information

2 units/package, packing measurement (LxWxH) :69 7/8" x 21 5/8" x 64 15/16"

Attention to forklift loading and unloading

1 units/package, packing measurement (LxWxH) : 16 7/8”x 18 13/16"x 48 5/8"
