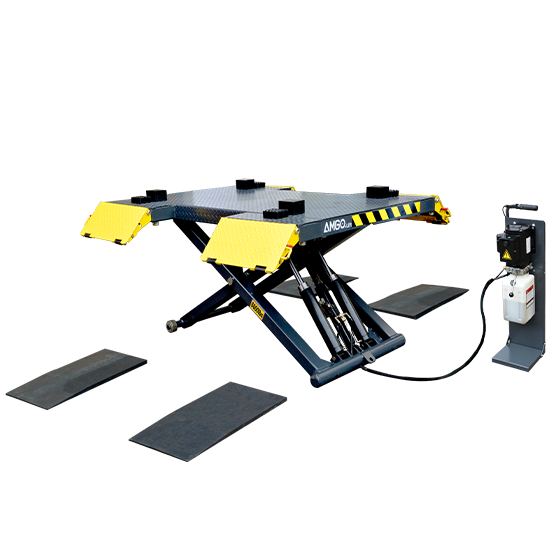

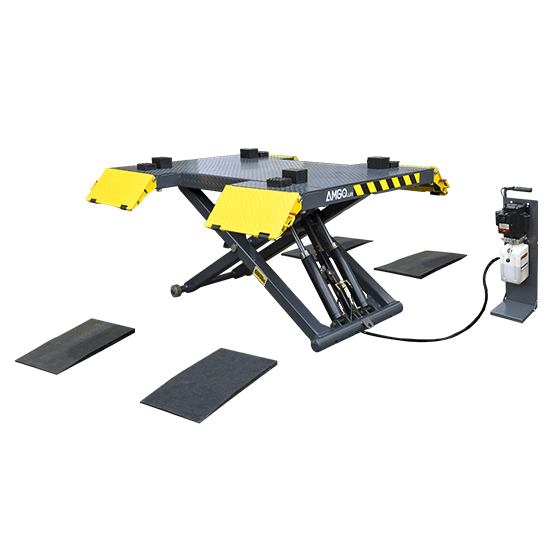

AMGO MRP06 6,000 lb Portable Mid Rise Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The arrival of AMGO MRP06 is another excellent option for your mid-rise quick lifting needs. Its integrated platform comes with extension rubber ramps, allows quick and easy access for low clearance vehicles.
Features
• Lifting capacity: 6000lbs;
• AMGO ETL certified power unit;
• High quality dual cylinders;
• Sturdy non-slip platform improves stability and allows quick lifting;
• AMGO’s patented power unit stand design improves mobility, the lift can easily be moved by one person;
• Both 1-1/2” and 3” rubber pads come standard;
• Mechanical lock with integrated manual release;
• Strong ramps can be flipped up and used as an extended platform.

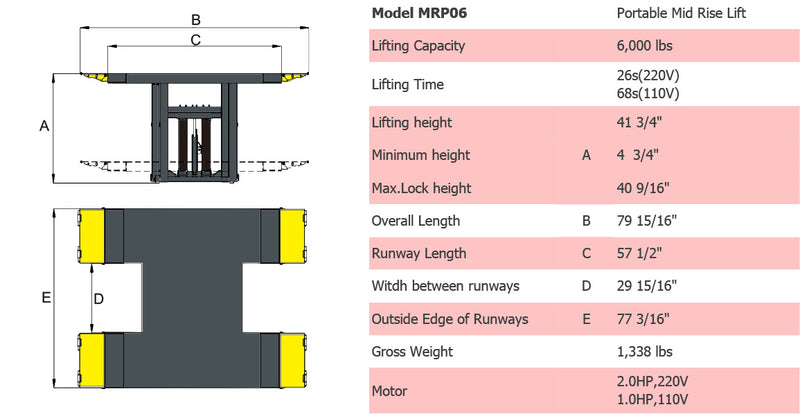

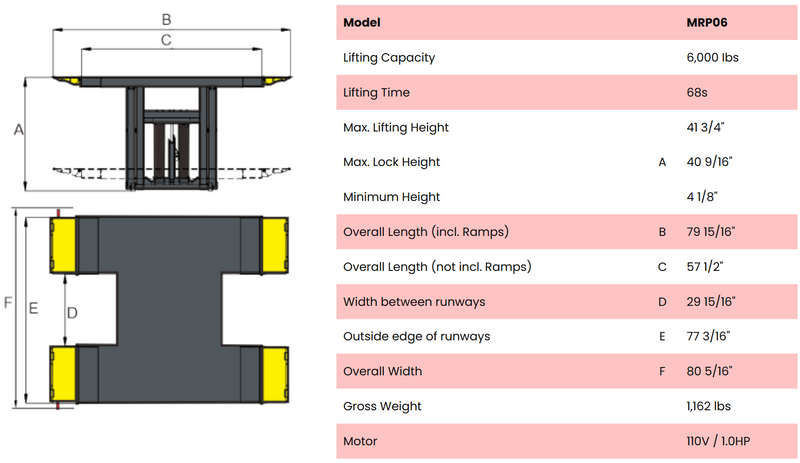

Specifications
| Model | MRP06 | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 68s | |
| Max. Lifting Height | A | 41 3/4" |
| Max. Lock Height | 40 9/16" | |
| Minimum Height | 4 1/8" | |
| Overall Length (incl. Ramps) | B | 79 15/16" |
| Overall Length (not incl. Ramps) | C | 57 1/2" |
| Width between runways | D | 29 15/16" |
| Outside edge of runways | E | 77 3/16" |
| Overall Width | F | 80 5/16" |
| Gross Weight | 1,162 lbs | |
| Motor | 110V / 1.0HP |

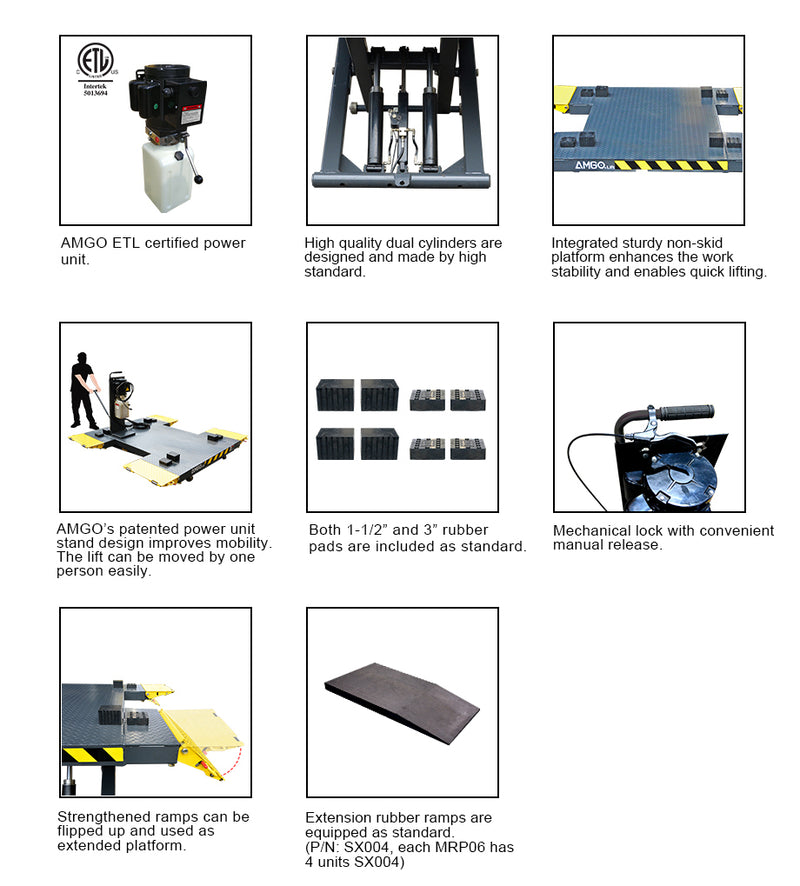

ETL certified AMGO power unit.

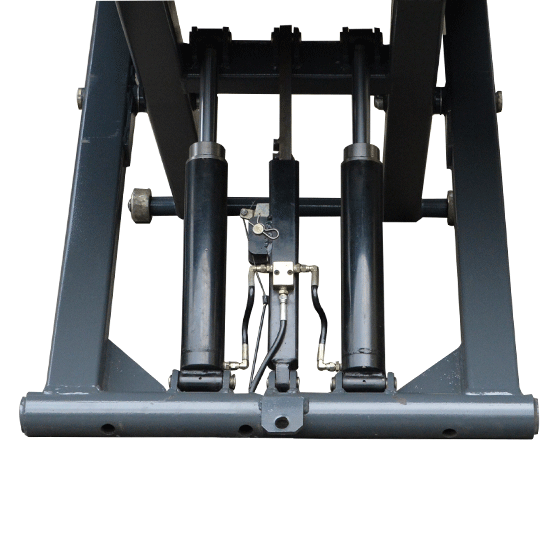

High quality dual cylinder.
Sturdy non-slip platform improves stability and allows quick lifting.
AMGO's patented power unit stand design improves mobility. The lift can easily be moved by one person.
Both 1-1/2” and 3” rubber pads come standard.
Mechanical lock with integrated manual release.
Strong ramps can be flipped up and used as an extended platform
Standard extension rubber ramps .(P/N:SX004, each lift has 4 units SX004)
Shipping Information
1 units/package, packing measurement (LxWxH) : 89 3/8”x63 1/4"x9 1/2"
8 units/package, packing measurement (LxWxH) : 89 3/8”x63 1/4"x79 1/8"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8"
Attention to forklift loading and unloading
