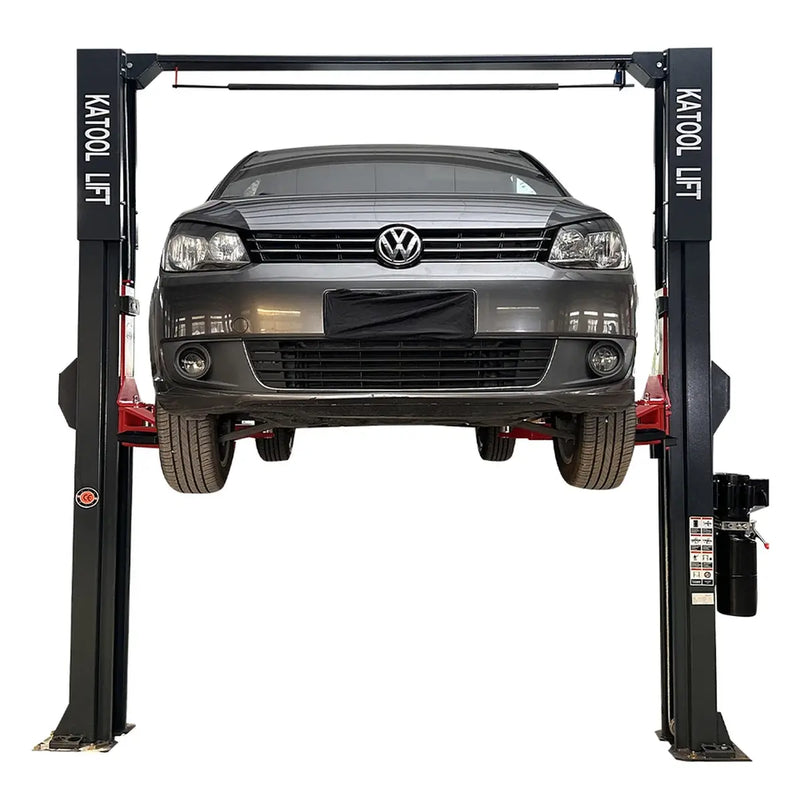

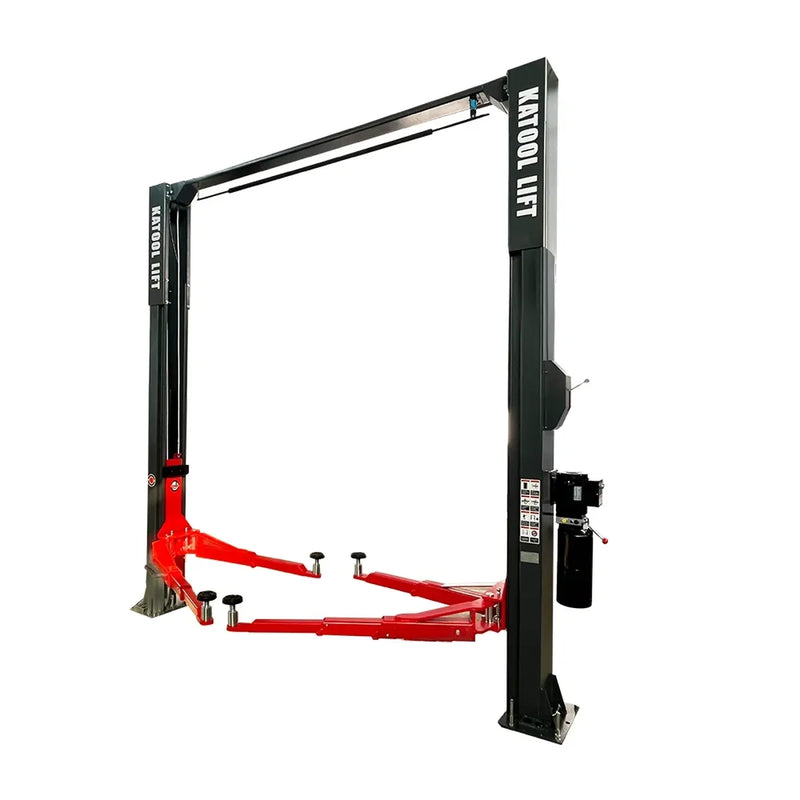

KT-M140XD 14,000 lb Symmetric 2-Post Lift

The KT-M140XD is a 14,000 lb capacity symmetric 2-post lift built for full-size pickups, vans, and larger commercial vehicles. Its reinforced industrial-steel frame delivers the stability heavy-duty shops need, and a 73-inch lift height leaves plenty of room for undercarriage and drivetrain work.

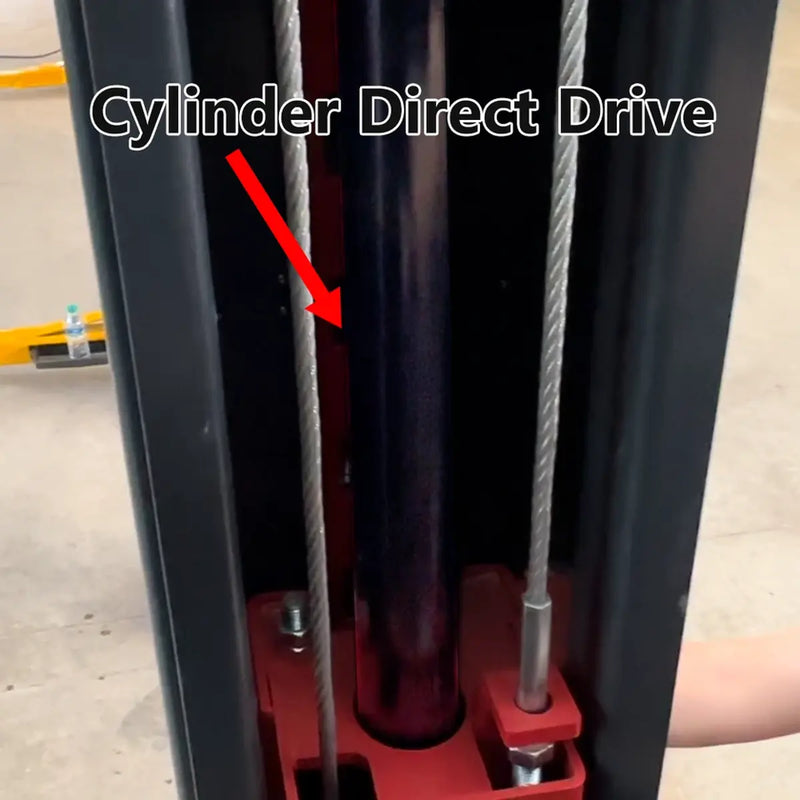

Precision welds and thickened material at high-stress points give the lift long-term durability, while a chainless direct-drive system keeps operation quiet and maintenance low. Double S-shaped columns spread load stress evenly, keeping the structure rigid over repeated cycles.

With 133-inch drive-through clearance and adjustable lifting arms, the KT-M140XD suits busy repair shops, fleet centers, and high-throughput garages. A single-point interlock release synchronizes both posts for a fast, safe release.

Specifications

• Lift Type: Symmetric
• Weight Capacity: 14,000 lbs

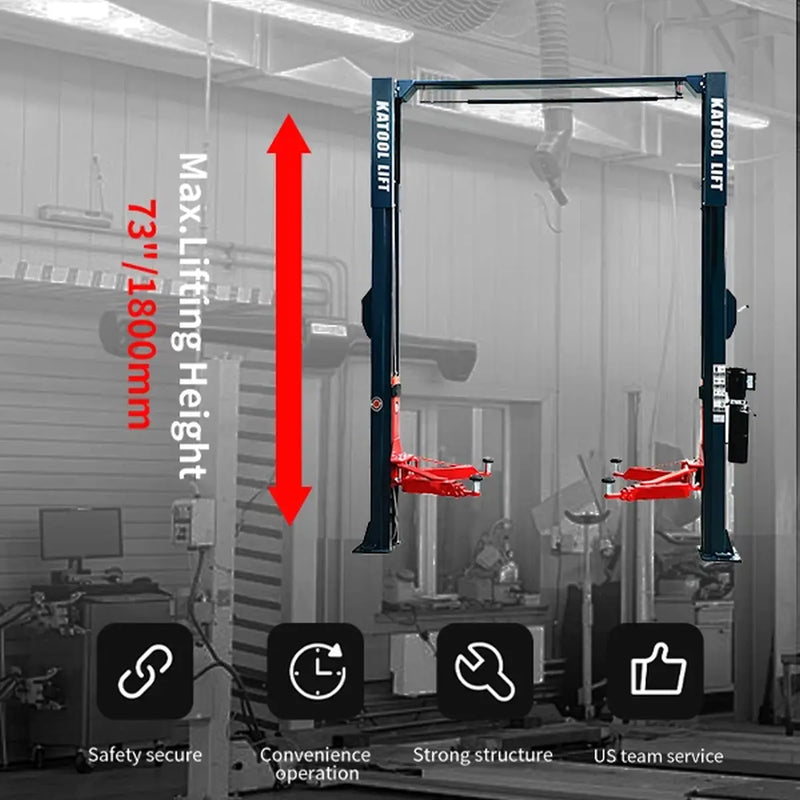

• Maximum Lifting Height: 72.83"
• Minimum Pad Height: 4.33"
• Drive-Through Width: 133.46"
• Overall Height: 166.73"
• Overall Width: 157.87"
• Rise Time: ≤ 50 seconds
• Lowering Time: 20–50 seconds
• Noise Level: ≤ 75 dB(A)
• Concrete Requirements: Minimum 6" at 3000 psi
• Lift Weight: 1,807 lbs
• Power Unit: 220V / 60Hz / Single Phase

Key Features

• 14,000 lb capacity built for trucks and commercial-grade vehicles
• Reinforced industrial-steel frame at all major load points

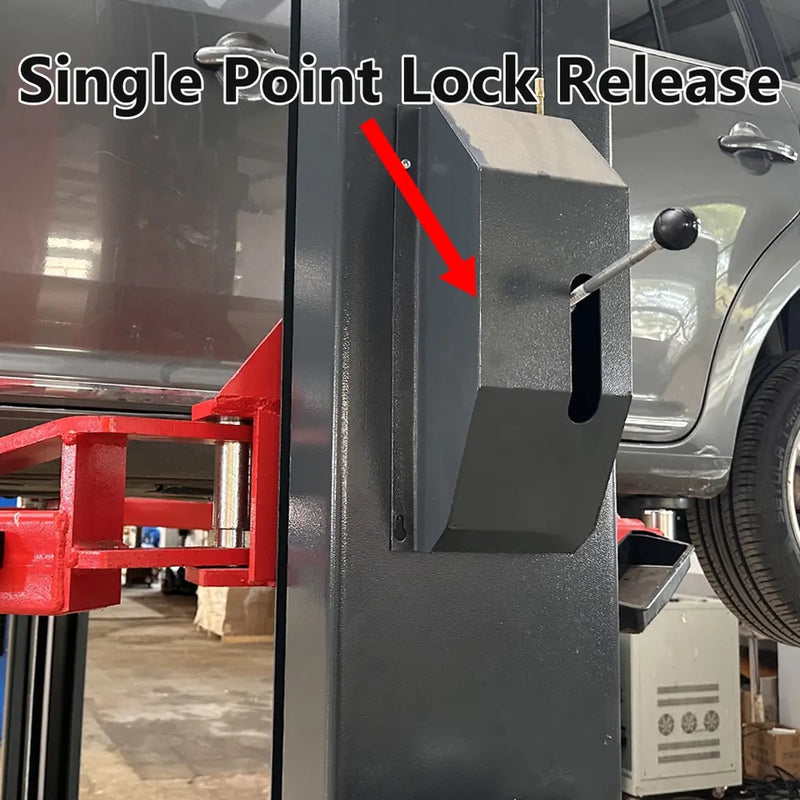

• Synchronized single-point interlock release for safer, faster operation

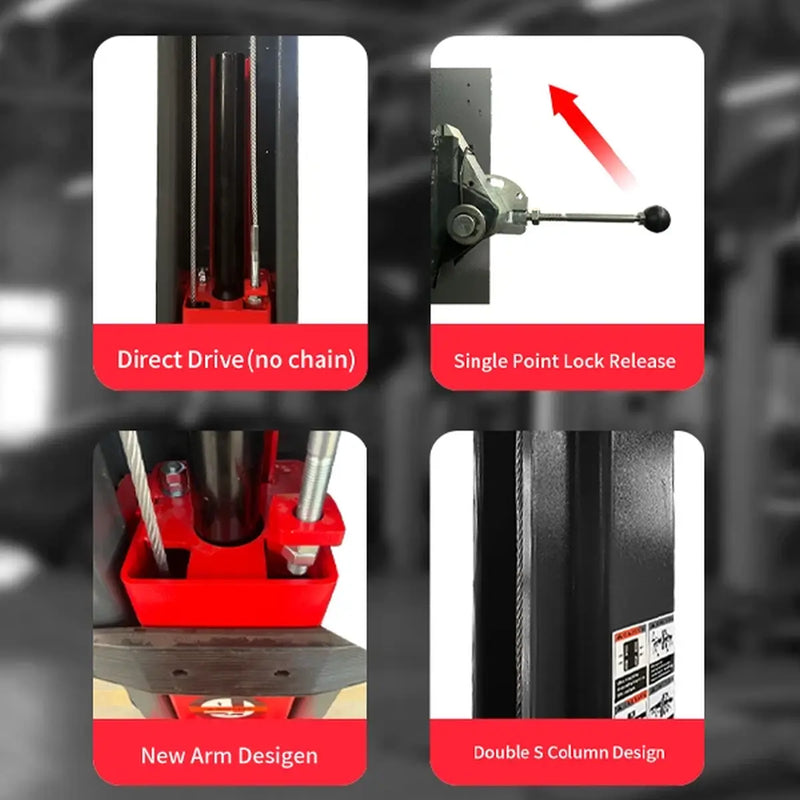

• Chainless direct-drive design for quiet, low-maintenance performance

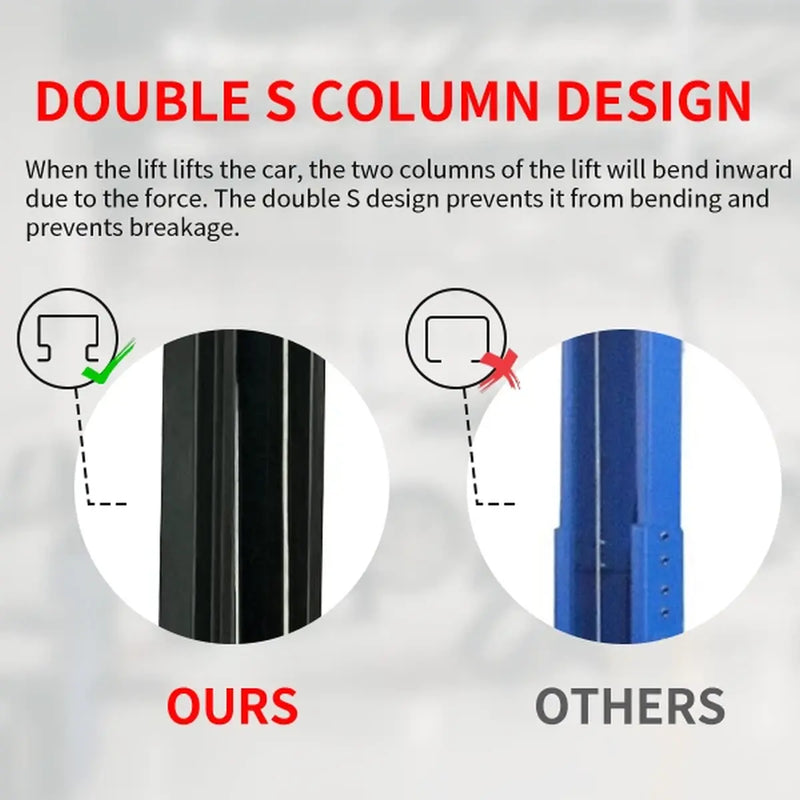

• Double S-shaped columns that resist stress and deformation under load
• 133-inch drive-through clearance for easy access with larger vehicles

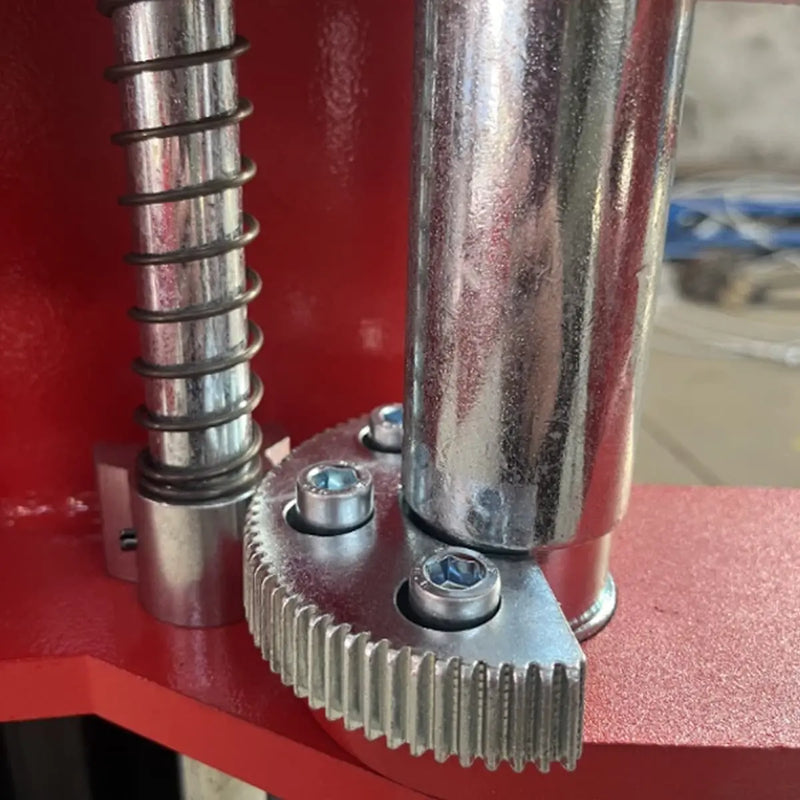

• Adjustable lifting arms for secure, flexible vehicle positioning
