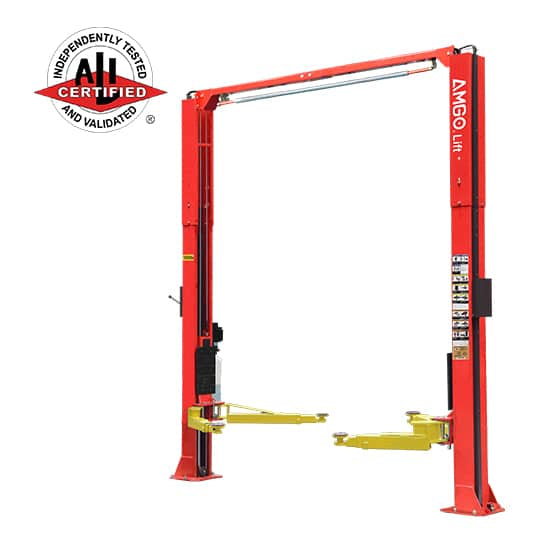

AMGO OH-10 10,000 lb 2-Post Overhead Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The new OH-10 is an industrial-grade two post lift that is ALI certified, representing AMGO’s professional expertise in development and manufacturing. The robust design features two standard height settings and two optional width settings for maximum versatility. It incorporates industry-leading features, including our patented Super Asymmetric technology and single-point safety release, prioritizing operator safety and stability, long-term durability and is easy to operate.
Features
- 10,000lbs capacity.
- High quality dual hydraulic direct-drive cylinders;
-
arms allow an asymmetric or symmetric configuration; - Aero cable used for synchronization;
- Single-point manual safety release mechanism, disengages both columns simultaneously from one side;
- Self-lubricating UHMW Polyethylene sliders;
- The clear-floor design provides an unobstructed workspace;
- Overhead safety shut-off device for maximum vehicle protection;
- Standard stackable rubber pads and 1.5”, 2.5”, 5”adapter;
- Two standard height settings accommodate varying ceiling heights;
- Toe guards and tool trays come standard.
Specifications
| Model OH-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/2" |
| Max. Lifting height: (w/ extension adapter) | 80 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 1/2" | |
| Max. lock height: (w/ extension adapter) | 78 1/2" | |
| Overall Height | B | 142 1/2" 150 1/2" |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 15/16" |
| Gross Weight | 1,645 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Single-point manual safety release mechanism, disengages both columns simultaneously from one side.
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
Two standard height settings.
Standard stackable rubber pads and 1.5”, 2.5”, 5”adapter.
Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906
Shipping Information
2 units/package, packing measurement (LxWxH) : 113 9/16" x 17 3/4" x 60 5/8" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 9/16" (Packed with power unit)
Attention to forklift loading and unloading
