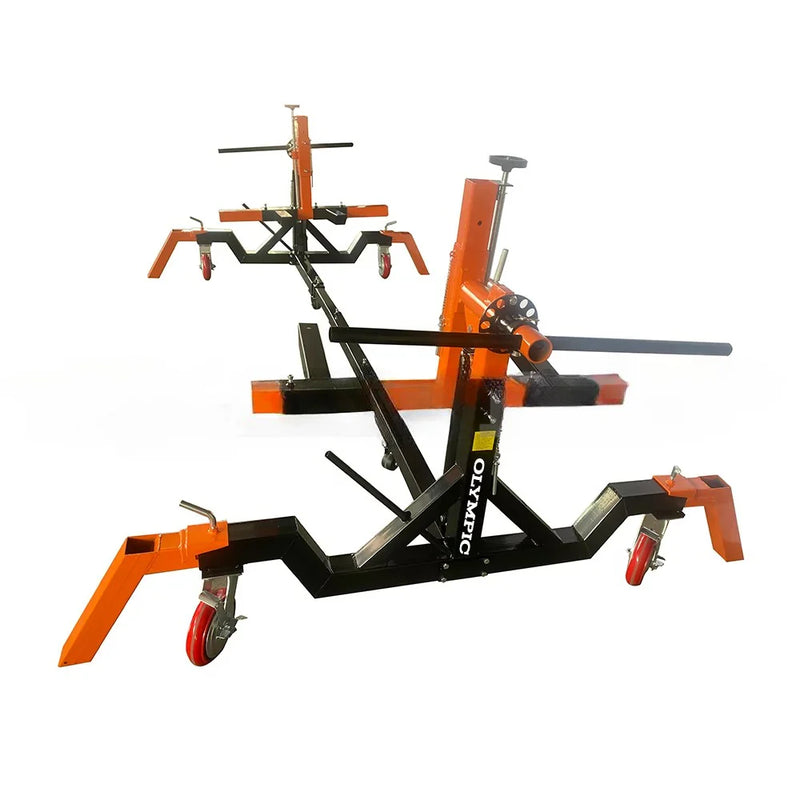

Olympic YZ-R-45 / 4,500 lb. Olympic Gold Series HDXL Auto Body Rotisserie / 360-degree Rotation / Accepts Bodies up to 18? 6?
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
Olympic Gold Series 4,500 Lb. H-D Autobody Rotisserie. Our parent company owns one of the largest custom build/restoration shops in the USA. Unlike the competition, we understand the importance of having quality tools and shop equipment. A commercial grade tool conceived in our own shop with durability, versatility, ease of use, and safety in mind. We got this right because we use what we sell!
Rotisseries provide superior access to nearly every portion of your vehicles body, saving your back and knees from unnecessary stress. Lifting cradles adjust to the perfect working height. Rotates 360 degrees on pivot bearings for easy sandblasting, welding, bodywork, or painting. The optional manually operated gearbox transmission is easy to use and improves safety during rotation operations. The only rotisserie you will find with the Industry Best Olympic 10-Year Warranty!
Perfect for body and paint shops, race car fabrication, and classic car restoration. Built for the professional shop but ideal for the serious do-it-yourselfer. Compare it to the competition! Since it accepts vehicle lengths up to 18′ 6″ and weight up to 4,500 Lbs. it will not leave you wishing for more!
Features
- Industry Best Olympic 10-Year Warranty!
- 4,500 pound load capacity
- Rotates 360 degrees
- Includes two 18,000 LB hydraulic rams
- Adjustable lifting cradles
- Includes stabilizer arms
- Provides a stable base while working
- Mounting adapters included
- Makes work easier on any portion of the vehicle in any position
- Durable powder coated finish
- Made from the finest heavy duty steel
- Maximum lift height: 49″
- Minimum height: 21″
- Maximum length: 223″ (18′ 6″)
- Minimum length: 125″ (10’5″)
- Width: 86.6″
- Maximum length between support arms: 193″ (16′)
- Minimum length between support arms 96″ (8′)
- Six locking easy-roll full ball bearing casters will not mar your floor
- Smart design allows for one person operation
- Safety stops prevent unwanted spinning
- Heavy duty pivot bearings allow for effortless rotation to any position
- Each rotisserie end measures 62” high 61” wide and 35” long
Specifications
| Style | HD Rotisserie |
| Weight Capacity | 4,500 lbs |
| Maximum Capacity per End2 | 2,250 Lbs. |
| Maximum Opening Width | 18.6″ |
| Hydraulic Ram Pressure | 18,000 lbs |
