Olympic 4PXL-10 “The Dually” Gold Series “Portable” 10,000 lb. Maintenance & Storage Lift
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity

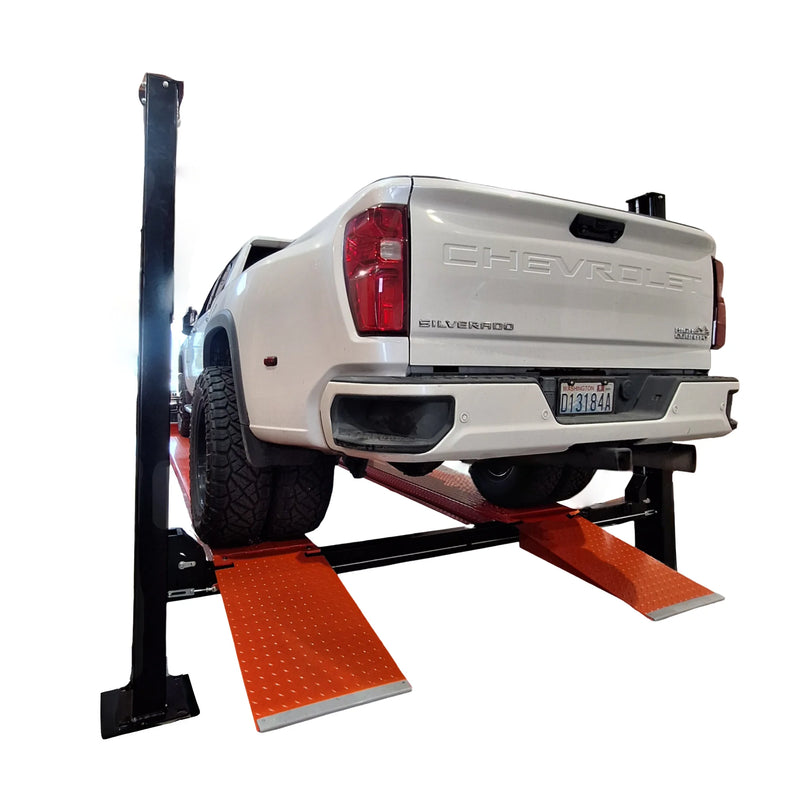

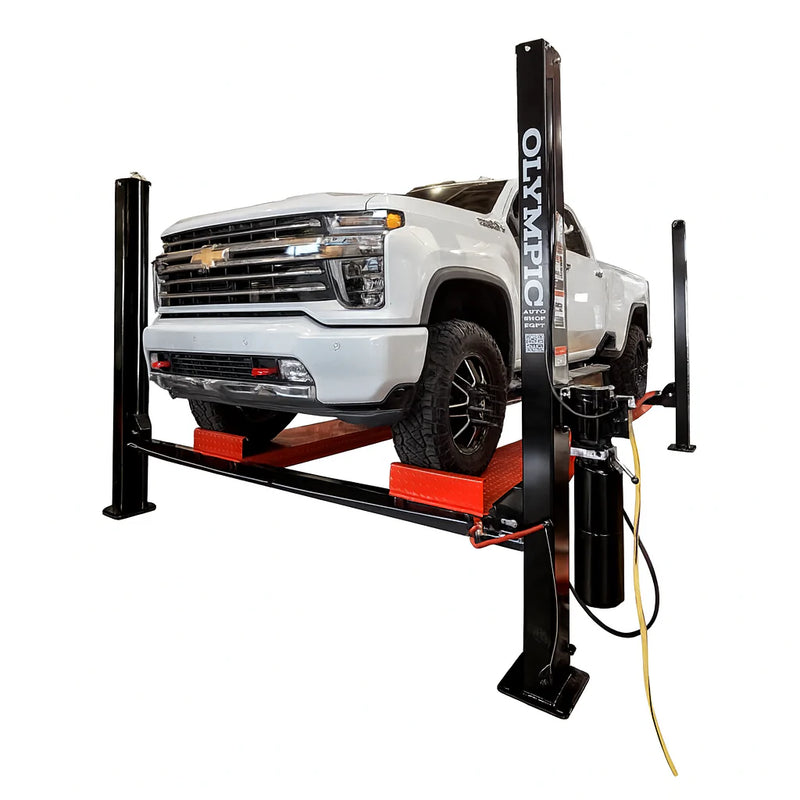

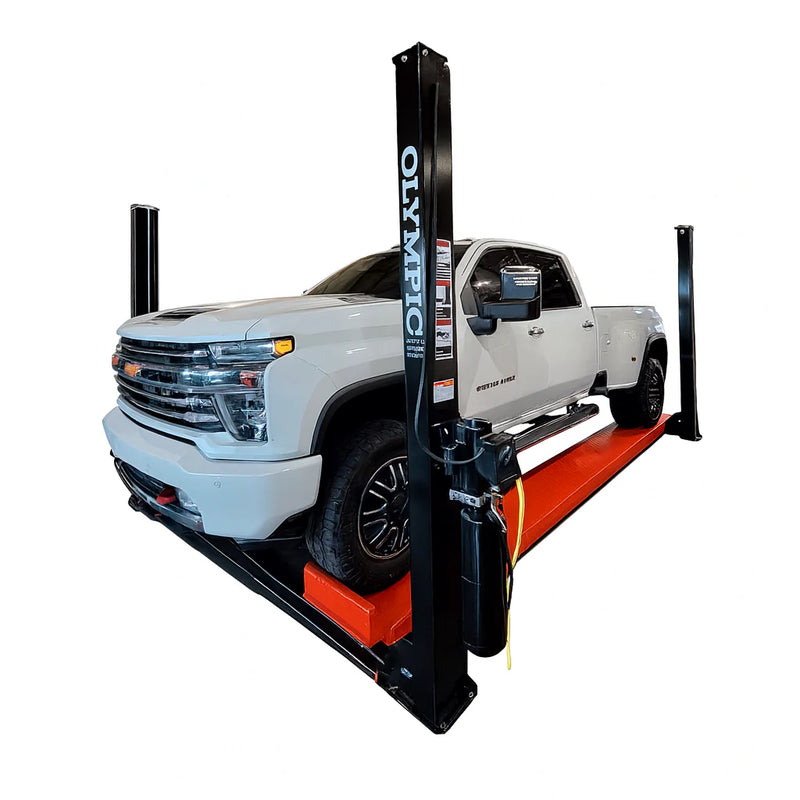

“The Dually” EXTRA LARGE Portable Lift
The Dually is designed to accommodate dual-wheel trucks, trailers, service vehicles, and super-wide cars.
Built around a super-wide 4-post drive-through layout, this lift features a 112″ drive-through width, 125″ between posts, and extra-long 195″ runways. The drawing indicates an overall footprint of 241.52″ overall length and 140.35″ overall width, with 84.13″ max clearance under the runways and an overall height of 105.20″.
112″ Drive Through Width | 125″ Between Posts | 84.13″ Max. Clearance
Key Features
- High-quality Q235 spec structural steel
- Portable drive-through design
- 112″ drive-through width
- 125″ between posts
- Extra-long 195″ platforms (runways)
- Adjustable runway spacing (see “Width Between Tracks”)
- Durable powder-coated finish
- Includes portability package (caster arms)
- Includes removable ramps
- Includes removable stops
- Includes drip trays
Specifications (Per Drawing)
| Style | 4-Post Dually Lift |
|---|---|
| Overall Lift Length | 241.52″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive Through Width | 112″ |
| Width Between Posts | 125″ |
| Platform (Runway) Length | 195″ |
| Max. Clearance Under Runways | 84.13″ |
| Width Between Tracks (Adjustable) | 46.00″ – 68.98″ |
| Minimum Height (Per Drawing) | 4.72″ |
| Steel Grade | Q235 |
| Post Steel Thickness | 4mm / 0.157″ |
| Cable Diameter | 9.53mm / 0.375″ |
| Runway Metal Thickness | 5mm / 0.196″ |
Note: Performance items (capacity, rise time, power unit details, locking positions) are not shown on the dimensional drawing and should be listed only if confirmed by the manufacturer for this exact revision.
