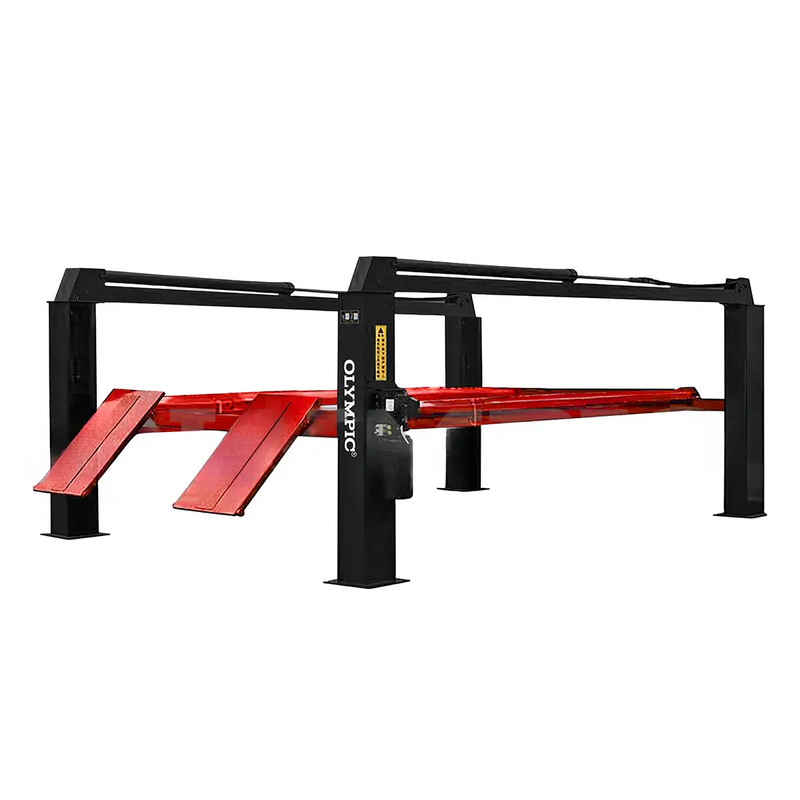

Olympic 4PHDXLA-27 27,000-lb. 4-Post Heavy-Duty Alignment Lift
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
“The Big-Rig” 27,000 lb. Alignment Lift”
Heavy-Duty Commercial-Grade Alignment lift for Trucks, Heavy Equipment and Cars.
“The Big-Rig” 27,000 Lbs. Capacity Alignment Lift designed for maximum durability, strength and performance. Perfect for servicing and aligning large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, maintenance, alignment — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 22,000 lbs | Overall Height: 94.9″ | Runway Width: 25.6″
Built to Last
Olympic’s 27K lift includes premium components that increase safety, durability, and productivity. The main hydraulic system features high-quality Italian components and independent hydraulic cylinders for easier maintenance and a longer service life. Slip-resistant 275.6″ runways accommodate long wheelbases and low-profile vehicles, while 17.7″ × 14.6″ foot plates provide a solid foundation. Includes one 9,000 lb. rolling bridge jack for added service flexibility.
Key Features
- Industry Best 10-Year Warranty
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack
- Includes built-in turntables and slip plates
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runway design increases versatility
- Extra-long, slip-resistant runways (275.6″)
- Heavy-duty galvanized abrasion-resistant aircraft-grade cables
- Secondary locking system prevents cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks allow for precise runway leveling
- Built-in grease fittings for easy lubrication
- The chain-drive system prevents overextension and enhances safety
- Acceptable for outdoor use (with environmental protection)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack available (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase electric-hydraulic power unit
- Note: Special Order Only due to large size and weight — additional shipping applies.
Specifications
| Style | 4-Post Alignment Lift |
|---|---|
| Weight Capacity | 27,000 lbs |
| Overall Lift Length | 289.4″ |
| Overall Width | 152.4″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 25.6″ |
| Runway Length | 275.6″ |
| Runway Height | 7.9″ |
| Width Between Tracks | 47.24″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V 3KW 60Hz 3 Phase |
| Amps | 15 / 8.8 |
Why Choose an Olympic Lift?
When you invest in an Olympic lift, you’re investing in performance, safety, and longevity. Olympic lifts are internationally certified and tested to operate flawlessly at 150% of rated capacity. No one surpasses Olympic in quality, durability, or value — this may be the last lift your business ever needs.
