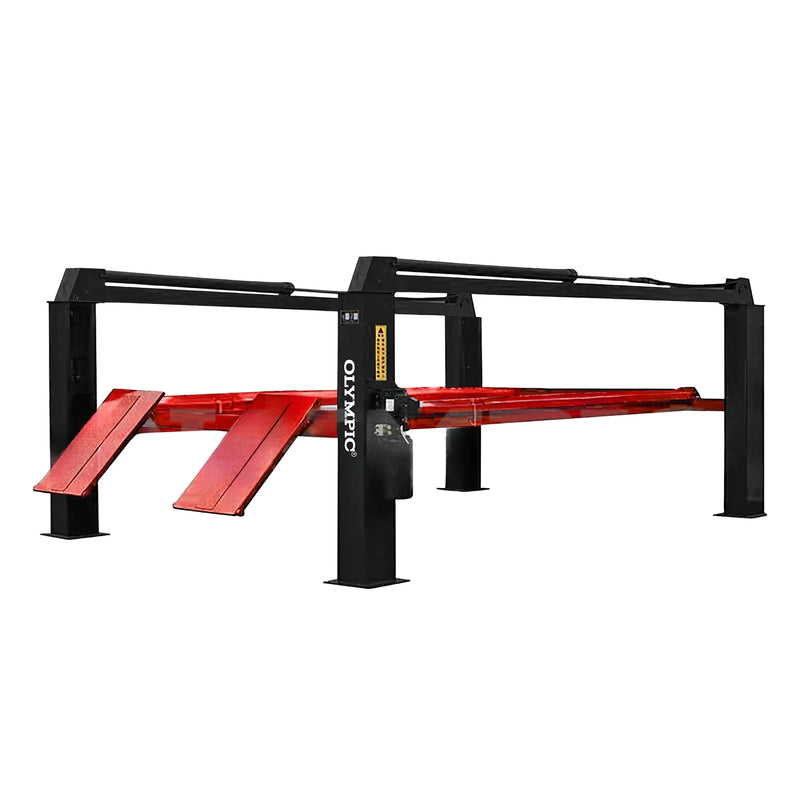

Olympic 4PHDXL-27 27,000 lb Gold Series 4-Post Heavy-Duty Truck & Equipment Maintenance Lift
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
“The big-Rig” 27,000 lb. maintenance Lift
Heavy-Duty Commercial-Grade lift for Trucks, Heavy Equipment and Cars.
“The Big-Rig” 27,000 Lbs. Capacity Maintenance Lift is designed for maximum durability, strength, and performance. Perfect for servicing large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, and maintenance — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 27,000 lbs | Overall Height: 94.9″ | Runway Width: 25.6″
Key Features
- Industry Best 10-Year Warranty
- 27,000 lb. heavy-duty load capacity
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways increase versatility
- Slip-resistant 275.6″ runways for long wheelbases
- Heavy-duty galvanized abrasion-resistant aircraft-grade cables
- Secondary locking system prevents unexpected cable failure
- Spring-loaded safety locks for safe operation
- Adjustable ladder locks for precise runway leveling
- Built-in grease fittings for easy maintenance
- Special chain drive prevents over-extension
- Outdoor-use capable (protect power unit)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style | 4-Post Maintenance Lift |
|---|---|
| Weight Capacity | 27,000 lbs. |
| Overall Lift Length | 289.4″ |
| Overall Width | 152.4″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 25.6″ |
| Runway Length | 275.6″ |
| Runway Height | 7.9″ |
| Width Between Tracks | 47.24″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs. |
| Voltage | 220/380V, 3KW, 60Hz, 3-phase |
| Amps | 15 / 8.8 |
