"The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
“The Triple-stacker-S” Car Storage Lift

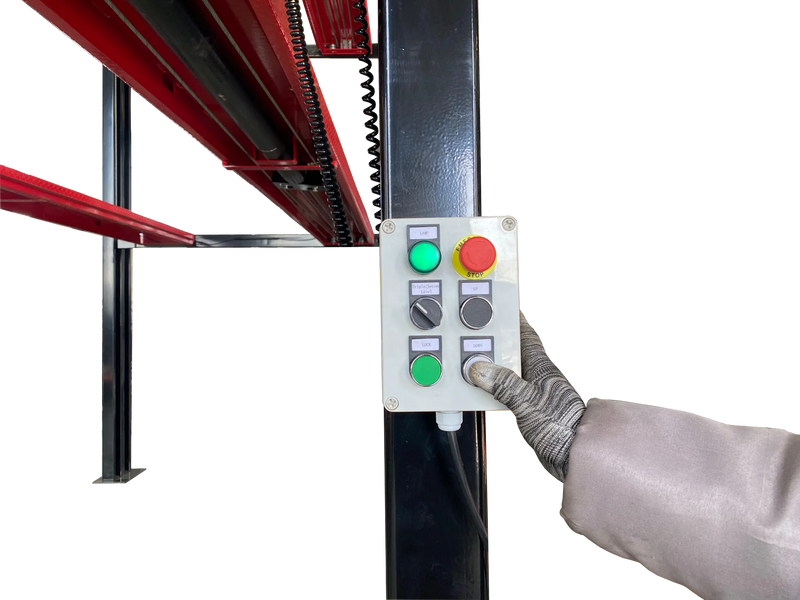

Model: 4032-S. “The Triple-Stacker-S” Car Storage Lift is designed for multi-vehicle storage. Features a heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.
Triple your parking space with the 4032S Car Stacking lift.
The Triple Stacker “S” model is designed to stack and store three vehicles in one parking space. Big enough to accommodate virtually any car or medium-sized pickup truck. 11,000 lb. total load capacity (5,000 upper + 6,000 lower deck).
Capacity: 11,000 lbs. | Drive Through Width: 95.3″ | Max. Lift | Height: 153.74″
*Check for availability*

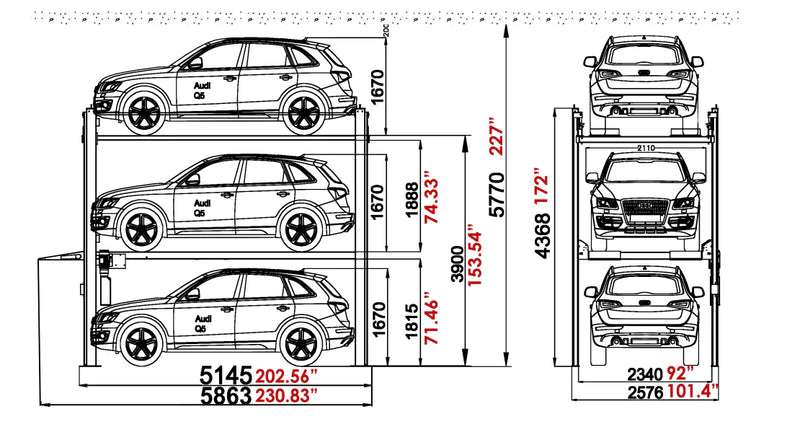

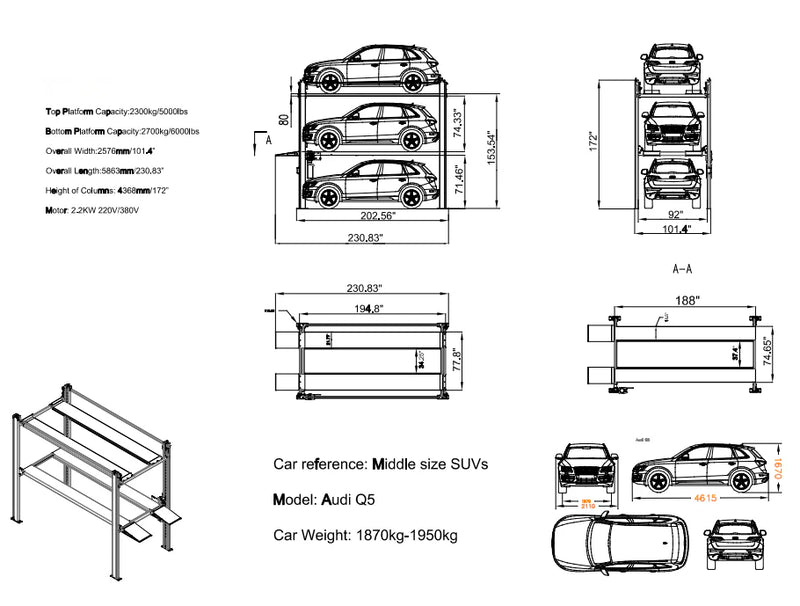

Specifications — Top Platform
| Lifting Capacity | 5,000 lbs. |
|---|---|
| Overall Width (A) | 101.42″ |
| Overall Length (B) | 230.83″ |
| Height of Columns (C) | 172″ |
| Drive-thru Clearance (D) | 95.3″ |
| Maximum Rise (E) | 150.6″ |
| Maximum Lifting Height (F) | 153.74″ |
| Distance Between Platforms (G) | 74.33″ |
| Runway Width (H) | 21.77″ |
| Width Between Runways (I) | 34.25″ |
| Runway Length (J) | 194.8″ |
| Columns to Columns (K) | 202.56″ |
| Locking Positions | Top end |
| Lifting Time to Max. Rise | 90 seconds |
Specifications — Bottom Platform
| Lifting Capacity | 6,000 lbs. |
|---|---|
| Maximum Rise (E) | 71.46″ |
| Maximum Lifting Height (F) | 76.26″ |
| Runway Width (H) | 18.6″ |
| Width Between Runways (I) | 37.4″ |
| Platform Thickness (L) | 4.80″ |
| Runway Length (J) | 188″ |
| Surface Treatment | Powder coated |
Power & Materials
| Motor | 2.2KW / 110V / 220V or 3KW 220V |
|---|---|
| Steel | Q235B |
