Olympic 2PBP-12 12,000‐lb. HDXL / Base Plate 2-Post Lift / 3-Stage Arms
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity

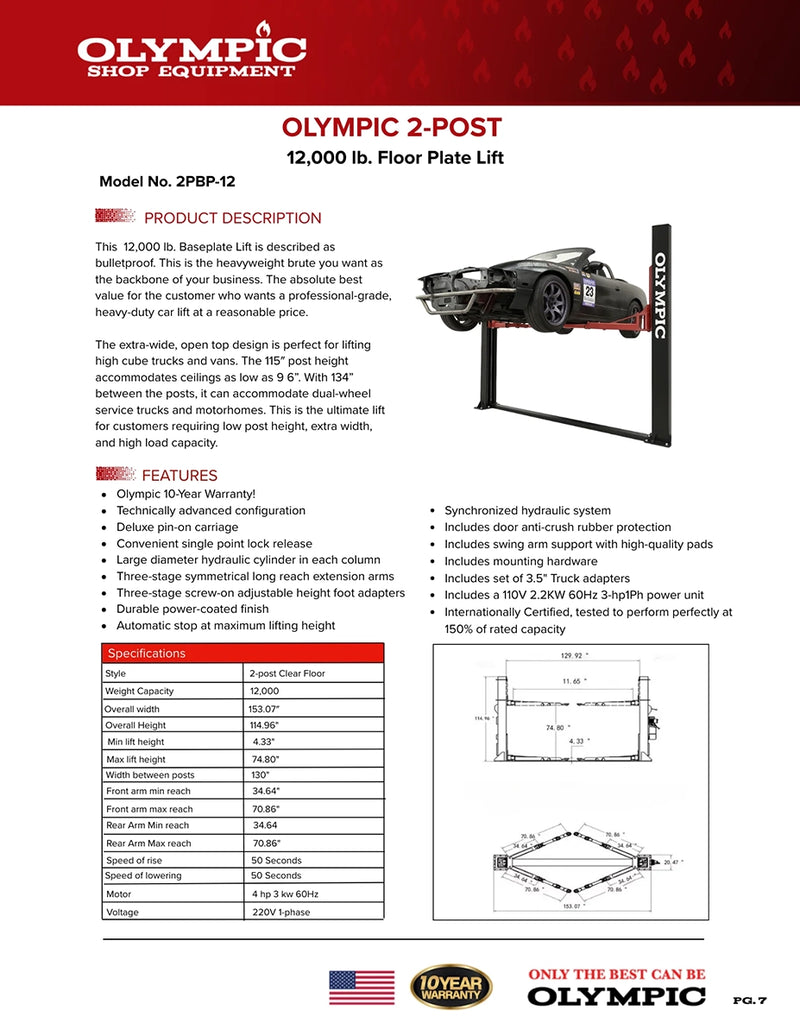

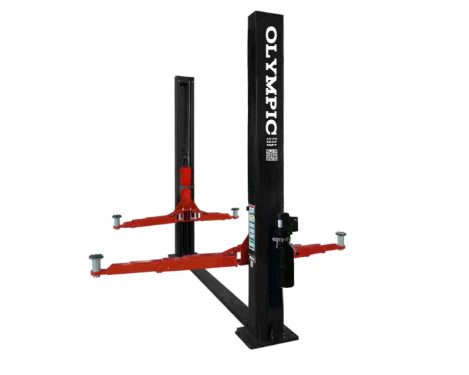

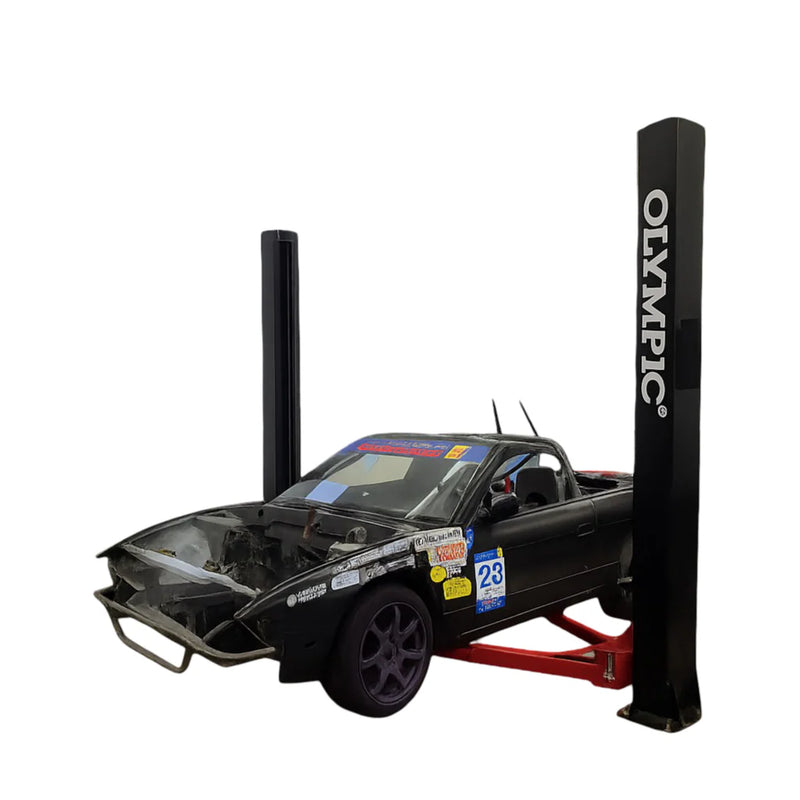

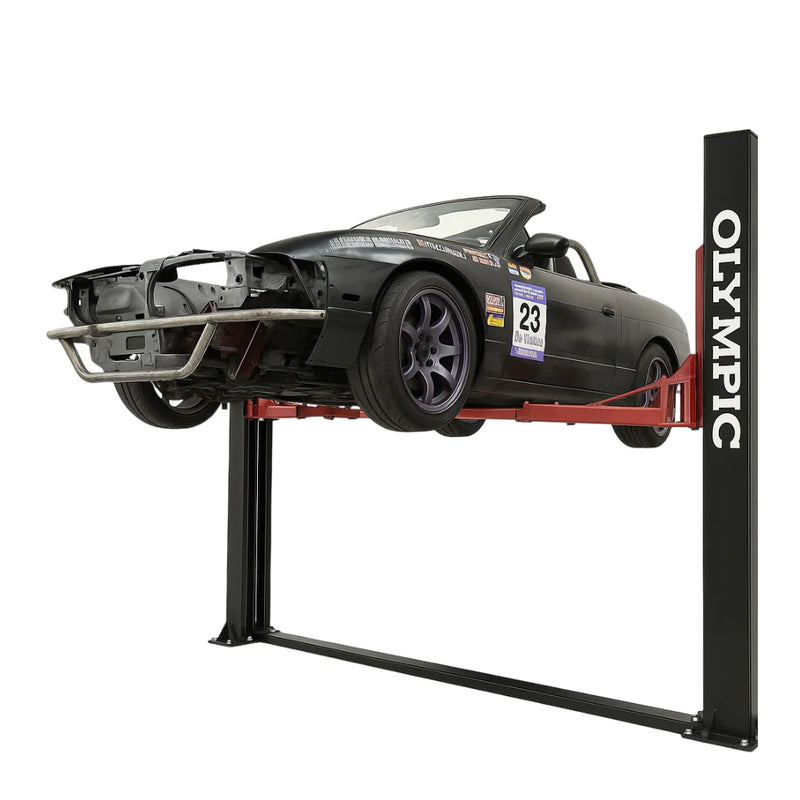

Olympic 2PBP-12 / 12,000 lb. Base Plate Lift
The heavyweight brute of the Olympic lineup.
A bulletproof, professional-grade lift offering extra width, low post height, and the muscle to handle service trucks, vans, and motorhomes.
Capacity: 12,000 lbs | Fits Under Ceiling Height: 9′6″ | Max. Lift Height: 74.8″
Key Features
- Olympic 10-Year Warranty!
- Technically advanced configuration
- Deluxe pin-on carriage
- Convenient single-point lock release
- Large-diameter hydraulic cylinder in each column
- Three-stage symmetrical long reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Durable powder-coated finish
- Automatic stop at maximum lifting height
- Synchronized hydraulic system
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- Mounting hardware included
- Includes (4) 3.5″ truck adapters
- 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity
Specifications
| Style | 2-Post Base Plate |
|---|---|
| Capacity | 12,000 lbs. |
| Overall Height | 114.96″ |
| Overall Width | 153.07″ |
| Drive Thru width | 116.54″ |
| Min. Lift Height | 4.33″ |
| Max. Lift Height | 70.87″ |
| Width Between Posts | 130″ |
| Front Arm Reach | 34.64″ – 70.86″ |
| Rear Arm Reach | 34.64″ – 70.86″ |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Locking positions | 12 |
| Fits Under Ceiling Height | 9′6″ |
