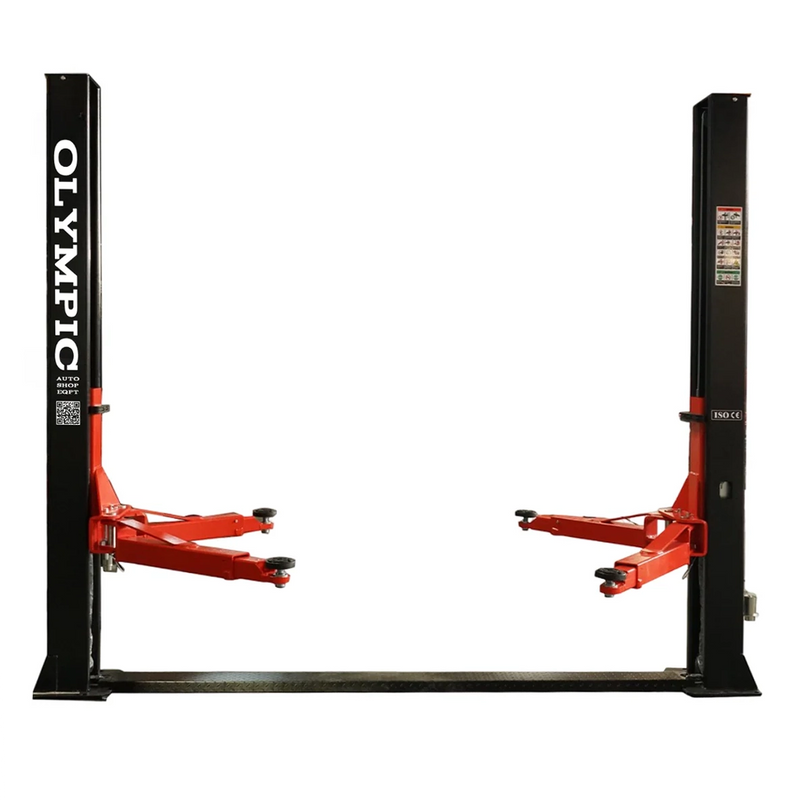

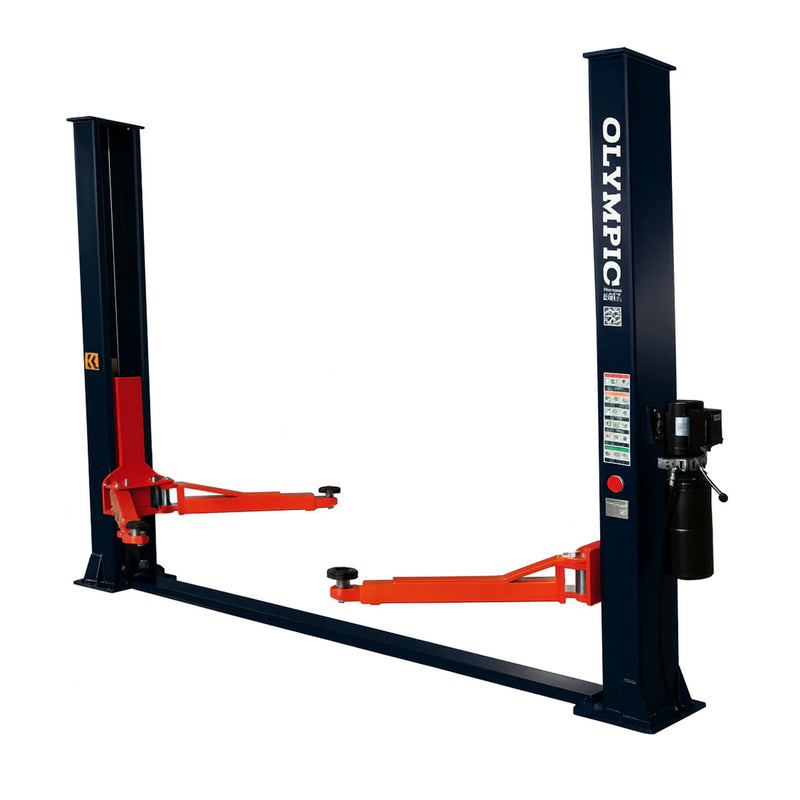

Olympic 2PBP-10 10,000 lb Base Plate 2-Post Lift
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity

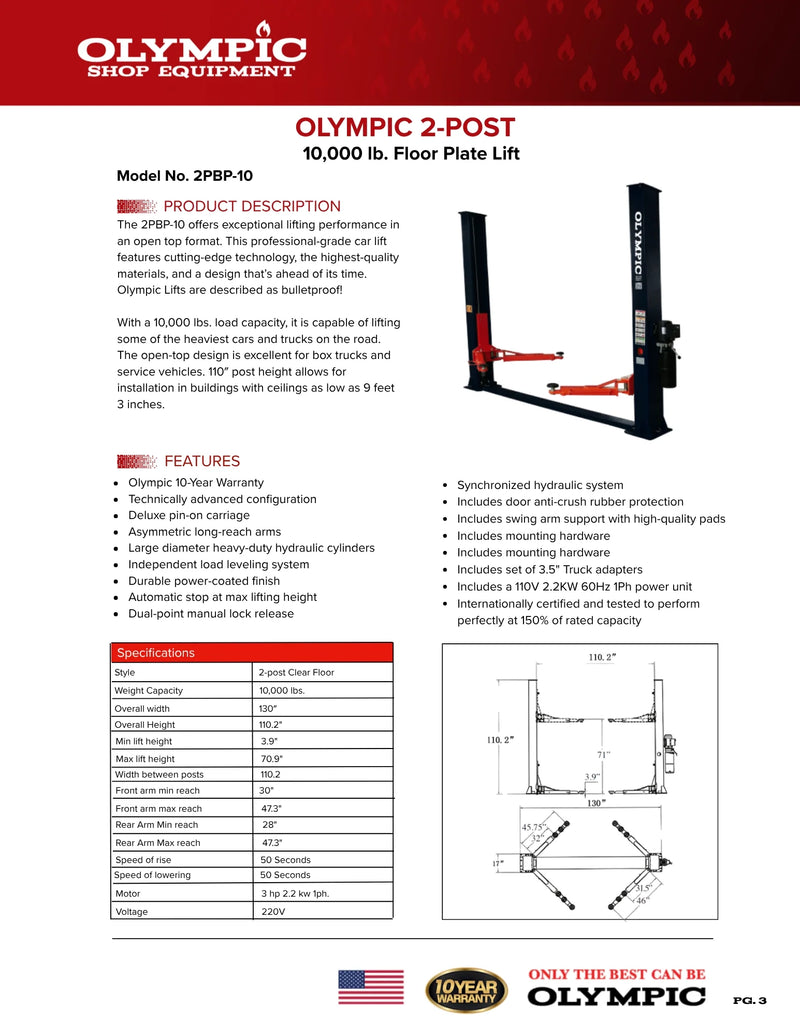

Olympic 2PBP-10 / 10,000 lb. 2-Post Clear Floor Lift
Professional-grade lift built for unmatched strength and innovation.
Features cutting-edge technology, the highest-quality materials, and a bulletproof design.
Capacity: 10,000 lbs | Fits Under Ceiling Height: 9′3″ | Max. Lift Height: 70.9″
Key Features
- Olympic 10-Year Warranty
- High-quality Q235 spec structural steel
- Technically advanced configuration
- Deluxe pin-on carriage
- Asymmetric long-reach arms
- Large-diameter heavy-duty hydraulic cylinders
- Independent load leveling system
- Durable powder-coated finish
- Automatic stop at maximum height
- Dual-point manual lock release
- Synchronized hydraulic system
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- Mounting hardware included
- Includes (4) 3.5″ truck adapters
- 220V 60hz 2.2kw 3hp power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style | 2-Post Clear Floor |
|---|---|
| Capacity | 10,000 lbs |
| Overall Height | 110.2″ |
| Overall Width | 130″ |
| Voltage | 220V |
| Min. Lift Height | 3.9″ |
| Max. Lift Height | 70.9″ |
| Width Between Posts | 110.2″ |
| Front Arm Reach | 30″ – 47.3″ |
| Rear Arm Reach | 28″ – 47.3″ |
| Speed of Rise/Lowering | 55 seconds |
| Recommended Power Unit | HPU2203, 3HP, 2.2KW, 1PH |
| Locking positions | 15 |
| Fits Under Ceiling Height | 9′3″ |
