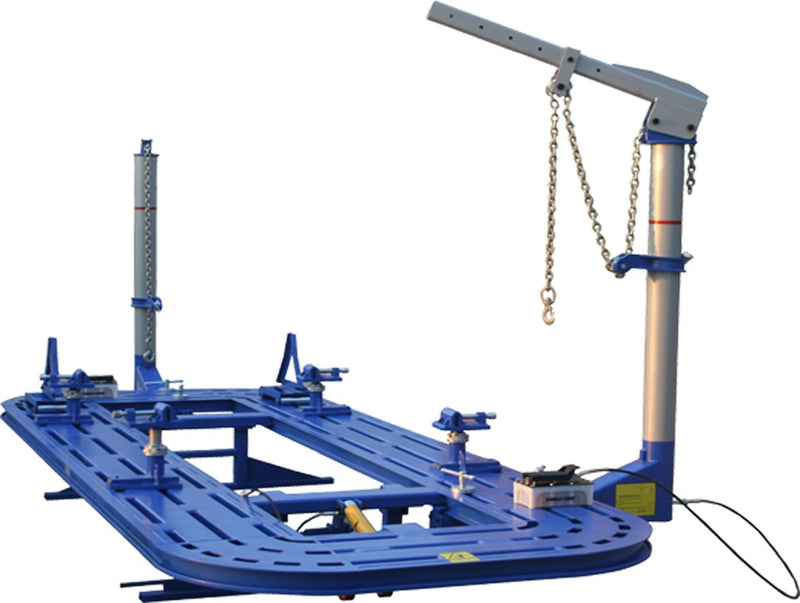

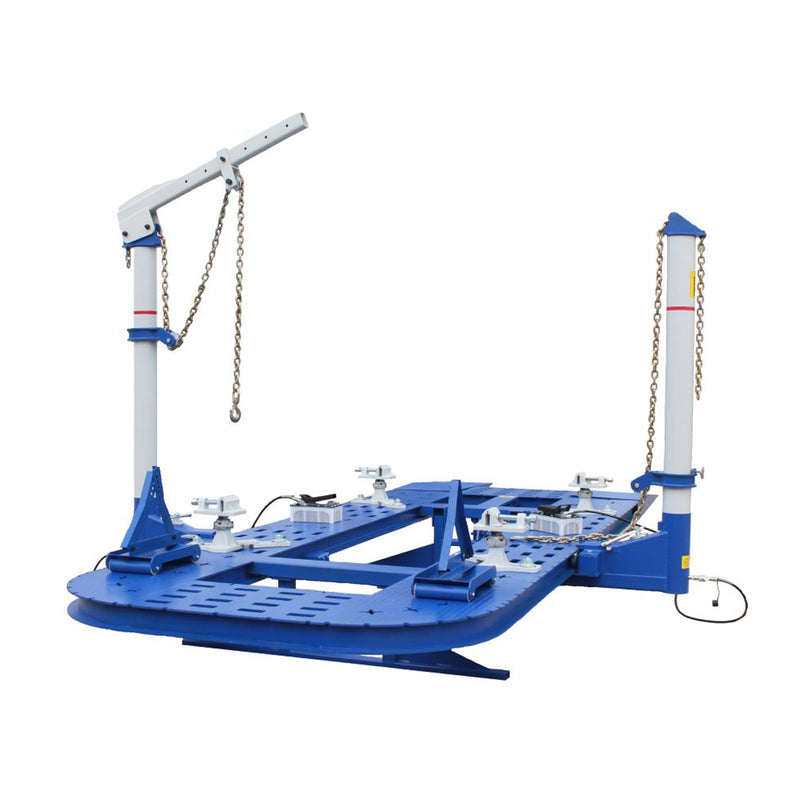

iDeal FR-77T-18 TUBULAR DECK FRAME RACK MACHINE
by TUXEDO
SKU FR-77T-18
Save $551.00
Original price
$14,400.00
Original price
$14,400.00
-
Original price
$14,400.00
Original price
$14,400.00
Current price
$13,849.00
$13,849.00
-
$13,849.00
Current price
$13,849.00
Authorized Dealer
We are an authorized dealer for all TUXEDO branded products.
- Durable, Heavy Duty steel deck Construction

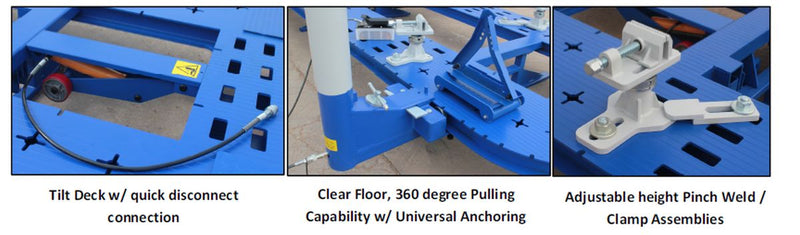

- Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps
- Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
- Two ā 10 Ton Pulling Towers with Telescoping Heads
- Adjustable Tower Collars

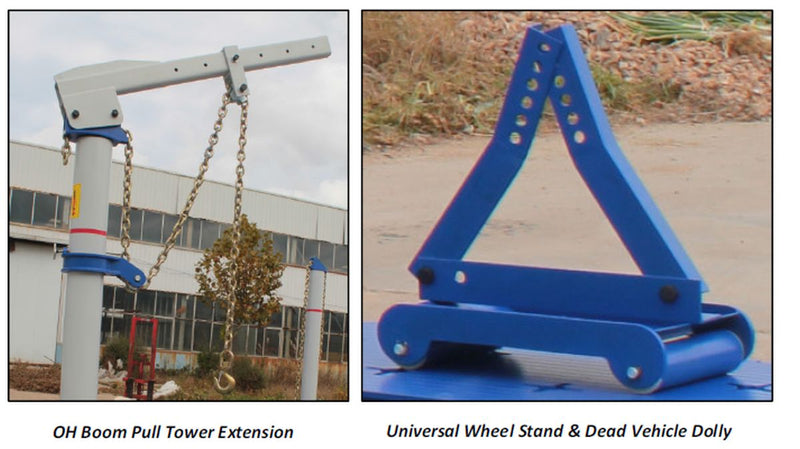

- Overhead Boom Pull Tower Extension
- Quick Disconnect Hydraulic Fittings
- Two ā 10ā² Pulling Chains with Hooks
- Two ā High Quality Air/Hydraulic Pumps with Pressure Gauges
- Universal Wheel Stand And Dead Vehicle Dolly
- Powder Coat Finish
| Frame Rack Model | FR-77-18T |
| Deck Design | Tubular |
| Deck Length | 18ā² |
| Deck Width | 82.6ā³ |
| Deck Height | 19.7ā³ |
| Pull Force Per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100 ā 120 PSI |
| Lifting Capacity | 7,700 lbs |
| Power | NA |
| Ship Weight | 4,189 lbs |
| Options | FR-77-TBK25 FR77 Series Tool Board Kit |
| FR-PROMEASRKIT Professional Measure Kit |
|
| FR-EWINCH Electric Winch |
|
| FR-BAGJACK Air Bag Jack |
