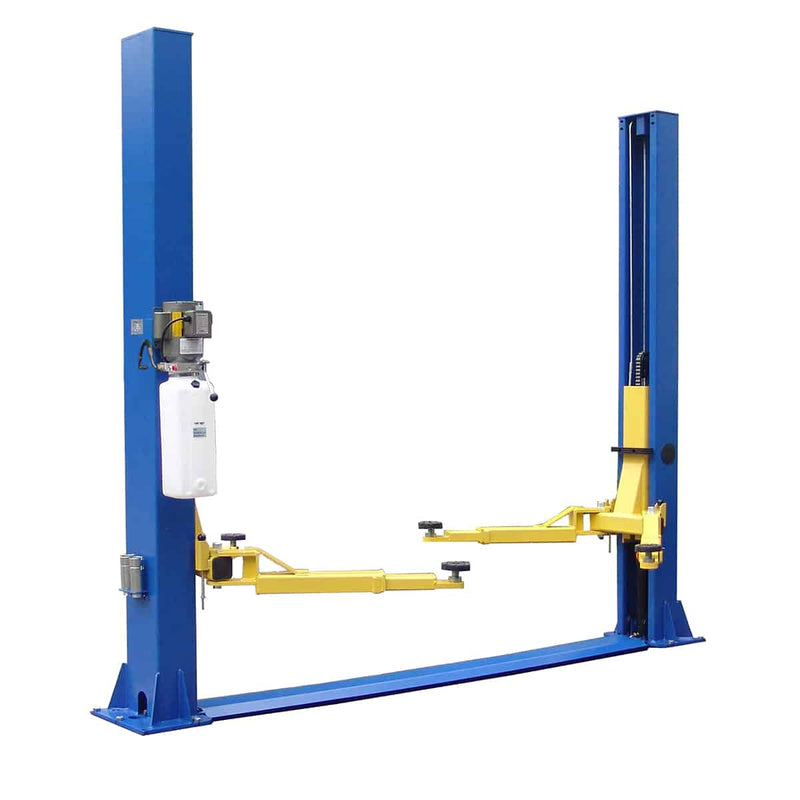

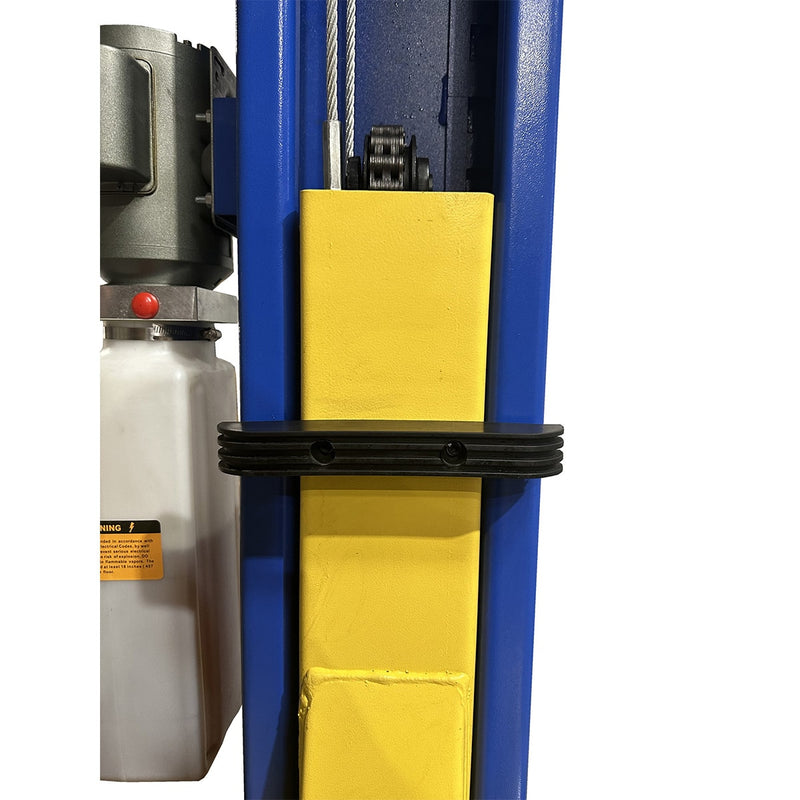

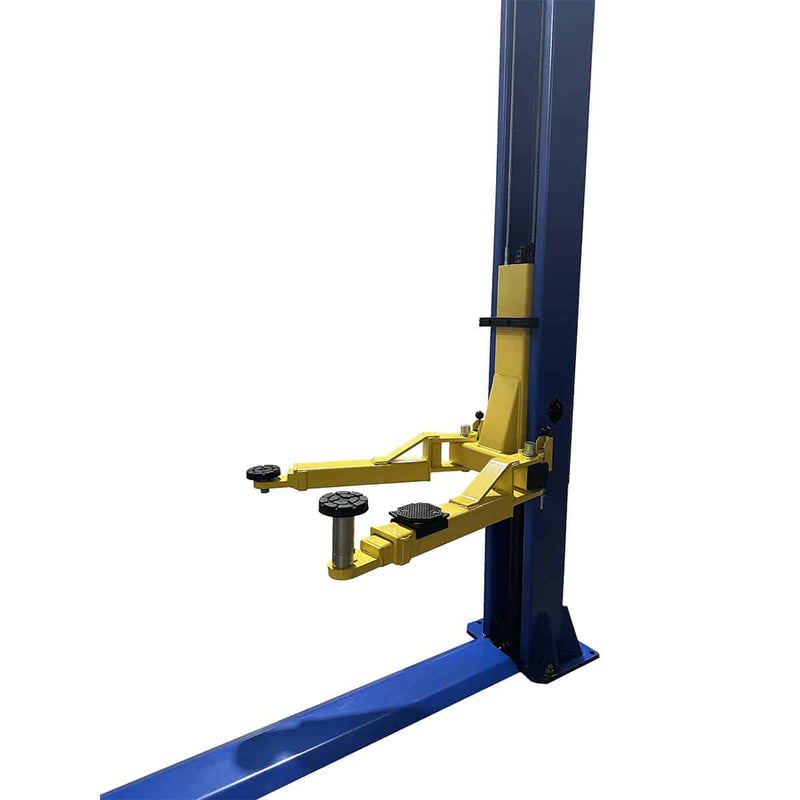

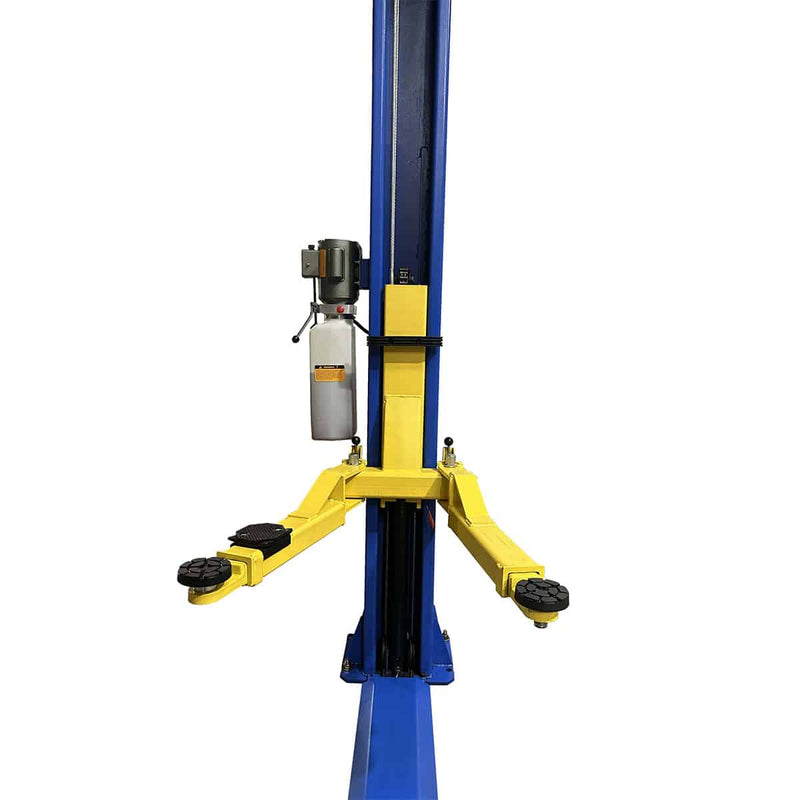

WL-9KFX 9,000 lb 2-Post Floorplate Symmetric Lift

by TUXEDO
SKU WL-9KFX
Save $655.00 Save $655.00
Original price $3,000.00
Original price $3,000.00 - Original price $3,000.00
Original price $3,000.00
Current price $2,345.00
$2,345.00 - $2,345.00
Current price $2,345.00

Authorized Dealer

We are an authorized dealer for all TUXEDO branded products.

$3,000.00 $2,345.00
Request a quote

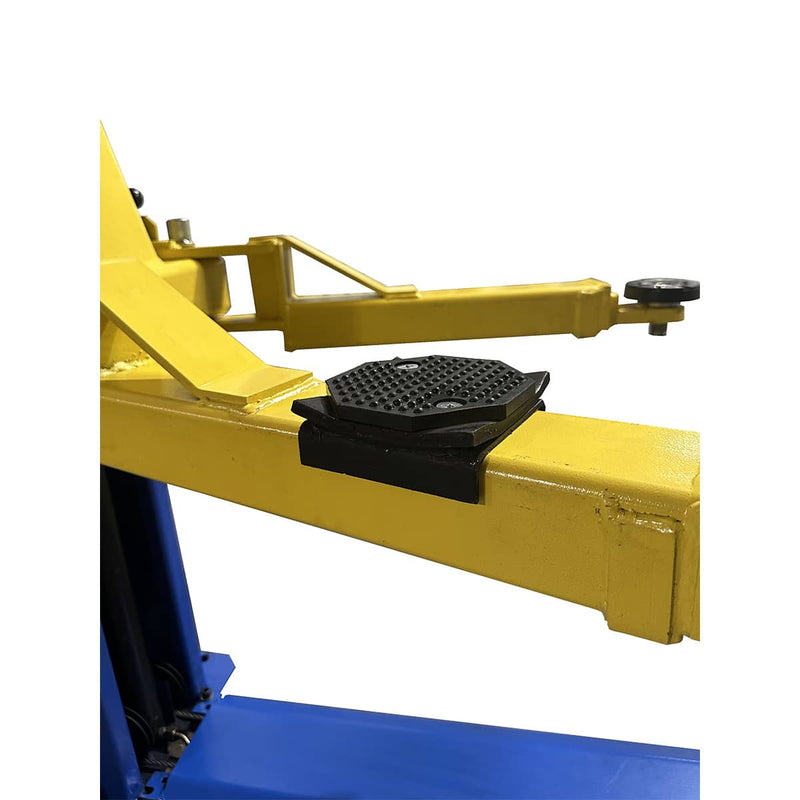

Introducing the new WL-9K ‘X’ series two post lifts! The new lifts have been redesigned to now include standard features with single piece column construction, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width, drop-in adjustable swivel pads with height adapters and rubber door guards, making these models on the of the best two post lift values in the industry!

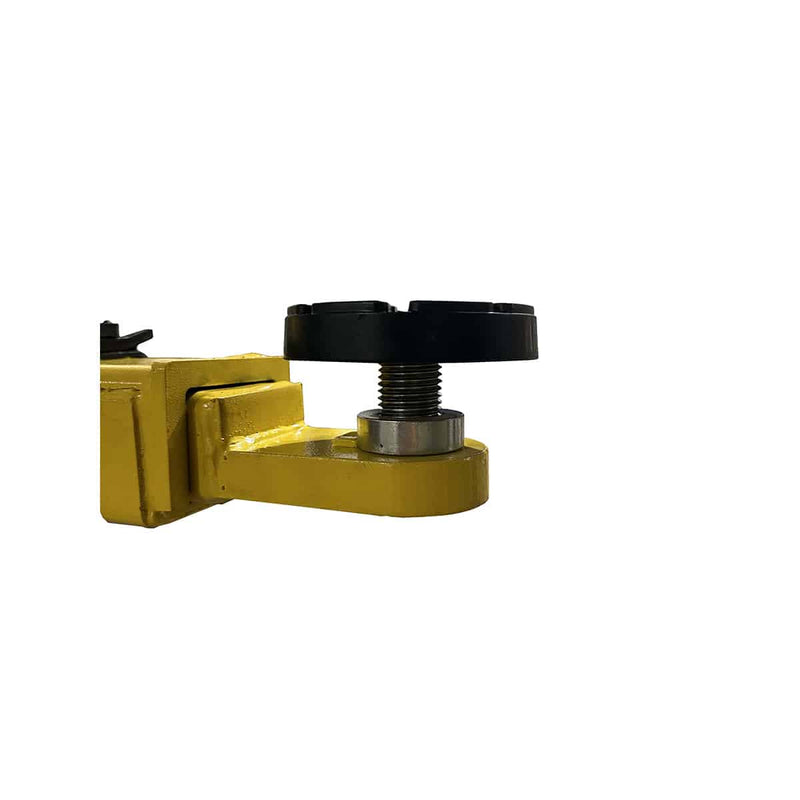

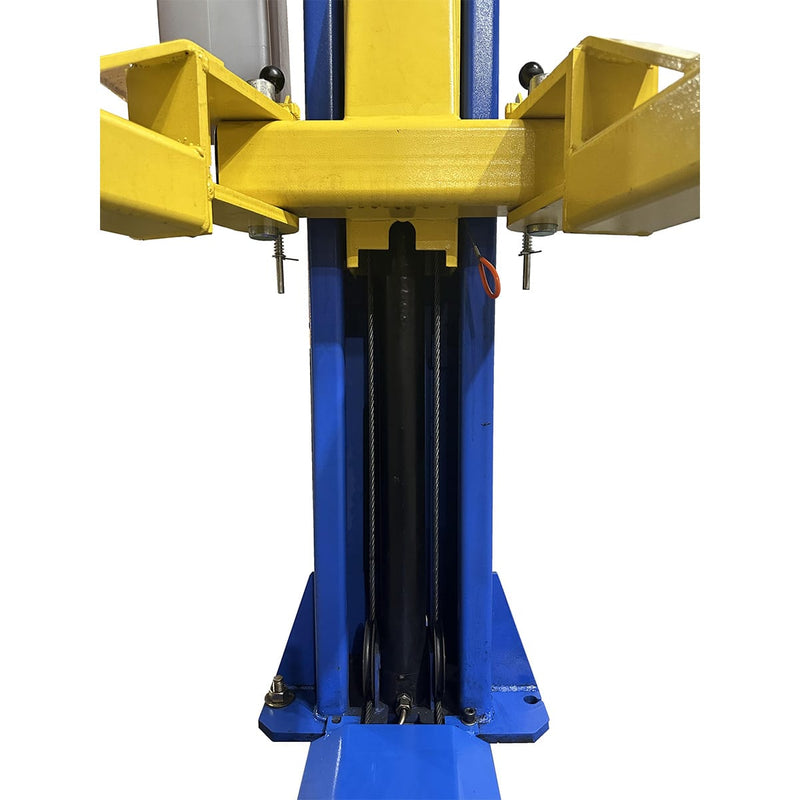

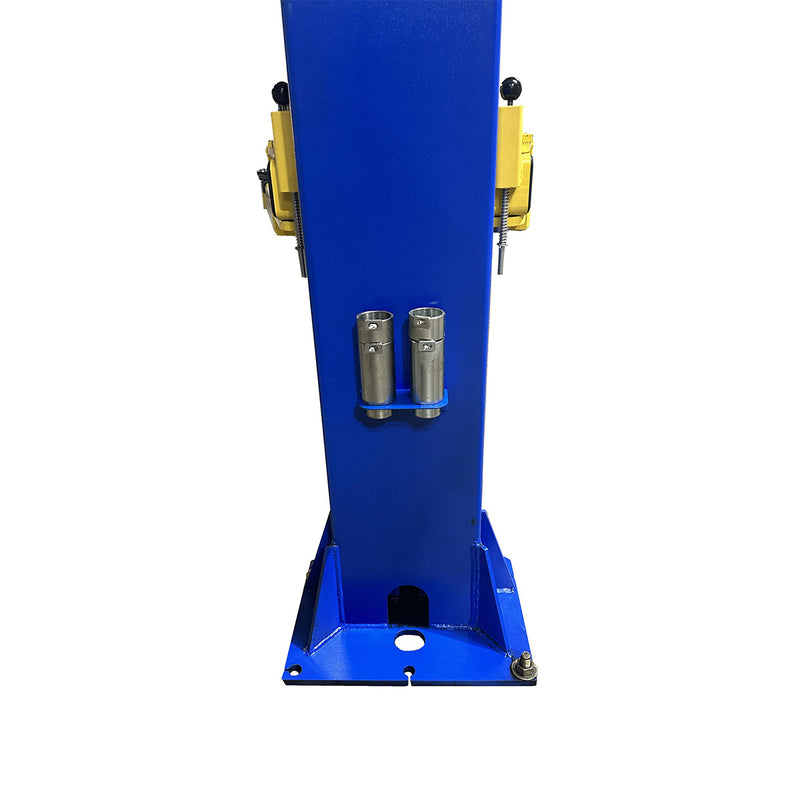

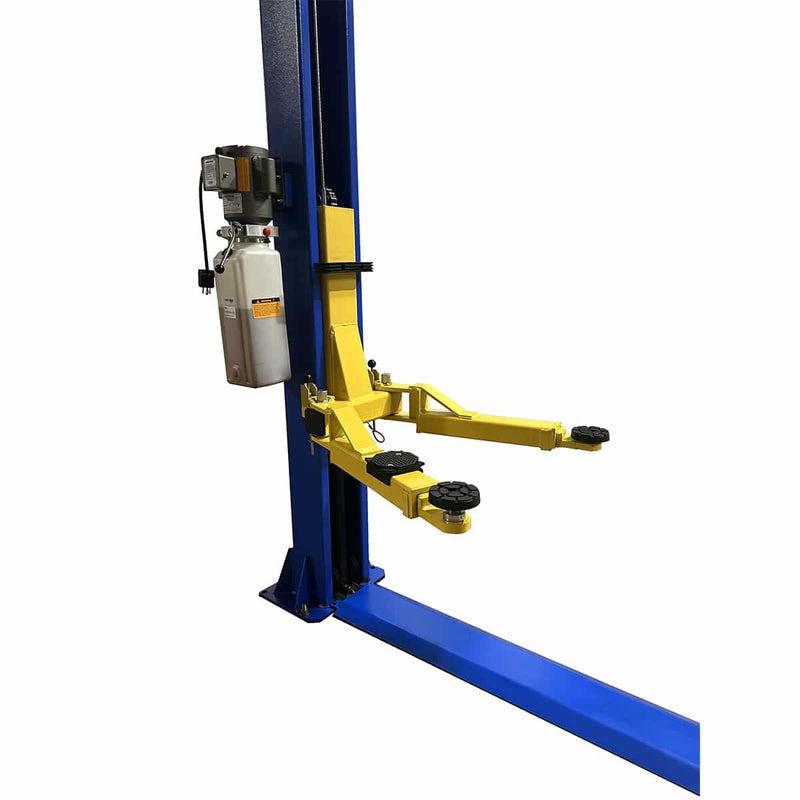

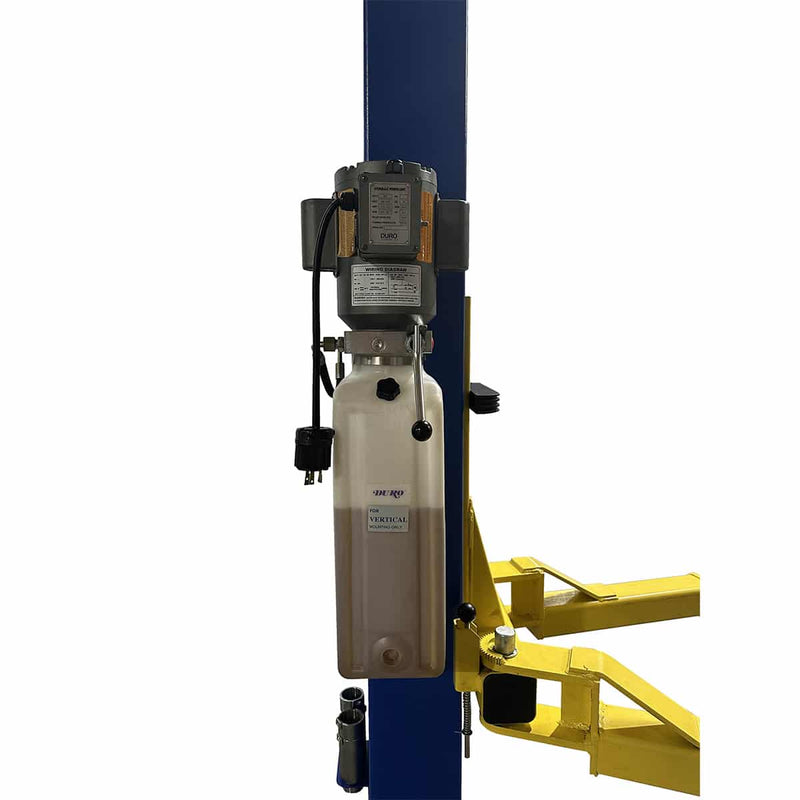

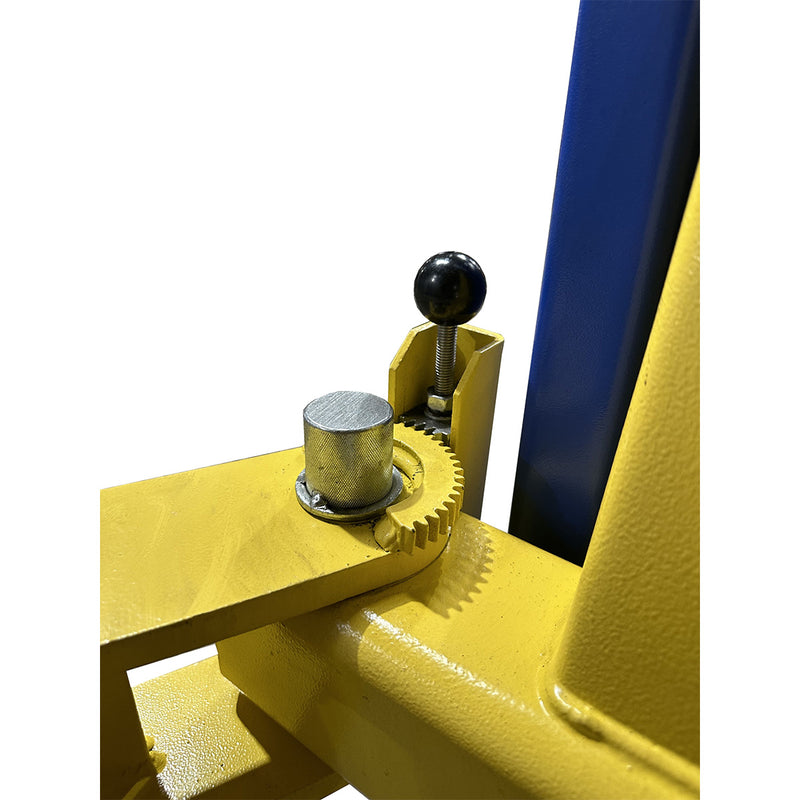

These 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift. They should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service. 9,000 lb lifting capacity Commercial Grade Symmetric column design Dual cylinders with low friction chain rollers, low profile automatic arm restraints, Dual Point Safety Release, Low Profile ‘drop-in’ Swivel Pads w/ 1-1/2″ adjustable height, 4ea Stackable 1-3/8″ & 4″ ‘drop-in’ Height Adapters, free mounting hardware, and a powder-coated paint finish.

View Brochure

View Manual

Lift Model WL-9KFX
Capacity 9,000 lbs.
Height Overall 111-7/8″
Width Overall w/ Power Unit 134-58″
Max Lift Height 72″
Width Between Columns 110-3/8″
Min. Pad Height 4″
Drive Thru Clearance 101″
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Floor Plate
Short Arm Reach – min/max 31″-45″
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,270 lbs
Power 220V – 20 AMP – 1 PH
