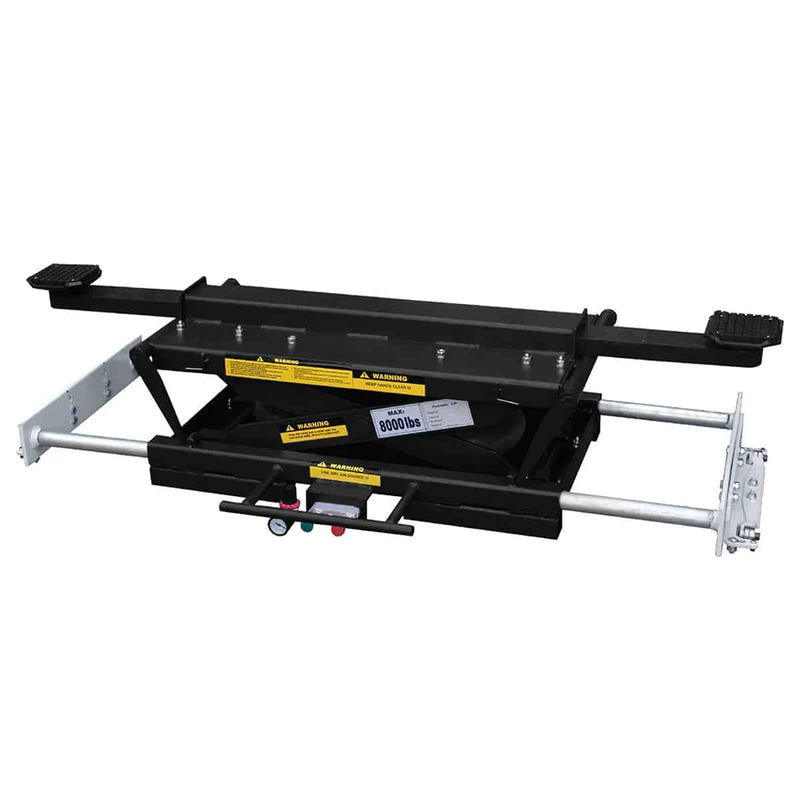

TUXEDO RAJ-8K-L 8,000 lb Rolling Air Jack Low Mount
by TUXEDO
SKU RAJ-8K-L
Save $151.00
Original price
$2,200.00
Original price
$2,200.00
-
Original price
$2,200.00
Original price
$2,200.00
Current price
$2,049.00
$2,049.00
-
$2,049.00
Current price
$2,049.00
Authorized Dealer
We are an authorized dealer for all TUXEDO branded products.
- Universal Roller Body design with dual ‘spring loaded’ precision Roller Bearing & Side Guide
- Wheels with adjustable Height for Low, Medium & High Jack Rail configurations.
- Low Profile configuration
- Rolls on top edge of Jack Rail for smooth maneuverability
- Dual Height Telescoping Support Arms
- Pneumatic operation w/ adjustable Pressure Regulator
- Dual Air Bags
- Stackable Pad & Height Adapters – 1-5/16” & 5” Height Adapters (1 Pair each)
- Ships in durable Wooden Crate
Specs
Lift Capacity: 8,000 lbs.
Telescoping Support Arms – Min/Max: 38-3/8” – 60” (Roller Body wheel center)

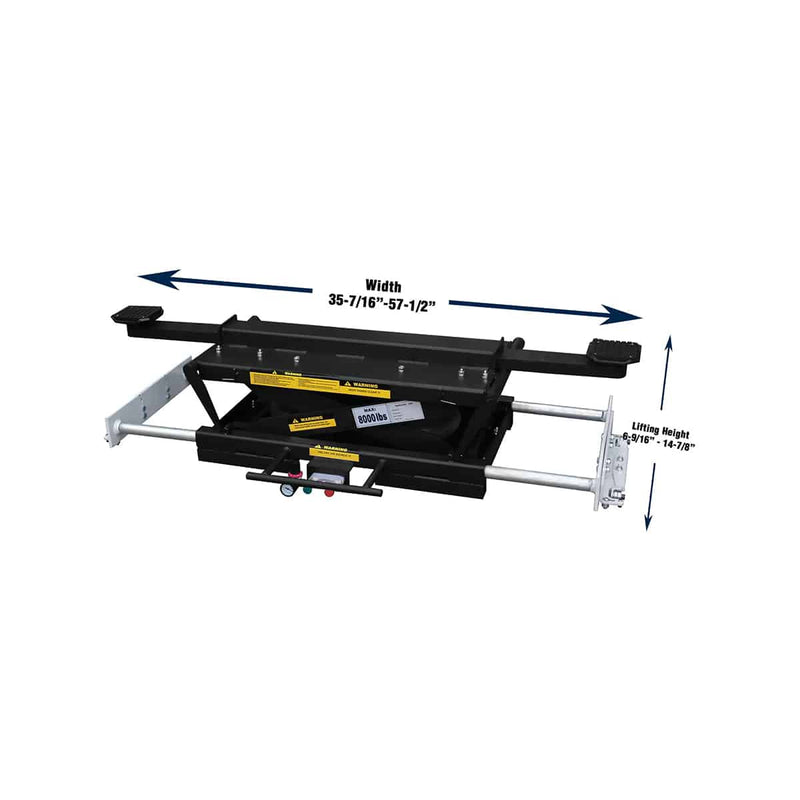

Lifting Arms – Min / Max: 35-7/16” – 57-1/2” (Pad center)
Lifting Height – Min/Max: 6-9/16” – 14-7/8” (Pad Adapter only)
‘High Mount’ – adjustable Roller Body Bracket Height: 1”
‘Low Mount’ – adjustable Roller Body Bracket Height: 1”
Stackable Adapter Heights: 1-5/16” & 5” (1 Pair)
Locking Positions: 1ea
Required Power: 100 – 125 PSI / 10 – 20 CFM
Ship Weight: 426 lbs.
Package Size: 43”L x 29” W x 12” H
