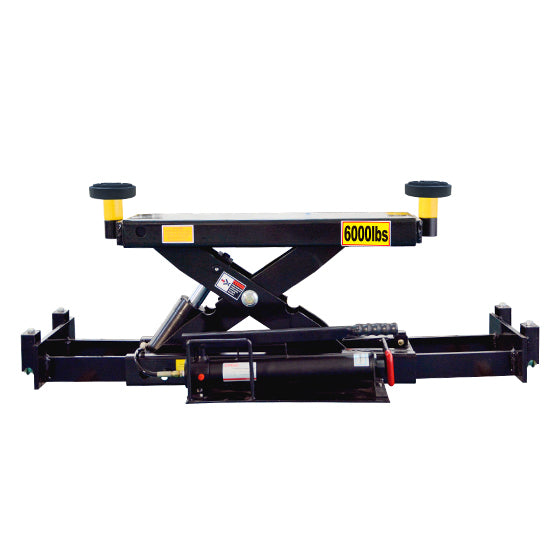

AMGO RJ-6H Manual Pump Rolling Bridge Jack 6,000lb
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Featuring AMGO’s patented floating rolling technology, the RJ-6H offers a low-profile design, and is equipped with a hand pump. With a 6000lbs capacity, its newly improved structure enhances its reliability and ensures convenient operation, making it the ideal jack companion – whether on the floor, or on a lift.
- Equipped with hand pump;
- Standard 2.5″ extension adapters & durable Rubber Pads Assy;
- Adjustable arms allow for easy positioning to reach the desired support point;
- Low-Profile Jack provides ample clearance for low-stance sports cars and other modified vehicles;
- Manual safety lock provides two lock positions that allow you to find a comfortable work height;
- Extendable lower sliding Assy. fits widths of 33 7/8″ to 52 13/16″ between runways;
- Ergonomic guardrail helps move the jack easily.
| Model | RJ-6H | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 33 1/16"-53 7/16" |
| Min. Height | B | 8 7/16" |
| Support Base Width | C | 33 7/8"-52 13/16" |
| Min Rubber Pad Height | D | 8 5/8" |
| Max. Lifting Height (Without adapters) | E | 17 3/4" |
| Max. Lifting Height (With adapters) | 20 1/4" | |
| Overall Width | F | 20 1/16" |
| Gross Weight | 280lbs | |
| Pump | Manual Pump |
The Hand Pump is convenient and quick to operate.
Patented float rolling device allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle.
Manual safety lock is easy to control
The long-reach arm and lower sliding assembly are fully adjustable to accommodate virtually any 4-post or scissor lift.
An ergonomic guardrail makes moving this jack easy.
Stackable rubber pads assembly with 2.5" extension adapters.
