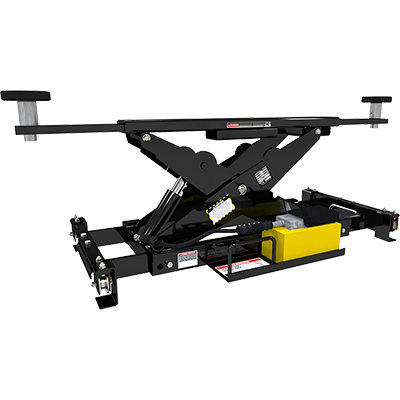

BendPak RJ45LP 4-Post Rolling Bridge Jack – 4,500-lb. Capacity, Low-Profile

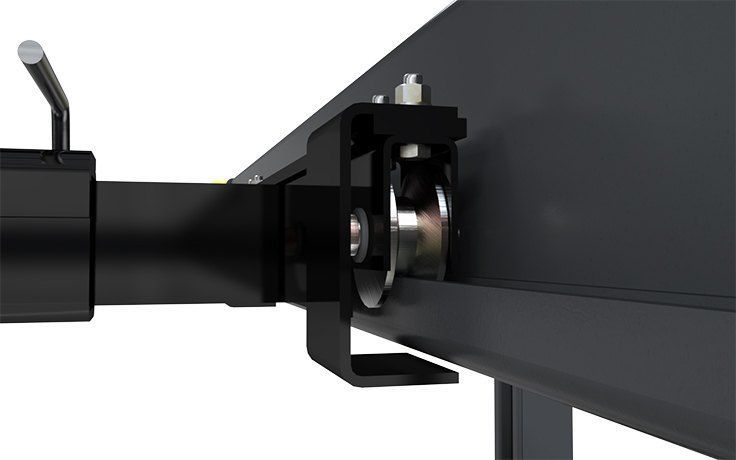

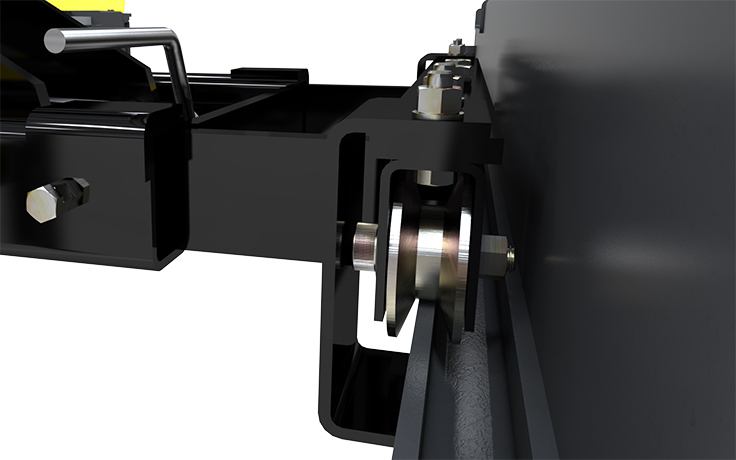

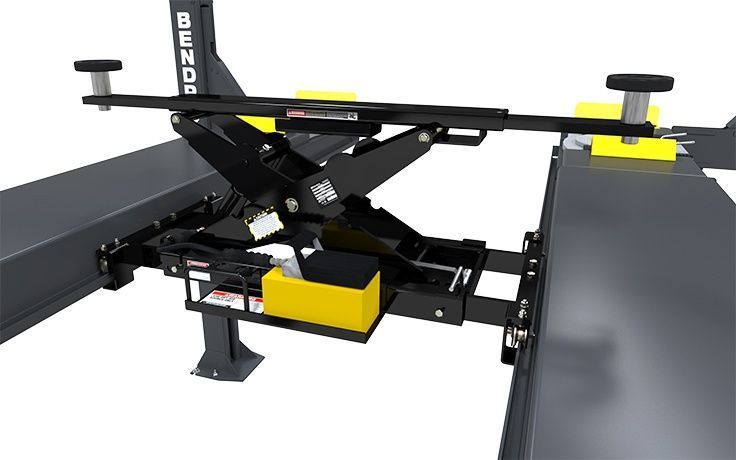

The BendPak RJ45LP is a 4,500 lb. capacity rolling bridge jack with a low-profile design, giving it a lower minimum drive-over height than the standard RJ45W and making it a good fit for lower-stance vehicles. It uses the same easy-roll wheel system to glide along the runway channel of a compatible four-post lift, a rubber contact pad to protect the vehicle frame, stackable adapters for added reach, and an air/hydraulic power unit operated by a foot pedal with three lock positions. The RJ45LP is intended for BendPak HD-7 and HD-9 series four-post lifts, and its maximum arm reach is wider than the RJ45W's.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Lifting Capacity | 4,500 lbs. (2,041 kg) |
|---|---|
| Suitable Lift Model(s) | HD-7 Series, HD-9 Series, GP-9 series |
| Min. Drive-Over Height* | |
| Pad Only | 4.25" (108 mm) |
| Pad + 2.75" Adapter | 7" (178 mm) |
| Pad + 5.5" Adapter | 9.75" (248 mm) |
| Max. Lifting Height* | |
| Pad Only | 15.25" (387 mm) |
| Pad + 2.75" Adapter | 18" (457 mm) |
| Pad + 5.5" Adapter | 21" (533 mm) |
| Reach | |
| Support Base Width | 35.5" (902 mm) - 46.5" (1,181 mm) |
| Max. Arm Reach | 61" (1,549 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 2,490 PSI |
| Power Requirement | None |
| Shipping Weight | 306 lbs. (139 kg) |
| Shipping Dimensions | 41.25" x 25" x 13" (1,048 x 635 x 330 mm) |
* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
