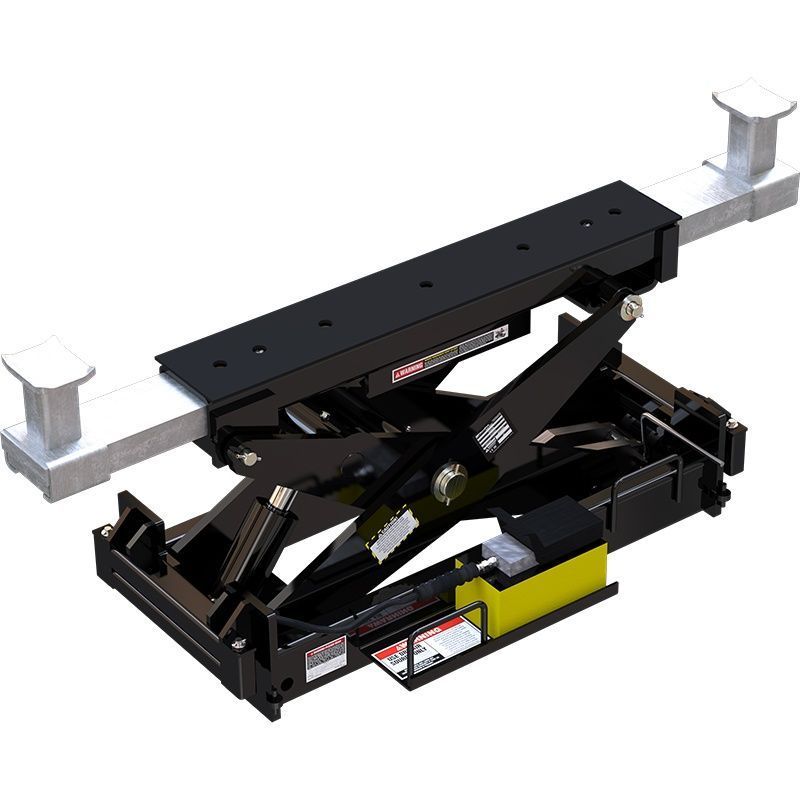

BendPak RBJ18000 4-Post Rolling Bridge Jack – 18,000-lb. Capacity

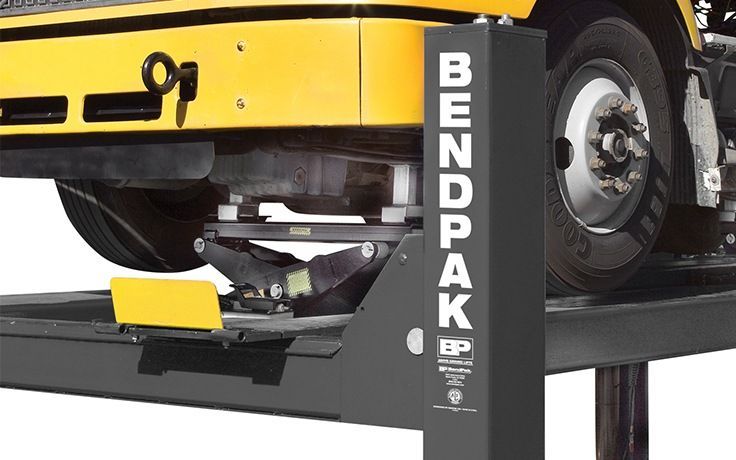

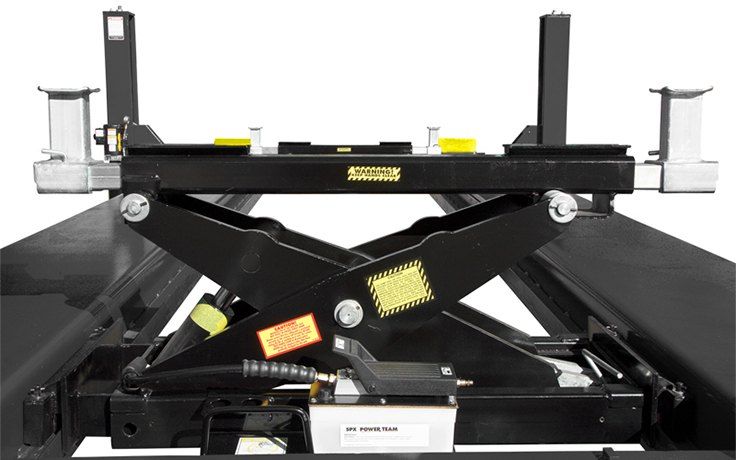

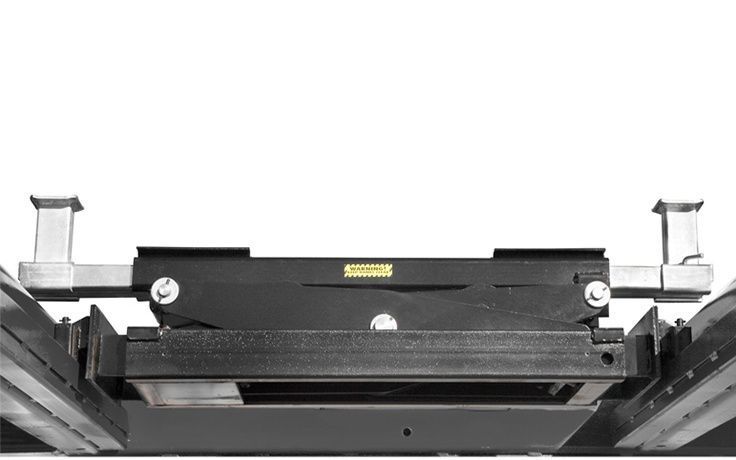

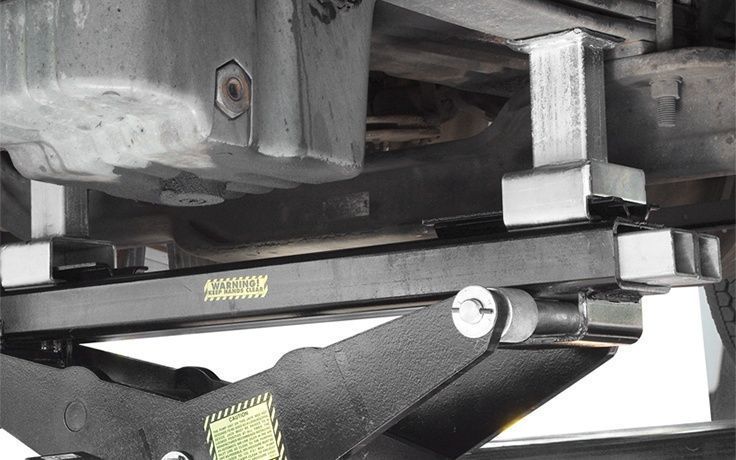

The BendPak RBJ18000 is an 18,000 lb. capacity rolling bridge jack made for the HDS-40 series four-post lift (not compatible with the HDS-27 model), giving it extra capacity for heavy trucks, buses, and other vehicles with an off-center weight distribution. Like the RBJ15000, it uses four steel contact pads rather than a rubber pad to support the axle and frame lift points, and it raises via an air/hydraulic power unit with a foot pedal and three lock positions.
Note: Not compatible with the HDS-27 model. Rolling bridge jacks are built for specific BendPak lift models, and compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Lifting Capacity | 18,000 lbs. (8,165 kg) |
|---|---|
| Suitable Lift Model(s) | HDS-40 Series |
| Min. Drive-Over Height* | |
| Short Arm Pad | 9" (229 mm) |
| Short Top Pad | 9.75" (248 mm) |
| Tall Arm Pad | 10.5" (267 mm) |
| Tall Top Pad | 11.25" (286 mm) |
| Max. Lifting Height* | |
| Short Arm Pad | 19" (483 mm) |
| Short Top Pad | 19.75" (502 mm) |
| Tall Arm Pad | 20.5" (521 mm) |
| Tall Top Pad | 21.25" (540 mm) |
| Reach | |
| Support Base Width | 45" (1,143 mm) |
| Max. Arm Pad Reach | 63.75" (1,619 mm) |
| Min. Arm Pad Reach | 48.5" (1,232 mm) |
| Max. Top Pad Reach | 39.5" (1,003 mm) |
| Min. Top Pad Reach | 8" (203 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 7,200 PSI |
| Power Requirement | None |
| Shipping Weight | 792 lbs. (359 kg) |
| Shipping Dimensions | 47" x 29" x 17" (1,206 x 736 x 431 mm) |
* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
