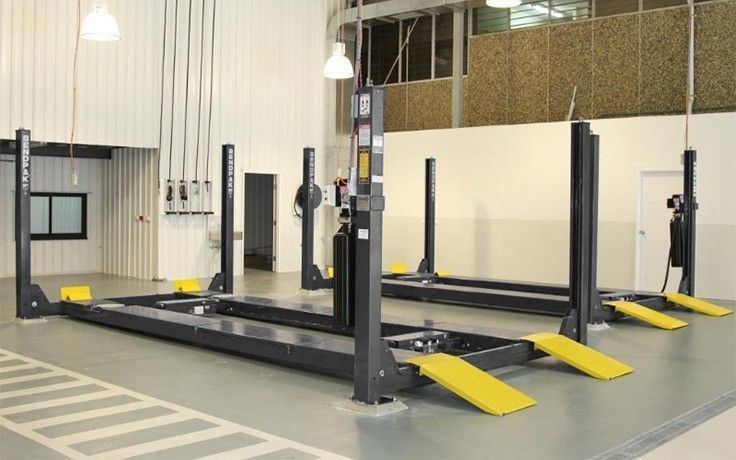

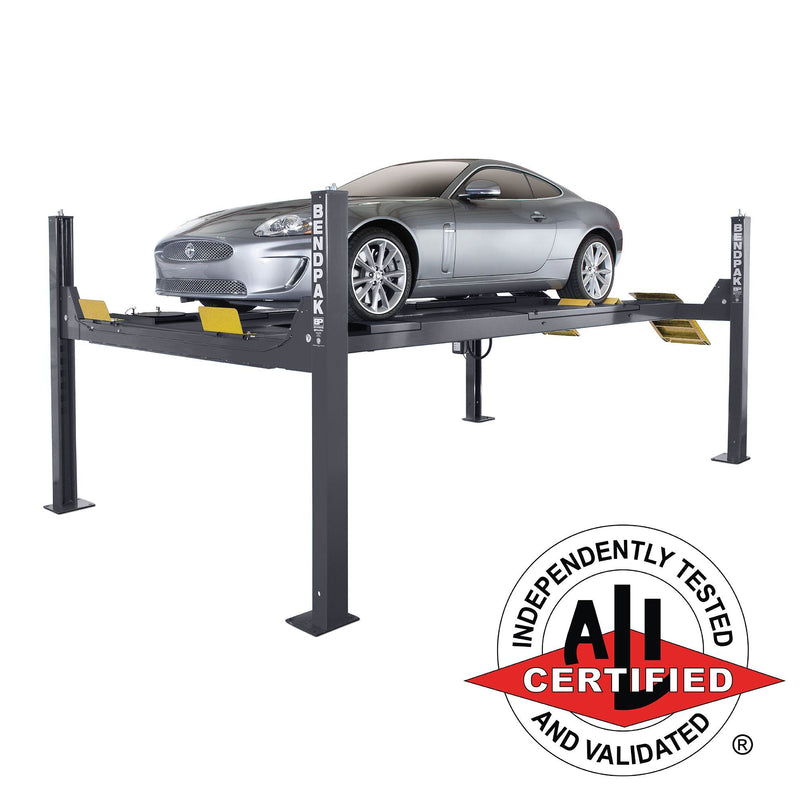

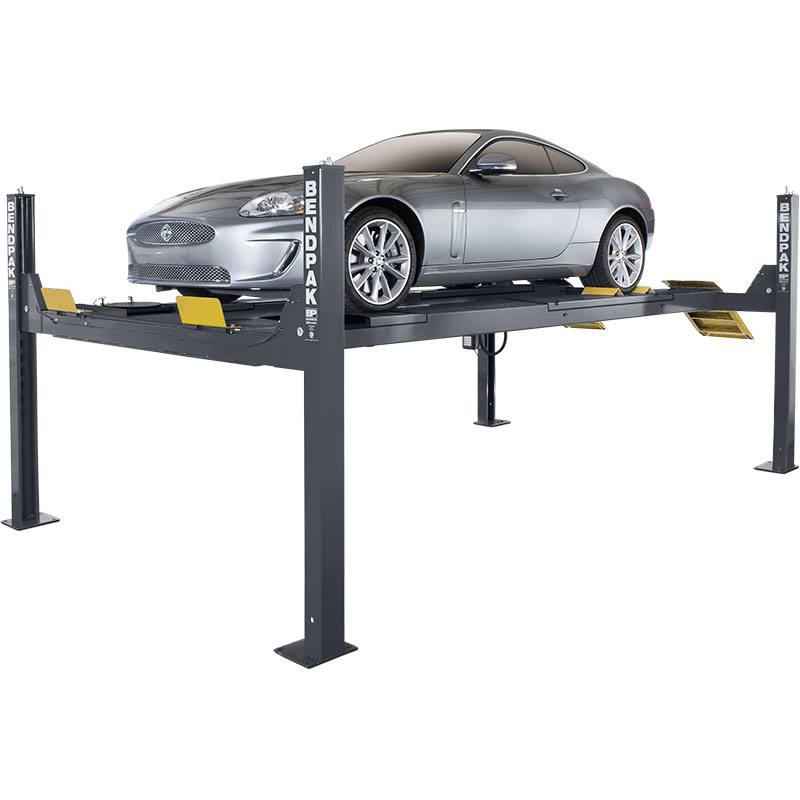

BendPak HDS-14LSX Four-Post Alignment Lift - 14,000-lb. Capacity
Alignment Lift System Offers 14,000 lbs. of Pure Lifting
BendPak's HDS-14LSX alignment lift is engineered to meet the strenuous demands of your toughest professional lifting jobs. Designed into the HDS-14LSX alignment lift is a long list of crucial features that improve safety, durability and productivity, ensuring your BendPak is the absolute best car lift you can buy.

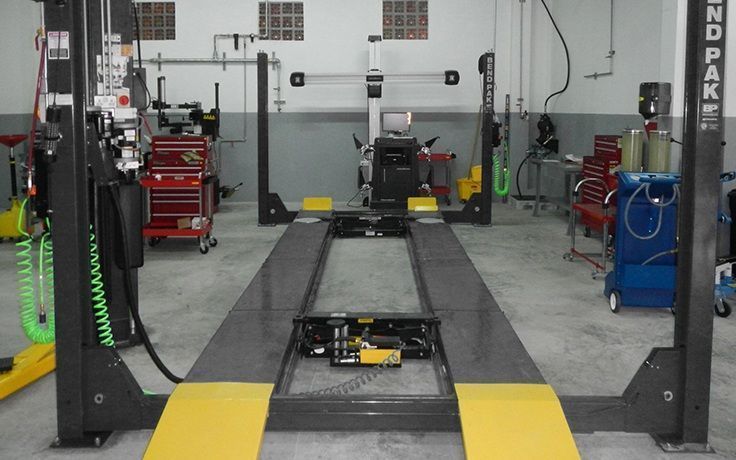

This is the sturdy beast you want as the backbone of your shop, especially if you service large, low ground-clearance vehicles. Our alignment system features front turn plates and rear slip plates built right into the runways.
Slip plates

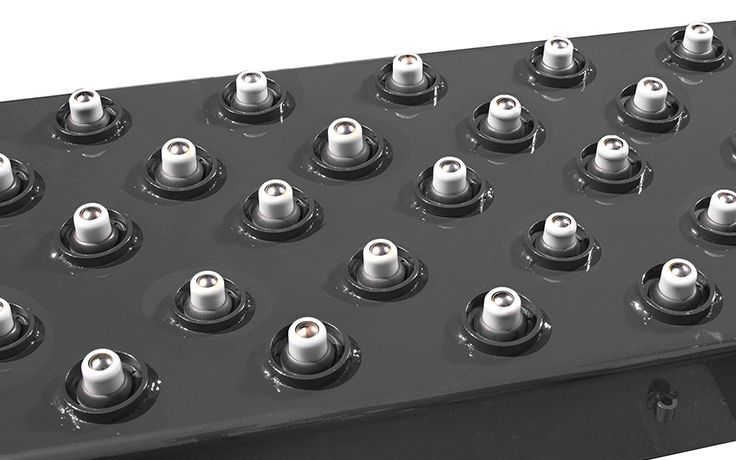

Multi-caster slip plates in the back and turn plates in the front allow for extremely precise, free-floating alignment.
Turn plates

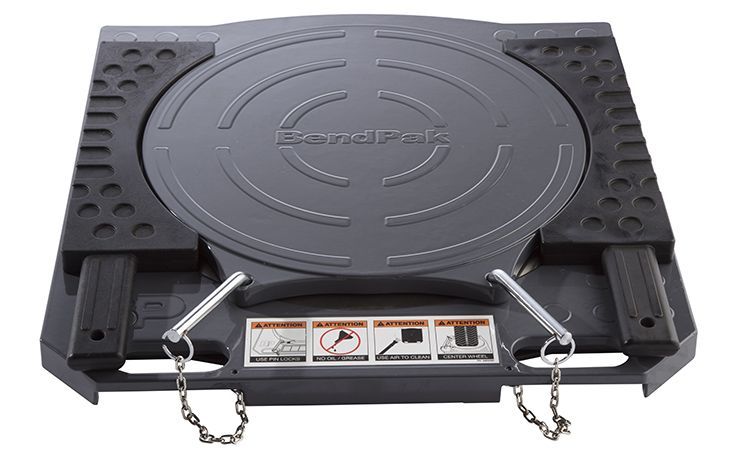

Dual, recessed turn plate pockets allow you to position the corrosion-resistant, galvanized turn plates in the location best suited for individual vehicle positioning.
Dual-hub cable sheaves

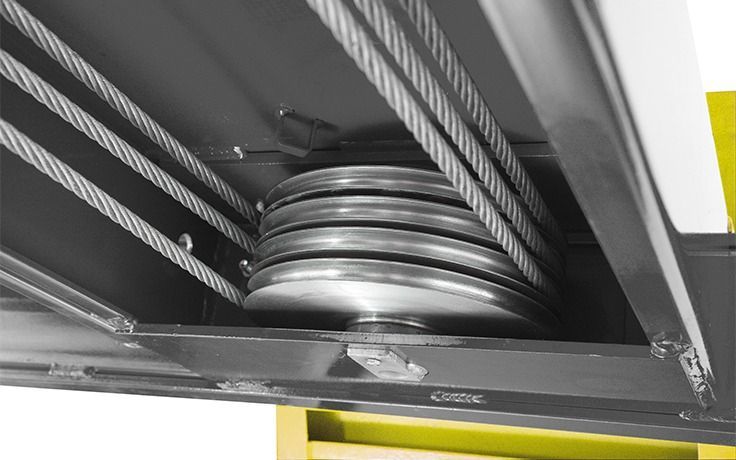

This BendPak alignment lift comes standard with robust 10.5” diameter cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles that are equally durable.
Heavy-duty aircraft cable

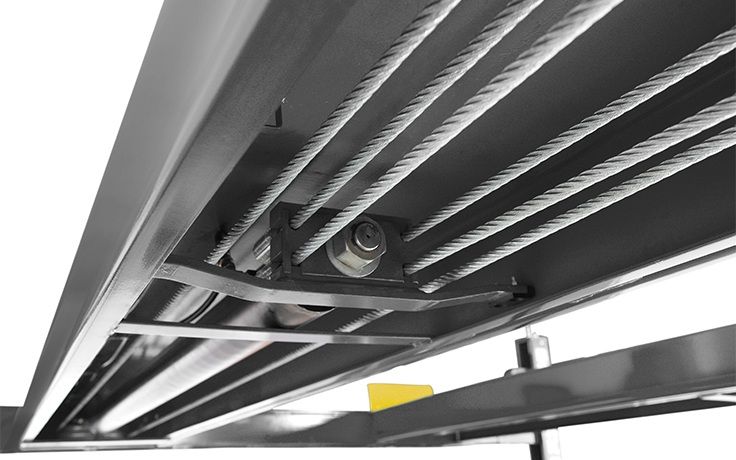

A 1/2" diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each of the four columns, totally resistant to rubbing and other abrasions.
Adjustable height locking positions
Every few inches, each post column features a lock position for your convenience.
Spring-loaded safety locks
As the alignment lift rises to your preferred service level, springs engage the locks into place at each ladder position.
Secondary lock system
A slack-cable lock is your backup safety mechanism that's ready at all times to shut off the alignment lift in the event of dangerous cable slack.
Rolling bridge jacks
Optional rolling jacks make a great addition to increase service capacity. Bridge jacks raise the front or back of vehicles, so wheel and brake service can be performed without moving to a different lift.
Specifications
| Capacity | |
|---|---|
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| Max Capacity / Front Axle | 7,000 lbs. (3,175 kg) |
| Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg) |
| Rise | |
| A - Min. Runway Height | 7.5" (191 mm) |
| B - Max. Rise | 70.75" (1,799 mm) |
| C - Max. Lifting Height | 77.5" (1,970 mm) |
| Time to Full Rise | 60 seconds |
| Outside Dimensions | |
| D - Overall Width | 130" (3,302 mm) |
| E - Outside Length | 213" (5,408 mm) |
| F - Overall Length | 242" (6,146 mm) |
| G - Height of Columns | 92" (2,338 mm) |
| Inside Dimensions | |
| H - Width Between Columns | 120" (3,050 mm) |
| I - Drive-Thru Clearance | 98" (2,489 mm) |
| Runways | |
| J - Runway Width | 20" (508 mm) |
| K - Length of Runways | 197.5" (5,016 mm) |
| L - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm) |
| Alignment | |
| M - Min. 4-Wheel Alignment | 89" (2,261 mm) |
| N - Max. 4-Wheel Alignment | 156" (3,962 mm) |
| O - Max. 2-Wheel Alignment | 182" (4,623 mm) |
| Minimum Wheelbase | |
| Rated Capacity | 140" (3,556 mm) |
| 75% Capacity | 120" (3,048 mm) |
| 50% Capacity | 100" (2,540 mm) |
| 25% Capacity | 80" (2,032 mm) |
| Locking | |
| Locking Positions | 15 |
| Lock Spacing | 4" |
| Power Unit | |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping | |
| Weight | 3,216 lbs. (1,458 kg) |
| Dimensions | 209" x 25" x 33" (5,308 mm x 635 mm x 838 mm) |
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
