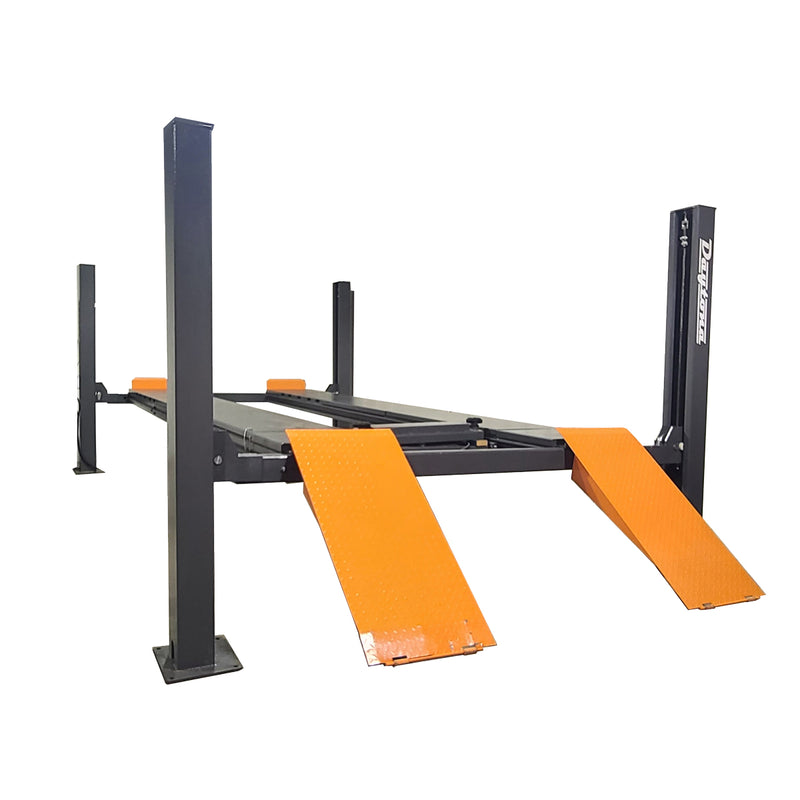

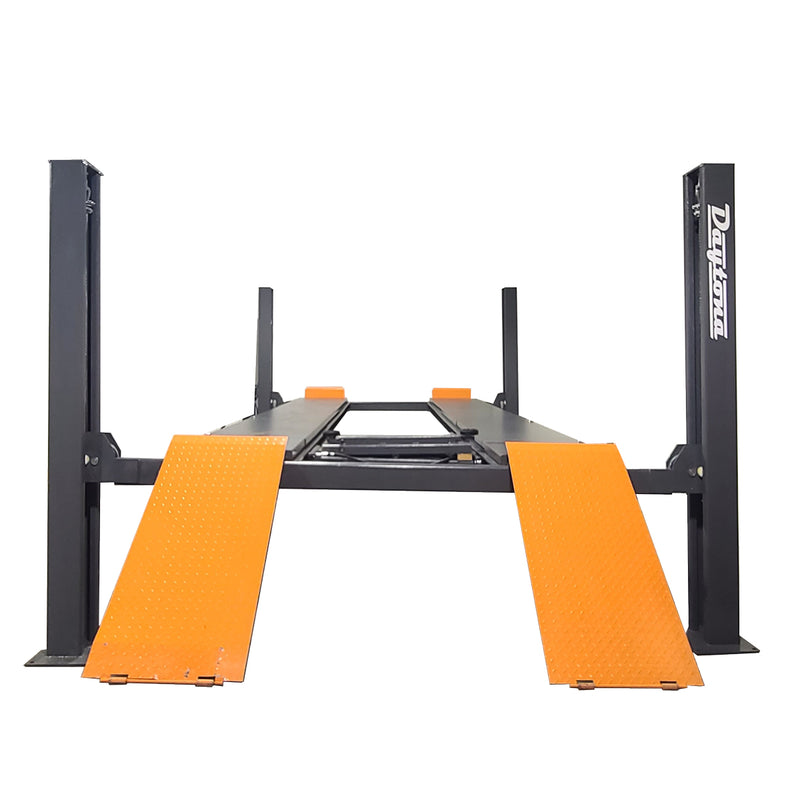

Daytona LFPA14 14,000 lbs 4-Post Alignment Lift
Authorized Dealer
We are an authorized dealer for all DAYTONA branded products.
14,000 lbs Capacity • Built-in Slip Plates • Adjustable Turntables
Engineered for commercial auto repair facilities demanding precision and heavy-duty lifting. Features built-in slip plates, adjustable turntables, and an ultra-wide runway to accommodate a vast range of vehicles, including dual rear wheel pickup trucks.
- Ladder Lock System: Manual release with locking positions every 3.5″
- Industrial Grade Finish: Matte powder coat in dark Grey for lasting durability
- High Visibility: Tilting approach ramps in bright Orange
- Heavy Duty Components: 5″ cylinder and aircraft-quality lifting cables
PLEASE NOTE: Lift only – Wheel Alignment Machine & Rolling Jacks sold separately.
Features
- 14,000 lbs Lifting Capacity powered by a large heavy-duty 5″ cylinder.
- Ladder Lock System with manual release and locking positions every 3.5″.
- Alignment Configuration: Built-in slip plates and adjustable turntables included standard.
- 25.5″ Runway accommodates various vehicle widths and dual-rear wheel trucks.
- Industrial Grade Finish: Matted powder coat in dark Grey for lasting durability.
- Rise Time / Drop Time: 110s for controlled and safe operation.
Specs
Power Requirements
240V / 4HP / 15Amp / 1 Ph / 60Hz
Runway Specs
- Dimensions: 25.6″ x 247.5″
- Inner Width: 43.7″
| Specification | Measurement |
|---|---|
| Overall Length | 268.7″ |
| Overall Width | 153.9″ |
| Overall Height | 94.3″ |
| Clearance (Full Height) | 69.3″ (Under Runway) |
| Shipping Weight | 5,400 lbs |
| Shipping Dimensions |
247″ x 32″ x 42″ |
FAQ
What is the lifting capacity of the LFPA14?
The LFPA14 has a heavy-duty lifting capacity of 14,000 lbs, making it suitable for a wide range of vehicles including dually pickup trucks.
Are the turntables and slip plates included?
Yes, built-in slip plates and adjustable turntables are included as standard features for precision alignment work.
