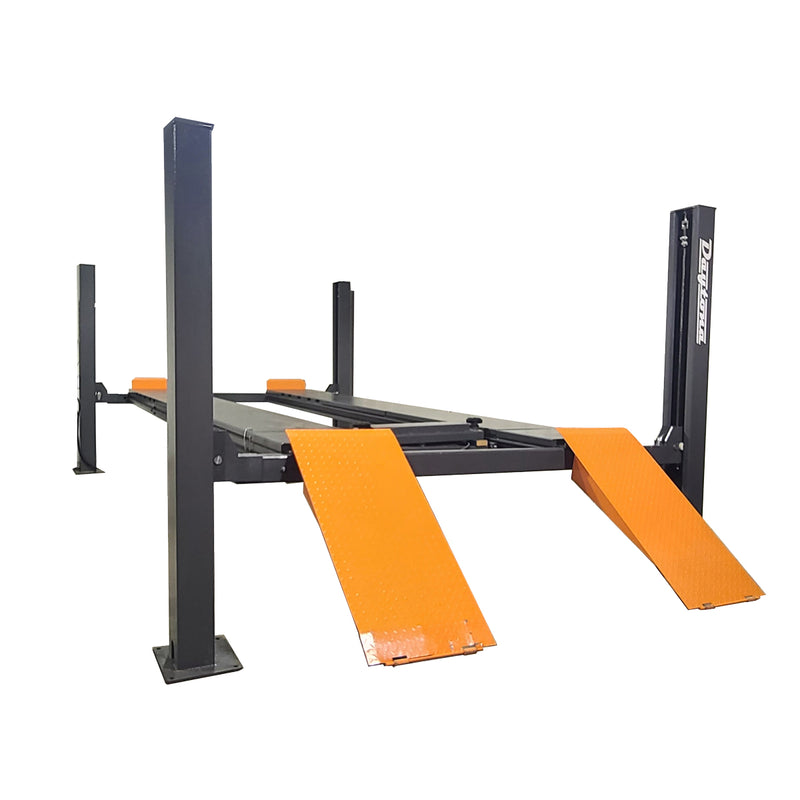

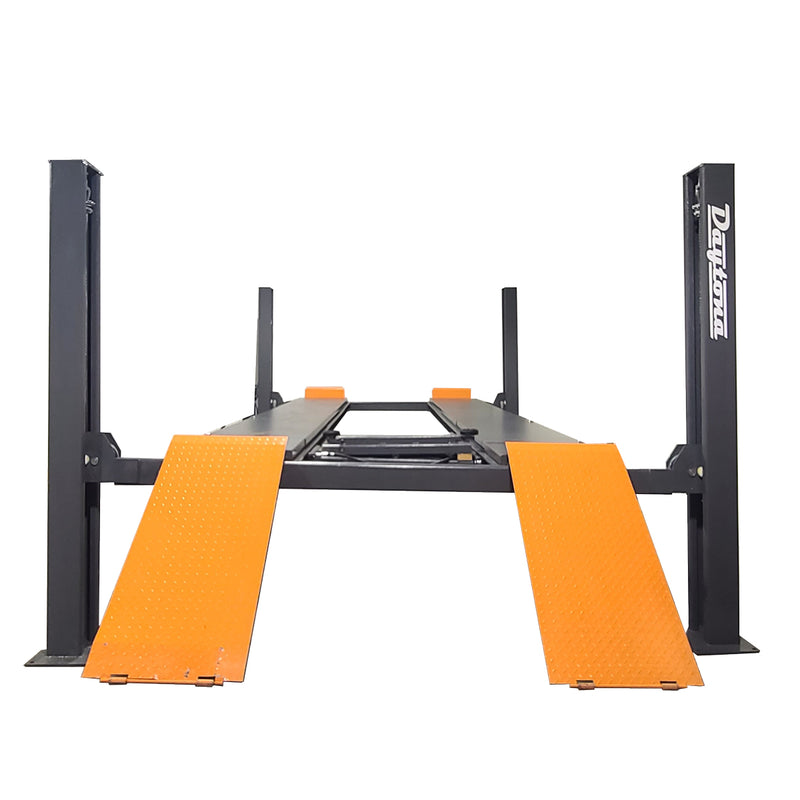

Daytona LFPA12 12,000 lbs 4-Post Alignment Lift
Authorized Dealer
We are an authorized dealer for all DAYTONA branded products.
12,000 lbs Capacity • Built-in Slip Plates • Adjustable Turntables
Engineered for commercial auto repair facilities demanding precision and heavy-duty lifting. Features built-in slip plates, adjustable turntables, and an ultra-wide runway to accommodate a vast range of vehicles from compact cars to dual rear wheel pickups.
- Ladder lock system with manual release (positions every 3.5″)
- 25.5″ wide runway accommodates various widths and dually trucks
- Powered by large heavy-duty 5″ cylinder and aircraft cables
- Industrial grade dark grey matted powder coat finish
PLEASE NOTE: Lift only – Wheel Alignment Machine & Rolling Jacks sold separately.
Features
- 12,000 lbs Lifting Capacity powered by a large heavy-duty 5″ cylinder.
- Ladder Lock System with manual release every 3.5″ starting at 21″.
- Built-in slip plates and adjustable turntables included standard.
- Tilting approach ramps in bright orange for high visibility.
Specs
Power Requirements
240V / 4HP / 15A / PH1 / 60Hz
Performance
- Capacity: 12,000 lbs
- Rise/Drop Time: 110s
| Specification | Measurement |
|---|---|
| Overall Length (inc. Post Bases) | 236.5″ |
| Overall Width (inc. Post Bases) | 143.5″ |
| Overall Height | 101″ |
| Runway Dimensions | 25.5″ W x 217.25″ L |
| Shipping Weight | 4,490 lbs |
FAQ
What is the lifting capacity?
The LFPA12 has a lifting capacity of 12,000 lbs, making it suitable for a wide variety of vehicles including commercial trucks.
Are the turntables adjustable?
Yes, the turntables are adjustable to accommodate different wheelbases, and built-in slip plates are included standard.
