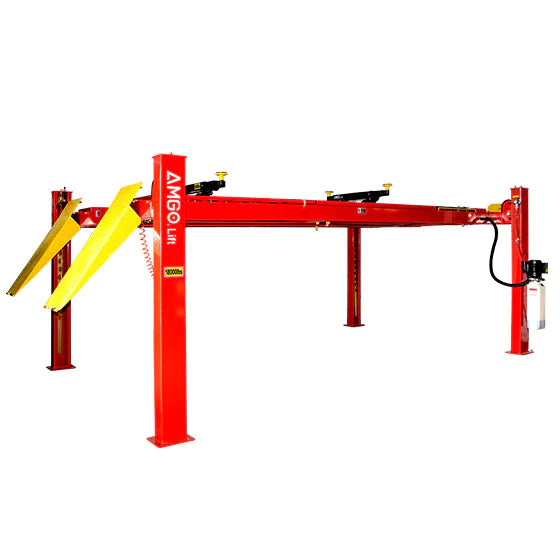

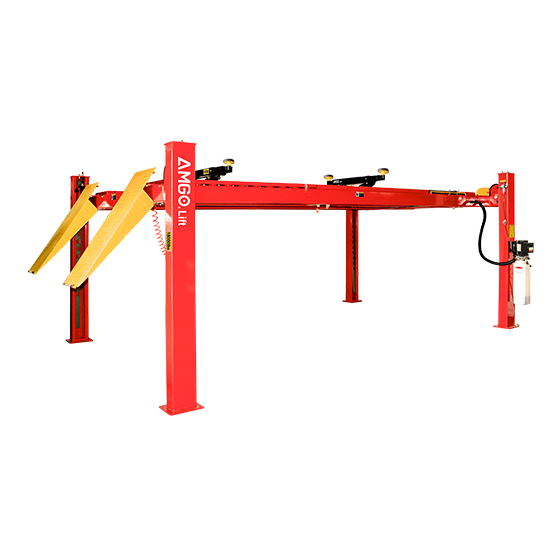

AMGO PRO-18A 18,000 lb Alignment Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
Featuring extended non-skid runways, the PRO-18A includes integrated slip plates and adjustable turnplate pockets to accommodate various wheelbases for precise alignment. Built with the same heavy-duty features as the PRO-18, this model provides a versatile solution for high-volume automotive and commercial shops.
Features
• 18,000 lbs capacity;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Integrated slip plates and adjustable turnplate pockets.

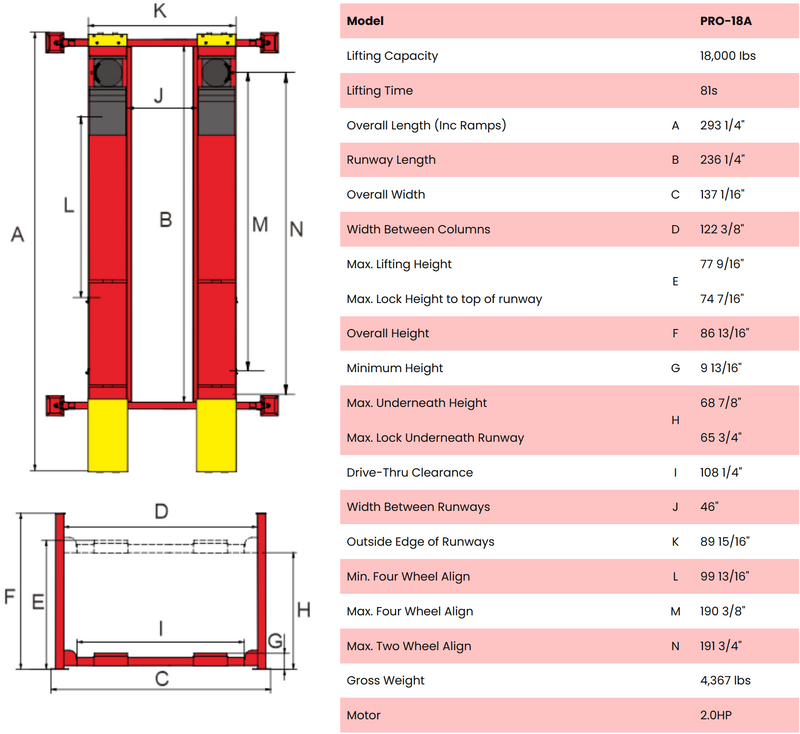

Specifications
| Model | PRO-18A | |
|---|---|---|
| Lifting Capacity | 18,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 293 1/4" |
| Runway Length | B | 236 1/4" |
| Overall Width | C | 137 1/16" |
| Width Between Columns | D | 122 3/8" |
| Max. Lifting Height | E | 77 9/16" |
| Max. Lock Height to top of runway | 74 7/16" | |
| Overall Height | F | 86 13/16" |
| Minimum Height | G | 9 13/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 108 1/4" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 89 15/16" |
| Min. Four Wheel Align | L | 99 13/16" |
| Max. Four Wheel Align | M | 190 3/8" |
| Max. Two Wheel Align | N | 191 3/4" |
| Gross Weight | 4,367 lbs | |
| Motor | 2.0HP |

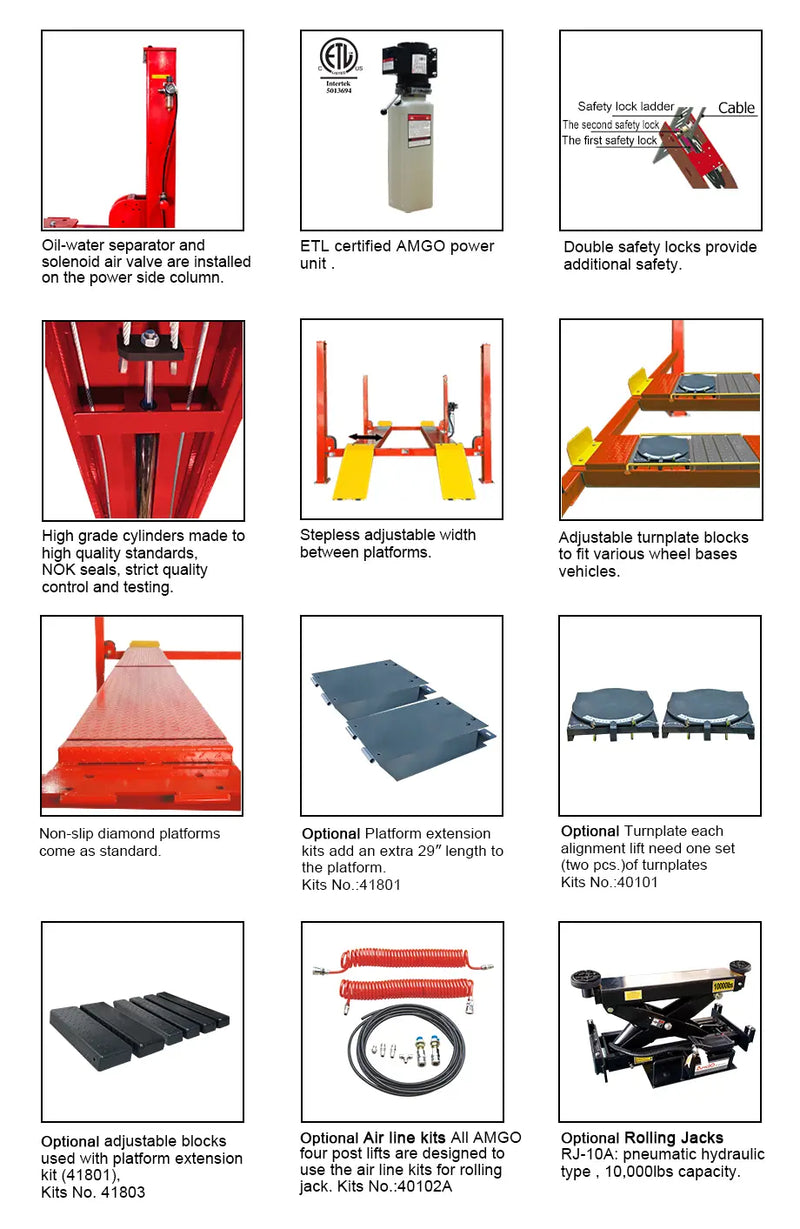

Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Non-slip diamond platforms come standard.
Adjustable turnplate blocks accommodate various wheelbases.
Optional extension platform kit. Kits No.: 41801-01.
Optional turnplate; 2 units needed for each alignment lift.. Kits No.: 40101.
Optional adjustable blocks used with extension platform , Kits No. 41803
Optional Air line kits-All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional rolling jack with 10,000lbs capacity: RJ-10A - pneumatic
Shipping Information
1 units/package, packing measurement (LxWxH): 255 5/16" x 24 13/16"x 34 5/16". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 255 5/16" x 24 13/16"x 66 9/16"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
