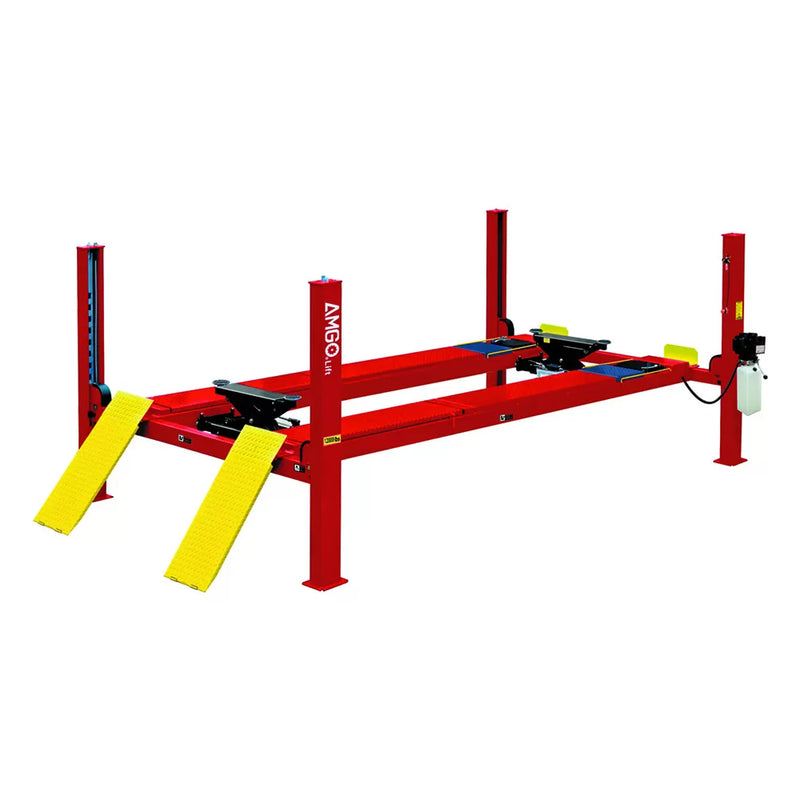

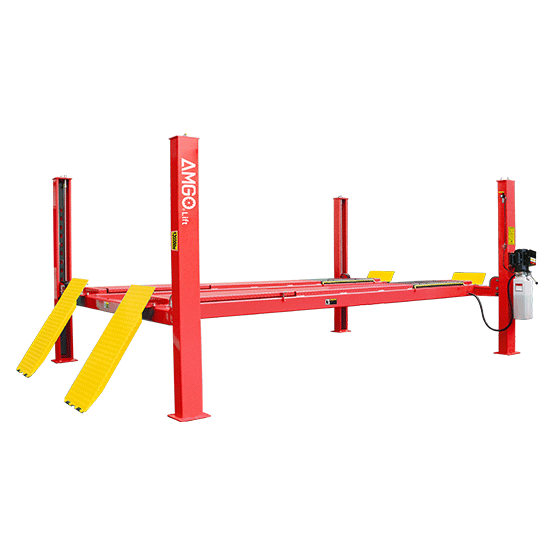

AMGO PRO-12A 12,000 lb Alignment Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The AMGO PRO-12A combines the proven functionality of the PRO-12 with integrated slip plates and adjustable turnplate pockets for specialized wheel service. With a 12,000 lb capacity, the PRO-12A is an ideal solution for high-volume alignment and daily service tasks.
Features
• 12,000 lbs capacity;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms;
• Integrated slip plates and adjustable turnplate pockets.

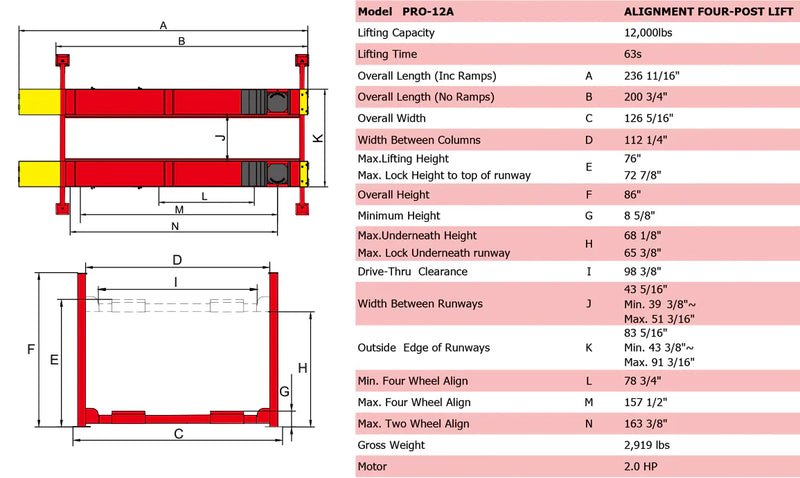

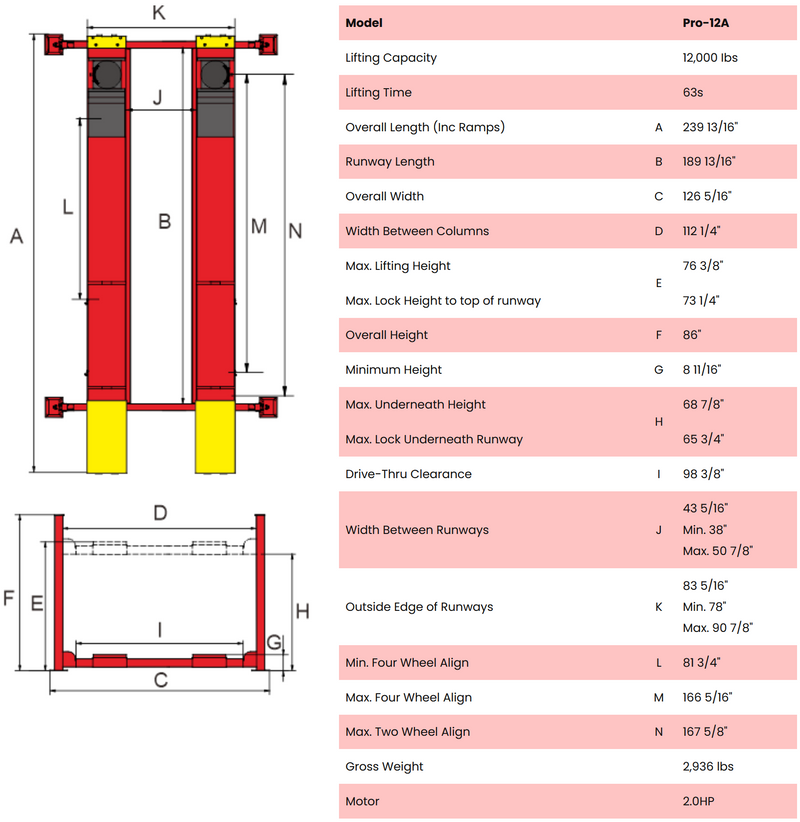

Specifications
| Model | Pro-12A | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 239 13/16" |
| Runway Length | B | 189 13/16" |
| Overall Width | C | 126 5/16" |
| Width Between Columns | D | 112 1/4" |
| Max. Lifting Height | E | 76 3/8" |
| Max. Lock Height to top of runway | 73 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 8 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 98 3/8" |
| Width Between Runways | J | 43 5/16" Min. 38" Max. 50 7/8" |
| Outside Edge of Runways | K | 83 5/16" Min. 78" Max. 90 7/8" |
| Min. Four Wheel Align | L | 81 3/4" |
| Max. Four Wheel Align | M | 166 5/16" |
| Max. Two Wheel Align | N | 167 5/8" |
| Gross Weight | 2,936 lbs | |
| Motor | 2.0HP |

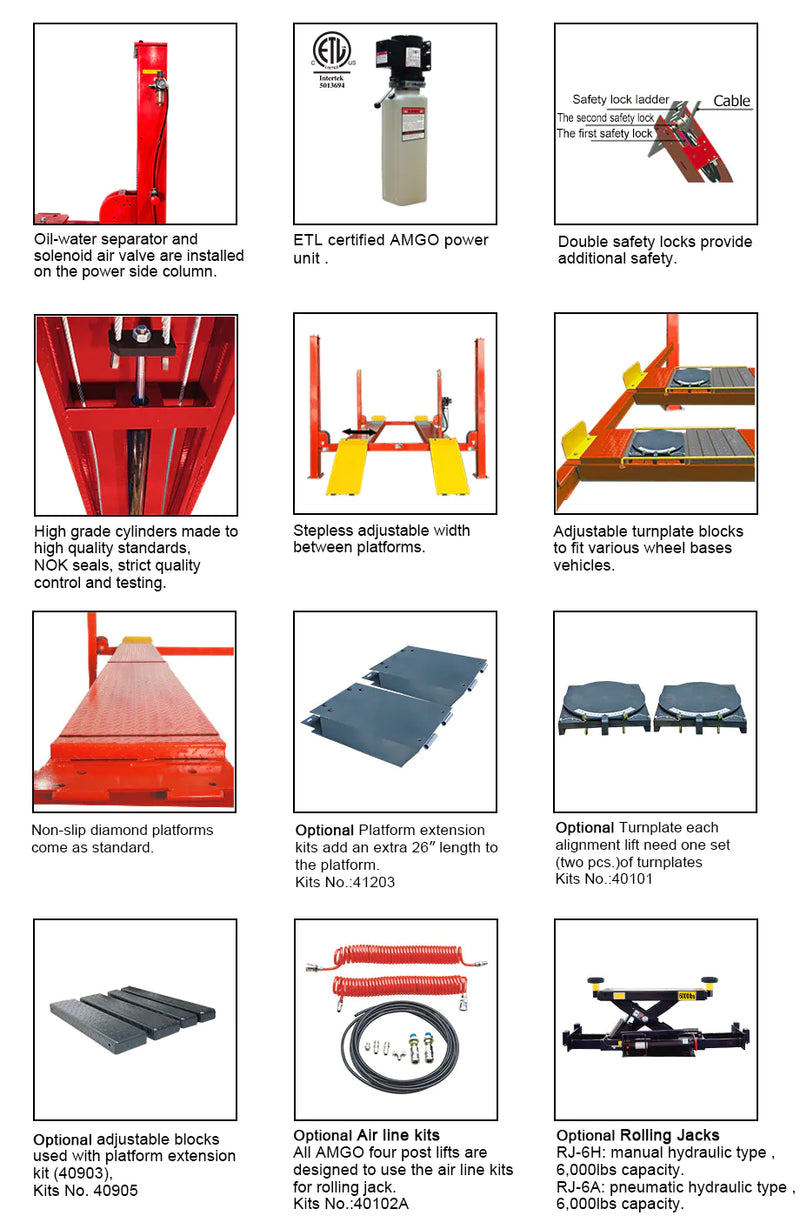

Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Stepless adjustable width between platforms.
Adjustable turnplate blocks to accommodate various wheelbases.
Non-slip diamond platforms come standard.
Optional extension platform adds 26" in lenght to the platform. Kits No.:41203
Optional turnplate; 2 units needed for each alignment lift.. Kits No.: 40101
Optional adjustable blocks used with platform extension kit (41203), Kits No.40905
Optional Air line kits. All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional rolling jacks with 6,000lbs capacity: RJ-6A - pneumatic or RJ-6H: manual.
Shipping Information
1 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x28 1/2", packed with power unit
3 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x84 1/16", packed with power unit.
Attention to forklift loading and unloading.
