AMGO 409-HP 9,000 lb 4-Post Lift
* Free Drip Trays & Jack Tray *
The AMGO Pro Series 409-HP built for a wide range of vehicles: cars, SUV and light trucks. Easy to install, barely for maintenance, the 409-HP has a large capacity at 9000lbs, can handle longer and taller vehicles and offer great mobility.
Features
● Lifting capacity: 9,000lbs;
● AMGO ETL certified power unit comes standard;
● High quality dual hydraulic direct-drive cylinders;
● AMGO’s patented design: concealed safety lock control device with a manual single-point lock release;
● Aero standard cables come standard;
● Double-
shaped columns are used to increase strength;
● Non-slip platforms come with foldable drive-in ramps;
● Support back-to-back installation to save space;
● The power side column can be installed at any corner;
● Increased lifting height is ideal for parking taller vehicles;
● Pull rope comes standard;

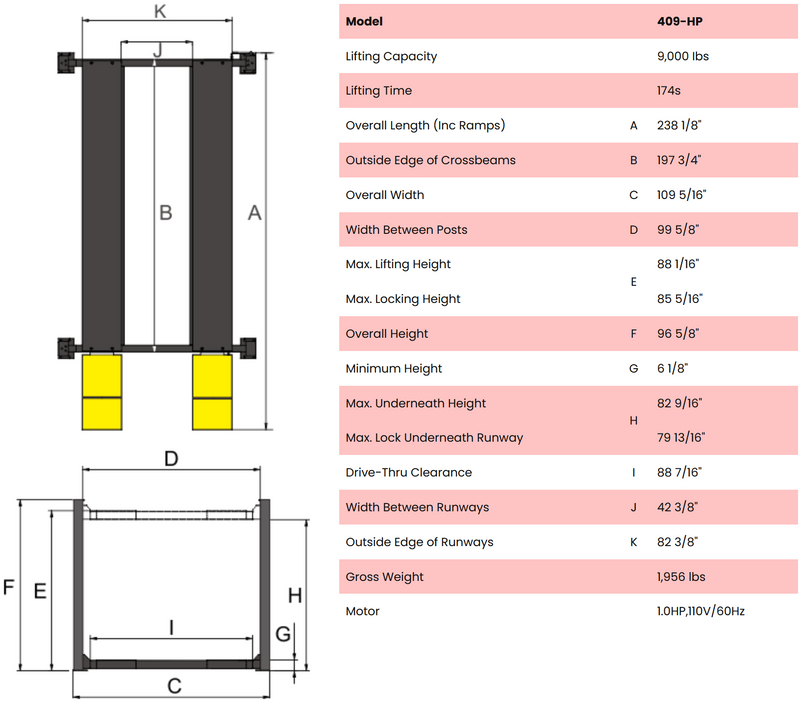

Specifications
| Model | 409-HP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 174s | |
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 109 5/16" |
| Width Between Posts | D | 99 5/8" |
| Max. Lifting Height | E | 88 1/16" |
| Max. Locking Height | 85 5/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Max. Underneath Height | H | 82 9/16" |
| Max. Lock Underneath Runway | 79 13/16" | |
| Drive-Thru Clearance | I | 88 7/16" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | 1,956 lbs | |
| Motor | 1.0HP,110V/60Hz |
AMGO’s patented design: concealed safety lock control with a manual single-point release.
Foldable drive-on ramps. (each lift 2 units). P/N:1104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional caster kits help easily move the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40807.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.
Optional Adj. Jack Tray,P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional RJ-6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 6,000lbs.
Shipping Information
Single unit packing dimensions : 202 5/8" x 22 1/16" x 29 5/16". Packed with Power Unit.
Packaging dimensions (3 units) (LxWxH) : 202 5/8" x 22 1/16" x 85 13/16"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
