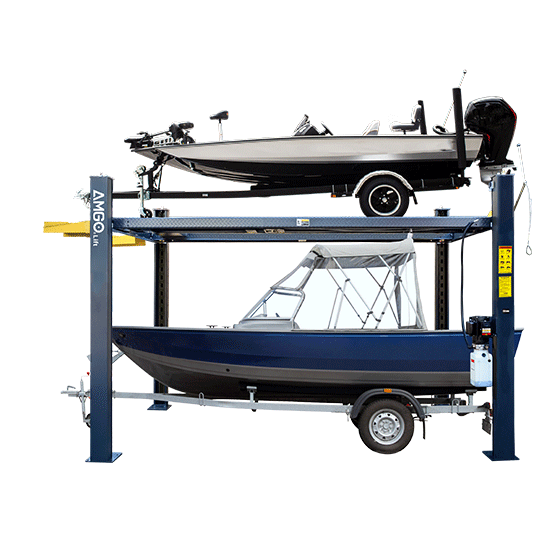

AMGO 408HLX 8000-lb. Capacity Extended Height 4-Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
* Free Drip Trays & Jack Tray *
Tailored for extended height, 408HLX packs all the advantages of 408-HPX and features an extended-height design, providing extra headroom for your boats and large vehicles.
Features
- Lifting capacity: 8,000lbs;
- AMGO’s proprietary manual single-point release concealed lock system ( no air source required);
- Dual safety mechanisms with primary safety locks and cable-slack protection;
- Integrated non-slip diamond platforms;
- Flexibility to install power unit at any corner;
- Platform with two width settings to accomodate various trailers and vehicles;
- Standard foldable drive-in ramps;
- ETL certified Power unit;
- With 15 3/4″ of additional height over the 408-HPX, this model is the ideal solution for taller boats and vehicles.

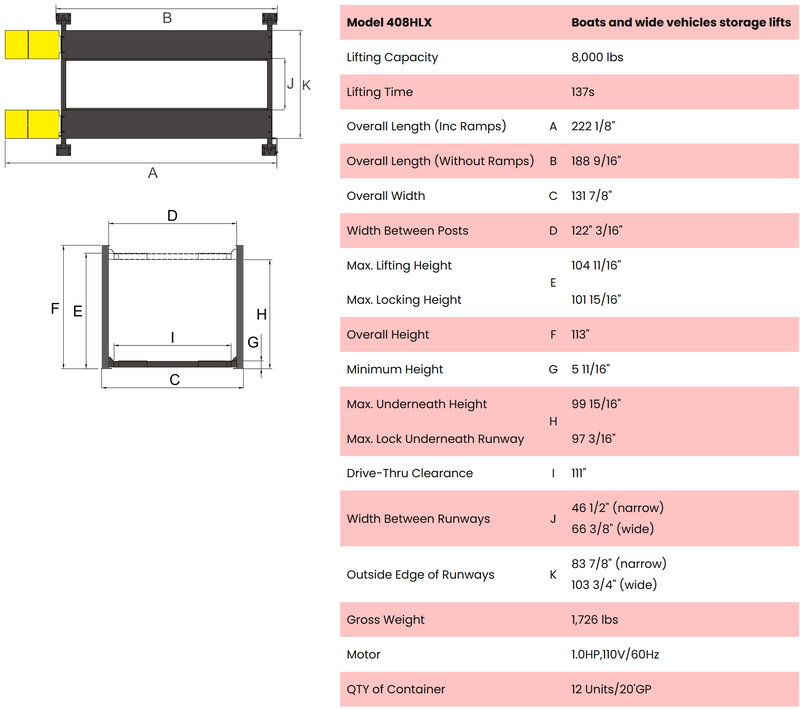

Specifications
| Model 408HLX | Boats and wide vehicles storage lifts | |
|---|---|---|
| Lifting Capacity | 8,000 lbs | |
| Lifting Time | 137s | |
| Overall Length (Inc Ramps) | A | 222 1/8" |
| Overall Length (Without Ramps) | B | 188 9/16" |
| Overall Width | C | 131 7/8" |
| Width Between Posts | D | 122" 3/16" |
| Max. Lifting Height | E | 104 11/16" |
| Max. Locking Height | 101 15/16" | |
| Overall Height | F | 113" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 99 15/16" |
| Max. Lock Underneath Runway | 97 3/16" | |
| Drive-Thru Clearance | I | 111" |
| Width Between Runways | J | 46 1/2" (narrow) 66 3/8" (wide) |
| Outside Edge of Runways | K | 83 7/8" (narrow) 103 3/4" (wide) |
| Gross Weight | 1,726 lbs | |
| Motor | 1.0HP,110V/60Hz | |
| QTY of Container | 12 Units/20'GP |
AMGO’s proprietary manual single-point release concealed lock system ( no air source required)
Standard adjustable trailer platform. Adj. range: 42 3/8" ~ 66 1/4".
Double safety locks provide additional safety.
Foldable drive-on ramps. (each lift 2 units).
Standard 90° motor installing plate.
Optional extended aluminum alloy drive-in ramp. Kits No.: 40815, each lift needs 2 units.
Optional Motor protective cover for outdoor installation (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock. P/N: 40811
Optional trailer extented platform adds an extra 24" in length. Kits No.: 40818.
Shipping Information
1 unit/package, packing measurement (LxWxH): 167 3/4" x 20 1/2" x 29 3/4"
2 units/package, packing measurement (LxWxH): 167 3/4" x 20 1/2" x 59 5/8"
3 units/package, packing measurement (LxWxH): 167 3/4" x 20 1/2" x 87 3/8"
1 unit/ctn, packing measurement (LxWxH): 27 3/4" x 11 13/16" x 14 3/16"
Packing measurement (LxWxH): 47 1/4" x 36 1/4" x 90 3/8"
